Transporto priemonė: LS 1518; VIN numerio dalis: 351335
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING, SEE PARTS LIST: | ||
| 766 | ||

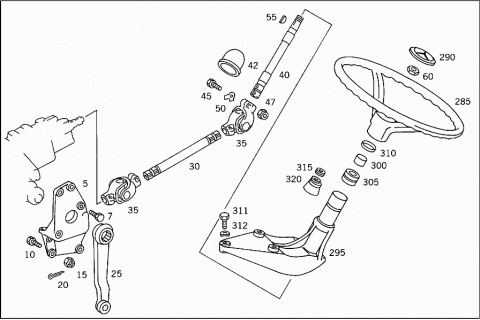

| 005 | A 0444610240 | STEERING SUPPORT |
| Repalced by: A 3454617040 | ||
| 005 | A 3444610040 | STEERING SUPPORT |
| 005 | A 3454617040 | STEERING SUPPORT |
| 007 | A 3529900202 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 007 | A 3529900302 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 010 | N 000961012204 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 010 | N 000961012202 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 010 | N 000961012201 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 010 | N 000961012200 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 010 | N 000961012198 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 015 | N 000935012003 | NUT |
| STEERING BRACKET TO FRAME | ||
| 020 | N 000094003217 | COTTER PIN |
| STEERING BRACKET TO FRAME | ||
| 025 | A 3454630301 | PITMAN ARM |
| 025 | A 3454630301 | PITMAN ARM |
| 030 | A 3604620501 | STEERING SHAFT |
| BOTTOM | ||
| 445 MM;TO 345 460 01 03 | ||
| 030 | A 3454620201 | STEERING SHAFT |
| BOTTOM | ||
| 521 MM;TO 364 460 70 03,351 460 70 03 | ||
| 030 | A 3414627201 | STEERING SHAFT |
| BOTTOM | ||
| 521 MM;TO 364 460 70 03,351 460 70 03 | ||
| 035 | A 3454600057 | UNIVERSAL JOINT |
| 035 | A 3164600057 | UNIVERSAL JOINT |
| 035 | A 3444607057 | UNIVERSAL JOINT |
| 035 | A 3444607157 | UNIVERSAL JOINT |
| 035 | A 3444607257 | UNIVERSAL JOINT |
| 040 | A 3524620001 | STEERING SHAFT |
| TOP | ||
| 040 | A 3454627301 | STEERING SHAFT |
| TOP | ||
| 042 | A 3524620296 | BOOT |
| Repalced by: A 3604620596 | ||
| 042 | A 3604620596 | BOOT |
| 045 | A 3219900401 | SCREW |
| Repalced by: A 3169900114 | ||
| 045 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 047 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 050 | N 000463010502 | LOCK PLATE |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 055 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 060 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 061 | N 003901022002 | SCREW-IN FITTING |
| LINE TO OIL PUMP | ||
| 062 | N 007603026104 | SEAL RING |
| LINE TO OIL PUMP | ||
| 063 | N 003901012001 | SCREW-IN FITTING |
| LINE TO OIL PUMP | ||
| 064 | N 007603016105 | SEAL RING |
| LINE TO OIL PUMP | ||
| 065 | A 3514667265 | LINE |
| Repalced by: A 3514667665 | ||
| 065 | A 3514667665 | LINE |
| Repalced by: A 3514607624 | ||
| 065 | A 3514607624 | LINE |
| FROM PUMP TO HOSE | ||
| 067 | N 915017012100 | UNION NUT |
| 068 | N 003861012007 | GLAND |
| 070 | H 983459971182 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 071 | A 0109971682 | HOSE |
| Repalced by: A 0019972652 | ||
| 071 | A 0019972652 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 071 | A 3459977382 | HOSE |
| 075 | A 3514667365 | LINE |
| FROM HOSE TO STEERING | ||
| 076 | A 3514667565 | LINE |
| Repalced by: A 3514667865 | ||
| 076 | A 3514667865 | LINE |
| Repalced by: A 3514607824 | ||
| 076 | A 3514607824 | LINE |
| FROM HOSE TO STEERING | ||
| 080 | N 003861012007 | GLAND |
| 085 | N 915017012100 | UNION NUT |
| 090 | N 007603016105 | SEAL RING |
| PIPE LINE TO STEERING | ||
| 095 | N 003901012001 | SCREW-IN FITTING |
| PIPE LINE TO STEERING | ||
| 100 | N 007603018101 | SEAL RING |
| FROM LINE TO OIL TANK | ||
| 105 | N 003901015002 | SCREW-IN FITTING |
| FROM LINE TO OIL TANK | ||
| 110 | A 3524661665 | LINE |
| Repalced by: A 3524601624 | ||
| 110 | A 3524601624 | LINE |
| FROM STEERING TO OIL TANK | ||
| 111 | A 3454661365 | LINE |
| Repalced by: A 3514667765 | ||
| 111 | A 3514667765 | LINE |
| Repalced by: A 3514607724 | ||
| 111 | A 3514607724 | LINE |
| FROM STEERING TO OIL TANK | ||
| 115 | N 003861015004 | GLAND |
| 120 | N 915017015100 | UNION NUT |
| 121 | A 3519970082 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 122 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 122 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||

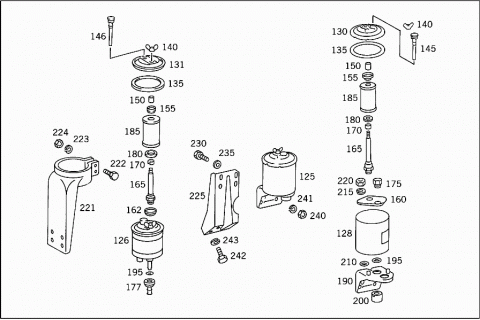

| 125 | A 0004662002 | TANK |
| 125 | A 0004662402 | TANK |
| 126 | A 3844667002 | TANK |
| 126 | A 0004664502 | TANK |
| 126 | A 0004663802 | TANK |
| 128 | A 0004660103 | HOUSING |
| 130 | A 0004661305 | COVER |
| Repalced by: A 0004664405 | ||
| 130 | A 0004664405 | COVER |
| 131 | A 0004662005 | COVER |
| 135 | A 0004660260 | SEAL RING |
| 140 | N 000315008003 | NUT |
| Repalced by: A 0009901462 | ||
| 140 | A 0009901462 | NUT |
| 145 | A 0004660067 | OIL DIPSTICK |
| 146 | A 0004660218 | PIPE |
| 150 | A 0009870643 | RUBBER SLEEVE |
| 155 | A 0004660675 | CENTERING RING |
| 160 | A 0004660037 | REINFORCEMENT |
| Repalced by: A 0004660095 | ||
| 160 | A 0004660095 | STRUT |
| 162 | A 0004660238 | COVER PLATE |
| 165 | A 0014664465 | FILTER CARRIER |
| Repalced by: A 0004610065 | ||
| 165 | A 0004610065 | FILTER SUPPORT |
| 170 | A 0004660153 | SPACER TUBE |
| 175 | A 0029972871 | FITTING |
| Repalced by: A 0004660571 | ||
| 175 | A 0004660571 | FITTING |
| 177 | A 0004660558 | CONNECTOR |
| 180 | A 0004660275 | WASHER |
| 185 | A 0004660204 | FILTER |
| Repalced by: A 0004660604 | ||
| 185 | A 0004660604 | FILTER |
| 190 | A 0004660040 | BRACKET |
| Repalced by: A 0004660640 | ||
| 190 | A 0004660640 | BRACKET |
| 195 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 195 | A 0059970848 | SEAL RING |
| 200 | A 0004660358 | CONNECTOR |
| TO 000 466 24 02 | ||
| 200 | A 0009977672 | FITTING |
| TO 000 466 20 02 | ||
| 200 | A 0004660458 | CONNECTOR |
| TO 000 466 24 02 | ||
| 200 | A 0004660272 | CONNECTOR |
| TO 000 466 20 02 | ||
| 210 | A 0099970145 | SEAL RING |
| 215 | N 000127008205 | LOCK WASHER |
| 220 | N 000934008035 | NUT |
| 221 | A 3454600035 | BRACKET |
| OIL TANK | ||
| TO 384 466 70 02,000 466 38 02 | ||
| 221 | A 3514607135 | BRACKET |
| OIL TANK | ||
| TO 000 466 45 02 | ||
| 222 | N 000933006046 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X20 | ||
| 222 | N 000933006058 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X25 | ||
| 223 | N 000127006200 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 224 | N 000934006007 | NUT |
| OIL TANK TO BRACKET | ||
| 225 | A 3454667040 | BRACKET |
| OIL TANK | ||
| 230 | N 000933010016 | SCREW |
| OIL TANK BRACKET TO BRACKET | ||
| 235 | N 000125010518 | WASHER |
| OIL TANK BRACKET TO BRACKET | ||
| 240 | N 000934010000 | NUT |
| OIL TANK BRACKET TO BRACKET | ||
| 241 | N 000127010205 | LOCK WASHER |
| OIL TANK BRACKET TO BRACKET | ||
| 242 | N 000961012150 | SCREW |
| BRACKET TO STEERING | ||
| 243 | N 000127012203 | LOCK WASHER |
| BRACKET TO STEERING | ||
| 245 | A 3454660465 | LINE |
| Repalced by: A 3454600424 | ||
| 245 | A 3454600424 | LINE |
| 246 | A 3514660365 | LINE |
| Repalced by: A 3514668565 | ||
| 246 | A 3514668565 | LINE |
| FROM TANK TO HOSE | ||
| 250 | A 3609970982 | HOSE |
| OIL LINE CONNECTION | ||
| 250 | A 3609970982 | HOSE |
| OIL LINE CONNECTION | ||
| 253 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 253 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| A 3604663465 | LINE | |
| FROM HOSE TO PUMP | ||
| 256 | A 3514667465 | LINE |
| Repalced by: A 3514608424 | ||
| 256 | A 3514668465 | LINE |
| Repalced by: A 3514608424 | ||
| 256 | A 3514608424 | LINE |
| FROM HOSE TO PUMP | ||
| 260 | N 003861022004 | GLAND |
| 265 | N 915017022100 | UNION NUT |
| 270 | A 3529950448 | CLAMPING PIECE |
| 275 | N 916016012201 | CLAMP |
| 280 | N 916016022202 | CLAMP |
| 281 | N 000933008036 | SCREW |
| 281 | N 000933008014 | SCREW |
| 282 | N 912004008104 | LOCK WASHER |
| 283 | N 000125008413 | WASHER |
| 284 | N 000934008000 | NUT |
| 285 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 3454600203 | ||
| 285 | A 3454600203 | STEERING WHEEL |
| Repalced by: A 3644607003 | ||
| 285 | A 3454600303 | STEERING WHEEL |
| Repalced by: A 3644607003 | ||
| 285 | A 3644607003 | STEERING WHEEL |
| IVORY | ||
| TO 345 462 02 01,341 462 72 01 | ||
| 285 | A 3514607003 | STEERING WHEEL |
| TO 345 462 02 01,341 462 72 01 | ||
| 285 | A 3454600103 | STEERING WHEEL |
| TO 360 462 05 01 | ||
| 290 | A 3644647032 | BADGE |
| TO 364 460 70 03 | ||
| 290 | A 0004640432 | BADGE |
| TO 364 460 70 03 | ||
| 290 | A 0004641731 | CAP |
| TO 345 460 03 03 | ||
| 290 | A 0004641631 | CAP |
| TO 345 460 02 03 | ||
| 290 | A 0004640131 | CAP |
| Repalced by: A 0004641231 | ||
| 290 | A 0004641231 | CAP |
| Repalced by: A 3454647131 | ||
| 290 | A 3454647131 | CAP |
| TO 000 464 06 01; 345 460 02 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 460 70 03 | ||
| 295 | A 3434600037 | BEARING |
| 295 | A 3434600137 | BEARING |
| 300 | A 3124621150 | BUSHING |
| 305 | A 3214620165 | RING |
| 310 | A 3224620023 | COVER |
| 311 | N 000931010212 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 311 | N 000933010093 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 312 | N 000137010202 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 315 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 320 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||

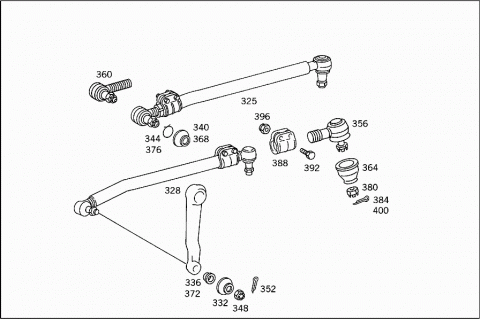

| 325 | A 3604600205 | DRAG LINK |
| Repalced by: A 3514600305 | ||
| 325 | A 3514600305 | DRAG LINK |
| 328 | A 3524603305 | DRAG LINK |
| 328 | A 3764600105 | DRAG LINK |
| 328 | A 3454608805 | DRAG LINK |
| 328 | A 3454608105 | DRAG LINK |
| 328 | A 3514607105 | DRAG LINK |
| 332 | A 0003300285 | BOOT |
| TO 352 460 33 05 | ||
| 332 | A 0003300385 | BOOT |
| FIXED PART OF JOINT | ||
| TO 360 460 02 05,351 460 03 05 | ||
| 332 | A 0003300385 | BOOT |
| FIXED PART OF JOINT | ||
| TO 376 460 01 05,351 460 71 05 | ||
| 332 | A 3643307085 | BOOT |
| FIXED PART OF JOINT | ||
| TO 345 460 88 05 | ||
| 336 | A 3643387082 | RUBBER RING |
| Repalced by: A 0003381463 | ||
| 336 | A 0003381463 | CLAMPING RING |
| FIXED PART OF JOINT | ||
| TO 345 460 88 05 | ||
| 340 | A 3503387056 | DUST CAP |
| FIXED PART OF JOINT | ||
| TO 345 460 81 05 | ||
| 344 | A 3503387063 | CLAMPING RING |
| FIXED PART OF JOINT | ||
| TO 345 460 81 05 | ||
| 348 | N 000937018004 | NUT |
| FIXED PART OF JOINT | ||
| 348 | N 000937020001 | NUT |
| FIXED PART OF JOINT | ||
| 352 | N 000094004061 | COTTER PIN |
| FIXED PART OF JOINT | ||
| 352 | N 000094004026 | COTTER PIN |
| FIXED PART OF JOINT | ||
| 352 | N 000094004066 | COTTER PIN |
| FIXED PART OF JOINT | ||
| 356 | A 0003303135 | JOINT |
| TO 352 460 33 05 | ||
| 356 | A 0004600148 | DRAG LINK END |
| TO 376 460 01 05,351 460 71 05 | ||
| 360 | A 0003301435 | JOINT |
| TO 360 460 02 05,351 460 03 05 | ||
| 360 | A 3453307135 | JOINT |
| TO 345 460 88 05 | ||
| 360 | A 3503307035 | JOINT |
| TO 345 460 81 05 | ||
| 364 | A 0003300285 | BOOT |
| SCREWED PART OF JOINT | ||
| TO 360 460 02 05,351 460 03 05 | ||
| 364 | A 0003300385 | BOOT |
| SCREWED PART OF JOINT | ||
| TO 352 460 33 05 | ||
| 364 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 364 | A 0004621796 | BOOT |
| SCREWED PART OF JOINT | ||
| TO 376 460 01 05,351 460 71 05 | ||
| 368 | A 3503387056 | DUST CAP |
| SCREWED PART OF JOINT | ||
| TO 345 460 81 05 | ||
| 372 | A 0004630063 | RING |
| SCREWED PART OF JOINT | ||
| TO 376 460 01 05 | ||
| 376 | A 3503387063 | CLAMPING RING |
| SCREWED PART OF JOINT | ||
| TO 345 460 81 05 | ||
| 380 | N 000937018004 | NUT |
| SCREWED PART OF JOINT | ||
| 380 | N 000937020001 | NUT |
| SCREWED PART OF JOINT | ||
| 384 | N 000094004061 | COTTER PIN |
| SCREWED PART OF JOINT | ||
| 384 | N 000094004026 | COTTER PIN |
| SCREWED PART OF JOINT | ||
| 384 | N 000094004066 | COTTER PIN |
| SCREWED PART OF JOINT | ||
| 388 | A 0003381445 | CLAMP |
| TO 352 460 33 05 | ||
| 388 | A 0003381445 | CLAMP |
| TO 376 460 01 05,345 460 88 05 | ||
| 388 | A 3503387045 | CLAMP |
| TO 345 460 81 05 | ||
| 388 | A 0003382445 | CLAMP |
| TO 351 460 71 05 | ||
| A 0003382245 | CLAMP | |
| Repalced by: A 0003382145 | ||
| 388 | A 0003382145 | CLAMP |
| TO 360 460 02 05,351 460 03 05 | ||
| 392 | N 000960012350 | SCREW |
| TO 352 460 33 05 | ||
| 392 | N 000960012349 | SCREW |
| TO 376 460 01 05,345 460 81 05,8805 | ||
| 392 | N 000960012262 | SCREW |
| TO 351 460 71 05 | ||
| 392 | N 000960012348 | SCREW |
| TO 360 460 02 05,351 460 03 05 | ||
| 396 | N 913004012003 | NUT |
| TO 360 460 02 05,351 460 03 05 | ||
| 396 | N 913004012003 | NUT |
| TO 376 460 01 05,345460 81 05,8805 | ||
| 396 | N 913004012003 | NUT |
| TO 351 460 71 05 | ||
| 396 | N 000935012002 | NUT |
| TO 352 460 33 05 | ||
| 400 | N 000094003226 | COTTER PIN |
| TO 352 460 33 05 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
