Transporto priemonė: LS 1518; VIN numerio dalis: 351335

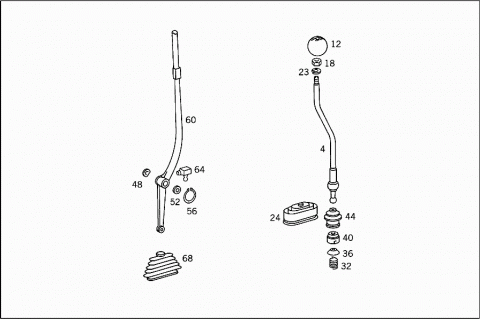

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT PARTS LIST | ||
| 713.0 ,714.0 ,719.7 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT PARTS LIST | ||
| 713.5 | ||
| 004 | A 3412600339 | SHIFT LEVER |
| 004 | A 3412607239 | SHIFT LEVER |
| 004 | A 3412607539 | SHIFT LEVER |
| 012 | A 3222600040 | HANDLE |
| 018 | N 000936010002 | NUT |
| A 3412677072 | NUT | |
| BRACKET TO SHIFT LEVER | ||
| 023 | N 007603010022 | SEAL RING |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 024 | A 3522670096 | BOOT |
| 024 | A 3522670396 | BOOT |
| Repalced by: A 3522670096 | ||
| 024 | A 3522670296 | BOOT |
| Repalced by: A 3522670096 | ||
| 024 | A 3412677096 | BOOT |
| 032 | A 3179930501 | SPRING |
| 036 | A 3022670008 | SPHERICAL PIECE |
| A 3142680005 | COVER | |
| Repalced by: A 3082680005 | ||
| 040 | A 3082680005 | COVER |
| 044 | A 3372670096 | BOOT |
| 044 | A 3522670196 | BOOT |
| 048 | A 3129900148 | WASHER |
| SHIFT LEVER TO PIVOT PIN | ||
| 052 | N 000433015000 | WASHER |
| SHIFT LEVER TO PIVOT PIN | ||
| 056 | N 000471015000 | LOCK RING |
| SHIFT LEVER TO PIVOT PIN | ||
| 060 | A 3222640124 | SHIFT LEVER |
| P.T.O. | ||
| 064 | N 071412008300 | GREASE NIPPLE |
| SHIFT LEVER BEARING | ||
| 068 | A 3222640096 | BOOT |
| 068 | A 0002640496 | BOOT |
