Mercedes-benz | iAUTO.lt

Transporto priemonė: LS 1519; VIN numerio dalis: 345045

Grupė: 25 CLUTCH

#	Kodas	Pavadinimas

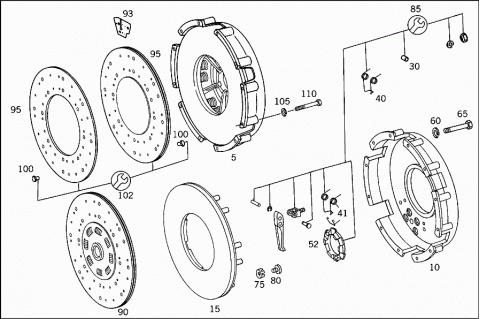

005	A 0012500704	CLUTCH PRESSURE PLATE
	Repalced by: A 0032502004
005	A 0032502004	CLUTCH PRESSURE PLATE
005	A 3452507004	CLUTCH PRESSURE PLATE
	Repalced by: A 0032502004
005	A 0032507104	CLUTCH PRESSURE PLATE
010	A 0002520932	HOUSING
	Repalced by: A 0002525432
010	A 0002525432	HOUSING
		TO 001 250 07 04,003 250 20 04
010	A 0002525432	HOUSING
		TO 003 250 71 04
015	A 0002522612	PRESSURE PLATE
		TO 001 250 07 04
015	A 0002520412	PRESSURE PLATE
		TO 003 250 20 04,003 250 71 04
	A 0002522916	SPINDLE
	Repalced by: A 0002520616
	A 0002520616	SPINDLE
		TO 001 250 07 04,003 250 20 04
	A 0002520716	SPINDLE
	Repalced by: A 0002522816
	A 0002522816	SPINDLE
		TO 001 250 07 04,003 250 20 04
	N 006799007003	LOCK PLATE
		TO 001 250 07 04,003 250 20 04
030	A 0002520118	ROLLER
		TO 001 250 07 04,003 250 20 04
030	A 0002520118	ROLLER
		TO 003 250 71 04
	N 000094002033	COTTER PIN
	A 0002524613	RELEASE LEVER
		TO 001 250 07 04,003 250 20 04
040	A 0002521927	SPRING
		TO 001 250 07 04,003 250 20 04
041	A 0002523227	SPRING
		TO 003 250 71 04
	A 0002520727	SPRING
		TO 001 250 07 04,003 250 20 04
	A 0002521372	NUT
	Repalced by: A 0002523072
	A 0002523072	NUT
		TO 001 250 07 04,003 250 20 04
	A 0002520929	CLAMP
		TO 001 250 07 04,003 250 20 04
052	A 0002522045	FLANGE
	Repalced by: A 0002520345
052	A 0002520345	FLANGE
		TO 001 250 07 04,003 250 20 04
052	A 0002522145	FLANGE
		TO 003 250 71 04
	A 0002520519	LEAF SPRING
		TO 001 250 07 04,003 250 20 04
	A 0002520614	BRACKET
		TO 001 250 07 04,003 250 20 04
	A 0002520373	LOCK
	Repalced by: A 0002521073
	A 0002521073	LOCK
		TO 001 250 07 04,003 250 20 04
060	A 0009901647	LOCK WASHER
	Repalced by: N 912004005100
060	N 000127005001	LOCK WASHER
		TO 001 250 07 04,003 250 20 04
065	A 0009900020	SCREW
	Repalced by: N 000085005106
065	A 0002522971	SCREW
		TO 001 250 07 04,003 250 20 04
065	A 0002522971	SCREW
		TO 345 250 70 04,003 250 71 04
	A 0002524320	PRESSURE SPRING
		TO 001 250 07 04,003 250 20 04
	A 0002524420	PRESSURE SPRING
	A 0002527820	PRESSURE SPRING
075	A 0002520024	INSULATING WASHER
		TO 001 250 07 04
080	A 0002520535	SLEEVE
		TO 001 250 07 04,003 250 20 04
080	A 0002520535	SLEEVE
		TO 003 250 71 04
085	A 0085860025	REPAIR KIT
		TO 001 250 07 04
085	A 0315860025	REPAIR KIT
	Repalced by: A 3505867025
085	A 3505867025	REPAIR KIT
		TO 345 250 70 04
085	A 0052500704	REPAIR KIT
090	A 0012505503	CLUTCH DISC
090	A 3452507103	CLUTCH DISC
090	A 0022509803	CLUTCH DISC
093	A 0002520419	LEAF SPRING
095	A 0002523110	CLUTCH LINING
	Repalced by: A 0012522910
095	A 0012522910	CLUTCH LINING
100	A 0002521275	RIVET
100	A 0002521475	RIVET
	A 0002522075	RIVET
102	A 3455867125	REPAIR KIT
		TO 345 250 71 03
105	N 000127010202	LOCK WASHER
		CLUTCH TO FLYWHEEL
110	N 000931010409	SCREW
		CLUTCH TO FLYWHEEL

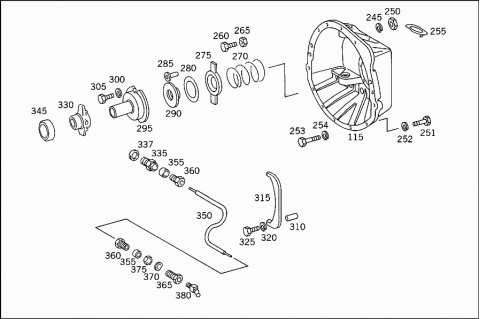

115	A 3452500105	HOUSING
		CLUTCH
120	A 3432510150	BUSHING
		BOTTOM
125	A 3439920103	BUSHING
		BOTTOM
130	A 3432510050	BUSHING
		TOP
135	A 3439920003	BUSHING
		TOP
140	N 005419035101	FELT RING
145	A 3432930027	COVER PLATE

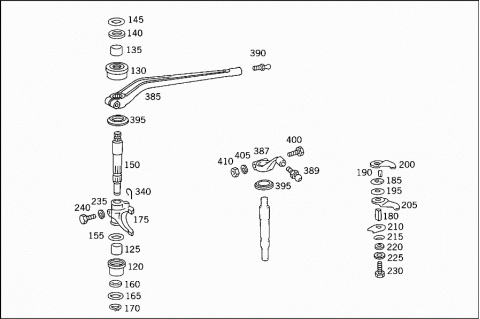

150	A 3432930001	RELEASE SHAFT
155	A 3172930377	WASHER
160	N 005419025101	FELT RING
165	A 3432930052	SPACER WASHER
		RELEASE YOKE TO SHAFT
170	N 000471024000	LOCK RING
		RELEASE YOKE TO SHAFT
175	A 3432930011	RELEASE YOKE
	Repalced by: A 3452937111
175	A 3452937111	RELEASE YOKE
	Repalced by: A 3452930211
175	A 3452930211	RELEASE YOKE
175	A 3452937011	RELEASE YOKE
	Repalced by: A 3452930111
175	A 3452930111	RELEASE YOKE
180	A 3262930053	SPACER TUBE
185	A 3262930077	WASHER
190	N 001481005022	CLAMPING SLEEVE
195	A 3262910076	WASHER
200	A 3432550016	LEVER
		LEFT
205	A 3432550116	LEVER
		RIGHT
210	A 3262910073	LOCK
215	N 002093031101	DISC SPRING
220	N 000988010016	FITTED WASHER
		AS REQUIRED
		1.0 MM
220	N 000988010019	FITTED WASHER
		AS REQUIRED
		1.5 MM
220	N 000988010020	FITTED WASHER
		AS REQUIRED
		2.0 MM
225	N 000125010517	WASHER
230	N 000960010072	SCREW
235	N 000127012201	LOCK WASHER
		RELEASE YOKE TO SHAFT
240	N 000931012283	SCREW
		RELEASE YOKE TO SHAFT
245	N 912004016101	LOCK WASHER
		BELL HOUSING TO CYLINDER CRANKCASE
250	N 000934016026	NUT
		BELL HOUSING TO CYLINDER CRANKCASE
251	N 000931012114	SCREW
		BELL HOUSING TO ENGINE
252	N 912004012100	LOCK WASHER
		BELL HOUSING TO ENGINE
253	N 000961018024	SCREW
		BELL HOUSING TO TRANSMISSION
254	N 000127018203	LOCK WASHER
		BELL HOUSING TO TRANSMISSION
255	A 3352500055	COVER
260	N 000933006221	SCREW
265	N 000934006006	NUT
270	A 3439930105	SPRING
275	A 3452507070	PRESSURE PLATE
280	A 3432550010	BRAKE LINING
285	N 007338005300	RIVET
290	A 3432550001	BRAKE DISC
295	A 3432540016	GUIDE
	Repalced by: A 3432540216
295	A 3432540216	GUIDE
300	N 000127010202	LOCK WASHER
		GUIDE TO BELL HOUSING
305	N 000933010294	SCREW
		GUIDE TO BELL HOUSING
310	A 3432550053	SPACER TUBE
		GUIDE TO BELL HOUSING
315	A 3432550019	FRICTION PIECE
320	N 000127010202	LOCK WASHER
		GUIDE TO BELL HOUSING
325	N 000931010409	SCREW
		GUIDE TO BELL HOUSING
330	A 3432540010	RELEASE COLLAR
335	N 071428004102	SCREW-IN FITTING
337	N 007603008112	SEAL RING
340	A 3122541013	SPRING LOCK
		RELEASE COLLAR TO RELEASE YOKE
345	A 3202500015	RELEASE BEARING
350	A 3059971982	HOSE
		RELEASE COLLAR LUBRICATION
350	A 3089977182	HOSE
		RELEASE COLLAR LUBRICATION
355	N 003862004001	DOUBLE TAPER RING
		RELEASE COLLAR LUBRICATION
360	N 003871004100	UNION SCREW
		RELEASE COLLAR LUBRICATION
365	A 0009973683	SLEEVE
		RELEASE COLLAR LUBRICATION
370	N 912004014100	LOCK WASHER
		RELEASE COLLAR LUBRICATION
375	N 000934014020	NUT
		RELEASE COLLAR LUBRICATION
380	N 071412008200	GREASE NIPPLE
380	A 3459977188	GREASE NIPPLE
385	A 3452540008	RELEASE LEVER
		CLUTCH ACTUATION
387	A 3452547025	LEVER
		CLUTCH ACTUATION
389	A 3029910115	BALL PIVOT
		CLUTCH ACTUATION
390	A 3529910415	BALL PIVOT
	Repalced by: A 3029910015
390	A 3029910015	BALL PIVOT
395	A 3439900040	WASHER
400	N 000931010402	SCREW
		LEVER TO RELEASE SHAFT
405	N 000127010202	LOCK WASHER
		LEVER TO RELEASE SHAFT
410	N 000934010005	NUT
		LEVER TO RELEASE SHAFT
