Transporto priemonė: LS 1519; VIN numerio dalis: 345045

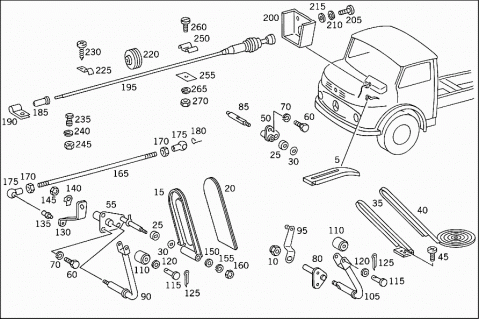

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3523000702 | PLATE |
| Repalced by: A 3453007004 | ||
| 005 | A 3453007004 | ACCELERATOR PEDAL |
| ACCELERATOR PEDAL CONTROL | ||
| 010 | N 913004008001 | NUT |
| LEVER TO SHAFT | ||
| 015 | A 3453007104 | ACCELERATOR PEDAL |
| 020 | A 3453017082 | PAD |
| 025 | A 3223010054 | GUARD PLATE |
| 030 | A 3523010088 | COVERING |
| 035 | A 3453007002 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 040 | A 3443010082 | PAD |
| ACCELERATOR PEDAL CONTROL | ||
| 045 | N 007985006515 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 050 | A 3603000021 | BEARING TUBE |
| Repalced by: A 3453007021 | ||
| 050 | A 3453007021 | BEARING TUBE |
| 055 | A 3453007121 | BEARING TUBE |
| 060 | N 000933008145 | SCREW |
| BEARING TUBE TO FIRE WALL | ||
| 070 | N 912004008100 | LOCK WASHER |
| BEARING TUBE TO FIRE WALL | ||
| 080 | A 3453007221 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 085 | A 3603010119 | SHAFT |
| CONTROL | ||
| 090 | A 3453007425 | LEVER |
| 095 | A 3453008725 | LEVER |
| 105 | A 3503007225 | LEVER |
| 110 | A 3443000006 | ROLLER |
| 115 | N 001444006224 | PIN |
| ROLLER TO LEVER | ||
| 120 | N 000125006420 | WASHER |
| ROLLER TO LEVER | ||
| 125 | N 000094001609 | COTTER PIN |
| ROLLER TO LEVER | ||
| 130 | A 3453000225 | LEVER |
| 135 | A 3129910120 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 135 | N 071803010209 | BALL PIVOT |
| 140 | A 3603010073 | LOCK |
| LEVER TO SHAFT | ||
| 145 | N 000936008011 | NUT |
| LEVER TO SHAFT | ||
| 150 | N 000433008403 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 155 | N 912004008100 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 160 | N 000934008010 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 165 | N 900331006118 | PULL ROD |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 170 | N 000934006006 | NUT |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 175 | N 071805010202 | BALL SOCKET |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 180 | N 071805010402 | CIRCLIP |
| PULL ROD | ||
| 185 | A 3453027191 | GROMMET |
| Repalced by: A 3453027091 | ||
| 185 | A 3453027091 | GROMMET |
| WIRE CABLE TO ENGINE | ||
| 190 | A 8339950201 | CLAMP |
| WIRE CABLE TO ENGINE | ||
| 195 | A 3603000207 | KNOB |
| 195 | A 3453007907 | KNOB |
| 195 | A 3453007107 | KNOB |
| A 3523020201 | KNOB | |
| A 3453008607 | KNOB | |
| Repalced by: A 3453008907 | ||
| A 3453008507 | KNOB | |
| Repalced by: A 3453009507 | ||
| 195 | A 3453008907 | KNOB |
| WITH SPINDLE | ||
| 195 | A 3453009507 | KNOB |
| WITH SPINDLE | ||
| 200 | A 3453007340 | BRACKET |
| MANUAL CONTROL | ||
| A 3523020308 | GUIDE | |
| 205 | N 007985006197 | SCREW |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 210 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 215 | N 000125006420 | WASHER |
| BRACKET TO WINDOW SILL SUPPORT | ||
| A 0019900040 | WASHER | |
| 220 | A 3459977181 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 225 | N 072571001024 | CLAMP |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 230 | N 007981004240 | SHEET METAL SCREW |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| A 3129901151 | NUT | |
| 235 | A 3453020071 | SCREW |
| WIRE CABLE TO ENGINE | ||
| 240 | N 000127006203 | LOCK WASHER |
| WIRE CABLE TO ENGINE | ||
| 245 | N 000934006006 | NUT |
| WIRE CABLE TO ENGINE | ||
| 250 | A 3459957032 | CLAMP |
| CABLE TO PRESSURE GAUGE LINE | ||
| 250 | A 3129950332 | CLAMP |
| CABLE TO PRESSURE GAUGE LINE | ||
| 255 | A 3215422340 | BRACKET |
| CABLE TO PRESSURE GAUGE LINE | ||
| 260 | N 007985005183 | SCREW |
| CABLE TO PRESSURE GAUGE LINE | ||
| 265 | N 000127005001 | LOCK WASHER |
| CABLE TO PRESSURE GAUGE LINE | ||
| 270 | N 000934005008 | NUT |
| CABLE TO PRESSURE GAUGE LINE | ||
