Transporto priemonė: LS 1519; VIN numerio dalis: 345045

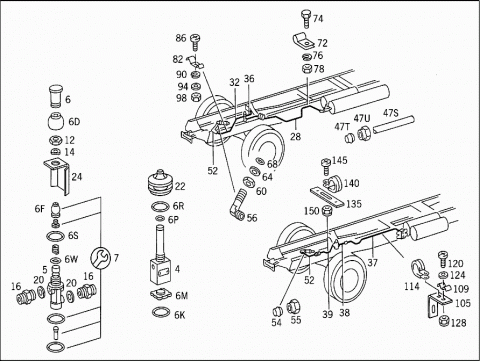

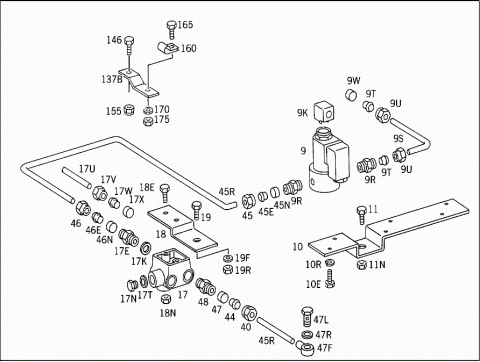

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0004340801 | VALVE |
| Repalced by: A 0004343001 | ||
| 004 | A 0004343001 | VALVE |
| OPERATING VALVE | ||
| "KNORR" | ||
| 005 | A 3454347101 | VALVE |
| OPERATING VALVE | ||
| "WABCO DO BRASIL" | ||
| 006 | A 0009972077 | HANDLE |
| TO 000 434 24 01 | ||
| 006D | A 0004340586 | CUP |
| TO 000 434 24 01 | ||
| 006F | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 08 01,345 434 71 01 | ||
| 006K | A 0109970948 | SEAL RING |
| TO 000 434 30 01 | ||
| 006M | A 0109971048 | SEAL RING |
| TO 000 434 30 01 | ||
| 006P | A 0109971148 | SEAL RING |
| TO 000 434 30 01 | ||
| 006R | A 0109971248 | SEAL RING |
| TO 000 434 30 01 | ||
| 006S | A 0079972448 | SEAL RING |
| TO 000 434 24 01 | ||
| 006W | A 0079972548 | SEAL RING |
| TO 000 434 24 01 | ||
| 007 | A 0014301360 | REPAIR KIT |
| Repalced by: A 0004304106 | ||
| 007 | A 0004304106 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 30 01 | ||
| 007 | A 0014301460 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 30 01 | ||
| 007 | H 983455860943 | REPAIR KIT |
| Repalced by: A 0034301281 | ||
| 007 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 08 01,345 434 71 01 | ||
| 007 | A 0005869743 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 08 01,345 434 71 01 | ||
| 009 | A 3649977036 | VALVE |
| (THREE-WAY SOLENOID VALVE) | ||
| 009 | A 3459977336 | VALVE |
| (THREE-WAY SOLENOID VALVE) | ||
| A 0139971648 | SEAL RING | |
| A 0004310472 | NUT | |
| A 0004311868 | VALVE PART | |
| A 0014311687 | PROTECTIVE CAP | |
| 009K | A 3647630056 | MAGNET |
| A 0015457928 | PLUG HOUSING | |
| BIPOLAR | ||
| TO 364 997 70 36 | ||
| A 0015458628 | PLUG | |
| TO 364 997 70 36 | ||
| 009R | A 3454297736 | CONNECTOR |
| THREE-WAY VALVE | ||
| 009S | A 0089976082 | HOSE |
| FROM SOLENOID VALVE TO EXHAUST BRAKE LINE | ||
| 1280 MM | ||
| 009T | N 003861006007 | GLAND |
| 009U | N 915017006100 | UNION NUT |
| 009W | N 915062004000 | SLEEVE |
| 009W | A 0009920105 | BUSHING |
| 010 | A 3504777141 | BRACKET |
| THREE-WAY VALVE | ||
| 010E | N 000933005097 | SCREW |
| VALVE TO BRACKET | ||
| 010R | N 912004005101 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 011 | N 000933012131 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 011N | N 913004012003 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 012 | N 074305026202 | HOLLOW SCREW |
| VENT VALVE TO SIDE MEMBER SHELL | ||
| 014 | N 000137027201 | SPRING WASHER |
| VENT VALVE TO SIDE MEMBER SHELL | ||
| 016 | A 3454298136 | CONNECTOR |
| VENT VALVE | ||
| 016 | A 3454298136 | CONNECTOR |
| DISTRIBUTOR,CONNECTION: | ||
| "4" | ||
| 017 | A 0004294037 | DISTRIBUTOR |
| 017 | A 3454297237 | DISTRIBUTOR |
| 017E | N 003901008001 | SCREW-IN FITTING |
| DISTRIBUTOR,CONNECTION: | ||
| "3" | ||
| 017K | N 007603012106 | SEAL RING |
| DISTRIBUTOR,CONNECTION: | ||
| "3" | ||
| 017N | N 007604012102 | SCREW PLUG |
| DISTRIBUTOR,CONNECTIONS: | ||
| "1","2","5-7" | ||
| 017T | N 007603012106 | SEAL RING |
| DISTRIBUTOR,CONNECTIONS: | ||
| "1","2","5-7" | ||
| 017U | A 0089976082 | HOSE |
| FROM DISTRIBUTOR,CONNECTION "4",TO EXHAUST BRAKE VENT VALVE | ||
| 130 MM | ||
| 017V | N 915017006100 | UNION NUT |
| 017W | N 003861006007 | GLAND |
| 017X | N 915062004000 | SLEEVE |
| 017X | A 0009920105 | BUSHING |
| 018 | A 3504777341 | BRACKET |
| DISTRIBUTOR | ||
| 018E | N 000933006238 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 018N | N 913004006001 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 019 | N 000933010092 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 019F | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 019R | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 020 | N 007603012113 | SEAL RING |
| VENT VALVE | ||
| 020 | N 007603012113 | SEAL RING |
| VENT VALVE | ||
| "4" | ||
| 022 | A 3459977081 | GROMMET |
| VENT VALVE TO SIDE MEMBER SHELL | ||
| 024 | A 3604340044 | PROTECTIVE PLATE |
| VENT VALVE TO SIDE MEMBER SHELL | ||
| 028 | A 3454202126 | LINE |
| FROM PRESSURE RELIEF VALVE TO FOOT OPERATED VALVE | ||
| 6X0.7 MM | ||
| 028 | A 3454209837 | LINE |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| 6X0.7 MM | ||
| 032 | H 983454205626 | LINE |
| Repalced by: A 3454202136 | ||
| 032 | A 3454202136 | LINE |
| FROM OPERATING VALVE TO CONNECTION FITTING | ||
| 6X0.7 MM | ||
| 036 | H 983214204126 | LINE |
| 6X0.7 MM | ||
| 037 | A 3454209732 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING | ||
| 6X0,7 MM | ||
| 038 | A 3454307165 | LINE |
| FROM FITTING TO OPERATING VALVE | ||
| 6X0,7 MM | ||
| 039 | A 3454209632 | LINE |
| FROM VENT VALVE CONNECTION "2" TO FITTING | ||
| 6X0,7 MM | ||
| 040 | N 915017006100 | UNION NUT |
| 040 | N 915017006100 | UNION NUT |
| 044 | N 003861006007 | GLAND |
| 045 | N 915017006100 | UNION NUT |
| COMPRESSED AIR LINE | ||
| 045E | N 003861006007 | GLAND |
| COMPRESSED AIR LINE | ||
| 045N | N 915062004000 | SLEEVE |
| COMPRESSED AIR LINE | ||
| 045N | A 0009920105 | BUSHING |
| COMPRESSED AIR LINE | ||
| 045R | A 0089979082 | HOSE |
| Repalced by: A 0009874927 | ||
| 045R | A 0009874927 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO VALVE | ||
| 8X6 MM | ||
| 046 | N 915017008100 | UNION NUT |
| COMPRESSED AIR LINE | ||
| 046E | N 003861008005 | GLAND |
| COMPRESSED AIR LINE | ||
| 046N | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 046N | N 915062006000 | SLEEVE |
| COMPRESSED AIR LINE | ||
| 047 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 047 | N 915062006000 | SLEEVE |
| COMPRESSED AIR LINE | ||
| 047F | N 915052006002 | BANJO UNION |
| COMPRESSED AIR LINE | ||
| 047L | N 915036012200 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 047R | N 007603016103 | SEAL RING |
| COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 047R | N 007603016103 | SEAL RING |
| COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 047S | A 3504208829 | LINE |
| FROM COMPRESSED AIR HOSE TO FITTING | ||
| 047T | N 003861006008 | GLAND |
| 047U | N 915017006100 | UNION NUT |
| 048 | N 003902006001 | CONNECTION FITTING |
| 048 | N 003902006001 | CONNECTION FITTING |
| 052 | A 3454200048 | BRAKE HOSE |
| FROM CONNECTION FITTING TO COMPRESSED AIR CYLINDER | ||
| 052 | A 3454200048 | BRAKE HOSE |
| FROM FITTING TO FITTING | ||
| 052 | A 3634203148 | BRAKE HOSE |
| FROM CONNECTION FITTING TO COMPRESSED AIR CYLINDER | ||
| 054 | N 003861006007 | GLAND |
| 055 | N 915017006100 | UNION NUT |
| 056 | H 980004290138 | ELBOW FITTING |
| Repalced by: A 3454297438 | ||
| 056 | A 3454297438 | ELBOW FITTING |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| 060 | N 080705012003 | NUT |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| 064 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 064 | A 0009940103 | THRUST RING |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| 068 | A 0019875046 | SEALING CORD |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| 072 | A 3609950101 | CLAMP |
| COMPRESSED AIR LINE TO FRAME | ||
| 074 | N 000933006221 | SCREW |
| COMPRESSED AIR LINE TO FRAME | ||
| 076 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE TO FRAME | ||
| 078 | N 000934006006 | NUT |
| COMPRESSED AIR LINE TO FRAME | ||
| 082 | A 3444290240 | CLAMP |
| COMPRESSED AIR LINE TO FRAME | ||
| 086 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE TO FRAME | ||
| 090 | N 009021005104 | WASHER |
| COMPRESSED AIR LINE TO FRAME | ||
| 094 | N 000127005001 | LOCK WASHER |
| COMPRESSED AIR LINE TO FRAME | ||
| 098 | N 000934005008 | NUT |
| COMPRESSED AIR LINE TO FRAME | ||
| 105 | A 3255460343 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 109 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 114 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 114 | A 3459957801 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 120 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 124 | N 000125005315 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 128 | N 913004005001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 135 | A 3524281640 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 137B | A 3094760236 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 140 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 140 | A 3459957801 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 145 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 146 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 150 | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 155 | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 160 | A 0009959001 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET ON SIDE MEMBER | ||
| 165 | N 000933005037 | SCREW |
| COMPRESSED AIR LINE TO BRACKET ON SIDE MEMBER | ||
| 170 | N 000125005315 | WASHER |
| COMPRESSED AIR LINE TO BRACKET ON SIDE MEMBER | ||
| 175 | N 000934005008 | NUT |
| COMPRESSED AIR LINE TO BRACKET ON SIDE MEMBER | ||
| A 3084299401 | LINE | |
| 6X0.7 MM | ||
