Transporto priemonė: LS 1519; VIN numerio dalis: 345045

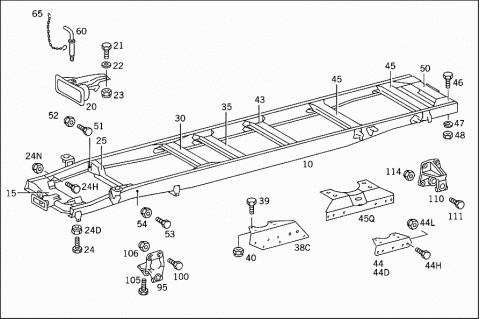

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3453103001 | FRAME |
| 010 | A 3453107496 | FRAME |
| 010 | A 3453103101 | FRAME |
| 010 | A 3453107596 | FRAME |
| 010 | A 3453103201 | FRAME |
| Repalced by: A 3453107696 | ||
| 010 | A 3453107696 | FRAME |
| 010 | A 3453107696 | FRAME |
| 010 | A 3453103301 | FRAME |
| 010 | A 3453107796 | FRAME |
| 010 | A 3453104601 | FRAME |
| 010 | A 3453108096 | FRAME |
| Repalced by: A 3453107696 | ||
| 010 | A 3453107696 | FRAME |
| 010 | A 3453104301 | FRAME |
| 010 | A 3453108103 | FRAME |
| 010 | A 3453106601 | FRAME |
| Repalced by: A 3443109305 | ||
| 010 | A 3443109305 | FRAME |
| 010 | A 3453108203 | FRAME |
| Repalced by: A 3453109305 | ||
| 010 | A 3453109305 | FRAME |
| 010 | A 3443109305 | FRAME |
| A 3453110660 | REINFORCEMENT | |
| Repalced by: A 3453117360 | ||
| A 3453117360 | REINFORCEMENT | |
| A 3453110760 | REINFORCEMENT | |
| Repalced by: A 3453117460 | ||
| A 3453117460 | REINFORCEMENT | |
| 015 | A 3453100126 | ENGINE CROSS MEMBER |
| NO.1 | ||
| 015 | A 3453100326 | ENGINE CROSS MEMBER |
| NO.1 | ||
| 020 | A 3453100009 | BRACKET |
| 020 | A 3453100209 | BRACKET |
| 021 | N 000933010174 | SCREW |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M 10X25 | ||
| 021 | N 000933010294 | SCREW |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M 10X20 | ||
| 021 | N 000961012000 | SCREW |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 022 | N 007349010001 | WASHER |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 022 | A 3609900040 | WASHER |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 023 | N 913004010004 | NUT |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 023 | N 913004012003 | NUT |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 024 | N 000933010174 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 024 | N 000933010129 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X30 | ||
| 024D | N 913004010004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 024H | N 000961012154 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 024N | N 913004012003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 025 | A 3453120007 | ENGINE CROSS MEMBER |
| NO.2 | ||
| 030 | A 3453100836 | CROSS MEMBER |
| . | ||
| NO.3 | ||
| 030 | A 3453108136 | CROSS MEMBER |
| NO.3 | ||
| 035 | A 3453100936 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 035 | A 3453108036 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 035 | A 3603100036 | CROSS MEMBER |
| Repalced by: A 3453107136 | ||
| 035 | A 3453107136 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO. 4 | ||
| 036 | A 3523120052 | ANGLE |
| TOP LEFT AND RIGHT | ||
| 036 | A 3453120252 | ANGLE |
| TOP LEFT | ||
| A 3453128452 | ANGLE | |
| TOP LEFT | ||
| 036 | A 3453120352 | ANGLE |
| TOP RIGHT | ||
| A 3453128552 | ANGLE | |
| TOP RIGHT | ||
| 036 | A 3523120452 | ANGLE |
| TOP LEFT AND RIGHT | ||
| 037 | A 3523120552 | ANGLE |
| BOTTOM LEFT & RIGHT | ||
| 037 | A 3453128752 | ANGLE |
| BOTTOM LEFT & RIGHT | ||
| 037 | A 3453128752 | ANGLE |
| BOTTOM LEFT & RIGHT | ||
| 037F | N 000933010294 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 037K | N 000934010000 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 038 | A 0453120025 | CROSS MEMBER |
| Repalced by: A 3453127125 | ||
| 038 | A 3453127125 | CROSS MEMBER |
| SPARE WHEEL | ||
| A 0453120060 | REINFORCEMENT | |
| Repalced by: A 3453127660 | ||
| 038C | A 3453127660 | REINFORCEMENT |
| LEFT | ||
| A 0453120160 | REINFORCEMENT | |
| Repalced by: A 3453127760 | ||
| 038C | A 3453127760 | REINFORCEMENT |
| RIGHT | ||
| 039 | N 000961012154 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 040 | N 913004012003 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 041 | N 000961012154 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 041 | N 000961012171 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 042 | N 000934012004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 043 | A 3603100136 | CROSS MEMBER |
| Repalced by: A 3453107336 | ||
| 043 | A 3453107336 | CROSS MEMBER |
| Repalced by: A 3453107936 | ||
| 043 | A 3453107936 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.5 | ||
| 044 | A 3523120052 | ANGLE |
| TOP LEFT AND RIGHT | ||
| 044D | A 3523120552 | ANGLE |
| Repalced by: A 3453128052 | ||
| 044D | A 3453128052 | ANGLE |
| BOTTOM | ||
| 044H | N 000933010294 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 044L | N 000934010000 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 045 | A 3603100042 | CROSS MEMBER |
| Repalced by: A 3453127317 | ||
| 045 | A 3453100142 | CROSS MEMBER |
| Repalced by: A 3453127317 | ||
| 045 | A 3453127317 | CROSS MEMBER |
| NO. 5 | ||
| 045 | A 3453127317 | CROSS MEMBER |
| NO. 6 | ||
| 045 | A 3453127317 | CROSS MEMBER |
| NO. 7 | ||
| 045Q | A 3453127360 | REINFORCEMENT |
| 046 | N 000933010129 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 047 | N 000127010202 | LOCK WASHER |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 048 | N 000934010000 | NUT |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 050 | A 3523100146 | CROSS MEMBER |
| Repalced by: A 3453127235 | ||
| 050 | A 3453127235 | CROSS MEMBER |
| REAR | ||
| NO. 8 | ||
| 050 | A 3453127235 | CROSS MEMBER |
| REAR | ||
| NO. 6 | ||
| 050 | A 3453127235 | CROSS MEMBER |
| REAR | ||
| NO. 7 | ||
| 051 | N 000933010174 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 051 | N 000933010129 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 052 | N 913004010004 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 053 | N 000961012154 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 054 | N 913004012003 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||

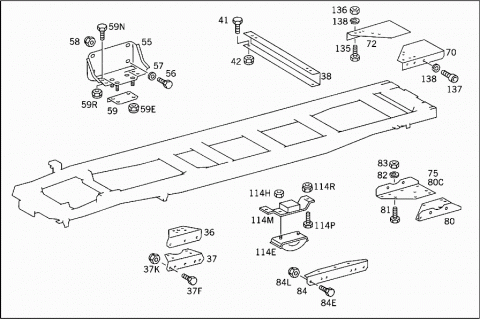

| 055 | A 3832400006 | CONSOLE |
| Repalced by: A 3452400006 | ||
| 055 | A 3452400006 | CONSOLE |
| ENGINE REAR MOUNTING | ||
| 056 | N 000961014107 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 056 | N 000961014101 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 057 | N 000125015012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 058 | N 913004014002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 059 | A 3453120184 | SHIM |
| CROSS MEMBER TO CONSOLE | ||
| 059C | A 3523120084 | SHIM |
| CROSS MEMBER TO CONSOLE | ||
| 059E | N 913004012003 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 059K | N 000933010129 | SCREW |
| 059N | N 000963010025 | SCREW |
| 059R | N 000934010002 | NUT |
| 060 | A 3223150206 | COUPLING PIN |
| 060 | A 3453157206 | COUPLING PIN |
| 065 | A 0008500095 | FASTENER |
| 070 | A 3213120087 | GUSSET PLATE |
| Repalced by: A 3443120087 | ||
| 070 | H 983443120087 | GUSSET PLATE |
| Repalced by: A 3443120087 | ||
| 070 | A 3443120087 | GUSSET PLATE |
| LEFT | ||
| 072 | A 3523120487 | GUSSET PLATE |
| Repalced by: A 3453127887 | ||
| 072 | H 983453120487 | GUSSET PLATE |
| Repalced by: A 3453127887 | ||
| 072 | A 3453127887 | GUSSET PLATE |
| RIGHT | ||
| 072 | A 3213120187 | GUSSET PLATE |
| Repalced by: A 3443120187 | ||
| 072 | H 983443120187 | GUSSET PLATE |
| Repalced by: A 3443120187 | ||
| 072 | A 3443120187 | GUSSET PLATE |
| RIGHT | ||
| 075 | A 3523120587 | GUSSET PLATE |
| Repalced by: A 3453127987 | ||
| 075 | H 983453120587 | GUSSET PLATE |
| Repalced by: A 3453127987 | ||
| 075 | A 3453127987 | GUSSET PLATE |
| LEFT | ||
| 075 | A 3523120187 | GUSSET PLATE |
| Repalced by: A 3453127487 | ||
| 075 | H 983453120087 | GUSSET PLATE |
| Repalced by: A 3453127487 | ||
| 075 | A 3453127487 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 080 | A 3523120287 | GUSSET PLATE |
| Repalced by: A 3453127587 | ||
| 080 | H 983453120187 | GUSSET PLATE |
| Repalced by: A 3453127587 | ||
| 080 | A 3453127587 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| A 3523120687 | GUSSET PLATE | |
| Repalced by: A 3453127687 | ||
| H 983453120287 | GUSSET PLATE | |
| Repalced by: A 3453127687 | ||
| 080 | A 3453127687 | GUSSET PLATE |
| BOTTOM LEFT | ||
| A 3523120787 | GUSSET PLATE | |
| Repalced by: A 3453127787 | ||
| H 983453120387 | GUSSET PLATE | |
| Repalced by: A 3453127787 | ||
| 080C | A 3453127787 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 081 | N 000961012160 | SCREW |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| 081 | N 000960012041 | SCREW |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| 081 | N 000961012020 | SCREW |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| 081 | N 000961012171 | SCREW |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| 082 | N 000127012201 | LOCK WASHER |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| 083 | N 000934012004 | NUT |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| 084 | A 3453118653 | ANGLE |
| RIGHT | ||
| 084 | A 3523110053 | ANGLE |
| LEFT AND RIGHT | ||
| 084 | A 3453118753 | ANGLE |
| LEFT | ||
| 084E | N 000961012020 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 084E | N 000961012106 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 084L | N 000934012004 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 085 | A 3453110353 | ANGLE |
| LEFT | ||
| 090 | A 3453110253 | ANGLE |
| RIGHT | ||
| 095 | A 3523220201 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 100 | A 3219901601 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 105 | A 3409900201 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 106 | N 000934014008 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 110 | A 3523250101 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 111 | A 3559900501 | SCREW |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 111 | A 3409900201 | SCREW |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 114 | N 000934014008 | NUT |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| A 3454107038 | PART NAME MISSING | |
| Repalced by: A 3454107640 | ||
| A 3454107640 | BRACKET | |
| 114E | A 3853300275 | RUBBER MOUNTING |
| REAR SPRING STOP | ||
| 114H | N 913004008001 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 114M | A 3453207043 | BRACKET |
| RUBBER MOUNTING TO FRAME | ||
| 114P | N 000933008275 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 114R | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 115 | A 3523250041 | STIFFENING |
| 120 | A 3453257017 | HELPER SPRING BRACKET |
| Repalced by: A 3523250417 | ||
| 120 | A 3523250417 | HELPER SPRING BRACKET |
| HELPER SPRING | ||
| 121 | A 3453230095 | REINFORCEMENT |
| TOP BEARING BRACKET TO FRAME | ||
| 122 | N 000963012002 | SCREW |
| REINFORCEMENT TO FRAME | ||
| 123 | N 913004012006 | NUT |
| REINFORCEMENT TO FRAME | ||
| 125 | H 983453100063 | CONSOLE |
| Repalced by: A 3453107063 | ||
| 125 | A 3453107063 | CONSOLE |
| Repalced by: A 3453100167 | ||
| 125 | A 3453100167 | BODY SUPPORT |
| CAB,LEFT | ||
| H 983453100163 | CONSOLE | |
| Repalced by: A 3453107163 | ||
| 125 | A 3453107163 | CONSOLE |
| CAB, RIGHT | ||
| 125 | H 983453100263 | CONSOLE |
| Repalced by: A 3453107263 | ||
| 125 | A 3453107263 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 126 | A 3523170628 | REINFORCEMENT |
| CAB,LEFT | ||
| 126 | A 3523170728 | REINFORCEMENT |
| CAB, RIGHT | ||
| 127 | A 3769900014 | SCREW |
| CAB CONSOLE TO SIDE MEMBER | ||
| 127 | A 3769900214 | SCREW |
| CAB CONSOLE TO SIDE MEMBER | ||
| 128 | N 913004010006 | NUT |
| CAB CONSOLE TO SIDE MEMBER | ||
| 129 | N 000912010007 | SCREW |
| CONSOLE TO FRAME | ||
| 130 | N 000931010053 | SCREW |
| CONSOLE TO FRAME | ||
| 131 | N 007980010003 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 134 | N 910005010009 | RIVET |
| 10X22 MM | ||
| 134 | N 910005010002 | RIVET |
| 10X26 MM | ||
| 134 | A 0009901496 | RIVET |
| Repalced by: N 910005010003 | ||
| 134 | N 910005010003 | RIVET |
| 10X28 MM | ||
| 134 | A 0009901696 | RIVET |
| Repalced by: N 910005010004 | ||
| 134 | N 910005010004 | RIVET |
| 10X30 MM | ||
| 134 | A 0009902596 | RIVET |
| Repalced by: N 910005010005 | ||
| 134 | N 910005010005 | RIVET |
| 10X34 MM | ||
| 134 | A 0009903196 | RIVET |
| Repalced by: N 910005010036 | ||
| 134 | N 910005010036 | RIVET |
| 10X38 MM | ||
| 134 | A 0009902996 | RIVET |
| Repalced by: N 910005010027 | ||
| 134 | N 910005010027 | RIVET |
| 10X40 MM | ||
| 134 | A 0009902196 | RIVET |
| Repalced by: N 910005010030 | ||
| 134 | N 910005010030 | RIVET |
| 10X45 MM | ||
| 134 | A 0009900496 | RIVET |
| Repalced by: N 910005012012 | ||
| 134 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 134 | A 0009900696 | RIVET |
| Repalced by: N 910005012002 | ||
| 134 | N 910005012002 | RIVET |
| 12X30 MM | ||
| 134 | A 0009900896 | RIVET |
| Repalced by: N 910005012016 | ||
| 134 | N 910005012076 | RIVET |
| 12X34 MM | ||
| 134 | A 0009902396 | RIVET |
| Repalced by: N 910005012021 | ||
| 134 | N 910005012021 | RIVET |
| 12 X 45 MM | ||
| 134 | A 0009904596 | RIVET |
| Repalced by: N 910005014041 | ||
| 134 | N 910005014041 | RIVET |
| 14 X 32 MM | ||
| 134 | A 0009903596 | RIVET |
| Repalced by: N 910005014018 | ||
| 134 | N 910005014018 | RIVET |
| 14 X 40 MM | ||
| 134 | A 0009903796 | RIVET |
| Repalced by: N 910005014043 | ||
| 134 | N 910005014043 | RIVET |
| 14 X 48 MM | ||
| 134 | A 0009904796 | RIVET |
| Repalced by: N 910005014044 | ||
| 134 | N 910005014044 | RIVET |
| 14 X 50 MM | ||
| 134 | N 910005014056 | RIVET |
| 14 X 34 MM | ||
| 135 | N 000961012020 | SCREW |
| 136 | N 000934012004 | NUT |
| 137 | N 000912010007 | SCREW |
| 138 | N 007980010003 | LOCK WASHER |
| 140 | A 3443100367 | BODY SUPPORT |
| CAB,REAR LEFT AND RIGHT | ||
| 140 | A 3443107067 | BODY SUPPORT |
| CAB,REAR LEFT AND RIGHT | ||
| 140C | A 3503170301 | CONSOLE |
| LEFT | ||
| 140C | A 3503170401 | CONSOLE |
| RIGHT | ||
| 140D | A 3453177201 | CONSOLE |
| LEFT | ||
| 140D | A 3503170201 | CONSOLE |
| RIGHT | ||
| 140E | N 000933010129 | SCREW |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140E | N 000933010269 | SCREW |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140E | N 000961012058 | SCREW |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140E | N 000961012154 | SCREW |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140E | N 000961012106 | SCREW |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140E | N 000961012020 | SCREW |
| CONSOLE TO SIDE MEMBER REINFORCEMENT | ||
| 140L | N 000125010517 | WASHER |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140L | N 000125013012 | WASHER |
| CONSOLE TO SIDE MEMBER REINFORCEMENT | ||
| 140L | A 3449900040 | WASHER |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140L | N 000125013012 | WASHER |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140P | N 000127010202 | LOCK WASHER |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140P | N 000127012201 | LOCK WASHER |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140P | N 000127012201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER REINFORCEMENT | ||
| 140S | N 000934010000 | NUT |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| 140S | N 000934012013 | NUT |
| BODY REAR SUPPORT TO SIDE MEMBER | ||
| M12 X 1,5 MM | ||
| 140S | N 000934012013 | NUT |
| CONSOLE TO SIDE MEMBER REINFORCEMENT | ||
| M12 X 1,5 MM | ||
| 140T | A 3508917031 | CONSOLE |
| CAB SUSPENSION,REAR | ||
| 140T | A 3508917031 | CONSOLE |
| CAB SUSPENSION,REAR | ||
| 140U | N 000961014107 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 140U | N 000961014107 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 140UC | N 000127014201 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 140UC | N 000127014201 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 140UH | A 3359900540 | WASHER |
| RAIL AND PLATE TO SPRING | ||
| 140UH | A 3359900540 | WASHER |
| RAIL AND PLATE TO SPRING | ||
| 140UL | N 000934014020 | NUT |
| RAIL AND PLATE TO SPRING | ||
| 140UL | N 000934014020 | NUT |
| RAIL AND PLATE TO SPRING | ||
| 141 | A 3523170240 | BRACKET |
| SHOCK ABSORBER MOUNTING | ||
| 141F | A 3508900003 | MOUNTING |
| SHOCK ABSORBER MOUNTING | ||
| 142 | A 3529900030 | SCREW |
| Repalced by: N 000000000011 | ||
| 142 | N 000000000011 | SCREW |
| BRACKET TO CONSOLE | ||
| M10X25 | ||
| 142H | N 000933010129 | SCREW |
| BRACKET TO CONSOLE | ||
| 142N | N 000961012160 | SCREW |
| BRACKET TO CONSOLE | ||
| 143 | N 000125010517 | WASHER |
| BRACKET TO CONSOLE | ||
| 144 | N 000127010202 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 144 | N 000127012201 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 145 | N 000934010000 | NUT |
| BRACKET TO CONSOLE | ||
| 145C | A 3358910820 | MOUNTING |
| CAB SUSPENSION,REAR | ||
| 145E | N 000933010174 | SCREW |
| MOUNTING TO RAIL | ||
| 145H | N 009021010102 | WASHER |
| MOUNTING TO RAIL | ||
| 145L | N 000127010202 | LOCK WASHER |
| MOUNTING TO RAIL | ||
| 145N | N 000934010000 | NUT |
| MOUNTING TO RAIL | ||
| 145P | A 3358900001 | MOUNTING |
| CAB SUSPENSION,REAR | ||
| 145R | A 3353170884 | SHIM |
| CAB SUSPENSION,REAR | ||
| 145S | N 000933010129 | SCREW |
| MOUNTING TO RAIL | ||
| 145T | N 000127010202 | LOCK WASHER |
| MOUNTING TO RAIL | ||
| 145Z | N 009021010102 | WASHER |
| MOUNTING TO RAIL | ||
| 146 | A 3443107179 | SPRING |
| Repalced by: A 3223100179 | ||
| 146 | A 3223100179 | SPRING |
| CAB | ||
| 146C | A 3368900005 | SPRING |
| CAB | ||
| 146G | A 0453100079 | SPRING |
| NO. 4 | ||
| 146N | A 3223100279 | SPRING |
| NO. 1 | ||
| 147 | N 004626008103 | SPRING BOLT |
| 148 | N 000934008000 | NUT |
| 149 | A 0009883610 | RUBBER MOUNTING |
| Repalced by: A 3443177012 | ||
| 149 | A 3443177012 | RUBBER BUFFER |
| 149M | A 3368910050 | SPRING BUSHING |
| 150 | A 3523130826 | BRACKET |
| LEFT | ||
| 150 | A 3523130926 | BRACKET |
| RIGHT | ||
| 151 | N 000933010174 | SCREW |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 152 | N 000125010517 | WASHER |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 153 | N 000127010202 | LOCK WASHER |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 154 | N 000934010000 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 154C | N 913004010004 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 154F | N 913004012003 | NUT |
| SPRING TO CONSOLE | ||
| 154FC | N 000934012004 | NUT |
| SPRING TO BEARING | ||
| 154FN | N 000127012201 | LOCK WASHER |
| SPRING TO BEARING | ||
| 154K | A 3229910640 | SPACER TUBE |
| SPRING TO CONSOLE | ||
| 154M | N 000960012385 | SCREW |
| SPRING TO CONSOLE | ||
| 154M | N 000961012079 | SCREW |
| SPRING TO BEARING | ||
| 154P | A 3358910411 | PLATE |
| SPRING TO CAB | ||
| 154S | N 000127010202 | LOCK WASHER |
| SPRING TO CAB | ||
| 154S | N 000127010202 | LOCK WASHER |
| SPRING TO BEARING | ||
| 154U | N 000933010273 | SCREW |
| SPRING TO CAB | ||
| 154UC | N 000934010000 | NUT |
| SPRING TO BEARING | ||
| 154UD | A 3358910210 | CONSOLE |
| CAB SUSPENSION,REAR | ||
| 154UF | N 000933010174 | SCREW |
| CONSOLE TO CAB | ||
| 154UF | N 000931010102 | SCREW |
| CONSOLE TO CAB | ||
| 154UK | N 000127010202 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 154UM | N 000934010000 | NUT |
| CONSOLE TO CAB | ||
| 154W | A 3358911511 | PLATE |
| CAB SUSPENSION,REAR | ||
| 154WD | N 000931010080 | SCREW |
| SPRING TO CONSOLE | ||
| 154WF | N 000127010202 | LOCK WASHER |
| SPRING TO CONSOLE | ||
| 154WL | A 3348910072 | MOUNTING |
| CAB SUSPENSION,REAR | ||
| 154WN | N 007985008132 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 154WQ | N 009021008100 | WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 154Z | N 000934008000 | NUT |
| MOUNTING TO SIDE MEMBER | ||
| 155 | A 3448910005 | SHOCK ABSORBER |
| 155 | A 3448907019 | SHOCK ABSORBER |
| 155 | A 0008910805 | SHOCK ABSORBER |
| 155 | A 3448907119 | SHOCK ABSORBER |
| 157 | A 3229900214 | SCREW |
| Repalced by: N 000960012082 | ||
| 157 | A 3229900114 | SCREW |
| Repalced by: N 000960012082 | ||
| 157 | N 000960012385 | SCREW |
| SHOCK ABSORBER TO CONSOLE,TOP | ||
| 157 | N 000961012192 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 157H | N 000127012201 | LOCK WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 158 | N 913004012003 | NUT |
| SHOCK ABSORBER TO CONSOLE,TOP | ||
| 158C | N 000934012004 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 158D | N 000961012192 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 158F | N 000961012184 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 158M | N 000125013012 | WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 159 | N 000127012201 | LOCK WASHER |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 159 | N 000127012201 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 159E | N 000934012004 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 159E | N 000934012004 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 160 | A 3455200032 | STAY |
| LEFT | ||
| 160 | A 3455200132 | STAY |
| RIGHT | ||
| 161 | A 3523110063 | CONSOLE |
| LEFT | ||
| 161 | A 3523110163 | CONSOLE |
| RIGHT | ||
| 163 | N 000933010129 | SCREW |
| STAY TO FRAME | ||
| M 10X30 | ||
| 164 | N 913004010004 | NUT |
| STAY TO FRAME | ||
| 165 | A 3452660001 | CONSOLE |
| TRANSMISSION SUSPENSION | ||
| 165 | A 3452667401 | CONSOLE |
| TRANSMISSION SUSPENSION | ||
| 165 | A 3452607360 | SUPPORT |
| TRANSMISSION SUSPENSION | ||
| 166 | N 000961012020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 167 | N 000961012106 | SCREW |
| BRACKET TO TRANSMISSION SUSPENSION CONSOLE | ||
| 168 | N 000125013012 | WASHER |
| BRACKET TO TRANSMISSION SUSPENSION CONSOLE | ||
| 169 | N 000127012201 | LOCK WASHER |
| BRACKET TO TRANSMISSION SUSPENSION CONSOLE | ||
| 169D | N 000934012004 | NUT |
| BRACKET TO TRANSMISSION SUSPENSION CONSOLE | ||
| 170 | A 3352600260 | SUPPORT |
| Repalced by: A 3502600060 | ||
| 170 | A 3502600060 | SUPPORT |
| TRANSMISSION SUSPENSION | ||
| 170 | A 3452607260 | SUPPORT |
| TRANSMISSION SUSPENSION | ||
| 175 | A 3612660084 | RUBBER MOUNTING |
| TRANSMISSION SUSPENSION | ||

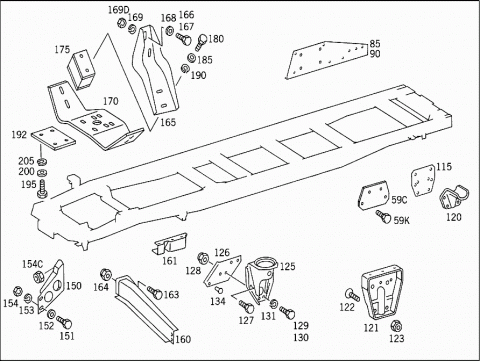

| 175 | A 3452667084 | SHIM |
| Repalced by: A 3612660184 | ||
| 175 | A 3612660184 | RUBBER MOUNTING |
| TRANSMISSION SUSPENSION | ||
| 180 | N 000933010174 | SCREW |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 180 | N 000933010294 | SCREW |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 185 | N 009021010102 | WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 190 | N 000127010202 | LOCK WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 192 | A 3452667184 | SHIM |
| 195 | N 000961012106 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M 12X35 | ||
| 195 | N 000961012106 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M 12X35 | ||
| 200 | N 000125013012 | WASHER |
| SUPPORT TO TRANSMISSION | ||
| 205 | N 000127012201 | LOCK WASHER |
| SUPPORT TO TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
