Transporto priemonė: LS 1519; VIN numerio dalis: 345045
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

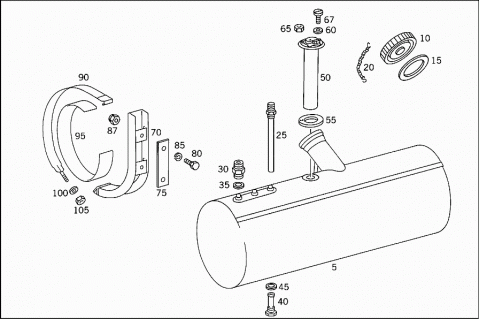

| 005 | A 0224700001 | FUEL TANK |
| Repalced by: A 3444707901 | ||
| 005 | A 3444700001 | FUEL TANK |
| Repalced by: A 3444707901 | ||
| 005 | A 3444707901 | FUEL TANK |
| Repalced by: A 3444709001 | ||
| 005 | A 3444709001 | FUEL TANK |
| LESS SENDER UNIT | ||
| 140 L | ||
| 005 | A 3444709001 | FUEL TANK |
| LESS SENDER UNIT | ||
| 140 L | ||
| A 3444707902 | FUEL TANK | |
| LESS SENDER UNIT | ||
| 140 L | ||
| A 3444706101 | FUEL TANK | |
| LESS SENDER UNIT | ||
| 005 | A 3454707001 | FUEL TANK |
| Repalced by: A 3454707101 | ||
| 005 | A 3454707101 | FUEL TANK |
| LESS SENDER UNIT | ||
| 300 L | ||
| 005 | A 3454707101 | FUEL TANK |
| LESS SENDER UNIT | ||
| 300 L | ||

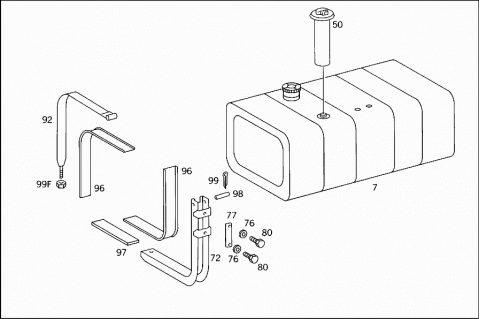

| 007 | A 3454707102 | FUEL TANK |
| LESS SENDER UNIT | ||
| 300 L | ||
| 007 | A 3454707102 | FUEL TANK |
| LESS SENDER UNIT | ||
| 300 L | ||
| 007 | A 3454707102 | FUEL TANK |
| LESS SENDER UNIT | ||
| 300 L | ||
| 010 | A 3444700205 | FILLER CAP |
| 015 | A 3444710679 | SEAL RING |
| 020 | A 3034700031 | CHAIN |
| 025 | A 0444700026 | RISING PIPE |
| Repalced by: A 3444700126 | ||
| 025 | A 3444700126 | RISING PIPE |
| 030 | A 3214710220 | FITTING |
| 035 | N 007603016301 | SEAL RING |
| RISING PIPE AND SCREW FITTING TO FUEL TANK | ||
| 040 | A 3444700006 | FUEL STRAINER |
| Repalced by: A 3504700006 | ||
| 040 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3504700006 | ||
| 040 | A 3504700006 | FUEL STRAINER |
| 045 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 050 | A 0015426117 | SENDER UNIT |
| Repalced by: A 3455427617 | ||
| 050 | A 3455427617 | SENDER UNIT |
| Repalced by: A 3455427917 | ||
| 050 | A 3455427917 | SENDER UNIT |
| TANK | ||
| 050 | A 3455427917 | SENDER UNIT |
| TANK | ||
| 050 | A 3445427217 | SENDER UNIT |
| TANK | ||
| 050 | A 3445427217 | SENDER UNIT |
| TANK | ||
| 050 | A 3455427817 | SENDER UNIT |
| Repalced by: A 3505427017 | ||
| 050 | A 3505427017 | SENDER UNIT |
| TANK | ||
| 050 | A 3505427017 | SENDER UNIT |
| TANK | ||
| 055 | A 3524710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 055 | A 3524710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 060 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 060 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 065 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 067 | N 007985005171 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 067 | N 007985005171 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 070 | A 3224700542 | SUPPORT |
| FUEL TANK | ||
| 070 | A 3224700542 | SUPPORT |
| FUEL TANK | ||
| A 3444708042 | SUPPORT | |
| FUEL TANK | ||
| 072 | A 3454757003 | CONSOLE |
| FUEL TANK | ||
| 072 | A 3454757003 | CONSOLE |
| FUEL TANK | ||
| 075 | A 3224750184 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 075 | A 3224750184 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| A 0449900040 | WASHER | |
| Repalced by: A 3449900140 | ||
| 076 | A 3449900140 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 076 | A 3449900140 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 076 | A 3449900140 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 076 | A 3449900140 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 076 | A 3449900140 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 077 | A 3454757019 | BASE |
| CONSOLE TO SIDE MEMBER | ||
| 077 | A 3454757019 | BASE |
| CONSOLE TO SIDE MEMBER | ||
| 077 | A 3354750019 | BASE |
| CONSOLE TO SIDE MEMBER | ||
| 077 | A 3354750019 | BASE |
| CONSOLE TO SIDE MEMBER | ||
| 080 | N 000961014106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 080 | N 000961014106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 080 | N 000961014168 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 080 | N 000961014101 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 080 | N 000961014101 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 080 | N 000961014101 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 080 | N 000961014101 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 085 | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 087 | N 913004014005 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 087 | N 913004014005 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| N 910005014014 | RIVET | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 14X32 | ||
| N 910005014014 | RIVET | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 14X32 | ||
| 090 | A 3224700340 | STRAP |
| Repalced by: A 3454700140 | ||
| 090 | A 3454700140 | STRAP |
| FUEL TANK | ||
| 090 | A 3454700140 | STRAP |
| FUEL TANK | ||
| 092 | A 3454707040 | STRAP |
| FUEL TANK | ||
| 092 | A 3454707040 | STRAP |
| FUEL TANK | ||
| 095 | A 3379870014 | RUBBER STRIP |
| Repalced by: A 3459837391 | ||
| 095 | A 3459837391 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 095 | A 3459837391 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| A 3454757384 | SHIM | |
| FUEL TANK TO CONSOLE | ||
| A 3634750120 | PAD | |
| Repalced by: A 3459837191 | ||
| 096 | A 3459837191 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 096 | A 3459837191 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 096 | A 3459837291 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 096 | A 3459837291 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 097 | A 3454757584 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 50 MM | ||
| 097 | A 3454757584 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 50 MM | ||
| 097 | A 3454757584 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 50 MM | ||
| 097 | A 3454757484 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 110 MM | ||
| 097 | A 3454757484 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 110 MM | ||
| 097 | A 3454757484 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 110 MM | ||
| 098 | N 001443016200 | PIN |
| STRAP | ||
| 098 | N 001443016200 | PIN |
| STRAP | ||
| 098 | N 001443016200 | PIN |
| STRAP | ||
| 098 | N 001443016200 | PIN |
| STRAP | ||
| 098 | N 001443016200 | PIN |
| STRAP | ||
| 099 | N 000094004050 | COTTER PIN |
| STRAP | ||
| 099 | N 000094004050 | COTTER PIN |
| STRAP | ||
| 099 | N 000094004050 | COTTER PIN |
| STRAP | ||
| 099 | N 000094004050 | COTTER PIN |
| STRAP | ||
| 099 | N 000094004050 | COTTER PIN |
| STRAP | ||
| 099F | N 000934012041 | NUT |
| STRAP | ||
| 100 | N 000125013012 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 105 | N 000934012004 | NUT |
| FUEL TANK TO CONSOLE | ||

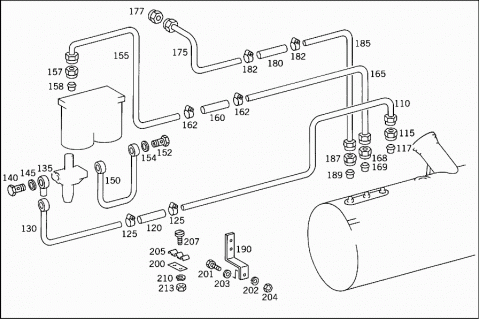

| 110 | A 0454700164 | LINE |
| Repalced by: A 3454707664 | ||
| 110 | A 3454707664 | LINE |
| FROM FUEL TANK TO RUBBER HOSE | ||
| 110 | A 3454707164 | LINE |
| FROM FUEL TANK TO RUBBER HOSE | ||
| 110 | A 3454707665 | LINE |
| FROM FUEL TANK TO RUBBER HOSE | ||
| 115 | N 915017010200 | UNION NUT |
| 117 | A 3449907067 | SEAL CONE |
| 120 | A 3444760126 | HOSE |
| 125 | A 3509970290 | CLAMP |
| 130 | A 3454701764 | LINE |
| FROM RUBBER HOSE TO FEED PUMP | ||
| 135 | N 915010008202 | BANJO UNION |
| Repalced by: A 3454767024 | ||
| 135 | A 3454767024 | CONNECTOR |
| 140 | N 915036010100 | HOLLOW SCREW |
| FROM RUBBER HOSE TO FEED PUMP | ||
| 145 | N 007603014104 | SEAL RING |
| FROM RUBBER HOSE TO FEED PUMP | ||
| 150 | A 3520703032 | LINE |
| FOR INJECTION PUMP BREATHING | ||
| 152 | N 915011008101 | HOLLOW SCREW |
| 154 | N 007603014106 | SEAL RING |
| 155 | A 3454701864 | LINE |
| Repalced by: A 3454707964 | ||
| 155 | A 3454707964 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE | ||
| 157 | N 915017010200 | UNION NUT |
| 158 | N 915003008201 | SEAL CONE |
| Repalced by: A 3449907067 | ||
| 158 | A 3449907067 | SEAL CONE |
| 160 | A 3444760126 | HOSE |
| 162 | A 3509970290 | CLAMP |
| 165 | A 3454700564 | LINE |
| Repalced by: A 3454707764 | ||
| 165 | A 3454707764 | LINE |
| FROM RUBBER HOSE TO FUEL TANK | ||
| 165 | A 3454707364 | LINE |
| FROM RUBBER HOSE TO FUEL TANK | ||
| 168 | N 915017010200 | UNION NUT |
| 169 | A 3449907067 | SEAL CONE |
| 175 | H 983454701164 | LINE |
| Repalced by: A 3454707564 | ||
| 175 | A 3454707564 | LINE |
| FROM ENGINE TO RUBBER HOSE | ||
| 177 | N 915017006200 | UNION NUT |
| 180 | A 3444760126 | HOSE |
| 182 | A 3509970290 | CLAMP |
| 185 | H 983454700664 | LINE |
| Repalced by: A 3454707864 | ||
| 185 | A 3454707864 | LINE |
| LEAK RETURN; FROM FITTING TO FUEL TANK | ||
| 185 | A 3454707864 | LINE |
| LEAK RETURN; FROM FITTING TO FUEL TANK | ||
| 185 | A 3454707264 | LINE |
| LEAK RETURN; FROM FITTING TO FUEL TANK | ||
| 185 | A 3454707865 | LINE |
| LEAK RETURN; FROM FITTING TO FUEL TANK | ||
| 187 | N 915017010200 | UNION NUT |
| 189 | A 3449907067 | SEAL CONE |
| 190 | H 983454760036 | BRACKET |
| Repalced by: A 3454767036 | ||
| 190 | A 3454767036 | BRACKET |
| FUEL LINE | ||
| 200 | A 3124761236 | BRACKET |
| A 3444297040 | BRACKET | |
| FUEL LINE | ||
| A 3524290740 | BRACKET | |
| 201 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| N 000933010294 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 10X20 | ||
| N 000933010174 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| N 000933008288 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| 202 | N 912004008100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 203 | N 000125008417 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 204 | N 000934008000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| N 913004010004 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 913004008001 | NUT | |
| 205 | A 3129950232 | CLAMP |
| 207 | N 007985006502 | SCREW |
| CLAMP TO BRACKET | ||
| 210 | N 000127006203 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 213 | N 000934006006 | NUT |
| CLAMP TO BRACKET | ||

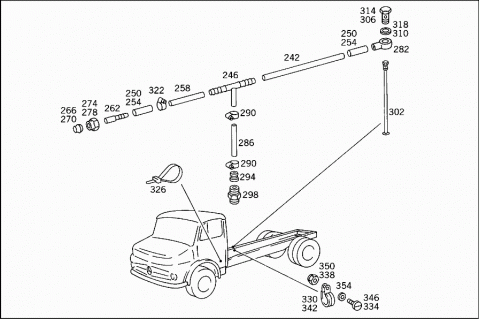

| 242 | A 0089975482 | HOSE |
| FROM FUEL TANK TO ENGINE | ||
| 242 | A 0089975482 | HOSE |
| FROM FUEL TANK TO ENGINE | ||
| 242 | A 0089975482 | HOSE |
| FROM FUEL TANK TO FITTING | ||
| 242 | A 0089975482 | HOSE |
| FROM FUEL TANK TO ENGINE | ||
| 242 | A 0089975482 | HOSE |
| FROM FUEL TANK TO ENGINE | ||
| 246 | A 3084767023 | DISTRIBUTOR |
| FUEL LINE | ||
| 246 | A 3084767023 | DISTRIBUTOR |
| FUEL LINE | ||
| 246 | A 3084767023 | DISTRIBUTOR |
| FUEL LINE | ||
| A 3504707079 | INTERMEDIATE PIECE | |
| A 0019974972 | FITTING | |
| 250 | N 040621020200 | INSULATING HOSE |
| FUEL LINE | ||
| 20X1.2 MM | ||
| 254 | N 040621012208 | INSULATING HOSE |
| FUEL LINE | ||
| 12X0.8 MM | ||
| 254 | N 040621012208 | INSULATING HOSE |
| FUEL LINE | ||
| 12X0.8 MM | ||
| 254 | N 040621012208 | INSULATING HOSE |
| FUEL LINE | ||
| 12X0.8 MM | ||
| 254 | N 040621012244 | INSULATING HOSE |
| FUEL LINE | ||
| 12X0.8 MM | ||
| 254 | N 040621012244 | INSULATING HOSE |
| FUEL LINE | ||
| 12X0.8 MM | ||
| 254 | N 040621012244 | INSULATING HOSE |
| FUEL LINE | ||
| 12X0.8 MM | ||
| 258 | A 3504769901 | LINE |
| Repalced by: A 3504707665 | ||
| A 3504707665 | LINE | |
| FUEL LINE TO CYLINDER HEAD | ||
| 262 | N 915058008000 | FITTING |
| FUEL LINE | ||
| 266 | N 915003008200 | SEAL CONE |
| FUEL LINE | ||
| 270 | N 915003004200 | SEAL CONE |
| FUEL LINE | ||
| 270 | N 915003004200 | SEAL CONE |
| FUEL LINE TO CYLINDER HEAD | ||
| 274 | N 915017010200 | UNION NUT |
| FUEL LINE | ||
| 274 | N 915017010200 | UNION NUT |
| FUEL LINE TO CYLINDER HEAD | ||
| 278 | N 915017006200 | UNION NUT |
| FUEL LINE | ||
| 278 | N 915017006200 | UNION NUT |
| FUEL LINE TO CYLINDER HEAD | ||
| 282 | A 0009905088 | BANJO UNION |
| FUEL LINE | ||
| 282 | A 0009905088 | BANJO UNION |
| FUEL LINE | ||
| 282 | A 0009905088 | BANJO UNION |
| FUEL LINE | ||
| 282 | N 915052008006 | BANJO UNION |
| FUEL LINE | ||
| 8/14 MM | ||
| 282 | N 915052008006 | BANJO UNION |
| FUEL LINE | ||
| 8/14 MM | ||
| A 3084767124 | CONNECTOR | |
| A 3084767124 | CONNECTOR | |
| A 3084767026 | HOSE | |
| Repalced by: A 3449977582 | ||
| A 3449977582 | HOSE | |
| Repalced by: A 3769978182 | ||
| A 3769978182 | HOSE | |
| 286 | A 3454767226 | HOSE |
| Repalced by: A 3769978182 | ||
| 286 | A 3769978182 | HOSE |
| FUEL LINE | ||
| 290 | N 916002010100 | CLAMP |
| FUEL LINE | ||
| 290 | N 916002010100 | CLAMP |
| FUEL LINE | ||
| 294 | A 4069975081 | GROMMET |
| FUEL LINE | ||
| 294 | A 4069975081 | GROMMET |
| FUEL LINE | ||
| 294 | A 4069975081 | GROMMET |
| FUEL LINE | ||
| 298 | N 915006008002 | DOUBLE FITTING |
| FUEL LINE | ||
| 302 | A 3444707226 | RISING PIPE |
| FUEL LINE TO FUEL TANK | ||
| 302 | A 3444707226 | RISING PIPE |
| FUEL LINE TO FUEL TANK | ||
| 302 | A 3504707062 | ELBOW FITTING |
| Repalced by: A 3084767124 | ||
| 302 | A 3084767124 | CONNECTOR |
| A 3454707026 | RISING PIPE | |
| FUEL LINE TO FUEL TANK | ||
| 306 | N 915036012150 | HOLLOW SCREW |
| RISING PIPE | ||
| 306 | N 915036012150 | HOLLOW SCREW |
| RISING PIPE | ||
| 310 | N 007603016301 | SEAL RING |
| RISING PIPE | ||
| 310 | N 007603016301 | SEAL RING |
| RISING PIPE | ||
| 310 | N 007603016301 | SEAL RING |
| RISING PIPE | ||
| N 007603016105 | SEAL RING | |
| N 007603016105 | SEAL RING | |
| 314 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 314 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 318 | N 007603014104 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 318 | N 007603014104 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 322 | N 916002010100 | CLAMP |
| LEAK LINE TO CYLINDER HEAD | ||
| 322 | N 916002010100 | CLAMP |
| LEAK LINE TO CYLINDER HEAD | ||
| 326 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 326 | A 3459977390 | LOOM TIE |
| LINE MOUNTING | ||
| 195 MM | ||
| 326 | A 3459977390 | LOOM TIE |
| LINE MOUNTING | ||
| 195 MM | ||
| 330 | A 0009950805 | CLAMP |
| FUEL LINE TO SIDE MEMBER | ||
| 330 | A 0009950805 | CLAMP |
| FUEL LINE TO SIDE MEMBER | ||
| A 0009950905 | CLAMP | |
| FUEL LINE TO SIDE MEMBER | ||
| N 916016022202 | CLAMP | |
| FUEL LINE TO SIDE MEMBER | ||
| 334 | N 000933008288 | SCREW |
| FUEL LINE TO SIDE MEMBER | ||
| 334 | N 000933008288 | SCREW |
| FUEL LINE TO SIDE MEMBER | ||
| 334 | N 000933008288 | SCREW |
| FUEL LINE TO SIDE MEMBER | ||
| N 009021008102 | WASHER | |
| FUEL LINE TO SIDE MEMBER | ||
| 338 | N 913004008001 | NUT |
| FUEL LINE TO SIDE MEMBER | ||
| 338 | N 913004008001 | NUT |
| FUEL LINE TO SIDE MEMBER | ||
| 338 | N 913004008001 | NUT |
| FUEL LINE TO SIDE MEMBER | ||
| 342 | A 0009950805 | CLAMP |
| FUEL LINE TO CROSS MEMBER | ||
| A 0009950905 | CLAMP | |
| FUEL LINE TO CROSS MEMBER | ||
| N 916016022202 | CLAMP | |
| FUEL LINE TO BRACKET | ||
| 346 | N 000933006221 | SCREW |
| FUEL LINE TO CROSS MEMBER | ||
| 346 | N 000933006221 | SCREW |
| FUEL LINE TO BRACKET | ||
| 350 | N 913004006001 | NUT |
| FUEL LINE TO CROSS MEMBER | ||
| 350 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| 354 | N 009021006103 | WASHER |
| FUEL LINE TO CROSS MEMBER | ||
| 354 | N 009021006103 | WASHER |
| FUEL LINE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
