Transporto priemonė: LS 1519; VIN numerio dalis: 345045

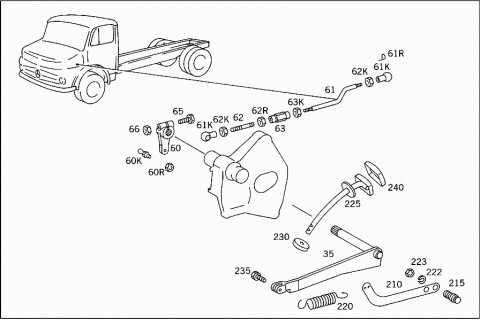

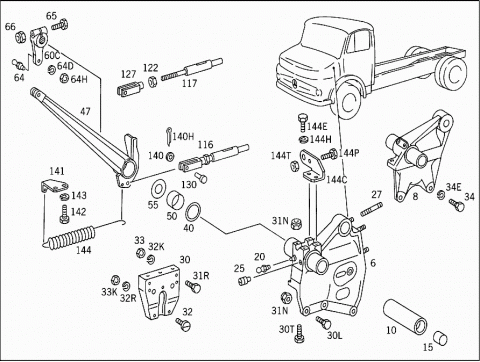

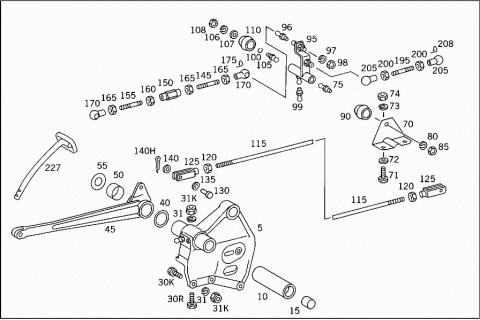

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3452900119 | BEARING BRACKET |
| FRONT | ||
| 005 | A 3452900419 | BEARING BRACKET |
| FRONT | ||
| 006 | A 3452907419 | BEARING BRACKET |
| Repalced by: A 3452907619 | ||
| 006 | A 3452907619 | BEARING BRACKET |
| FRONT | ||
| 008 | A 0442900519 | BEARING BRACKET |
| Repalced by: A 3442907019 | ||
| 008 | A 3442907019 | BEARING BRACKET |
| FRONT | ||
| 008 | A 3452900519 | BEARING BRACKET |
| FRONT | ||
| 010 | A 0452900036 | BEARING TUBE |
| Repalced by: A 3442907036 | ||
| 010 | A 3442907036 | BEARING TUBE |
| WITH BUSHING | ||
| 015 | A 0459921001 | BUSHING |
| Repalced by: A 3442940150 | ||
| 015 | A 3442940150 | BUSHING |
| 020 | N 071412010100 | GREASE NIPPLE |
| 025 | N 000417012000 | HEADLESS SETSCREW |
| Repalced by: A 3529900080 | ||
| 025 | A 3529900080 | SCREW |
| 027 | N 000835008061 | STUD |
| 030 | A 3453230095 | REINFORCEMENT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 030 | A 3453230095 | REINFORCEMENT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 030K | N 000933010129 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 030L | N 000933010258 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 030R | N 000933010269 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 030T | N 000933010269 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 031 | N 000127010202 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 031K | N 000934010000 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 031N | N 913004010001 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 031R | N 000933010129 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 031R | N 000933010129 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 032 | N 000963012002 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 032 | N 000963012002 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 032K | N 000127010202 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 032K | N 000127010202 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 032R | N 000127012201 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 032R | N 000127012201 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 033 | N 000934010000 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 033 | N 000934010000 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 033K | N 000934012021 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 033K | N 000934012021 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 034 | N 000960012362 | SCREW |
| Repalced by: N 000960012335 | ||
| 034 | N 000960012335 | SCREW |
| BEARING BRACKET TO STEERING BRACKET | ||
| 034 | N 000961012209 | SCREW |
| BEARING BRACKET TO STEERING BRACKET | ||
| 034 | N 000961012106 | SCREW |
| BEARING BRACKET TO STEERING BRACKET | ||
| 034E | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO STEERING BRACKET | ||
| 035 | A 3522902216 | PEDAL |
| Repalced by: A 3452907016 | ||
| 035 | A 3452907016 | PEDAL |
| (CLUTCH PEDAL LEVER) | ||
| 040 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 040 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 040 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 045 | A 3452900018 | PEDAL |
| BRAKE PEDAL | ||
| 047 | A 3452900318 | PEDAL |
| Repalced by: A 3452907118 | ||
| 047 | A 3452907118 | PEDAL |
| BRAKE PEDAL | ||
| A 3762901118 | PEDAL | |
| BRAKE PEDAL | ||
| 050 | A 0459921401 | BUSHING |
| Repalced by: A 3452927050 | ||
| 050 | A 3452927050 | BUSHING |
| 055 | A 3039910345 | RING |
| PEDAL TO BEARING BRACKET | ||
| N 900190012005 | THREADED PIN | |
| STOP LIGHT SWITCH | ||
| N 000936012017 | NUT | |
| Repalced by: N 000936012005 | ||
| N 000936012005 | NUT | |
| STOP LIGHT SWITCH | ||
| 060 | A 3452900234 | LEVER |
| CLUTCH | ||
| 060 | A 3452907527 | LEVER |
| CLUTCH | ||
| 060 | A 3452908427 | LEVER |
| CLUTCH | ||
| 060C | A 3452931310 | LEVER |
| Repalced by: A 3762900034 | ||
| 060C | A 3762900034 | LEVER |
| CLUTCH | ||
| 060K | A 3029910115 | BALL PIVOT |
| 060R | N 000936014007 | NUT |
| 061 | A 3452907239 | ROD |
| 061K | A 3509917022 | BALL SOCKET |
| 061R | N 071805019401 | CIRCLIP |
| 062 | A 3442930129 | ROD |
| 062K | N 000936014010 | NUT |
| 062R | A 3449900651 | NUT |
| 063 | N 900333014000 | TURNBUCKLE |
| 063K | A 3449900751 | NUT |
| A 3529910415 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 064 | A 3029910015 | BALL PIVOT |
| 064D | N 000127012201 | LOCK WASHER |
| 064H | N 000936012001 | NUT |
| 065 | N 000931010080 | SCREW |
| LEVER TO SHAFT | ||
| 066 | N 913004010004 | NUT |
| LEVER TO SHAFT | ||
| 070 | A 3452930036 | BEARING BRACKET |
| OUTSIDE | ||
| 071 | N 000933010129 | SCREW |
| BEARING BRACKET TO STEERING BRACKET | ||
| 072 | N 000125010517 | WASHER |
| BEARING BRACKET TO STEERING BRACKET | ||
| 073 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO STEERING BRACKET | ||
| 074 | N 000934010000 | NUT |
| BEARING BRACKET TO STEERING BRACKET | ||
| 075 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 075 | A 3029910015 | BALL PIVOT |
| 080 | N 000127012201 | LOCK WASHER |
| 085 | N 000936012010 | NUT |
| 090 | A 3522930160 | SEAL RING |
| 095 | A 3452900034 | LEVER |
| 096 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 096 | A 3029910015 | BALL PIVOT |
| 097 | N 000127012201 | LOCK WASHER |
| 098 | N 000936012010 | NUT |
| 099 | N 071428004102 | SCREW-IN FITTING |
| 100 | N 071805016300 | SNAP RING |
| 105 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 105 | A 3029910015 | BALL PIVOT |
| 106 | N 000127012201 | LOCK WASHER |
| 107 | N 000125013012 | WASHER |
| 108 | N 000936012010 | NUT |
| 108 | N 000934012010 | NUT |
| 110 | A 3522930060 | SEAL RING |
| 115 | N 900331010256 | PULL ROD |
| BRAKE LEVER | ||
| 1140 MM | ||
| 116 | A 3452908439 | ROD |
| 116 | A 3452908339 | ROD |
| Repalced by: A 3452957033 | ||
| 117 | A 3452957033 | ROD |
| Repalced by: A 3762950033 | ||
| 117 | A 3762950033 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 120 | N 000934010000 | NUT |
| PISTON ROD TO LEVER | ||
| 122 | N 000934012009 | NUT |
| PISTON ROD TO LEVER | ||
| 125 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 125 | A 0009961501 | YOKE |
| 127 | A 3459967001 | YOKE |
| Repalced by: A 3769960001 | ||
| 127 | A 3769960001 | YOKE |
| PISTON ROD TO LEVER | ||
| 130 | A 3529910007 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 130 | A 3529910007 | PIN |
| PUSH ROD TO PEDAL | ||
| 135 | N 900055010001 | SPRING WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 140 | N 000433010500 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 140 | N 000433010500 | WASHER |
| PUSH ROD TO PEDAL | ||
| 140H | N 000094003027 | COTTER PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 140H | N 000094003027 | COTTER PIN |
| PUSH ROD TO PEDAL | ||
| 141 | A 3452920040 | BRACKET |
| RELEASE SPRING | ||
| 142 | N 000933008268 | SCREW |
| BATTERY TO LEFT CAB CONSOLE | ||
| 143 | N 912004008100 | LOCK WASHER |
| BATTERY TO LEFT CAB CONSOLE | ||
| 144 | A 3609930210 | SPRING |
| BRAKE PEDAL | ||
| 144C | A 3452920130 | STOP |
| BRAKE PEDAL | ||
| 144E | N 000933010294 | SCREW |
| STOP TO BEARING BRACKET | ||
| 144H | N 000127010202 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 144P | N 000933010174 | SCREW |
| BRAKE PEDAL CONTROL | ||
| 144T | N 000934010035 | NUT |
| BRAKE PEDAL CONTROL | ||
| 145 | N 900331010536 | PULL ROD |
| 95 MM | ||
| 150 | A 3459960134 | NUT |
| 155 | N 900331010535 | PULL ROD |
| 95 MM | ||
| 160 | N 000934010035 | NUT |
| 165 | N 000934010000 | NUT |
| 170 | N 071805016202 | BALL SOCKET |
| 175 | N 071805016402 | CIRCLIP |
| 195 | N 900331010537 | PULL ROD |
| REAR | ||
| 175 MM | ||
| 200 | N 000934010000 | NUT |
| 205 | N 071805016202 | BALL SOCKET |
| 208 | N 071805016402 | CIRCLIP |
| 210 | A 3522910732 | LEVER |
| Repalced by: A 3762907034 | ||
| 210 | A 3762907034 | LEVER |
| RELEASE SPRING | ||
| 215 | A 3522910474 | PIN |
| Repalced by: A 3452917074 | ||
| 215 | A 3452917074 | PIN |
| Repalced by: A 3509917020 | ||
| 215 | A 3509917020 | BALL PIVOT |
| RELEASE SPRING | ||
| 220 | A 3529931310 | SPRING |
| CLUTCH | ||
| N 071805016300 | SNAP RING | |
| SPRING | ||
| 222 | N 000127014201 | LOCK WASHER |
| 223 | N 000934014020 | NUT |
| 225 | A 3522900624 | PEDAL PLATE |
| CLUTCH | ||
| A 3452907724 | PEDAL PLATE | |
| CLUTCH | ||
| 225 | A 3452907324 | PEDAL PLATE |
| CLUTCH | ||
| A 3452907924 | PEDAL PLATE | |
| CLUTCH | ||
| 227 | A 3222901324 | PEDAL PLATE |
| Repalced by: A 3452907224 | ||
| 227 | A 3452907224 | PEDAL PLATE |
| (BRAKE PEDAL) | ||
| A 3452907524 | PEDAL PLATE | |
| (BRAKE PEDAL) | ||
| 230 | A 3122911197 | SEAL WASHER |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| A 3222930077 | WASHER | |
| 235 | N 000933010174 | SCREW |
| PEDAL TO PEDAL LEVER | ||
| 240 | A 3202925082 | PAD |
| (CLUTCH PEDAL) | ||
| TO 352 290 06 24,345 290 73 24 | ||
| 240 | A 3202925082 | PAD |
| (BRAKE PEDAL) | ||
| TO 322 290 13 24 | ||
| A 3452917082 | PAD | |
| (CLUTCH PEDAL) | ||
| 240 | A 3052910182 | PAD |
| (BRAKE PEDAL) | ||
| TO 345 290 72 24 | ||
