Transporto priemonė: LS 1519; VIN numerio dalis: 345045

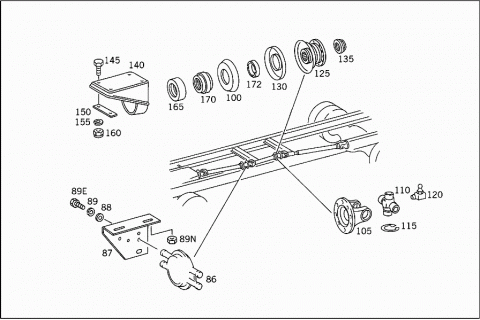

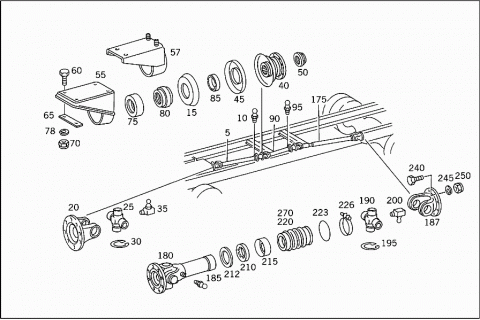

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | H 983454100701 | PROPELLER SHAFT |
| Repalced by: A 3614101001 | ||
| 005 | A 3614101001 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1038 MM | ||
| 005 | H 983454100301 | PROPELLER SHAFT |
| Repalced by: A 3614101501 | ||
| 005 | A 3614101501 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 836 MM | ||
| 005 | H 983454100901 | PROPELLER SHAFT |
| Repalced by: A 3454101201 | ||
| 005 | A 3454101201 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1550 MM | ||
| 005 | A 3434103001 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 978 MM | ||
| 010 | N 071412010100 | GREASE NIPPLE |
| 015 | A 3354130061 | PROTECTIVE CAP |
| 015 | A 3874130061 | PROTECTIVE CAP |
| 020 | A 3314110011 | DRIVE FLANGE |
| Repalced by: A 3364110011 | ||
| 020 | A 3364110011 | DRIVE FLANGE |
| 020 | A 3954110211 | DRIVE FLANGE |
| 025 | A 3314100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 025 | A 3874100031 | UNIVERSAL JOINT CROSS |
| 030 | A 3354111173 | LOCK |
| AS REQUIRED | ||
| 030 | A 3354111273 | LOCK |
| AS REQUIRED | ||
| 030 | A 3354111373 | LOCK |
| AS REQUIRED | ||
| 030 | A 3354111473 | LOCK |
| AS REQUIRED | ||
| 1.775 MM | ||
| 030 | A 3354111573 | LOCK |
| AS REQUIRED | ||
| 1.800 MM | ||
| 030 | A 3454110073 | LOCK |
| AS REQUIRED | ||
| 1.825 MM | ||
| 030 | A 3634110773 | LOCK |
| Repalced by: A 3634111173 | ||
| 030 | A 3634110973 | LOCK |
| Repalced by: A 3634111173 | ||
| 030 | A 3634111173 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 035 | N 071412008300 | GREASE NIPPLE |
| 035 | A 3459977288 | GREASE NIPPLE |
| A 3764100010 | INTERMEDIATE BEARING | |
| REPAIR KIT | ||
| A 3504100010 | INTERMEDIATE BEARING | |
| REPAIR KIT | ||
| 040 | A 3364100030 | CENTERING FLANGE |
| 040 | A 3954100030 | CENTERING FLANGE |
| 045 | A 3354130061 | PROTECTIVE CAP |
| 045 | A 3874130061 | PROTECTIVE CAP |
| 050 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 050 | A 3853510072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 050 | A 3853510172 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 050 | A 3853510172 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 050 | A 3663530072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 050 | A 3853510672 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 055 | H 983454100340 | BRACKET |
| Repalced by: A 3454107440 | ||
| 055 | A 3454107440 | BRACKET |
| INTERMEDIATE BEARING | ||
| 057 | A 3454107140 | BRACKET |
| INTERMEDIATE BEARING | ||
| H 983454100240 | BRACKET | |
| 060 | N 000961010011 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 060 | N 000961010012 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 065 | A 3524130011 | REINFORCEMENT |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 078 | N 000127010202 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 070 | N 913002010002 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 075 | A 3384130012 | RUBBER MOUNTING |
| PROPELLER SHAFT | ||
| 075 | A 3634130012 | RUBBER MOUNTING |
| PROPELLER SHAFT | ||
| 080 | A 3544100051 | BALL BEARING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NOS.: | ||
| 363 410 00 51, 2X 363 410 00 34 | ||
| 080 | A 3634100151 | BALL BEARING |
| PROPELLER SHAFT | ||
| 085 | A 3374130131 | BEARING RING |
| 086 | A 3634130001 | HOUSING |
| INTERMEDIATE BEARING | ||
| 087 | A 6204138442 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 087 | A 6204138542 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 088 | A 3879900040 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 088 | A 3879900040 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 089 | N 000127012201 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 089E | N 000961012106 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| N 000961012155 | SCREW | |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 089N | N 913001012000 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 090 | H 983454101101 | PROPELLER SHAFT |
| Repalced by: A 3454101301 | ||
| 090 | A 3454101301 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 934 MM | ||
| 095 | N 071412010100 | GREASE NIPPLE |
| 100 | A 3354130061 | PROTECTIVE CAP |
| A 3314110011 | DRIVE FLANGE | |
| Repalced by: A 3364110011 | ||
| 105 | A 3364110011 | DRIVE FLANGE |
| 110 | A 3314100031 | UNIVERSAL JOINT CROSS |
| 115 | A 3354111173 | LOCK |
| 1.700 MM | ||
| 115 | A 3354111273 | LOCK |
| 1.725 MM | ||
| 115 | A 3354111373 | LOCK |
| 1.750 MM | ||
| 115 | A 3354111473 | LOCK |
| 1.775 MM | ||
| 115 | A 3354111573 | LOCK |
| 1.800 MM | ||
| 115 | A 3454110073 | LOCK |
| 1.825 MM | ||
| 120 | N 071412008300 | GREASE NIPPLE |
| 120 | A 3459977288 | GREASE NIPPLE |
| A 3764100010 | INTERMEDIATE BEARING | |
| REPAIR KIT | ||
| 125 | A 3364100030 | CENTERING FLANGE |
| 130 | A 3354130061 | PROTECTIVE CAP |
| 135 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 135 | A 3853510072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 135 | A 3853510172 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| H 983454100340 | BRACKET | |
| Repalced by: A 3454107440 | ||
| 140 | A 3454107440 | BRACKET |
| INTERMEDIATE BEARING | ||
| 145 | N 000961010011 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 150 | A 3524130011 | REINFORCEMENT |
| 155 | N 000127010202 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 160 | N 913002010002 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 165 | A 3384130012 | RUBBER MOUNTING |
| 170 | A 3544100051 | BALL BEARING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NOS.: | ||
| 363 410 00 51, 2X 363 410 00 34 | ||
| 172 | A 3374130131 | BEARING RING |
| 175 | H 983454101802 | PROPELLER SHAFT |
| Repalced by: A 3454108202 | ||
| 175 | A 3454108202 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1635 MM | ||
| 175 | H 983454101702 | PROPELLER SHAFT |
| Repalced by: A 3454108102 | ||
| 175 | A 3454108102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1199 MM | ||
| 175 | H 983454101902 | PROPELLER SHAFT |
| Repalced by: A 3454108402 | ||
| 175 | A 3454108402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1590 MM | ||
| 175 | H 983454102002 | PROPELLER SHAFT |
| Repalced by: A 3454108302 | ||
| 175 | A 3454108302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1720 MM | ||
| 175 | A 3874107501 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1570 MM | ||
| 180 | A 3454107008 | UNIVERSAL JOINT YOKE |
| Repalced by: A 3354100628 | ||
| 180 | A 3354100628 | UNIVERSAL JOINT |
| Repalced by: A 3354100728 | ||
| 180 | A 3354100728 | UNIVERSAL JOINT |
| 180 | A 3874100328 | UNIVERSAL JOINT |
| 185 | N 071412008100 | GREASE NIPPLE |
| A 3314110011 | DRIVE FLANGE | |
| Repalced by: A 3364110011 | ||
| 187 | A 3364110011 | DRIVE FLANGE |
| 187 | A 3954110211 | DRIVE FLANGE |
| 190 | A 3314100031 | UNIVERSAL JOINT CROSS |
| 190 | A 3874100031 | UNIVERSAL JOINT CROSS |
| 195 | A 3354111173 | LOCK |
| AS REQUIRED | ||
| 1.700 MM | ||
| 195 | A 3354111273 | LOCK |
| AS REQUIRED | ||
| 1.725 MM | ||
| 195 | A 3354111373 | LOCK |
| AS REQUIRED | ||
| 1.750 MM | ||
| 195 | A 3354111473 | LOCK |
| AS REQUIRED | ||
| 1.775 MM | ||
| 195 | A 3354111573 | LOCK |
| AS REQUIRED | ||
| 1.800 MM | ||
| 195 | A 3454110073 | LOCK |
| AS REQUIRED | ||
| 1.825 MM | ||
| 195 | A 3634110773 | LOCK |
| Repalced by: A 3634111173 | ||
| 195 | A 3634110973 | LOCK |
| Repalced by: A 3634111173 | ||
| 195 | A 3634111173 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 200 | N 071412008300 | GREASE NIPPLE |
| AS REQUIRED | ||
| 200 | A 3459977288 | GREASE NIPPLE |
| 210 | A 3354110180 | GASKET |
| 212 | A 3354110280 | GASKET |
| 215 | A 3354110058 | SEAL HOLDER |
| 220 | A 3454107180 | BOOT |
| 223 | A 3454117092 | CLAMPING RING |
| 226 | A 3449978990 | CLAMP |
| Repalced by: A 3449979890 | ||
| 226 | A 3449979890 | CLAMP |
| 226 | A 3449979790 | CLAMP |
| N 071412008100 | GREASE NIPPLE | |
| 240 | A 0029908301 | SCREW |
| Repalced by: A 3609901901 | ||
| 240 | A 3609901901 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 240 | A 0029909901 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 245 | N 000127012201 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 245 | N 000127016201 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 250 | N 000934012042 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 250 | N 000934016003 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 255 | A 0454130014 | SUPPORT |
| 260 | A 3454100393 | CHAIN |
| Repalced by: A 3454137244 | ||
| 260 | A 3454137244 | REBOUND STRAP |
| 261 | N 000933010174 | SCREW |
| 262 | N 000127010202 | LOCK WASHER |
| 263 | N 000934010000 | NUT |
| 264 | A 3454107940 | BRACKET |
| 264E | A 3504107093 | MOUNTING PLATE |
| PROPELLER SHAFT RETAINING STRAP | ||
| 264K | N 000933010270 | SCREW |
| PROPELLER SHAFT RETAINING STRAP | ||
| 264P | N 000127010202 | LOCK WASHER |
| PROPELLER SHAFT RETAINING STRAP | ||
| 265 | H 983454100038 | REBOUND STRAP |
| Repalced by: A 3454107038 | ||
| 265 | A 3454107038 | PART NAME MISSING |
| Repalced by: A 3454107640 | ||
| 265 | A 3454107640 | BRACKET |
| A 3454117097 | BOOT | |
| Repalced by: A 3454107180 | ||
| 270 | A 3454107180 | BOOT |
