Transporto priemonė: LS 1519; VIN numerio dalis: 345045
Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|

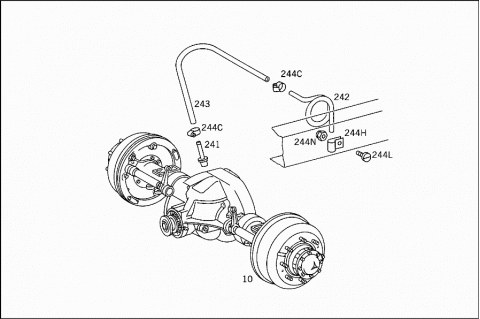

| 010 | A 3603500101 | REAR AXLE |
| Repalced by: A 3603505201 | ||
| 010 | A 3603505201 | REAR AXLE |
| Repalced by: A 3453507301 | ||
| 010 | A 3453507301 | REAR AXLE |
| WITH BRAKES | ||
| 010 | A 3453509804 | REAR AXLE |
| LESS BRAKES | ||
| 8:39 | ||
| 010 | H 983453503000 | REAR AXLE |
| LESS BRAKES | ||
| 8:39 | ||

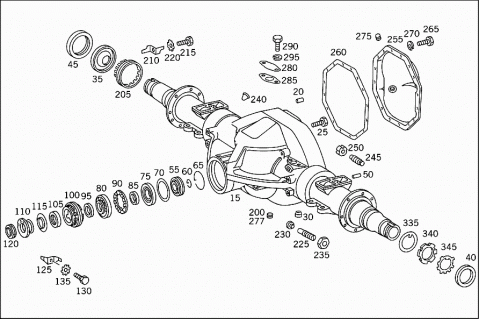

| 015 | A 3603500420 | AXLE HOUSING |
| Repalced by: A 3453507220 | ||
| 015 | A 3453507220 | AXLE HOUSING |
| 020 | N 000007010203 | CYLINDRICAL PIN |
| 025 | N 914126018003 | SCREW |
| 030 | A 3279970001 | PLUG |
| 035 | A 3023570182 | OIL COLLECTOR |
| 035 | A 3603570082 | OIL COLLECTOR |
| 040 | A 3603560015 | THRUST RING |
| LEFT | ||
| 045 | A 3603560115 | THRUST RING |
| RIGHT | ||
| 050 | A 3273510174 | PIN |
| AXLE TUBE TO AXLE HOUSING | ||
| 055 | A 0009819701 | CYLINDR. ROLLER BEARING |
| 055 | A 0019810001 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0009819701 | ||
| 055 | A 0039811701 | CYLINDR. ROLLER BEARING |
| 055 | A 0069811901 | CYLINDR. ROLLER BEARING |
| 060 | A 3179940037 | SNAP RING |
| 065 | A 3029940037 | SNAP RING |
| 070 | A 3173531352 | SPACER WASHER |
| DRIVE PINION TO RAER AXLE HOUSING | ||
| 0.1 MM | ||
| 070 | A 3173531652 | SPACER WASHER |
| DRIVE PINION TO RAER AXLE HOUSING | ||
| 0.15 MM | ||
| 070 | A 3173531452 | SPACER WASHER |
| DRIVE PINION TO RAER AXLE HOUSING | ||
| 0.2 MM | ||
| 070 | A 3173531752 | SPACER WASHER |
| DRIVE PINION TO RAER AXLE HOUSING | ||
| 0.25 MM | ||
| 070 | A 3173531552 | SPACER WASHER |
| DRIVE PINION TO RAER AXLE HOUSING | ||
| 0.5 MM | ||
| 075 | A 0039811205 | TAPERED ROLLER BEARING |
| 075 | A 0039811905 | TAPERED ROLLER BEARING |
| 080 | A 0009817705 | TAPERED ROLLER BEARING |
| 080 | A 0019819905 | TAPERED ROLLER BEARING |
| 080 | A 0009816505 | TAPERED ROLLER BEARING |
| 085 | A 3703530051 | SPACER RING |
| 090 | A 3703530152 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.80 MM | ||
| 090 | A 3703530252 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.82 MM | ||
| 090 | A 3703530352 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.84 MM | ||
| 090 | A 3703530452 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.86 MM | ||
| 090 | A 3703530552 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.88 MM | ||
| 090 | A 3703530652 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.90 MM | ||
| 090 | A 3703530752 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.92 MM | ||
| 090 | A 3703530852 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.94 MM | ||
| 090 | A 3703530952 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.96 MM | ||
| 090 | A 3703531052 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 6.98 MM | ||
| 090 | A 3703531152 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.00 MM | ||
| 090 | A 3703531252 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.02 MM | ||
| 090 | A 3703531352 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.04 MM | ||
| 090 | A 3703531452 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.06 MM | ||
| 090 | A 3703531552 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.08 MM | ||
| 090 | A 3703531652 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.10 MM | ||
| 090 | A 3703531752 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.12 MM | ||
| 090 | A 3703531852 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.14 MM | ||
| 090 | A 3703531952 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.16 MM | ||
| 090 | A 3703532052 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.18 MM | ||
| 090 | A 3703532152 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.20 MM | ||
| 090 | A 3703532252 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.22 MM | ||
| 090 | A 3703532352 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.24 MM | ||
| 090 | A 3703532452 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.26 MM | ||
| 090 | A 3703532552 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.28 MM | ||
| 090 | A 3703532652 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.30 MM | ||
| 090 | A 3703532752 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.32 MM | ||
| 090 | A 3703532852 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.34 MM | ||
| 090 | A 3703532952 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.36 MM | ||
| 090 | A 3703533052 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.38 MM | ||
| 090 | A 3703533152 | SPACER WASHER |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.40 MM | ||
| 090 | A 3703530151 | SPACER RING |
| TAPERED ROLLER BEARING TO DRIVE PINION | ||
| 7.42 MM | ||
| 095 | A 3173530162 | THRUST WASHER |
| Repalced by: A 3853533862 | ||
| 095 | A 3853533862 | THRUST WASHER |
| 100 | A 3173530125 | SCREW COLLAR |
| 105 | A 0039974446 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 105 | A 0109975746 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 105 | A 0089970747 | SEAL RING |
| 105 | A 3459977346 | SEAL RING |
| Repalced by: A 3459977646 | ||
| 105 | A 3459977646 | SEAL RING |
| 110 | A 3603500445 | FLANGE |
| 115 | A 3273530291 | PROTECTIVE PLATE |
| 120 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 120 | A 3853510072 | NUT |
| 120 | A 3853510172 | NUT |
| 125 | A 3273530373 | LOCK |
| SCREW COLLAR | ||
| 130 | N 000933008005 | SCREW |
| 135 | N 006797008121 | TOOTHED WASHER |

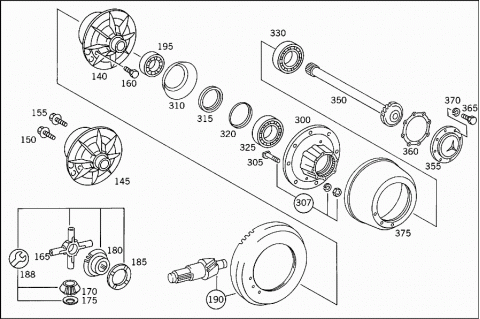

| 140 | A 3613505523 | DIFFERENTIAL GEAR |
| Repalced by: A 3503502823 | ||
| 140 | A 3503502823 | DIFFERENTIAL GEAR |
| Repalced by: A 3503502723 | ||
| 140 | A 3503502723 | DIFFERENTIAL GEAR |
| 8:39 | ||
| 145 | A 3613500127 | DIFFERENTIAL CASE |
| Repalced by: A 3853500827 | ||
| 145 | A 3853500827 | DIFFERENTIAL CASE |
| 150 | A 3619900004 | SCREW |
| 155 | A 3619900104 | SCREW |
| 155 | A 3279901601 | SCREW |
| 160 | A 3859901001 | SCREW |
| Repalced by: A 3859901101 | ||
| 160 | A 3859901101 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 165 | A 3703530020 | DIFFERENTIAL SPIDER |
| 165 | A 3603530020 | DIFFERENTIAL SPIDER |
| 170 | A 3453537114 | DIFFERENTIAL PINION |
| TO 345 353 72 15,CONIFLEX | ||
| 170 | A 3453537214 | DIFFERENTIAL PINION |
| TO 345 353 74 15,GLEASON | ||
| 175 | A 3273530162 | THRUST WASHER |
| Repalced by: A 3273534662 | ||
| 175 | A 3273534662 | THRUST WASHER |
| STEEL | ||
| 1.5 MM | ||
| 175 | A 3273534762 | THRUST WASHER |
| BOEGRA F 80; 1.5 MM | ||
| 180 | A 3453537215 | SIDE GEAR |
| TO 345 353 71 14,CONIFLEX | ||
| 180 | A 3453537415 | SIDE GEAR |
| TO 345 353 72 14,GLEASON | ||
| A 3273531162 | THRUST WASHER | |
| Repalced by: A 3273533162 | ||
| 185 | A 3273533162 | THRUST WASHER |
| BRASS | ||
| 1.45 MM | ||
| A 3273530062 | THRUST WASHER | |
| Repalced by: A 3273533262 | ||
| 185 | A 3273533262 | THRUST WASHER |
| BRASS | ||
| 1.50 MM | ||
| A 3273531262 | THRUST WASHER | |
| Repalced by: A 3273533362 | ||
| 185 | A 3273533362 | THRUST WASHER |
| BRASS | ||
| 1.55 MM | ||
| A 3273531362 | THRUST WASHER | |
| Repalced by: A 3273533462 | ||
| 185 | A 3273533462 | THRUST WASHER |
| BRASS | ||
| 1.60 MM | ||
| A 3273531462 | THRUST WASHER | |
| Repalced by: A 3273533562 | ||
| 185 | A 3273533562 | THRUST WASHER |
| BRASS | ||
| 1.65 MM | ||
| A 3273531562 | THRUST WASHER | |
| Repalced by: A 3273533662 | ||
| 185 | A 3273533662 | THRUST WASHER |
| BRASS | ||
| 1.70 MM | ||
| 185 | A 3273531662 | THRUST WASHER |
| Repalced by: A 3273533762 | ||
| 185 | A 3273533762 | THRUST WASHER |
| BRASS | ||
| 1.80 MM | ||
| 185 | A 3273533862 | THRUST WASHER |
| STEEL | ||
| 1.45 MM | ||
| 185 | A 3273533962 | THRUST WASHER |
| STEEL | ||
| 1.50 MM | ||
| 185 | A 3273534062 | THRUST WASHER |
| STEEL | ||
| 1.55 MM | ||
| 185 | A 3273534162 | THRUST WASHER |
| STEEL | ||
| 1.60 MM | ||
| 185 | A 3273534262 | THRUST WASHER |
| STEEL | ||
| 1.65 MM | ||
| 185 | A 3273534362 | THRUST WASHER |
| STEEL | ||
| 1.70 MM | ||
| 185 | A 3273534462 | THRUST WASHER |
| STEEL | ||
| 1.80 MM | ||
| 188 | A 3455860235 | REPAIR KIT |
| Repalced by: A 3453500226 | ||
| 188 | A 3453500226 | DRIVE PINION |
| Repalced by: A 3453500040 | ||
| 188 | A 3455867235 | REPAIR KIT |
| Repalced by: A 3453500040 | ||
| 188 | A 3453500040 | DIFFERENTIAL PINION |
| REPAIR KIT | ||
| 190 | A 3613501439 | RING GEAR AND PINION |
| 8:39 | ||
| A 3613502039 | RING GEAR AND PINION | |
| Repalced by: A 3453500239 | ||
| 190 | A 3453500239 | RING GEAR AND PINION |
| 39:8 | ||
| 195 | A 0019816405 | TAPERED ROLLER BEARING |
| 150 EXT X 100 INT X 32 ALT | ||
| 195 | A 0019817205 | TAPERED ROLLER BEARING |
| 150 EXT X 100 INT X 32 ALT | ||
| 195 | A 0049817405 | TAPERED ROLLER BEARING |
| 195 | A 0069810405 | TAPERED ROLLER BEARING |
| 150 EXT X 100 INT X 32 ALT | ||
| 200 | N 000906018000 | SCREW PLUG |
| 205 | A 3273530925 | SCREW COLLAR |
| Repalced by: A 3543530025 | ||
| 205 | A 3543530025 | SCREW COLLAR |
| 205 | A 3453537025 | SCREW COLLAR |
| 210 | A 3273530373 | LOCK |
| 215 | N 000933008228 | SCREW |
| 220 | N 006797008121 | TOOTHED WASHER |
| 225 | A 3173530276 | SET SCREW |
| Repalced by: A 3853530376 | ||
| 225 | A 3853530376 | SET SCREW |
| RING GEAR CHECK | ||
| 230 | A 3173530049 | SLIDE |
| 235 | N 000439030000 | NUT |
| 240 | A 3123501090 | VALVE |
| Repalced by: A 3453507290 | ||
| 240 | A 3453507290 | VALVE |
| 241 | A 3453507190 | VALVE |
| 242 | A 3443517066 | PIPE |
| 243 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 243 | A 3769978182 | HOSE |
| 244C | N 916002010100 | CLAMP |
| 244H | A 3129951401 | CLAMP |
| BREATHER PIPE TO SIDE MEMBER | ||
| 244L | N 007985006515 | SCREW |
| BREATHER PIPE TO SIDE MEMBER | ||
| 244N | N 913004006001 | NUT |
| BREATHER PIPE TO SIDE MEMBER | ||
| 245 | A 3543510071 | SCREW |
| 250 | N 080705014001 | NUT |
| 255 | H 983453500221 | COVER |
| Repalced by: A 3453507121 | ||
| 255 | A 3453507121 | COVER |
| 255 | A 3023500021 | COVER |
| 260 | A 3173510280 | GASKET |
| COVER TO AXLE HOUSING | ||
| 265 | N 000933010294 | SCREW |
| COVER TO AXLE HOUSING | ||
| 270 | N 000127010202 | LOCK WASHER |
| COVER TO AXLE HOUSING | ||
| 275 | A 1869970032 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 277 | A 0009972632 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 277 | A 0009973432 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 280 | A 3279970065 | FLANGE |
| 285 | A 3273510079 | GASKET |
| 290 | N 000933010174 | SCREW |
| 295 | N 000127010202 | LOCK WASHER |
| 300 | A 3453560101 | WHEEL HUB |
| Repalced by: A 3853560101 | ||
| 300 | A 3853560101 | WHEEL HUB |
| 305 | A 3274020471 | WHEEL MOUNTING BOLT |
| Repalced by: A 4984010071 | ||
| 305 | A 4984010071 | WHEEL MOUNTING BOLT |
| Repalced by: A 3814010571 | ||
| 305 | A 3814010571 | WHEEL MOUNTING BOLT |
| 307 | A 3764000174 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 30 MM,TO 327 402 04 71 | ||
| 307 | A 3764000874 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 27 MM,TO 327 402 04 71 | ||
| 307 | A 3814000274 | PIN |
| Repalced by: A 3644000074 | ||
| 307 | A 3644000074 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 30 MM,TO 498 401 00 71 | ||
| 307 | A 3814000474 | PIN |
| (PARTS KIT),WHEEL MOUNTING; WHEEL OPENING: | ||
| 27 MM,TO 498 401 00 71 | ||
| 310 | A 3603560082 | OIL COLLECTOR |
| Repalced by: A 3853560282 | ||
| 310 | A 3853560282 | OIL COLLECTOR |
| 315 | A 0069970546 | SEAL RING |
| Repalced by: A 0109978147 | ||
| 315 | A 0109978147 | SEAL RING |
| 320 | A 3603560051 | SPACER RING |
| 325 | A 0029819005 | TAPERED ROLLER BEARING |
| 325 | A 0039818605 | TAPERED ROLLER BEARING |
| 325 | A 0009809602 | TAPERED ROLLER BEARING |
| 325 | A 3869817705 | TAPERED ROLLER BEARING |
| 330 | A 0029818605 | TAPERED ROLLER BEARING |
| 330 | A 0029818905 | TAPERED ROLLER BEARING |
| 330 | A 0019802702 | TAPERED ROLLER BEARING |
| 330 | A 3849817005 | TAPERED ROLLER BEARING |
| 330 | A 3849817105 | TAPERED ROLLER BEARING |
| 335 | A 3603560052 | SPACER WASHER |
| HUB TO REAR AXLE TUBE | ||
| 340 | N 070852075000 | NUT |
| Repalced by: A 3853560026 | ||
| 340 | A 3853560026 | GROOVED NUT |
| HUB TO REAR AXLE TUBE | ||
| 345 | N 070952075103 | LOCK PLATE |
| HUB TO REAR AXLE TUBE | ||
| 350 | A 3603570101 | REAR AXLE SHAFT |
| Repalced by: A 3603570301 | ||
| 350 | A 3603570301 | REAR AXLE SHAFT |
| Repalced by: A 3603571601 | ||
| 350 | A 3603571601 | REAR AXLE SHAFT |
| 355 | A 3273560120 | HUB CAP |
| 360 | A 3273560180 | GASKET |
| COVER TO WHEEL HUB | ||
| 365 | N 000933008317 | SCREW |
| COVER TO WHEEL HUB | ||
| 370 | N 912004008100 | LOCK WASHER |
| COVER TO WHEEL HUB | ||
| 375 | A 3604230101 | BRAKE DRUM |
| STANDARD | ||
| 375 | A 3454237401 | BRAKE DRUM |
| REPAIR SIZE I | ||
| A 3455847124 | UNIT IDENTIFICATION PLATE | |
| Repalced by: A 3455847424 | ||
| A 3455847424 | UNIT IDENTIFICATION PLATE | |
| A 3449917161 | DOWEL PIN | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
