Transporto priemonė: LS 1519; VIN numerio dalis: 345045
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE MICROFICHE NO.: | ||
| 817 | ||

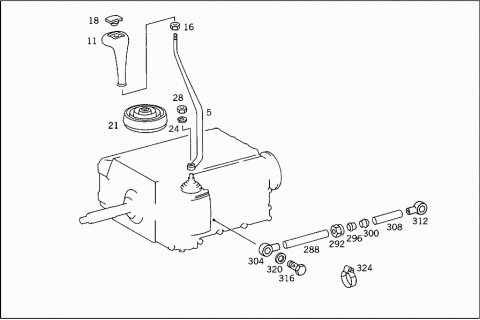

| 005 | A 3432670001 | SHIFT LEVER |
| Repalced by: A 3452677101 | ||
| 005 | A 3452677101 | SHIFT LEVER |
| Repalced by: A 3452678301 | ||
| 005 | A 3452678301 | SHIFT LEVER |
| 011 | A 3362600040 | HANDLE |
| Repalced by: A 3642687042 | ||
| 011 | A 3452600040 | HANDLE |
| Repalced by: A 3642687042 | ||
| 011 | A 3642687042 | KNOB |
| SHIFT LEVER | ||
| 016 | N 000934010004 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 018 | A 6202680457 | COVER |
| 1ST THRU 6TH SPEED,REVERSE SPEED | ||
| 018 | A 3452687057 | COVER |
| GEARSHIFT LEVER KNOB | ||
| 021 | A 3432670096 | BOOT |
| Repalced by: A 3452677096 | ||
| 021 | A 3452677096 | BOOT |
| Repalced by: A 6882677096 | ||
| 021 | A 6882677096 | BOOT |
| SHIFT LEVER KNOB | ||
| 024 | N 000127012201 | LOCK WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 028 | N 000934012010 | NUT |
| SHIFT LEVER TO TRANSMISSION | ||

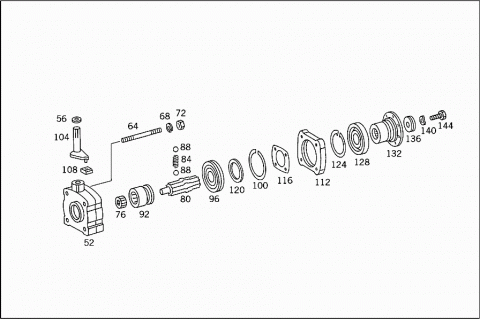

| 048 | A 3432600105 | P.T.O. |
| Repalced by: A 0002600110 | ||
| 048 | A 0002600110 | P.T.O. |
| 052 | A 3432640128 | HOUSING |
| Repalced by: A 0002641328 | ||
| 052 | A 0002641328 | HOUSING |
| 056 | A 0019978346 | SEAL RING |
| 064 | N 000939012015 | STUD BOLT |
| Repalced by: A 0002610070 | ||
| 064 | A 0002610070 | STUD |
| 068 | A 3439900047 | LOCK WASHER |
| Repalced by: N 000125013012 | ||
| 068 | N 000125013012 | WASHER |
| 072 | A 3439900051 | NUT |
| 076 | A 0019814910 | NEEDLE BEARING |
| 080 | A 3432640006 | DRIVE SHAFT |
| 084 | A 3432640093 | SPRING |
| 088 | N 005401308000 | BALL |
| 092 | A 3432640323 | SLIDING COLLAR |
| 096 | N 000625506208 | GROOVED BALL BEARING |
| 100 | A 0002880141 | RETAINING RING |
| 104 | A 0002601439 | SHIFT LEVER |
| 108 | A 3432650449 | SLIDE |
| 112 | A 3432640044 | INTERMEDIATE FLANGE |
| 112 | A 0002641344 | INTERMEDIATE FLANGE |
| 116 | A 0002643080 | GASKET |
| Repalced by: A 3432640479 | ||
| 116 | A 3432640479 | GASKET |
| 120 | A 3432640147 | SHIM |
| AS REQUIRED | ||
| 120 | A 3432640247 | SHIM |
| AS REQUIRED | ||
| 120 | A 3432640347 | SHIM |
| AS REQUIRED | ||
| 120 | A 3432640447 | SHIM |
| AS REQUIRED | ||
| 124 | N 000472080000 | LOCK RING |
| 128 | A 0049976646 | SEAL RING |
| Repalced by: A 0089973747 | ||
| 128 | A 0089973747 | SEAL RING |
| 132 | A 3432640045 | COUPLING FLANGE |
| 136 | A 3432640047 | SHIM |
| 140 | N 000137012203 | SPRING WASHER |
| 144 | N 000933012080 | SCREW |
| 148 | A 3432640024 | SHIFT LEVER |
| 152 | N 000931008045 | SCREW |
| 156 | N 000934008000 | NUT |
| 160 | A 0002640496 | BOOT |
| Repalced by: A 3222640096 | ||
| 160 | A 3222640096 | BOOT |
| Repalced by: A 3442647096 | ||
| 160 | A 3442647096 | BOOT |
| 162 | A 3459927701 | BUSHING |
| 162 | A 3369920003 | BUSHING |

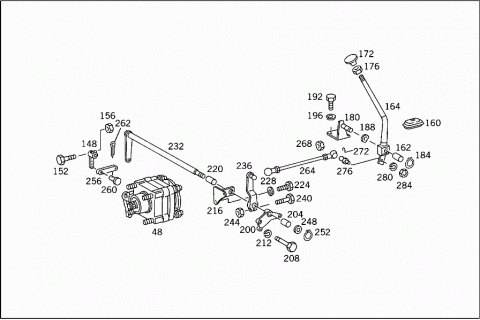

| 164 | A 3452607639 | SHIFT LEVER |
| 172 | A 3442607040 | HANDLE |
| 172 | A 3042600440 | HANDLE |
| 176 | N 000934010004 | NUT |
| 180 | A 7192600094 | BEARING BRACKET |
| Repalced by: A 3452607294 | ||
| 180 | A 3452607294 | BEARING BRACKET |
| 184 | N 900055018300 | LOCK RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 188 | N 900055018001 | SPRING WASHER |
| SHIFT LEVER TO BEARING BRACKET | ||
| 192 | N 000961012160 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 196 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 200 | A 3352600594 | BEARING BRACKET |
| TRANSMISSION CASE COVER ,LEFT | ||
| 204 | A 3359920103 | BUSHING |
| 208 | N 000931010111 | SCREW |
| 212 | N 000127010202 | LOCK WASHER |
| 216 | A 3432601994 | BEARING BRACKET |
| TRANSMISSION CASE COVER,RIGHT | ||
| 220 | A 3509927101 | BUSHING |
| 220 | A 3359920203 | BUSHING |
| 224 | N 000933010269 | SCREW |
| 228 | N 000127010202 | LOCK WASHER |
| 232 | A 3432600137 | LEVER |
| 236 | A 3352640019 | LEVER |
| 240 | N 000931008045 | SCREW |
| 244 | N 000934008000 | NUT |
| 248 | N 000433017000 | WASHER |
| 252 | N 900055016300 | LOCK RING |
| 256 | A 3352600075 | CONNECTOR |
| 260 | N 001434008002 | PIN |
| 262 | N 000094002059 | COTTER PIN |
| 264 | A 7192600089 | PULL ROD |
| 268 | N 000934010000 | NUT |
| 272 | N 071805016402 | CIRCLIP |
| 276 | N 071803016101 | BALL PIVOT |
| 280 | N 000127010202 | LOCK WASHER |
| 284 | N 000934010000 | NUT |
| 288 | A 0089979082 | HOSE |
| FROM DISTRIBUTOR PLUG TO TRANSMISSION | ||
| 740 MM | ||
| 292 | N 915017008100 | UNION NUT |
| FROM DISTRIBUTOR PLUG TO TRANSMISSION | ||
| 296 | N 003861008006 | GLAND |
| FROM DISTRIBUTOR PLUG TO TRANSMISSION | ||
| 300 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 300 | N 915062006000 | SLEEVE |
| FROM DISTRIBUTOR PLUG TO TRANSMISSION | ||
| 304 | N 915052006000 | BANJO UNION |
| FROM DISTRIBUTOR PLUG TO TRANSMISSION | ||
| 308 | A 0089979082 | HOSE |
| 110 MM | ||
| 312 | N 915052006000 | BANJO UNION |
| 316 | N 915036008100 | HOLLOW SCREW |
| 316 | N 915047008200 | HOLLOW SCREW |
| 320 | N 007603012111 | SEAL RING |
| 324 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 324 | A 3459977390 | LOOM TIE |
| N 071805016300 | SNAP RING | |
| SPRING | ||
