Transporto priemonė: LS 1526; VIN numerio dalis: 351087
Grupė: 42 BRAKES

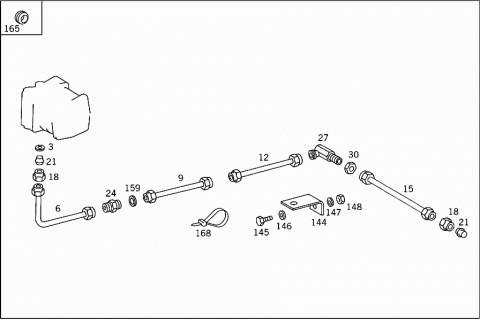

43612

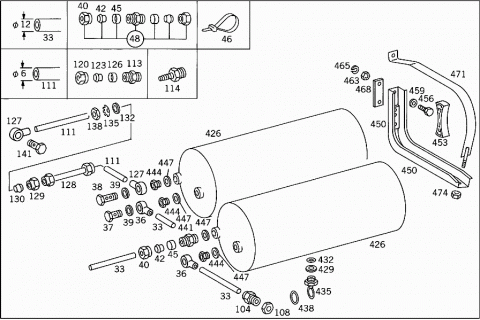

43613

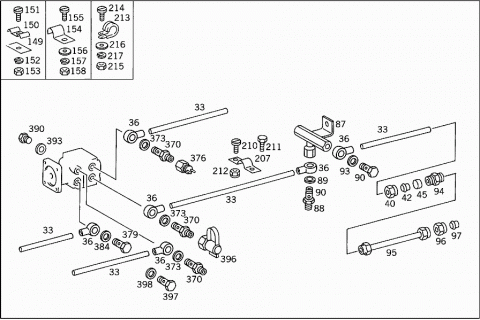

43614

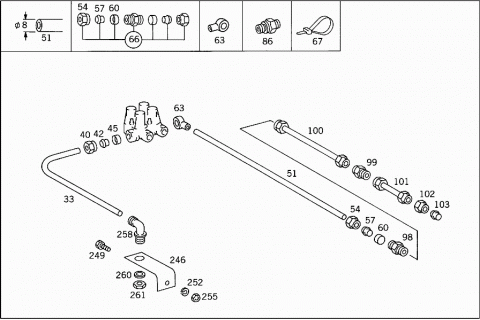

43615

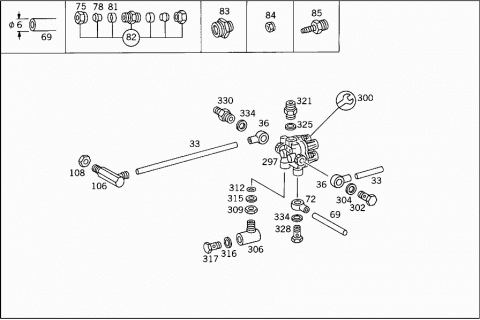

43616

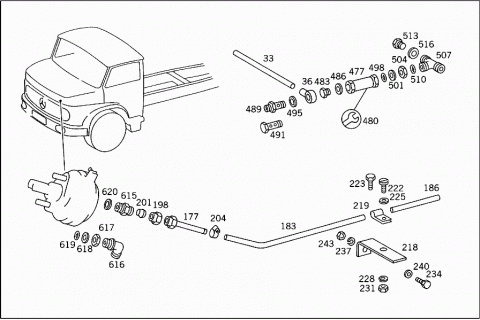

43617

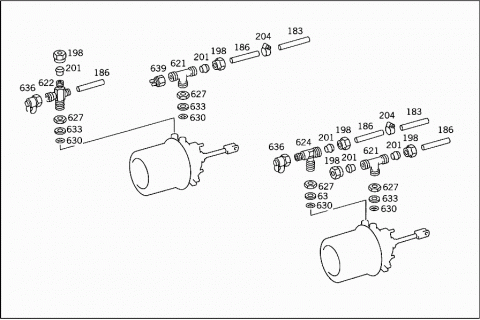

43618

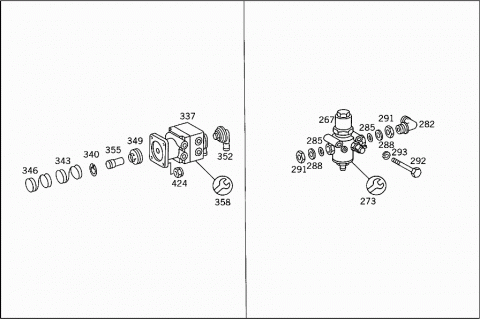

43619

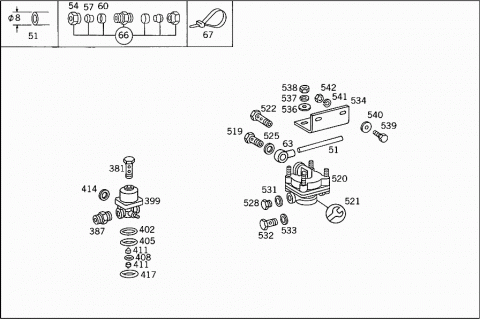

43620

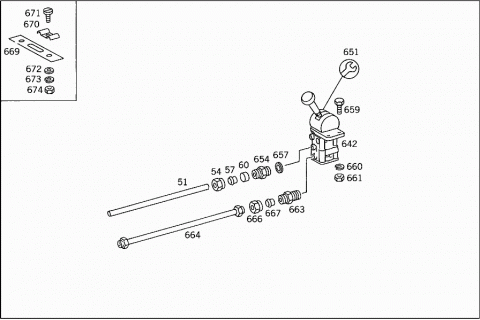

43621
43622
43623
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
732.104
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
745.920
003 N 007603026104 SEAL RING
COMPRESSED AIR LINE TO AIR COMPRESSOR
006 A 3514307364 LINE
FROM AIR COMPRESSOR TO CONNECTOR I
009 A 3514307665 LINE
FROM CONNECTOR I TO CONNECTOR II
012 A 3514307464 LINE
FROM BULKHEAD FITTING TO CONNECTOR
A 3514209349 LINE
FROM PRESSURE REGULATOR TO FITTING
015 A 3514209531 LINE
FROM PRESSURE REGULATOR TO FITTING
018 N 915017015100 UNION NUT
021 N 003861015004 GLAND
024 N 003902015001 CONNECTION FITTING
"1"
027 A 3519907883 FITTING
THROUGH SIDE MEMBER
030 N 080705022003 NUT
ELBOW FITTING TO SIDE MEMBER
033 A 0109975982 HOSE
Repalced by: A 0009872827
033 A 0009872827 PLASTIC PIPE
9X12 MM
036 N 915052009000 BANJO UNION
037 N 915036012101 HOLLOW SCREW
AIR RESERVOIR
038 N 915047012100 HOLLOW SCREW
AIR RESERVOIR
039 N 007603016103 SEAL RING
AIR RESERVOIR
040 N 915017012100 UNION NUT
042 N 003861012007 GLAND
045 N 915062009000 SLEEVE
046 A 0029972290 LOOM TIE
048 A 0049971772 FITTING
(PARTS KIT),LINE RUPTURE
051 A 0089979082 HOSE
8 MM
054 N 915017008100 UNION NUT
057 N 003861008005 GLAND
060 N 915062006000 SLEEVE
063 N 915052006002 BANJO UNION
066 A 0039978972 FITTING
(PARTS KIT),LINE RUPTURE
067 A 0029972290 LOOM TIE
A 3519907071 ELBOW FITTING
AT STOP LIGHT SWITCH
A 0019875046 SEALING CORD
AT STOP LIGHT SWITCH
A 0004290827 THRUST RING
Repalced by: A 0009940103
A 0009940103 THRUST RING
AT STOP LIGHT SWITCH
N 080705012003 NUT
AT STOP LIGHT SWITCH
069 A 0089976082 HOSE
4X6 MM
072 N 915052004002 BANJO UNION
075 N 915017006100 UNION NUT
078 N 003861006007 GLAND
081 N 915062004000 SLEEVE
082 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
083 A 0019975072 FITTING
084 N 915017006200 UNION NUT
085 A 0019973772 FITTING
086 A 3454298136 CONNECTOR
087 A 3519907170 T-FITTING
BETWEEN THE LINES
088 N 915039012100 HOLLOW SCREW FITTING
T-FITTING,CONNECTION:
"3"
089 N 007603016103 SEAL RING
T-FITTING,CONNECTION:
"3"
090 N 915036012101 HOLLOW SCREW
T-FITTING,CONNECTION:
"1","2"
093 N 007603016103 SEAL RING
T-FITTING,CONNECTION:
"1","2"
094 N 003902012001 CONNECTION FITTING
Repalced by: A 0049971772
094 A 0049971772 FITTING
BETWEEN THE LINES
095 A 3514308264 LINE
FROM DOUBLE FITTING TO BULKHEAD FITTING
096 N 915017012100 UNION NUT
097 N 003861012007 GLAND
098 N 003902008001 CONNECTION FITTING
BETWEEN THE LINES
099 N 003910008001 BULKHEAD FITTING
100 A 3514209631 LINE
101 A 3514209931 LINE
102 N 915017008100 UNION NUT
103 N 003861008005 GLAND
104 N 003910012001 BULKHEAD FITTING
THROUGH SIDE MEMBER
106 A 3514297138 ELBOW FITTING
THROUGH SIDE MEMBER
Y YYYYYYYYYYYY PART NAME MISSING
LEFT AND RIGHT
108 N 080705018002 NUT
FITTING TO FRAME SIDE MEMBER
111 A 0089975882 HOSE
PRESSURE GAUGE LINE
4X6 MM
113 A 0019975072 FITTING
114 A 0019973772 FITTING
Y YYYYYYYYYYYY PART NAME MISSING
LEFT AND RIGHT
120 N 915017006100 UNION NUT
120 N 915017006200 UNION NUT
123 N 003861006007 GLAND
126 N 915062004000 SLEEVE
127 N 915052004002 BANJO UNION
128 A 3514307829 LINE
FROM WATER SEPARATOR TO FIRE WALL
128 A 3514307929 LINE
FROM WATER SEPARATOR TO FIRE WALL
129 N 915017006100 UNION NUT
130 N 003861006007 GLAND
132 N 009021013102 WASHER
FITTING TO FIRE WALL
135 N 006797012153 TOOTHED WASHER
FITTING TO FIRE WALL
138 N 080705012003 NUT
FITTING TO FIRE WALL
141 N 915036012101 HOLLOW SCREW
FITTING TO FIRE WALL
144 A 3094760036 BRACKET
COMPRESSED AIR LINES TO CROSS MEMBER
145 N 000933008145 SCREW
BRACKET TO CROSS MEMBER
146 N 000125008417 WASHER
BRACKET TO CROSS MEMBER
147 N 912006008001 LOCK WASHER
BRACKET TO CROSS MEMBER
148 N 000934008045 NUT
BRACKET TO CROSS MEMBER
149 A 3125421039 PLATE
LINE MOUNTING
150 A 3129950332 CLAMP
LINE MOUNTING
151 N 000084005104 SCREW
CLAMP TO BRACKET
152 N 912004005101 LOCK WASHER
CLAMP TO BRACKET
153 N 000934005000 NUT
CLAMP TO BRACKET
154 A 3129952420 CLAMP
LINE TO BRACKET
155 N 000084006197 SCREW
CLAMP TO BRACKET
156 N 000125006421 WASHER
CLAMP TO BRACKET
157 N 000127006203 LOCK WASHER
CLAMP TO BRACKET
158 N 000934006007 NUT
CLAMP TO BRACKET
159 A 3609902340 WASHER
COMPRESSED AIR LINES
10 MM
159 A 3609902440 WASHER
COMPRESSED AIR LINES
20 MM
165 A 6209970181 GROMMET
COMPRESSED AIR LINE THRU FRAME
42/36 MM
168 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
168 A 0029972290 LOOM TIE
LINE MOUNTING
146 MM
177 A 3414299806 LINE
Repalced by: A 3414309864
177 A 3414309864 LINE
LEFT FRONT WHEEL
177 A 3414207033 LINE
LEFT FRONT WHEEL
177 A 3414299906 LINE
Repalced by: A 3414309964
177 A 3414309964 LINE
FRONT AXLE,RIGHT
177 A 3414207133 LINE
FRONT AXLE,RIGHT
183 N 916027011004 HOSE
BRAKE HOSE
500 MM
Y YYYYYYYYYYYY PART NAME MISSING
FRONT AXLE,LEFT AND RIGHT
183 N 916027011018 HOSE
BRAKE HOSE
430 MM
Y YYYYYYYYYYYY PART NAME MISSING
FRONT AXLE,LEFT AND RIGHT
183 N 916027011002 HOSE
BRAKE HOSE
370 MM
186 A 3414297708 LINE
Repalced by: A 3414308566
186 A 3414308566 LINE
LEFT FRONT WHEEL
186 A 3414308566 LINE
REAR AXLE,LEFT
186 A 3414308566 LINE
REAR AXLE,RIGHT
186 A 3414297608 LINE
Repalced by: A 3414308466
186 A 3414308466 LINE
FRONT AXLE,RIGHT
186 A 3414308466 LINE
REAR AXLE,LEFT
186 A 3414308466 LINE
REAR AXLE,RIGHT
186 N 916027011003 HOSE
BRAKE HOSE
480 MM
Y YYYYYYYYYYYY PART NAME MISSING
REAR AXLE,LEFT AND RIGHT
198 N 915017012100 UNION NUT
COMPRESSED AIR LINES
201 N 003861012007 GLAND
COMPRESSED AIR LINES
204 N 916018016000 CLAMP
LINE TO HOSE
207 A 3159955010 CLAMP
COMPRESSED AIR LINE TO BRACKET
210 N 000084006423 SCREW
CLAMP TO BRACKET
M 6X20
211 N 000933006183 SCREW
CLAMP TO BRACKET
M 6X16
212 N 913004006002 NUT
CLAMP TO BRACKET
213 N 916016012200 CLAMP
COMPRESSED AIR LINE TO SIDE MEMBER
214 N 000084006425 SCREW
COMPRESSED AIR LINE TO SIDE MEMBER
215 N 000934006007 NUT
COMPRESSED AIR LINE TO SIDE MEMBER
216 N 009021006100 WASHER
COMPRESSED AIR LINE TO SIDE MEMBER
217 N 000127006206 LOCK WASHER
COMPRESSED AIR LINE TO SIDE MEMBER
218 A 3414297640 BRACKET
COMPRESSED AIR LINE
219 A 3419957420 CLAMP
COMPRESSED AIR LINE
219 A 3419957420 CLAMP
COMPRESSED AIR LINE TO BRACKET
222 N 000084006197 SCREW
CLAMP TO BRACKET
223 N 000933006183 SCREW
225 N 000125006421 WASHER
CLAMP TO BRACKET
225 N 000125006421 WASHER
CLAMP TO BRACKET
228 N 000127006203 LOCK WASHER
CLAMP TO BRACKET
228 N 000127006203 LOCK WASHER
CLAMP TO BRACKET
231 N 000934006007 NUT
CLAMP TO BRACKET
234 N 000933008278 SCREW
BRACKET TO LEFT SIDE MEMBER
237 N 912004008102 LOCK WASHER
BRACKET TO LEFT SIDE MEMBER
240 N 000125008417 WASHER
BRACKET TO LEFT SIDE MEMBER
243 N 000934008045 NUT
BRACKET TO LEFT SIDE MEMBER
246 A 3514237023 BRACKET
COMPRESSED AIR LINE
249 N 000933008145 SCREW
BRACKET TO CROSS MEMBER
252 N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
255 N 000934008045 NUT
BRACKET TO CROSS MEMBER
258 N 003911012100 FITTING
AT BRACKET
260 N 000125019009 WASHER
AT BRACKET
261 N 080705018002 NUT
AT BRACKET
267 A 0014310006 PRESSURE REGULATOR
"WABCO"
267 A 0014319806 PRESSURE REGULATOR
"KNORR"
267 A 0014311206 PRESSURE REGULATOR
"KNORR"
273 A 0015864343 REPAIR KIT
TO 001 431 00 06
273 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
273 A 0004201371 REPAIR KIT
TO 001 431 12 06,001 431 98 06
273 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06
282 A 3414297838 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
282 A 3414297938 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
285 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1","21"
288 A 0004290227 THRUST RING
Repalced by: A 0009940203
288 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1","21"
291 N 080705022001 NUT
PRESSURE REGULATOR,CONNECTIONS:
"1","21"
292 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
293 N 912004008102 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
297 A 0024314006 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
"WABCO"
297 A 0014318706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
"KNORR"
297 A 0024310106 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
"KNORR"
300 A 0035860943 REPAIR KIT
TO 002 431 40 06
300 A 0035861043 REPAIR KIT
TO 001 431 87 06
300 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
300 A 0004201571 REPAIR KIT
TO 002 431 01 06
302 N 915036012101 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
304 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
A 3519907070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
N 915047012100 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
306 A 3944297038 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
309 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
312 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
312 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
315 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
315 A 3084297027 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
316 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
317 N 915036012101 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
321 N 074313016402 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
325 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
328 N 915036012101 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,24"
330 A 3519907483 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
N 915047012100 HOLLOW SCREW
4/3-WAY VALVE,CONNECTION:
"21"
334 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
334 N 007603016103 SEAL RING
4/3-WAY VALVE,CONNECTION:
"21"
337 A 0014318305 BRAKE VALVE
Repalced by: A 3454317105
337 A 3454317105 BRAKE VALVE
WABCO
337 A 0014319105 BRAKE VALVE
Repalced by: A 3454317005
337 A 0024312705 BRAKE VALVE
Repalced by: A 3454317005
337 A 3454317005 BRAKE VALVE
KNORR
340 A 0049949541 LOCK
Repalced by: N 000472060000
340 N 000472060000 LOCK RING
TO 001 431 83 05,345 431 71 05
340 A 0049949641 LOCK
Repalced by: N 000472045000
340 N 000472045000 LOCK RING
TO 001 431 83 05,345 431 71 05
340 A 0049949741 LOCK
Repalced by: N 000984038000
340 N 000984038000 LOCK RING
TO 001 431 83 05,345 431 71 05
340 A 0049949841 LOCK
Repalced by: N 000472047001
340 N 000472047001 LOCK RING
TO 001 431 83 05,345 431 71 05
340 A 0049949941 LOCK
TO 345 431 70 05
343 A 0014317193 SPRING
TO 002 431 27 05,345 431 70 05
343 A 0014317393 SPRING
TO 001 431 83 05
346 A 0014317293 SPRING
TO 002 431 27 05,345 431 70 05
346 A 0014317493 SPRING
TO 001 431 83 05,345 431 71 05
349 A 0004312185 FILLER RING
TO 001 431 83 05
352 A 0004310273 BREATHER PIPE
TO 001 431 83 05
355 A 0004319483 PISTON
TO 002 431 27 05, 345 431 70 05
355 A 0004318783 PISTON
355 A 0004318883 PISTON
355 A 0004318383 PISTON
TO 001 431 83 05
355 A 0004318683 PISTON
TO 345 431 71 05,001 431 83 05
358 A 0004306260 REPAIR KIT
LARGE SCOPE
TO 001 431 83 05,345 431 71 03
358 A 0035861243 REPAIR KIT
TO 001 431 91 05
358 A 0014301160 REPAIR KIT
SMALL SCOPE
TO 001 431 83 05,345 431 71 05
358 A 0014301260 REPAIR KIT
SMALL SCOPE
TO 002 431 27 05,345 431 70 05
358 A 0004307160 REPAIR KIT
Repalced by: A 0004304206
358 A 0004304206 REPAIR KIT
LARGE SCOPE
TO 002 431 27 05, 345 431 70 05
370 N 915039012100 HOLLOW SCREW FITTING
BRAKE VALVE,CONNECTIONS:
"11","12","22"
370 N 915039012100 HOLLOW SCREW FITTING
BRAKE VALVE,CONNECTIONS:
"11","12"
373 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTIONS:
"11","12","22"
373 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTIONS:
"11","12"
376 A 0005455414 SWITCH
SERVICE BRAKE VALVE
376 A 3445457214 SWITCH
SERVICE BRAKE VALVE
376 A 3445457214 SWITCH
TRAILER CONTROL VALVE,CONNECTION:
"1"
379 N 915036012101 HOLLOW SCREW
BRAKE VALVE,CONNECTION "21"
381 N 915047012100 HOLLOW SCREW
PRESSURE RATIO VALVE
384 N 007603016103 SEAL RING
BRAKE VALVE,CONNECTION "21"
387 N 003902008001 CONNECTION FITTING
PRESSURE RATIO VALVE
390 N 007604016102 SCREW PLUG
BRAKE VALVE,CONNECTIONS:
"21,22"
393 N 007603016105 SEAL RING
BRAKE VALVE,CONNECTIONS:
"21,22"
396 A 0004312031 TEST CONNECTION
SERVICE BRAKE VALVE,CONNECTION:
"22"
396 A 0004314531 TEST CONNECTION
SERVICE BRAKE VALVE,CONNECTION:
"22"
397 N 915036012101 HOLLOW SCREW
SERVICE BRAKE VALVE,CONNECTION:
"22"
398 N 007603016103 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"22"
399 A 0014306481 VALVE
(PRESSURE RATIO VALVE)
402 A 0019871746 SEALING CORD
405 A 0089970445 SEAL RING
408 A 0089978648 SEAL RING
411 A 0004313223 VALVE
414 N 007603016400 SEAL RING
417 A 0089978748 SEAL RING
N 000933008153 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
N 912004008102 LOCK WASHER
BRAKE VALVE TO PEDAL BEARING BRACKET
424 N 913004008004 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
426 A 3414307205 RESERVOIR
BRAKE CIRCUITS I AND II
426 A 3924307305 RESERVOIR
BRAKE CIRCUITS I AND II
429 A 0004290227 THRUST RING
Repalced by: A 0009940203
429 A 0009940203 THRUST RING
AIR RESERVOIR
432 A 0009870446 SEALING CORD
AIR RESERVOIR
435 A 3454300181 VALVE
AIR RESERVOIR DRAIN
435 A 3454307281 VALVE
AIR RESERVOIR DRAIN
435 A 3454300281 VALVE
AIR RESERVOIR DRAIN
435 A 0004321107 VALVE
Repalced by: A 3514307581
435 A 3514307581 VALVE
Repalced by: A 0004322507
435 A 0004322507 VALVE
AIR RESERVOIR DRAIN
435 A 3454300081 VALVE
Repalced by: A 0004322407
435 A 0004322407 VALVE
AIR RESERVOIR DRAIN
435 A 0004320607 VALVE
AIR RESERVOIR DRAIN
435 A 3514307781 VALVE
AIR RESERVOIR DRAIN
438 A 3459880066 RING
DRAIN VALVE
TO 345 430 01 81,345 430 72 81
438 N 900397000201 RING
DRAIN VALVE
TO 351 430 75 81,00 81
441 A 3514297036 CONNECTOR
AIR RESERVOIR
444 A 0009905168 FITTING
AIR RESERVOIR
444 N 003901012005 SCREW-IN FITTING
447 N 007603022102 SEAL RING
AIR RESERVOIR
447 N 007603016105 SEAL RING
AIR RESERVOIR
450 A 3604301311 CONSOLE
AIR RESERVOIR
453 A 3354320218 BASE
Repalced by: A 3904327018
453 A 3904327018 BASE
AIR RESERVOIR
456 N 000961014098 SCREW
CONSOLE TO SIDE MEMBER
456 N 000961010047 SCREW
CONSOLE TO SIDE MEMBER
459 A 3859900440 WASHER
Repalced by: A 3379900440
459 A 3379900440 WASHER
CONSOLE TO SIDE MEMBER
459 N 000125015012 WASHER
CONSOLE TO SIDE MEMBER
463 N 000127014203 LOCK WASHER
CONSOLE TO SIDE MEMBER
465 N 000934014019 NUT
CONSOLE TO SIDE MEMBER
468 A 3214750084 SHIM
CONSOLE TO SIDE MEMBER
471 A 3604300040 STRAP
AIR RESERVOIR
474 N 000934010040 NUT
AIR RESERVOIR TO CONSOLE
477 A 0004290444 VALVE
(CHECK VALVE)
WESTINGHOUSE
477 A 0034292944 VALVE
(CHECK VALVE)
480 A 0005865942 REPAIR KIT
CHECK VALVE
TO 000 429 04 44
483 A 0009905168 FITTING
CHECK VALVE,CONNECTION:
"1"
486 N 007603022102 SEAL RING
CHECK VALVE,CONNECTION:
"1"
489 N 915039012100 HOLLOW SCREW FITTING
CHECK VALVE,CONNECTION:
"1"
489 N 915040012206 HOLLOW SCREW FITTING
CHECK VALVE,CONNECTION:
"1"
491 N 915047012100 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"1"
495 N 007603016103 SEAL RING
CHECK VALVE,CONNECTION:
"1"
498 A 3419977245 SEAL RING
Repalced by: A 0009870446
498 A 0009870446 SEALING CORD
CHECK VALVE,CONNECTION:
"2"
501 A 0004290227 THRUST RING
Repalced by: A 0009940203
501 A 0009940203 THRUST RING
CHECK VALVE,CONNECTION:
"2"
504 N 080705022001 NUT
CHECK VALVE,CONNECTION:
"2"
507 N 074302022202 T-FITTING
CHECK VALVE,CONNECTION:
"2"
507 A 3514290132 T-FITTING
CHECK VALVE,CONNECTION:
"2"
510 A 0009870446 SEALING CORD
T-FITTING,CONNECTION:
"2"
513 A 3229970071 FITTING
AT T-FITTING
516 N 915045012100 SEAL RING
AT T-FITTING
520 A 0014296844 VALVE
(RELAY VALVE)
"WABCO"
520 A 0034295344 VALVE
(RELAY VALVE)
"KNORR"
520 A 0034293044 VALVE
(RELAY VALVE)
"KNORR"
521 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44
521 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44
521 A 0025863542 REPAIR KIT
TO 003 429 53 44
521 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
521 A 0004201471 REPAIR KIT
TO 003 429 30 44
519 N 915036012101 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"4"
522 N 915047012100 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"4"
525 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION:
"4"
528 N 007604016102 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
531 N 007603016105 SEAL RING
RELAY VALVE,CONNECTION:
"2"
532 N 915036012101 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"2"
533 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION:
"2"
534 A 3414317540 BRACKET
(RELAY VALVE)
536 N 009021008102 WASHER
RELAY VALVE TO BRACKET
537 N 912004008102 LOCK WASHER
RELAY VALVE TO BRACKET
538 N 000934008045 NUT
RELAY VALVE TO BRACKET
539 N 000933010267 SCREW
BRACKET TO SUPPORT
540 N 009021010102 WASHER
BRACKET TO SUPPORT
541 N 000127010202 LOCK WASHER
BRACKET TO SUPPORT
542 N 000934010040 NUT
BRACKET TO SUPPORT
544 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
545 A 0004307560 REPAIR KIT
BRAKE POWER REGULATOR
548 A 3464315139 LEVER
Repalced by: A 3514310039
548 A 3514310039 LEVER
BRAKE POWER REGULATOR
549 A 3514300010 BRACKET
BRAKE POWER REGULATOR
552 N 913004008004 NUT
BRAKE POWER REGULATOR TO BRACKET
555 N 000933010129 SCREW
BRACKET TO FRAME SIDE MEMBER
M 10X30
555 N 000933010145 SCREW
BRACKET TO FRAME SIDE MEMBER
M 10X35
558 N 913004008010 NUT
BRACKET TO FRAME SIDE MEMBER
561 A 3464315392 ROD
561 A 3414317192 ROD
561 A 3854310592 ROD
564 A 3434310035 CONNECTOR
PULL ROD
567 N 916002016100 CLAMP
PULL ROD
570 N 000125008417 WASHER
LINK TO BRAKE PRESSURE REGULATOR
573 N 000094002064 COTTER PIN
LINK TO BRAKE PRESSURE REGULATOR
576 N 000934008010 NUT
LINK TO BRAKE PRESSURE REGULATOR
579 A 0004311018 METAL SPRING BELLOWS
582 A 3514230025 WEB
METAL SPRING BELLOWS
585 N 000933012123 SCREW
METAL SPRING BELLOWS TO WEB
588 N 000127012201 LOCK WASHER
METAL SPRING BELLOWS TO WEB
591 A 3604311640 BRACKET
METAL SPRING BELLOWS
591 A 3514237223 BRACKET
METAL SPRING BELLOWS
594 A 3554310484 SHIM
BRACKET TO AXLE HOUSING
594 A 3514237161 SHIM
BRACKET TO AXLE HOUSING
597 N 000933010267 SCREW
BRACKET TO AXLE HOUSING
597 N 914112012017 SCREW
BRACKET TO AXLE HOUSING
600 N 000933006271 SCREW
BRACKET TO WEB
603 N 000125008417 WASHER
BRACKET TO WEB
606 N 912004008102 LOCK WASHER
BRACKET TO WEB
609 N 000934008010 NUT
BRACKET TO WEB
610 N 915036012101 HOLLOW SCREW
BRAKE PRESSURE REGULATOR CONNECTION
610 N 915036012101 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1","2","4"
610 N 915036012101 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1","2"
611 N 007603016103 SEAL RING
BRAKE PRESSURE REGULATOR CONNECTION
611 N 007603016103 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1","2","4"
611 N 007603016103 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1","2"
612 N 915039012100 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTIONS:
"4"
613 N 007603016103 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"4"
614 A 0004312031 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTIONS:
"4"
614 A 0004314531 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTIONS:
"4"
615 N 003901012005 SCREW-IN FITTING
FRONT AXLE,DIAPHRAGM CYLINDER
616 A 3089907171 ELBOW FITTING
FRONT AXLE,DIAPHRAGM CYLINDER
616 A 3514297038 ELBOW FITTING
FRONT AXLE,DIAPHRAGM CYLINDER
616 N 074315012100 FITTING
FRONT AXLE,DIAPHRAGM CYLINDER
617 N 080705016003 NUT
FRONT AXLE,DIAPHRAGM CYLINDER
618 A 3084297027 THRUST RING
FRONT AXLE,DIAPHRAGM CYLINDER
619 A 0009971548 SEAL RING
FRONT AXLE,DIAPHRAGM CYLINDER
620 N 007603016105 SEAL RING
FRONT AXLE,DIAPHRAGM CYLINDER
A 3414318940 BRACKET
LEFT,DIAPHRAGM CYLINDER
A 3414319040 BRACKET
RIGHT,DIAPHRAGM CYLINDER
621 A 0019901170 T-FITTING
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
622 A 3519907183 FITTING
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
624 A 0009904770 T-FITTING
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
624 A 3414297532 T-FITTING
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
624 A 3419907670 T-FITTING
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
627 N 080705016003 NUT
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
630 A 0009971548 SEAL RING
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
633 A 0004290927 THRUST RING
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
633 A 3084297027 THRUST RING
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
636 A 0004312031 TEST CONNECTION
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
636 A 0004314531 TEST CONNECTION
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
639 A 0005455414 SWITCH
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
639 A 3445457214 SWITCH
CONNECTION TO SPRING-LOADED BRAKE CYLINDER
642 A 3504307009 VALVE
PARKING BRAKE VALVE
A 0009974977 HANDLE
A 0009911055 PIN
651 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
651 A 0034303181 REPAIR KIT
654 A 3519907383 FITTING
PARKING BRAKE VALVE
657 N 007603014106 SEAL RING
PARKING BRAKE VALVE
659 N 000964006010 SCREW
PARKING BRAKE VALVE TO CAB
660 N 000127006206 LOCK WASHER
PARKING BRAKE VALVE TO CAB
661 N 000934006000 NUT
PARKING BRAKE VALVE TO CAB
663 N 003910008001 BULKHEAD FITTING
CONNECTION:
"1,2"
664 A 3514209631 LINE
CONNECTION:
"1"
664 A 3514209931 LINE
CONNECTION:
"2"
666 N 915017008100 UNION NUT
667 N 003861008005 GLAND
669 A 3524281640 BRACKET
COMPRESSED AIR LINES
670 A 3379950332 CLAMP
COMPRESSED AIR LINE TO BRACKET
671 N 000084006422 SCREW
COMPRESSED AIR LINE TO BRACKET
672 N 000125006421 WASHER
COMPRESSED AIR LINE TO BRACKET
673 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE TO BRACKET
674 N 000934006029 NUT
COMPRESSED AIR LINE TO BRACKET
676 A 3519907470 T-FITTING
TRAILER BRAKE LINE
677 N 007605014004 LOCK NUT
T-FITTING
678 N 007603014100 SEAL RING
T-FITTING
679 N 000933008108 SCREW
T-FITTING TO SIDE MEMBER
M 8X20
680 N 912004008102 LOCK WASHER
T-FITTING TO SIDE MEMBER
681 N 000934008010 NUT
T-FITTING TO SIDE MEMBER
683 A 0014313705 BRAKE VALVE
(TRAILER CONTROL VALVE)
WESTINGHOUSE
683 A 0024311605 BRAKE VALVE
(TRAILER CONTROL VALVE)
KNORR
684 A 0024306581 REPAIR KIT
GASKETS
TO 001 431 37 05
684 A 0024304781 REPAIR KIT
VALVE
TO 001 431 37 05
684 A 0004302960 REPAIR KIT
TO 002 431 16 05
687 N 915047012100 HOLLOW SCREW
TRAILER CONTROL VALVE,CONNECTION:
"1"
688 N 915040012206 HOLLOW SCREW FITTING
TRAILER CONTROL VALVE,CONNECTION:
"1"
690 N 915036012101 HOLLOW SCREW
TRAILER CONTROL VALVE,CONNECTION:
"2","41"
693 N 007603016103 SEAL RING
TRAILER CONTROL VALVE,CONNECTIONS:
"1","2","41"
696 A 3519907483 FITTING
TRAILER CONTROL VALVE,CONNECTION:
"43"
699 N 007604016102 SCREW PLUG
TRAILER CONTROL VALVE,CONNECTION:
"42"
702 N 007603016105 SEAL RING
TRAILER CONTROL VALVE,CONNECTIONS:
"42","43"
705 A 3414317540 BRACKET
TRAILER CONTROL VALVE
708 N 009021008102 WASHER
TRAILER CONTROL VALVE TO BRACKET
711 N 912004008102 LOCK WASHER
TRAILER CONTROL VALVE TO BRACKET
714 N 000934008045 NUT
TRAILER CONTROL VALVE TO BRACKET
717 N 000933008278 SCREW
BRACKET TO SIDE MEMBER
M 8X28
717 N 000933010267 SCREW
BRACKET TO SIDE MEMBER
M 8X28
720 N 009021008102 WASHER
BRACKET TO SIDE MEMBER
720 N 009021010102 WASHER
BRACKET TO SIDE MEMBER
723 N 912004008102 LOCK WASHER
BRACKET TO SIDE MEMBER
723 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
726 N 000934008045 NUT
BRACKET TO SIDE MEMBER
726 N 000934010040 NUT
BRACKET TO SIDE MEMBER
729 A 0004292701 LINE
TRAILER BRAKE
729 A 0004292901 LINE
TRAILER BRAKE
729 A 0004293101 LINE
TRAILER BRAKE
732 A 3519907683 FITTING
TRAILER BRAKE LINE
735 N 007603016103 SEAL RING
TRAILER BRAKE LINE
738 A 0004298130 BRAKE LINE COUPLING
LEFT BRAKE LINE
738 A 0004298730 BRAKE LINE COUPLING
LEFT BRAKE LINE
738 A 0004298030 BRAKE LINE COUPLING
RIGHT BRAKE LINE
738 A 0004298630 BRAKE LINE COUPLING
RIGHT BRAKE LINE
741 A 0004291290 COVER
TO 000 429 80 30
741 A 0004291690 COVER
TO 000 429 81 30
744 A 0025863842 REPAIR KIT
TO 000 429 80 30,000 429 81 30
744 A 0004309660 REPAIR KIT
TO 000 429 86 30,000 429 87 30
746 N 003911012100 FITTING
LINE TO CROSS MEMBER
747 N 080705018002 NUT
LINE TO CROSS MEMBER
748 A 3514297027 THRUST RING
LINE TO CROSS MEMBER
749 A 3419977345 SEAL RING
LINE TO CROSS MEMBER
750 A 3514287131 CONNECTOR
LINE TO CROSS MEMBER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
