Transporto priemonė: LS 1526; VIN numerio dalis: 351087

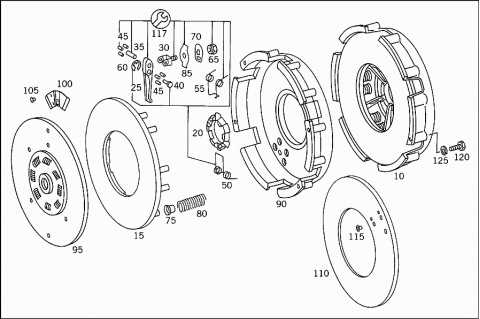

Grupė: 25 CLUTCH

#	Kodas	Pavadinimas
010	A 0032507104	CLUTCH PRESSURE PLATE
015	A 0002520412	PRESSURE PLATE
020	A 0002522145	FLANGE
025	A 0002524613	RELEASE LEVER
030	A 0002520614	BRACKET
035	A 0002522916	SPINDLE
		RELEASE LEVER,CLUTCH PRESSURE PLATE
040	A 0002522116	SPINDLE
		RELEASE LEVER,BRACKET
045	A 0002520118	ROLLER
050	A 0002520727	SPRING
		RELEASE LEVER
055	A 0002523227	SPRING
		RELEASE FLANGE TO RELEASE LEVER
060	N 006799007005	LOCK PLATE
065	A 0002523072	NUT
	A 0002522971	SCREW
070	A 0002521073	LOCK
075	A 0002520535	SLEEVE
080	A 0002524420	PRESSURE SPRING
080	A 0002527820	PRESSURE SPRING
085	A 0002520519	LEAF SPRING
090	A 0002520932	HOUSING
	Repalced by: A 0002525432
090	A 0002525432	HOUSING
095	A 0022509803	CLUTCH DISC
095	A 0082500103	CLUTCH DISC
095	A 0082500203	CLUTCH DISC
100	A 0002520419	LEAF SPRING
		TO 002 250 98 03
	A 0002520675	RIVET
	Repalced by: A 0002522075
105	A 0002522075	RIVET
		TO 002 250 98 03
110	A 0012522910	CLUTCH LINING
		TO 002 250 98 03
115	A 0002521275	RIVET
		FOR LINING WITH INTERMEDIATE SPRING
		TO 002 250 98 03
115	A 0002521475	RIVET
		FOR LINING WITH CLUTCH DISC
		TO 002 250 98 03
117	A 0052500704	REPAIR KIT
120	N 000931010409	SCREW
		CLUTCH TO FLYWHEEL
125	N 912004010100	LOCK WASHER
		CLUTCH TO FLYWHEEL

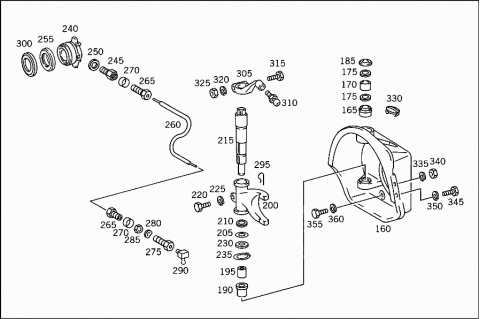

160	A 3452500105	HOUSING
		CLUTCH
165	A 3432510050	BUSHING
		TOP
170	A 3439920003	BUSHING
		TOP
175	N 005419035101	FELT RING
		TOP
185	A 3432930027	COVER PLATE
		TOP
190	A 3432510150	BUSHING
		BOTTOM
195	A 3439920103	BUSHING
		BOTTOM
200	A 3452930111	RELEASE YOKE
205	A 3172930377	WASHER
210	N 005419025101	FELT RING
215	A 3432930001	RELEASE SHAFT
220	N 000931012251	SCREW
		RELEASE LEVER TO SHAFT
225	N 000127012201	LOCK WASHER
		RELEASE LEVER TO SHAFT
230	A 3432930052	SPACER WASHER
		RELEASE LEVER TO SHAFT
235	N 000471024001	LOCK RING
		RELEASE LEVER TO SHAFT
240	A 3432540010	RELEASE COLLAR
245	N 071428004102	SCREW-IN FITTING
250	N 007603008112	SEAL RING
255	A 3202500015	RELEASE BEARING
260	A 3355730036	HOSE
	Repalced by: A 3059971982
260	A 3059971982	HOSE
		RELEASE COLLAR LUBRICATION
260	A 3089977182	HOSE
		RELEASE COLLAR LUBRICATION
265	N 003871004102	UNION SCREW
		RELEASE COLLAR LUBRICATION
270	N 003862004003	DOUBLE TAPER RING
		RELEASE COLLAR LUBRICATION
275	A 0009973683	SLEEVE
		RELEASE COLLAR LUBRICATION
280	N 000137014201	SPRING WASHER
		RELEASE COLLAR LUBRICATION
285	N 080705014004	NUT
		RELEASE COLLAR LUBRICATION
290	N 071412008200	GREASE NIPPLE
		RELEASE COLLAR LUBRICATION
295	A 3122541013	SPRING LOCK
300	A 3439900040	WASHER
305	A 3452547025	LEVER
		CLUTCH ACTUATION
310	A 3029910115	BALL PIVOT
315	N 000931010402	SCREW
		LEVER TO RELEASE SHAFT
320	N 000127010202	LOCK WASHER
		LEVER TO RELEASE SHAFT
325	N 000934010040	NUT
		LEVER TO RELEASE SHAFT
330	A 3352500055	COVER
335	N 000127016201	LOCK WASHER
		BELL HOUSING TO CYLINDER CRANKCASE
340	N 000934016024	NUT
		BELL HOUSING TO CYLINDER CRANKCASE
345	N 000931012247	SCREW
		BELL HOUSING TO CYLINDER CRANKCASE
350	N 000127012201	LOCK WASHER
		BELL HOUSING TO CYLINDER CRANKCASE
355	N 000961018024	SCREW
		BELL HOUSING TO TRANSMISSION CASE
360	N 000127018203	LOCK WASHER
		BELL HOUSING TO TRANSMISSION CASE
