Transporto priemonė: LS 1526; VIN numerio dalis: 351087

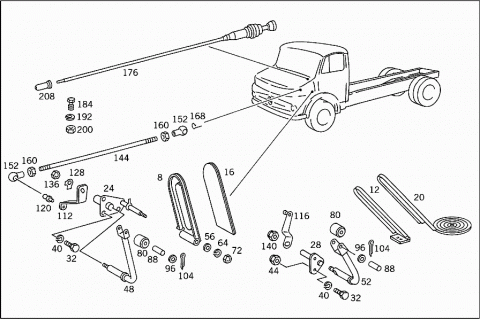

Grupė: 30 CONTROL
27742
# Kodas Pavadinimas
008 A 3453007104 ACCELERATOR PEDAL
012 A 3453007002 PLATE
ACCELERATOR PEDAL
016 A 3453017082 PAD
020 A 3443010082 PAD
024 A 3453007121 BEARING TUBE
028 A 3453007221 BEARING TUBE
032 N 000933008272 SCREW
BEARING TUBE TO FIRE WALL
M8X18
032 N 000933008272 SCREW
BEARING TUBE TO FIRE WALL
M8X18
040 N 912004008102 LOCK WASHER
BEARING TUBE TO FIRE WALL
040 N 912004008102 LOCK WASHER
BEARING TUBE TO FIRE WALL
044 N 913004008004 NUT
048 A 3453007425 LEVER
052 A 3503007225 LEVER
056 N 000433008403 WASHER
PLATE TO SHAFT
064 N 912004008102 LOCK WASHER
PLATE TO SHAFT
072 N 000934008010 NUT
PLATE TO SHAFT
080 A 3443000006 ROLLER
088 N 001433006200 PIN
ROLLER TO LEVER
096 N 000125006421 WASHER
ROLLER TO LEVER
104 N 000094001610 COTTER PIN
ROLLER TO LEVER
112 A 3453000225 LEVER
116 A 3453008725 LEVER
120 N 071803010209 BALL PIVOT
128 A 3603010073 LOCK
LEVER TO SHAFT
136 N 000936008011 NUT
LEVER TO SHAFT
140 N 913004008004 NUT
144 N 900331006118 PULL ROD
FROM LEVER AT PEDAL PLATE TO INTERMEDIAIRE SUR MOTEUR
152 N 071805010202 BALL SOCKET
FROM LEVER AT PEDAL PLATE TO INTERMEDIAIRE SUR MOTEUR
160 N 000934006007 NUT
FROM LEVER AT PEDAL PLATE TO INTERMEDIAIRE SUR MOTEUR
168 N 071805010403 SECURING CLIP
FROM LEVER AT PEDAL PLATE TO INTERMEDIAIRE SUR MOTEUR
176 A 3453008907 KNOB
184 A 3453020071 SCREW
WIRE CABLE TO ENGINE
192 N 000127006206 LOCK WASHER
WIRE CABLE TO ENGINE
200 N 000934006000 NUT
WIRE CABLE TO ENGINE
208 A 3453027091 GROMMET
WIRE CABLE TO ENGINE
