Transporto priemonė: LS 1526; VIN numerio dalis: 351087
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

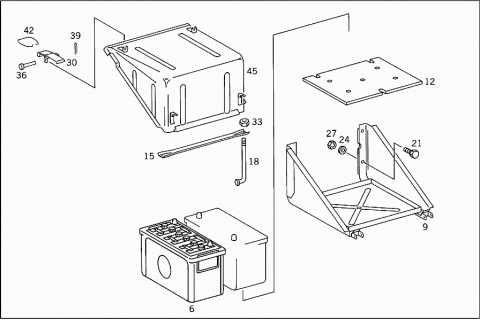

| 006 | A 0005418801 | BATTERY |
| 12 V 88 AH | ||
| 006 | A 3515400001 | BATTERY |
| 12 V 88 AH | ||
| 009 | A 3515407014 | BATTERY CASE |
| 012 | A 3515417035 | BOTTOM |
| BATTERY CASE | ||
| 015 | A 3455417113 | MOUNTING RAIL |
| BATTERY CASE | ||
| 018 | A 3455417122 | HOOK |
| Repalced by: A 3455417222 | ||
| 018 | A 3455417222 | HOOK |
| BATTERY CASE | ||
| 021 | N 000961014107 | SCREW |
| BATTERY CASE TO SIDE MEMBER | ||
| M 14X40 | ||
| 024 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 024 | A 3379900440 | WASHER |
| BATTERY CASE TO SIDE MEMBER | ||
| 027 | N 913004014005 | NUT |
| BATTERY CASE TO SIDE MEMBER | ||
| 030 | A 3445400019 | MOUNTING BOW |
| 033 | N 000934008000 | NUT |
| 036 | N 001434005211 | PIN |
| MOUNTING BRACKET TO COVER | ||
| 039 | N 000094001205 | COTTER PIN |
| Repalced by: N 000094001024 | ||
| 039 | N 000094001024 | COTTER PIN |
| MOUNTING BRACKET TO COVER | ||
| 042 | A 3445410026 | BRACKET |
| MOUNTING BRACKET TO COVER | ||
| 045 | A 3515407082 | COVER |
| BATTERY CASE | ||
| A 3445410026 | BRACKET | |
| N 001444005211 | PIN | |
| N 000094001205 | COTTER PIN | |
| Repalced by: N 000094001024 | ||
| N 000094001024 | COTTER PIN | |
| 048 | A 0005454208 | SWITCH |
| STARTING CHANGE-OVER | ||
| 048 | A 3455457108 | SWITCH |
| STARTING CHANGE-OVER | ||
| 051 | A 3455457634 | FUSE |
| 054 | N 000933008114 | SCREW |
| SWITCH TO WINDOW LEVEL GIRDER | ||
| 057 | N 912004008104 | LOCK WASHER |
| SWITCH TO WINDOW LEVEL GIRDER | ||
| 060 | N 000934008010 | NUT |
| SWITCH TO WINDOW LEVEL GIRDER | ||
| 063 | A 3445400139 | ELECTRIC CABLE |
| FROM STARTING CHANGE-OVER SWITCH TO GROUND | ||
| 066 | A 3455407431 | NEG. CABLE |
| FROM FRAME TO STARTING MOTOR | ||
| 069 | A 3515407030 | POSITIVE CABLE |
| FROM BATTERY I TO STARTING CHANGE-OVER SWITCH | ||
| 072 | A 3515407231 | NEG. CABLE |
| FROM BATTERY I TO STARTING CHANGE-OVER SWITCH | ||
| 075 | A 3515407131 | NEG. CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| A 3125271717 | HOOD FASTENER | |
| N 000094005041 | COTTER PIN | |
| A 3515407051 | SUPPORT | |
| BATTERY SUPPORT | ||
| A 3515417074 | PIN | |
| A 3515417093 | SPRING | |
| N 000433008406 | WASHER | |
| N 000094002059 | COTTER PIN | |
| A 3229870139 | RUBBER BUFFER | |
| A 3515407025 | STRAP | |
| A 3515417174 | PIN | |
| A 3515417325 | ANGLE | |
| N 000933006228 | SCREW | |
| ANGLE TO BATTERY CASE | ||
| N 007980006004 | LOCK WASHER | |
| ANGLE TO BATTERY CASE | ||
| A 3515417010 | SUPPORT | |
| REAR | ||
| A 3515417110 | SUPPORT | |
| FRONT | ||
| A 3515407130 | POSITIVE CABLE | |
| FROM BATTERY I TO STARTING MOTOR | ||
| N 000961014107 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| A 3859900440 | WASHER | |
| Repalced by: A 3379900440 | ||
| A 3379900440 | WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 913004014005 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| N 000961014088 | SCREW | |
| BRACKET TO BATTERY CASE | ||
| N 913004014005 | NUT | |
| BRACKET TO BATTERY CASE | ||
| 078 | A 3455407241 | GROUND STRAP |
| FROM CAB RIGHT SIDE MEMBER TO BELL HOUSING | ||
| 081 | A 3455467185 | PROTECTIVE TUBE |
| 084 | A 0009957001 | CLAMP |
| CABLE CONDUIT TO BRACKET | ||
| N 916016022202 | CLAMP | |
| CAB | ||
| 087 | N 000933008048 | SCREW |
| CABLE CONDUIT TO BRACKET | ||
| M8X22 | ||
| 090 | N 912004008104 | LOCK WASHER |
| CABLE CONDUIT TO BRACKET | ||
| 093 | N 007981004333 | SHEET METAL SCREW |
| CAB | ||
| A 3519977190 | LOOM TIE | |
| BATTERY CHANGE-OVER SWITCH | ||
| A 0019978590 | LOOM TIE | |
| Repalced by: A 0019978490 | ||
| A 0019978490 | LOOM TIE | |
| BATTERY CHANGE-OVER SWITCH | ||
| 096 | N 000933010035 | SCREW |
| GROUND STRAP TO CAB CROSS MEMBER | ||
| M10X25 | ||
| 099 | N 000127010202 | LOCK WASHER |
| GROUND STRAP TO CAB CROSS MEMBER | ||
| 102 | N 009021010102 | WASHER |
| GROUND STRAP TO CAB CROSS MEMBER | ||
| 105 | N 009021006103 | WASHER |
| CAB | ||
| 108 | N 000961014088 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| M14X35 | ||
| 111 | N 913004014005 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 114 | N 000933010092 | SCREW |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| M10X20 | ||
| 117 | N 000127010202 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 120 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 120 | A 3459977390 | LOOM TIE |
| 123 | N 000934010005 | NUT |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 126 | N 009021010102 | WASHER |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 129 | N 000933010092 | SCREW |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| M10X30 | ||
| 132 | N 009021010102 | WASHER |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 135 | N 000127010205 | LOCK WASHER |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 138 | N 000934010005 | NUT |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 141 | A 3219970081 | GROMMET |
| BATTERY CABLE THRU CAB FLOOR | ||
| 141 | A 3219970281 | GROMMET |
| BATTERY CABLE THRU CAB FLOOR | ||

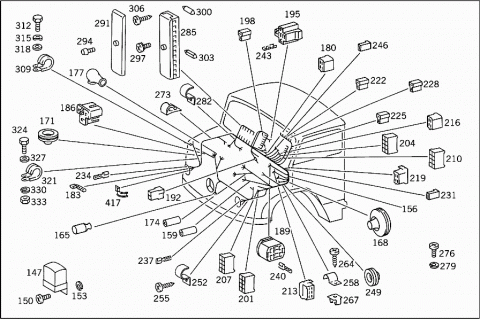

| A 3411547306 | REGULATOR AND CUT-OUT | |
| 147 | A 3455477002 | REGULATOR AND CUT-OUT |
| A 0029972290 | LOOM TIE | |
| 150 | N 007985006128 | SCREW |
| REGULATOR MOUNTING | ||
| M6X12 | ||
| 153 | N 000127006203 | LOCK WASHER |
| REGULATOR MOUNTING | ||
| 156 | A 3515409805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 159 | A 0009970381 | GROMMET |
| 159 | A 3459977981 | GROMMET |
| 165 | A 3449977181 | GROMMET |
| HORN | ||
| 168 | A 3229970581 | GROMMET |
| 171 | A 1109970481 | GROMMET |
| HEADLAMP | ||
| 174 | A 0009970581 | GROMMET |
| 177 | A 0005460035 | BOOT |
| 180 | A 0035453528 | PIN BUSHING HOUSING |
| IGNITION/STARTING SWITCH | ||
| 183 | A 0005440156 | CONTACT PIECE |
| HEADLAMP | ||
| 186 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 186 | A 0385452528 | PLUG |
| 189 | A 3455457028 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| A 3445457128 | PIN BUSHING HOUSING | |
| PANE WIPER | ||
| A 0065451128 | PLUG | |
| A 0035451128 | PIN BUSHING HOUSING | |
| INTERMITTENT ACTION SWITCH;6-POLE | ||
| A 3455457128 | PIN BUSHING HOUSING | |
| 10-POLE | ||
| 192 | A 0015457028 | PLUG HOUSING |
| HEATING CONTROL LIGHTING | ||
| 195 | A 3445457228 | PLUG HOUSING |
| CONTACTOR | ||
| 198 | A 0015456728 | PLUG HOUSING |
| CIGAR LIGHTER; BIPOLAR | ||
| 201 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 204 | A 0035457628 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 207 | A 0015452928 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 210 | A 0045459328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 213 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 216 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 219 | A 0015455928 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 222 | A 0015459528 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 225 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 228 | A 0015451028 | PIN BUSHING HOUSING |
| Repalced by: A 0015458728 | ||
| 228 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0025451328 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| 231 | A 3645457145 | PIN BUSHING HOUSING |
| 234 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 237 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 237 | A 0005453726 | PIN BUSHING |
| BIPOLAR | ||
| 2.5 MM2 | ||
| 240 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 243 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 246 | A 0005451745 | BOOT |
| 249 | A 1869970781 | GROMMET |
| MAIN CABLE HARNESS THRU CAB | ||
| 252 | A 1869950037 | CLAMP |
| HEADLAMP CABLE | ||
| 255 | N 007981004233 | SHEET METAL SCREW |
| HEADLAMP CABLE | ||
| 258 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 258 | A 3449957120 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 264 | N 007981004233 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 267 | A 0009941845 | LOCK |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 267 | A 3449947045 | LOCK |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 273 | A 3089880078 | CLIP |
| MAIN CABLE HARNESS TO RIGHT SIDE PART | ||
| A 3509978490 | LOOM TIE | |
| MAIN CABLE HARNESS TO SIDE PART | ||
| 276 | N 007985006192 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| M6X16 | ||
| 279 | N 000127006206 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 282 | A 1869950037 | CLAMP |
| MAIN CABLE HARNESS TO WIPER MOTOR FLAP | ||
| 285 | A 3455457701 | FUSE BOX |
| 285 | A 3455457801 | FUSE BOX |
| 291 | A 3455407182 | COVER |
| 294 | A 3455457071 | SCREW |
| 297 | N 914028004100 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 300 | A 3085450234 | FUSE |
| FUSE BOX | ||
| 8A | ||
| 303 | A 3085450334 | FUSE |
| FUSE BOX | ||
| 15A | ||
| 306 | N 007981004336 | SHEET METAL SCREW |
| FUSE BOX | ||
| 309 | N 916016020201 | CLAMP |
| CLAMP TO ALTERNATOR | ||
| 312 | N 000933005014 | SCREW |
| CLAMP TO ALTERNATOR | ||
| M5X15 | ||
| 315 | N 009021005100 | WASHER |
| CLAMP TO ALTERNATOR | ||
| 318 | N 009021005102 | WASHER |
| CLAMP TO ALTERNATOR | ||
| 321 | N 916016020201 | CLAMP |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 324 | N 000933006040 | SCREW |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 327 | N 000125006421 | WASHER |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 330 | N 000127006206 | LOCK WASHER |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||
| 333 | N 000934006000 | NUT |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS ALTERNATOR TO ENGINE CROSS MEMBER | ||

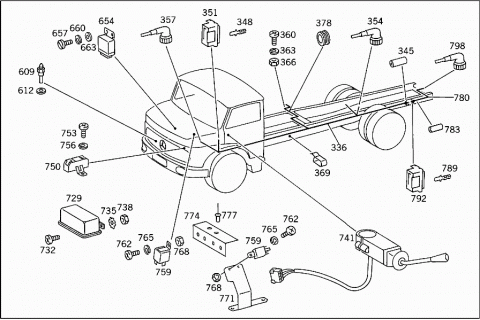

| 336 | A 3515409727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 336 | A 3515409827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 336 | A 3515409927 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 345 | A 0009970381 | GROMMET |
| 348 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 351 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 354 | A 3805400181 | PLUG SOCKET |
| BIPOLAR | ||
| 357 | A 0005400781 | PLUG SOCKET |
| BIPOLAR | ||
| 360 | N 007985006193 | SCREW |
| FUEL GAUGE SENDER UNIT BRANCH-OFF CABLE TO FRAME CROSS MEMBER | ||
| M6X18 | ||
| 363 | N 000127006203 | LOCK WASHER |
| FUEL GAUGE SENDER UNIT BRANCH-OFF CABLE TO FRAME CROSS MEMBER | ||
| 366 | N 000934006000 | NUT |
| FUEL GAUGE SENDER UNIT BRANCH-OFF CABLE TO FRAME CROSS MEMBER | ||
| 369 | A 3219950040 | CLAMP |

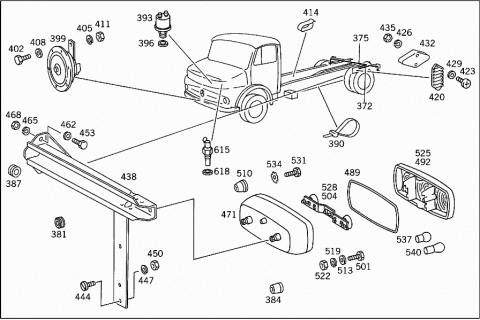

| 372 | A 3515407307 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 375 | A 3515407407 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 378 | A 3129970481 | GROMMET |
| TANK CABLE BRANCH-OFF TO FRAME SIDE MEMBER | ||
| 381 | A 3519977181 | GROMMET |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 384 | A 8339970281 | GROMMET |
| TAIL LAMP CABLE TO FRAME | ||
| 387 | A 3529970181 | GROMMET |
| ELECTRIC CABLES THRU TAIL LAMP BRACKETS | ||
| 390 | A 0019978490 | LOOM TIE |
| 390 | A 3789977190 | LOOM TIE |
| 393 | A 0025421717 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 396 | N 007603014400 | SEAL RING |
| SENDER UNIT | ||
| 399 | A 0035423220 | HORN |
| BOSCH | ||
| 399 | A 3415427120 | HORN |
| BARIFFI | ||
| 399 | A 3415427020 | HORN |
| Repalced by: A 3415427220 | ||
| 399 | A 3415427220 | HORN |
| KOVAL | ||
| 402 | N 000933010129 | SCREW |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| M10X30 | ||
| 405 | N 000127010205 | LOCK WASHER |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 408 | N 000125010518 | WASHER |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 411 | N 000934010000 | NUT |
| HORN TO BRACKET AND TO ENGINE CROSS MEMBER,RESP. | ||
| 414 | A 3529950040 | CLAMP |
| OIL PRESSURE SENDER UNIT CABLE TO SIDE MEMBER AND TO ENGINE SUPPORT | ||
| 417 | A 3219950040 | CLAMP |
| HORN BRANCH-OFF TO RADIATOR | ||
| 420 | A 0005461741 | CABLE CONNECTOR |
| 423 | N 007985004500 | SCREW |
| JUNCTION BOX | ||
| M4X40 | ||
| 426 | N 000127004203 | LOCK WASHER |
| JUNCTION BOX | ||
| 429 | N 009021004103 | WASHER |
| JUNCTION BOX | ||
| 432 | A 3275425038 | SHIM |
| JUNCTION BOX | ||
| 435 | N 000934004014 | NUT |
| JUNCTION BOX | ||
| 438 | A 3525405173 | BRACKET |
| LICENSE PLATE LAMP,LEFT | ||
| 438 | A 3455400673 | BRACKET |
| LICENSE PLATE LAMP,LEFT | ||
| 438 | A 3525405273 | BRACKET |
| LICENSE PLATE LAMP,RIGHT | ||
| 438 | A 3455400773 | BRACKET |
| LICENSE PLATE LAMP,RIGHT | ||
| 444 | N 000084006114 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 447 | N 000127006206 | LOCK WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 450 | N 000934006007 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 453 | N 000933010267 | SCREW |
| BRACKET TO FRAME | ||
| M 10X28 | ||
| 453 | N 000933010044 | SCREW |
| BRACKET TO FRAME | ||
| M 10X28 | ||
| 453 | N 000933010260 | SCREW |
| BRACKET TO FRAME | ||
| M 10X32 | ||
| 462 | N 000125010518 | WASHER |
| BRACKET TO FRAME | ||
| 465 | N 000127010205 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 468 | N 000934010000 | NUT |
| BRACKET TO FRAME | ||
| 471 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R+S | ||
| 471 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 471 | A 3515447103 | TAIL LAMP |
| LEFT | ||
| MAGDALUX | ||
| 471 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R+S | ||
| 471 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 471 | A 3515447203 | TAIL LAMP |
| RIGHT | ||
| MAGDALUX | ||
| 489 | A 0005447580 | GASKET |
| 750 MM,TO 001 544 45 03,001 544 46 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 544 71 03,351 544 72 03 | ||
| 492 | A 3515447090 | LENS |
| WITH SCREWS | ||
| TO 351 544 71 03,351 544 72 03 | ||
| 492 | A 0015444590 | LENS |
| TO 001 544 45 03,001 544 46 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 544 71 03,351 544 72 03 | ||
| 501 | A 3515447070 | STUD |
| TO 351 544 71 03,351 544 72 03 | ||
| 501 | N 007985006238 | SCREW |
| TO 001 544 45 03,001 544 46 03 | ||
| 504 | A 0005445193 | LAMP SOCKET |
| TO 001 544 45 03,001 544 46 03 | ||
| 504 | A 3515447038 | BRACKET |
| TO 351 544 71 03,351 544 72 03 | ||
| 510 | A 0019971581 | GROMMET |
| TO 001 544 45 03,001 544 46 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 544 71 03,351 544 72 03 | ||
| 513 | A 0005440476 | WASHER |
| TO 001 544 45 03,001 544 46 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 544 71 03,351 544 72 03 | ||
| 513 | A 0019901940 | WASHER |
| TO 001 544 45 03,001 544 46 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 544 71 03,351 544 72 03 | ||
| 519 | N 000127008203 | LOCK WASHER |
| TO 351 544 71 03,351 544 72 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 544 45 03,001 544 46 03 | ||
| 522 | N 000934008010 | NUT |
| TO 351 544 70 03,351 544 71 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 544 45 03,001 544 46 03 | ||
| 525 | A 0015445590 | LENS |
| TO 001 544 40 03,001 544 41 03 | ||
| 528 | A 0005445293 | LAMP SOCKET |
| TO 001 544 40 03,001 544 41 03 | ||
| 531 | N 000084004137 | SCREW |
| TO 001 544 45 03,001 544 46 03 | ||
| 534 | N 006797000132 | TOOTHED WASHER |
| TO 001 544 45 03,001 544 46 03 | ||
| 537 | N 072601012190 | BULB |
| 12V 18W | ||
| 540 | N 072601012702 | BULB |
| 12V 10W | ||
| 540 | A 3515447094 | BULB |
| 12V 10W | ||

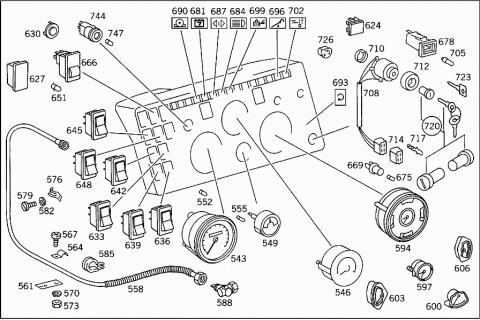

| 543 | A 3085427006 | SPEEDOMETER |
| VDO | ||
| 543 | A 3085427106 | SPEEDOMETER |
| HORASA | ||
| A 3445427410 | TACHOGRAPH | |
| 546 | A 3455428316 | TACHOMETER |
| VDO | ||
| 546 | A 3455428416 | TACHOMETER |
| HORASA | ||
| 549 | A 3455427224 | AMMETER |
| 552 | A 3785440094 | BULB |
| 555 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 555 | A 3785440094 | BULB |
| 558 | A 3455427307 | FLEXIBLE SHAFT |
| 561 | A 3525420440 | BRACKET |
| FLEXIBLE SHAFT | ||
| 564 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT TO BRACKET | ||
| 567 | N 007985005168 | SCREW |
| FLEXIBLE SHAFT TO BRACKET | ||
| M5X16 | ||
| 570 | N 912004005100 | LOCK WASHER |
| FLEXIBLE SHAFT TO BRACKET | ||
| 573 | N 000934005000 | NUT |
| FLEXIBLE SHAFT TO BRACKET | ||
| 576 | A 3049951520 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 579 | N 000933006224 | SCREW |
| CABLE HARNESS MOUNTING | ||
| M 6X18 | ||
| 582 | N 000127006203 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 585 | N 916016028202 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 588 | A 3455421130 | ANGLE DRIVE |
| 588 | A 3455420530 | ANGLE DRIVE |
| 594 | A 3455407148 | INSTRUMENT CLUSTER |
| VDO | ||
| 597 | A 0015422908 | AIR PRESSURE GAUGE |
| 600 | A 0025422502 | OIL PRESSURE GAUGE |
| 603 | A 0025428903 | FUEL GAUGE DASH UNIT |
| 606 | A 0035428405 | TEMPERATURE GAUGE |
| 609 | A 0025425917 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 609 | A 3455427417 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 609 | A 3455427517 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 609 | A 3455427717 | SENDER UNIT |
| 612 | N 007603014400 | SEAL RING |
| SENDER UNIT | ||
| 615 | A 0045455524 | SWITCH,AUTOMATIC |
| 615 | A 0025456324 | SWITCH,AUTOMATIC |
| 615 | A 3455457824 | SWITCH,AUTOMATIC |
| 615 | A 3455458224 | SWITCH,AUTOMATIC |
| 618 | N 007603014400 | SEAL RING |
| SWITCH | ||
| 618 | N 007603018400 | SEAL RING |
| SWITCH | ||
| 624 | A 3819977035 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 627 | A 3645457083 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 630 | A 3316897208 | COVERING |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 633 | A 3505458614 | SWITCH |
| (INTERMITTENT ACTION SWITCH) | ||
| 636 | A 3505458414 | SWITCH |
| PANE WASHER | ||
| 639 | A 3505457214 | SWITCH |
| PANE WIPER | ||
| 642 | A 3505458214 | SWITCH |
| HIGH/LOW BEAM | ||
| 645 | A 3505458014 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| 648 | A 3505458114 | SWITCH |
| EXHAUST BRAKE DIRECT CONTROL | ||
| 651 | N 072601012230 | BULB |
| 654 | A 3455458424 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 657 | N 007985004126 | SCREW |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 660 | N 912004004103 | LOCK WASHER |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 663 | N 000125004311 | WASHER |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 666 | A 3645427325 | POTENTIOMETER |
| INTERIOR LIGHTING | ||
| 669 | A 3455440193 | LAMP SOCKET |
| INTERIOR LIGHTING | ||
| 669 | A 3455447093 | LAMP SOCKET |
| INTERIOR LIGHTING | ||
| 675 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 675 | A 3785440094 | BULB |
| INTERIOR LIGHTING | ||
| 678 | A 3455457115 | TELL-TALE LAMP |
| LESS LENS | ||
| 681 | A 3445458290 | LENS |
| CHARGE CONTROL | ||
| 684 | A 3445458890 | LENS |
| HIGH BEAM | ||
| 687 | A 3445457990 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 690 | A 3445458390 | LENS |
| PARKING BRAKE | ||
| 693 | A 3455457790 | LENS |
| IGNITION/STARTING SWITCH | ||
| 696 | A 3445459090 | LENS |
| OIL PRESSURE | ||
| 699 | A 3445459190 | LENS |
| VACUUM | ||
| 702 | A 3445459590 | LENS |
| COOLING WATER TEMPERATURE | ||
| 705 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 705 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 708 | A 3455457213 | SWITCH BOX |
| IGNITION/STARTING SWITCH | ||
| 708 | A 3455457313 | SWITCH BOX |
| IGNITION/STARTING SWITCH | ||
| 710 | A 0005450042 | FOLLOWER |
| IGNITION/STARTING SWITCH | ||
| 712 | A 0005422172 | NUT |
| IGNITION/STARTING SWITCH | ||
| TO 345 545 72 13 | ||
| 714 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 717 | A 0025451428 | PLUG |
| 720 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| 723 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 726 | A 3445447060 | PLUG SOCKET HOUSING |
| 729 | A 3085447132 | SENDER UNIT |
| Repalced by: A 3505447432 | ||
| 729 | A 3505447432 | SENDER UNIT |
| BLINKER SYSTEM | ||
| 729 | A 3505447532 | SENDER UNIT |
| BLINKER SYSTEM | ||
| 732 | N 007985006102 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 735 | N 006797006145 | TOOTHED WASHER |
| BLINKER SENDER UNIT MOUNTING | ||
| 738 | N 000934006007 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| 741 | A 3455457524 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 744 | A 3645457524 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT SWITCH | ||
| 747 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 747 | A 3785440094 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 750 | A 3455457018 | RESISTOR |
| 753 | N 007985006128 | SCREW |
| RESISTOR | ||
| 756 | N 912004006101 | LOCK WASHER |
| RESISTOR | ||
| 759 | A 3445427119 | RELAY |
| Repalced by: A 3455427019 | ||
| 759 | A 3455427019 | RELAY |
| HIGH BEAM | ||
| 759 | A 3455427019 | RELAY |
| BLINKER | ||
| 759 | A 3455427019 | RELAY |
| VACUUM | ||
| 759 | A 3925457105 | RELAY |
| HIGH BEAM | ||
| 759 | A 3925457105 | RELAY |
| BLINKER | ||
| 759 | A 3925457105 | RELAY |
| VACUUM | ||
| 762 | N 007985005126 | SCREW |
| CONTACTOR | ||
| M5X12 | ||
| 765 | N 912004005101 | LOCK WASHER |
| CONTACTOR | ||
| 768 | N 000934005004 | NUT |
| CONTACTOR | ||
| 771 | A 3455427840 | BRACKET |
| CONTACTOR | ||
| 774 | A 3505407173 | BRACKET |
| CONTACTOR | ||
| 777 | A 3449908197 | RIVET |
| BRACKET TO WINDOW LEVEL GIRDER UPPER PART | ||
| 780 | A 3515409627 | ELECTRIC CABLE |
| FOR OPERATION WITH TRAILER | ||
| 783 | A 0009970381 | GROMMET |
| 783 | A 0009970581 | GROMMET |
| 789 | A 0025450628 | PLUG |
| 792 | A 0015458228 | PLUG HOUSING |
| 6-POLE | ||
| A 0005400681 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| 798 | A 3805400181 | PLUG SOCKET |
| BIPOLAR | ||
| 798 | A 0005400781 | PLUG SOCKET |
| BIPOLAR | ||
| 801 | A 3515408808 | CABLE HARNESS |
| 804 | A 0009970381 | GROMMET |
| 807 | A 0009970581 | GROMMET |
| 811 | A 0005453826 | PIN BUSHING |
| 814 | A 0065451128 | PLUG |
| 814 | A 0065458228 | PLUG |
| 818 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 824 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 828 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 832 | A 0005450681 | KNOB |
| 836 | A 0005450781 | KNOB |
| 840 | A 3645407081 | PLUG SOCKET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
