Transporto priemonė: LS 1526; VIN numerio dalis: 351087

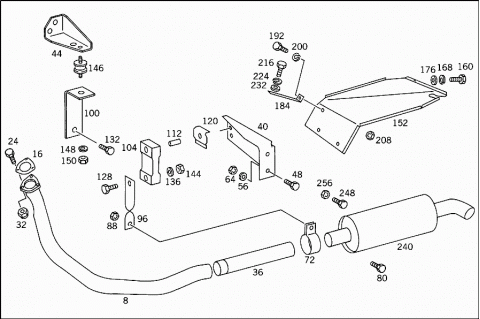

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3454908719 | EXHAUST PIPE |
| Repalced by: A 3514907119 | ||
| 008 | A 3514907119 | EXHAUST PIPE |
| FRONT | ||
| 016 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 016 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | N 000933012135 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 036 | A 3514927507 | CONNECTOR |
| 040 | A 3454917316 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 040 | A 3454917316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 044 | A 3514927216 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 044 | A 3514927216 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 048 | N 000933008153 | SCREW |
| BRACKET TO FRAME | ||
| 056 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 064 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 072 | N 071555100500 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | N 000933010129 | SCREW |
| CLAMP TO BRACKET | ||
| 088 | N 913004010008 | NUT |
| CLAMP TO BRACKET | ||
| 096 | A 3764921241 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 100 | A 3514917441 | BRACKET |
| FRONT EXHAUST PIPE | ||
| A 3514907034 | SUPPORT | |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 104 | A 3084927082 | DAMPING PAD |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 112 | A 1209911140 | SPACER TUBE |
| 120 | A 1204920118 | BASE PLATE |
| 128 | N 000933008279 | SCREW |
| DAMPING PAD TO BRACKET | ||
| 132 | N 000933008289 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 136 | N 000125008417 | WASHER |
| DAMPING PAD TO BRACKET | ||
| 144 | N 913004008004 | NUT |
| DAMPING PAD TO BRACKET | ||
| 146 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST PIPE TO SUPPORT | ||
| 148 | N 000127010202 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 150 | N 000934010005 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 152 | A 3454927730 | PROTECTIVE PLATE |
| 160 | N 000933008268 | SCREW |
| HEAT SHIELD TO ENGINE COVERING | ||
| 168 | N 912004008102 | LOCK WASHER |
| HEAT SHIELD TO ENGINE COVERING | ||
| 176 | N 000125008417 | WASHER |
| HEAT SHIELD TO ENGINE COVERING | ||
| 184 | A 3454928941 | BRACKET |
| PROTECTIVE PLATE | ||
| 192 | N 000933006220 | SCREW |
| BRACKET TO HEAT SHIELD | ||
| 200 | N 000127006203 | LOCK WASHER |
| BRACKET TO HEAT SHIELD | ||
| 208 | N 913004006002 | NUT |
| BRACKET TO HEAT SHIELD | ||
| 216 | N 000933006026 | SCREW |
| BRACKET TO AIR INTAKE PIPE | ||
| 224 | N 000127006203 | LOCK WASHER |
| BRACKET TO AIR INTAKE PIPE | ||
| 232 | N 000125006421 | WASHER |
| BRACKET TO AIR INTAKE PIPE | ||

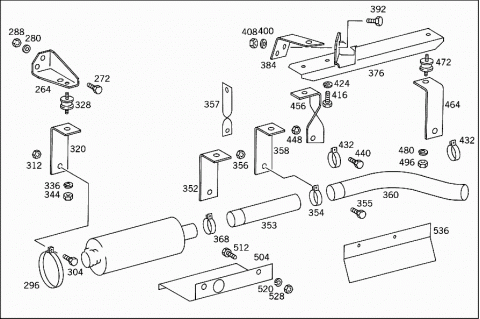

| 240 | A 3504907015 | EXHAUST MUFFLER WITH PIPE |
| 248 | N 000933010129 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 256 | N 913004010008 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 264 | A 3514927116 | SUPPORT |
| EXHAUST MUFFLER | ||
| 264 | A 3514927216 | SUPPORT |
| EXHAUST MUFFLER | ||
| 272 | N 000933008153 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 272 | N 000933008294 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X32 | ||
| 280 | N 000125008417 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 288 | N 913004008004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 296 | A 3504917040 | CLAMP |
| EXHAUST MUFFLER | ||
| 304 | N 000933010129 | SCREW |
| 312 | N 913004010008 | NUT |
| 320 | A 3514917041 | BRACKET |
| EXHAUST MUFFLER TO SUPPORT | ||
| 328 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 336 | N 000127010202 | LOCK WASHER |
| 344 | N 000934010005 | NUT |
| 352 | A 3514917041 | BRACKET |
| 353 | A 3514927107 | CONNECTOR |
| 353 | A 3514927207 | CONNECTOR |
| 354 | N 071555104501 | CLAMP |
| INTERMEDIATE PIECE TO EXHAUST PIPE BRACKET | ||
| 355 | N 000933010129 | SCREW |
| INTERMEDIATE PIECE TO EXHAUST PIPE BRACKET | ||
| 356 | N 913004010008 | NUT |
| INTERMEDIATE PIECE TO EXHAUST PIPE BRACKET | ||
| 357 | A 3514927341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 358 | A 3514917441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 360 | A 3454929204 | REAR EXHAUST PIPE |
| REAR | ||
| 368 | N 071555104500 | CLAMP |
| 376 | A 3454907434 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 384 | A 3454929740 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 392 | N 000933012125 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 400 | N 000125013008 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 408 | N 913004012004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 416 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 424 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 432 | N 071555100500 | CLAMP |
| REAR EXHAUST PIPE | ||
| 440 | N 000933010129 | SCREW |
| 448 | N 913004010008 | NUT |
| 456 | A 3504917841 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 464 | A 3504917941 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 472 | A 3475040012 | RUBBER MOUNTING |
| 480 | N 000127010202 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 480 | N 000127010202 | LOCK WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 496 | N 000934010005 | NUT |
| 504 | A 3514927130 | PROTECTIVE PLATE |
| AT SIDE MEMBER | ||
| 512 | N 000933010129 | SCREW |
| HEAT SHIELD MOUNTING | ||
| 520 | N 000127010202 | LOCK WASHER |
| HEAT SHIELD MOUNTING | ||
| 528 | N 000934010040 | NUT |
| HEAT SHIELD MOUNTING | ||
| 536 | A 3514927230 | PROTECTIVE PLATE |
