Transporto priemonė: LS 1526; VIN numerio dalis: 351087
Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|

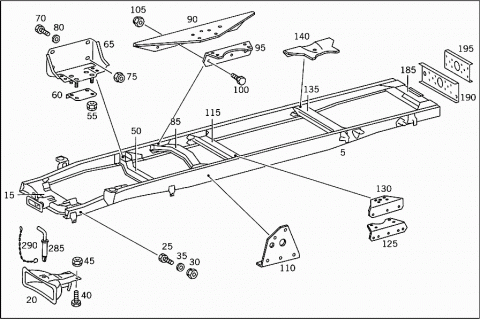

| 005 | A 3513109801 | FRAME |

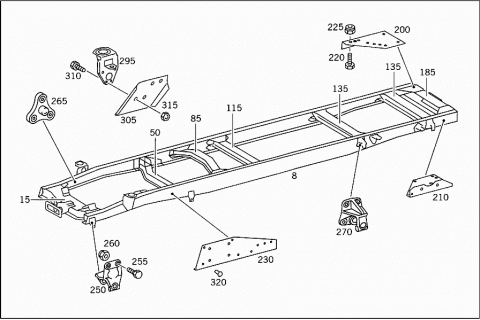

| 008 | A 3513109901 | FRAME |

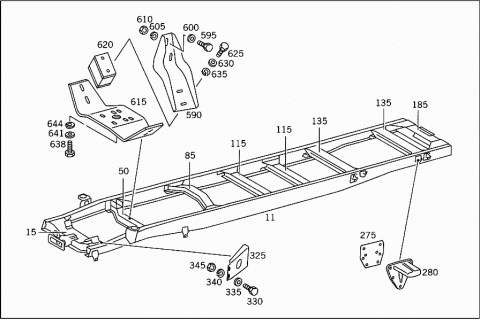

| 011 | A 3513107002 | FRAME |

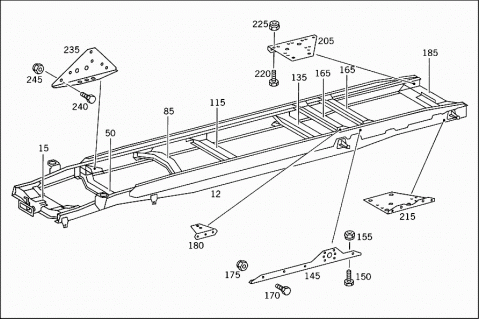

| 012 | A 3513107102 | FRAME |
| 015 | A 3513107126 | ENGINE CROSS MEMBER |
| Repalced by: A 3513107226 | ||
| 015 | A 3513107226 | ENGINE CROSS MEMBER |
| FRONT | ||
| 020 | A 3453100209 | BRACKET |
| WITH COUPLING MOUTH | ||
| TO 351 310 71 26 | ||
| 020 | A 3513107009 | BRACKET |
| WITH COUPLING MOUTH | ||
| TO 351 310 72 36 | ||
| 025 | N 000961012020 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X30 | ||
| 025 | N 000933010026 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X22 | ||
| 025 | N 000933010254 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 025 | N 000933010267 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X28 | ||
| 030 | N 913004012003 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 030 | N 913004010008 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 035 | A 3609900040 | WASHER |
| 040 | N 000933010034 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 040 | N 000933010129 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X30 | ||
| 045 | N 913004010008 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 050 | A 3453120007 | ENGINE CROSS MEMBER |
| NO.2 | ||
| 055 | N 913004012003 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 060 | A 3453120184 | SHIM |
| CROSS MEMBER TO CONSOLE | ||
| 065 | A 3452400006 | CONSOLE |
| ENGINE REAR MOUNTING | ||
| 070 | N 000961014012 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 075 | N 913004014000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 080 | N 000125015009 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 085 | A 3513127015 | CROSS MEMBER |
| NO.3 | ||
| 090 | A 3453120252 | ANGLE |
| LEFT | ||
| 090 | A 3453120352 | ANGLE |
| RIGHT | ||
| 095 | A 3513127052 | ANGLE |
| 100 | N 000933010257 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| M 10X22 | ||
| 105 | N 913004010008 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 110 | A 3513117254 | REINFORCEMENT |
| LEFT | ||
| 110 | A 3513117354 | REINFORCEMENT |
| RIGHT | ||
| 115 | A 3513127115 | CROSS MEMBER |
| NO.4 | ||
| 115 | A 3513127115 | CROSS MEMBER |
| NO.5 | ||
| 125 | A 3513127052 | ANGLE |
| 130 | A 3523120452 | ANGLE |
| 135 | A 3513127017 | CROSS MEMBER |
| NO.5 | ||
| 135 | A 3513127017 | CROSS MEMBER |
| NO.6 | ||
| 135 | A 3513127017 | CROSS MEMBER |
| NO.7 | ||
| 140 | A 3523120260 | REINFORCEMENT |
| 145 | A 3513117253 | ANGLE |
| LEFT | ||
| 145 | A 3513117353 | ANGLE |
| RIGHT | ||
| 150 | N 000961012151 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| M 12X30 | ||
| 155 | N 913004012003 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 165 | A 3513127125 | CROSS MEMBER |
| SADDLE PLATE | ||
| 170 | N 000961012156 | SCREW |
| CROSS MEMBER AND ANGLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 175 | N 913004012003 | NUT |
| CROSS MEMBER AND ANGLE TO SIDE MEMBER | ||
| 180 | A 3523120060 | REINFORCEMENT |
| 185 | A 3523120135 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 190 | A 3523120160 | REINFORCEMENT |
| REAR CROSS MEMBER | ||
| 195 | A 3283121560 | REINFORCEMENT |
| REAR CROSS MEMBER | ||
| 200 | A 3523120487 | GUSSET PLATE |
| LEFT TOP | ||
| 200 | A 3213120087 | GUSSET PLATE |
| LEFT TOP | ||
| 200 | A 3523120587 | GUSSET PLATE |
| RIGHT TOP | ||
| 200 | A 3213120187 | GUSSET PLATE |
| RIGHT TOP | ||
| 205 | A 3213120087 | GUSSET PLATE |
| LEFT TOP | ||
| 205 | A 3213120187 | GUSSET PLATE |
| RIGHT TOP | ||
| 210 | A 3523120787 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 210 | A 3523120287 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 210 | A 3523120687 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 210 | A 3523120187 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 215 | A 3453127587 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 215 | A 3453127487 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 220 | N 000961012052 | SCREW |
| REAR CROSS MEMBER TO FRAME | ||
| M 12X25 | ||
| 225 | N 913004012003 | NUT |
| REAR CROSS MEMBER TO FRAME | ||
| 230 | A 3453110353 | ANGLE |
| LEFT | ||
| 230 | A 3453110253 | ANGLE |
| RIGHT | ||
| 235 | A 3523110053 | ANGLE |
| LEFT AND RIGHT | ||
| 240 | N 000961012151 | SCREW |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| M 12X30 | ||
| 240 | N 000961012156 | SCREW |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| M 12X35 | ||
| 245 | N 913004012003 | NUT |
| ANGLE TO CROSS AND SIDE MEMBERS | ||
| 250 | A 3523220201 | FRONT SPRING BRACKET |
| 255 | A 3219901601 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 35 MM | ||
| 255 | A 3409900201 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 45 MM | ||
| 255 | A 3559900501 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 42 MM | ||
| 260 | N 913004014005 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 265 | A 3603230663 | BEARING BRACKET |
| LEFT AND RIGHT | ||
| 270 | A 3523250101 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 275 | A 3523250041 | STIFFENING |
| 280 | A 3523250417 | HELPER SPRING BRACKET |
| 280 | A 3453257017 | HELPER SPRING BRACKET |
| 285 | A 3223150206 | COUPLING PIN |
| 285 | A 3453157206 | COUPLING PIN |
| 290 | A 0008500095 | FASTENER |
| COUPLING PIN | ||
| 295 | A 3283100467 | BODY SUPPORT |
| Repalced by: A 3413107267 | ||
| 295 | A 3413107267 | BODY SUPPORT |
| RIGHT | ||
| 295 | A 3413107067 | BODY SUPPORT |
| LEFT | ||
| 305 | A 3513177028 | REINFORCEMENT |
| LEFT | ||
| 305 | A 3513177128 | REINFORCEMENT |
| RIGHT | ||
| 310 | A 3589901414 | SCREW |
| CAB CONSOLE TO SIDE MEMBER | ||
| 310 | A 3609900314 | SCREW |
| CAB CONSOLE TO SIDE MEMBER | ||
| 315 | N 913004010011 | NUT |
| CAB CONSOLE TO SIDE MEMBER | ||
| 320 | N 910005010007 | RIVET |
| 10X18 MM | ||
| 320 | N 910005010008 | RIVET |
| 10X20 MM | ||
| 320 | N 910005010009 | RIVET |
| 10X22 MM | ||
| 320 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 320 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 320 | N 910005010015 | RIVET |
| 10X28 MM | ||
| 320 | N 910005010017 | RIVET |
| 10X30 MM | ||
| 320 | N 910005010019 | RIVET |
| 10X32 MM | ||
| 320 | N 910005010021 | RIVET |
| 10X34 MM | ||
| 320 | N 910005010023 | RIVET |
| 10X36 MM | ||
| 320 | N 910005010025 | RIVET |
| 10X38 MM | ||
| 320 | N 910005010027 | RIVET |
| 10X40 MM | ||
| 320 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 320 | N 910005010015 | RIVET |
| 12X28 MM | ||
| 320 | N 910005012014 | RIVET |
| 12X30 MM | ||
| 320 | N 910005012015 | RIVET |
| 12X32 MM | ||
| 320 | N 910005012076 | RIVET |
| 12X34 MM | ||
| 320 | N 910005012019 | RIVET |
| 12X40 MM | ||
| 320 | N 910005012021 | RIVET |
| 12X45 MM | ||
| 320 | N 910005014013 | RIVET |
| 14X30 MM | ||
| 320 | N 910005014014 | RIVET |
| 14X32 MM | ||
| 320 | N 910005014018 | RIVET |
| 14X40 MM | ||
| 320 | N 910005014059 | RIVET |
| 14X48 MM | ||
| 320 | N 910005014022 | RIVET |
| 14X50 MM | ||
| 325 | A 3523130826 | BRACKET |
| LEFT | ||
| 325 | A 3523130926 | BRACKET |
| RIGHT | ||
| 330 | N 000933010034 | SCREW |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| M 10X25 | ||
| 335 | N 000125010518 | WASHER |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 340 | N 000127010205 | LOCK WASHER |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 345 | N 000934010000 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 350 | A 3503170301 | CONSOLE |
| REAR LEFT | ||
| 350 | A 3503170401 | CONSOLE |
| RIGHT REAR | ||
| 355 | A 3453177201 | CONSOLE |
| REAR LEFT | ||
| 355 | A 3453170201 | CONSOLE |
| RIGHT REAR | ||
| 355 | A 3503170201 | CONSOLE |
| RIGHT REAR | ||
| 360 | N 000961014098 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 360 | N 000961012122 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X40 | ||
| 360 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X30 | ||
| 365 | N 913004014004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 365 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 370 | A 3348910072 | MOUNTING |
| 375 | N 007985008160 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M 8X25 | ||
| 380 | N 009021008102 | WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 385 | N 000934008045 | NUT |
| MOUNTING TO SIDE MEMBER | ||
| 390 | A 3508917031 | CONSOLE |
| 395 | A 3359900540 | WASHER |
| CONSOLE TO CONSOLE | ||
| 400 | N 000961014099 | SCREW |
| CONSOLE TO CONSOLE | ||
| M 14X45 | ||
| 405 | N 913004014004 | NUT |
| CONSOLE TO CONSOLE | ||
| 410 | A 3358910820 | MOUNTING |
| (SPRING BRACKET),CAB SUSPENSION | ||
| 415 | N 000933010254 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 10X25 | ||
| 420 | N 009021010102 | WASHER |
| MOUNTING TO CONSOLE | ||
| 425 | N 913004010008 | NUT |
| MOUNTING TO CONSOLE | ||
| 430 | A 3358900001 | MOUNTING |
| (SPRING BRACKET),CAB SUSPENSION | ||
| 435 | A 3353170884 | SHIM |
| MOUNTING TO CONSOLE | ||
| 440 | N 000933010254 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 10X25 | ||
| 445 | N 009021010102 | WASHER |
| MOUNTING TO CONSOLE | ||
| 450 | N 000127010202 | LOCK WASHER |
| MOUNTING TO CONSOLE | ||

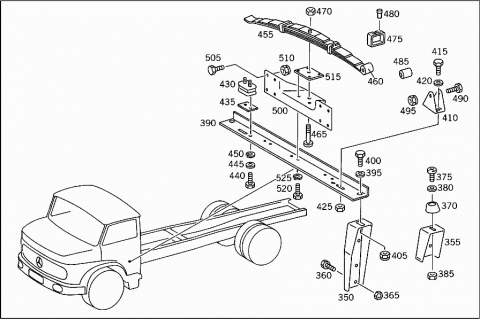

| 455 | A 3368900005 | SPRING |
| (LEAF SPRING),CAB SUSPENSION | ||
| 460 | A 3368910151 | SPRING |
| NO.1 | ||
| 465 | N 004626008100 | SPRING BOLT |
| 470 | N 000934008010 | NUT |
| 475 | A 0033211933 | SPRING CLAMP |
| 480 | N 000661006006 | RIVET |
| 485 | A 3368910050 | SPRING BUSHING |
| LEAF SPRING TO BEARING BRACKET | ||
| 490 | N 000960012365 | SCREW |
| LEAF SPRING TO BEARING BRACKET | ||
| M 12X65 | ||
| 495 | N 913004012003 | NUT |
| LEAF SPRING TO BEARING BRACKET | ||
| 495 | N 913004010003 | NUT |
| LEAF SPRING TO BEARING BRACKET | ||
| 500 | A 3358910210 | CONSOLE |
| SPRING SUSPENSION | ||
| 505 | N 000933010254 | SCREW |
| CONSOLE TO CAB | ||
| M 10X25 | ||
| 505 | N 000933010293 | SCREW |
| CONSOLE TO CAB | ||
| M 10X60 | ||
| 510 | N 913004010008 | NUT |
| CONSOLE TO CAB | ||
| 515 | A 3358911511 | PLATE |
| SPRING TO CONSOLE | ||
| 520 | N 000931010395 | SCREW |
| SPRING TO CONSOLE | ||
| M 10X50 | ||
| 525 | N 000127010202 | LOCK WASHER |
| SPRING TO CONSOLE | ||
| A 3518917011 | PLATE | |

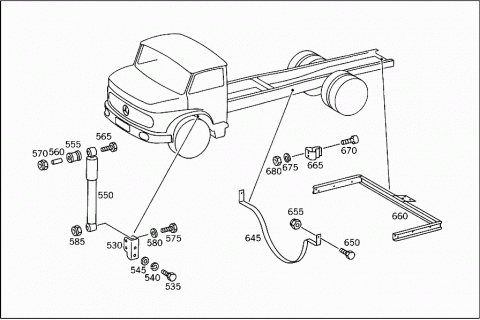

| 530 | A 3508900003 | MOUNTING |
| SHOCK ABSORBER | ||
| 535 | N 000933010145 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M 10X35 | ||
| 535 | N 000961012159 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M 12X45 | ||
| 540 | N 000127010202 | LOCK WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 540 | N 000127012201 | LOCK WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 545 | A 3519907044 | PLATE |
| MOUNTING TO SIDE MEMBER | ||
| 550 | A 0008910205 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| BOGE | ||
| 550 | A 0008910805 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| FICHTEL & SACHS | ||
| 550 | A 3448907019 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| COFAP | ||
| 550 | A 3418917105 | SHOCK ABSORBER |
| FRIC-ROT | ||
| 555 | A 0003231644 | RUBBER BUFFER |
| 560 | A 0003231450 | BUSHING |
| 565 | A 3419907014 | SCREW |
| SHOCK ABSORBER,TOP | ||
| 570 | N 913004012003 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 575 | N 000961012183 | SCREW |
| SHOCK ABSORBER,BOTTOM | ||
| M 12X65 | ||
| 580 | N 000125013008 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 585 | N 913004012003 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 590 | A 3452667401 | CONSOLE |
| TRANSMISSION SUSPENSION | ||
| 590 | A 3452607360 | SUPPORT |
| TRANSMISSION SUSPENSION | ||
| 595 | N 000961012164 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X28 | ||
| 600 | N 000125013008 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 605 | N 000127012203 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 610 | N 000934012004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 615 | A 3452607260 | SUPPORT |
| BRACING | ||
| 620 | A 3612660084 | RUBBER MOUNTING |
| 620 | A 3612660184 | RUBBER MOUNTING |
| 620 | A 3452667084 | SHIM |
| 625 | N 000933010034 | SCREW |
| RAIL TO SUPPORT AND TO CONSOLE,RESP. | ||
| M 10X25 | ||
| 625 | N 000933010011 | SCREW |
| RAIL TO SUPPORT AND TO CONSOLE,RESP. | ||
| M 10X18 | ||
| 630 | N 009021010100 | WASHER |
| RAIL TO SUPPORT AND TO CONSOLE,RESP. | ||
| 635 | N 000127010205 | LOCK WASHER |
| RAIL TO SUPPORT AND TO CONSOLE,RESP. | ||
| A 3502660084 | SHIM | |
| 638 | N 000961012023 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M 12X32 | ||
| N 000961012161 | SCREW | |
| SUPPORT TO TRANSMISSION | ||
| M 12X50 | ||
| 641 | N 000125013008 | WASHER |
| SUPPORT TO TRANSMISSION | ||
| 644 | N 000127012203 | LOCK WASHER |
| SUPPORT TO TRANSMISSION | ||
| 645 | A 3454137244 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| 650 | N 000933010254 | SCREW |
| RETAINING STRAP TO SIDE MEMBER | ||
| M 10X25 | ||
| 655 | N 913004010008 | NUT |
| RETAINING STRAP TO SIDE MEMBER | ||
| 660 | A 3513107037 | CROSS MEMBER |
| TRAILER BRAKE | ||
| 665 | A 0009840261 | CLIP |
| 670 | N 000084004435 | SCREW |
| M 4X10 | ||
| 675 | N 912004004100 | LOCK WASHER |
| 680 | N 000934004004 | NUT |
| N 000933010145 | SCREW | |
| CROSS MEMBER TO FRAME | ||
| M 10X35 | ||
| N 000127010202 | LOCK WASHER | |
| CROSS MEMBER TO FRAME | ||
| N 000934010040 | NUT | |
| CROSS MEMBER TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
