Transporto priemonė: LS 1526; VIN numerio dalis: 351087

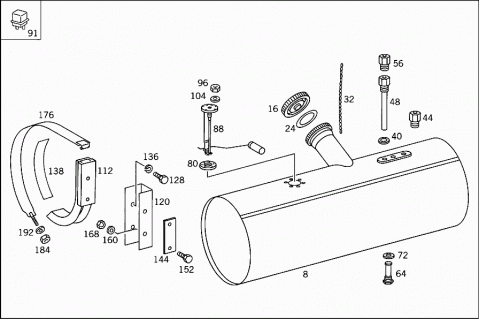

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3414707101 | FUEL TANK |
| 008 | A 3514707101 | FUEL TANK |
| 016 | A 3124701205 | FILLER CAP |
| 016 | A 3444700205 | FILLER CAP |
| 024 | A 3444710679 | SEAL RING |
| TO 344 470 02 05 | ||
| 024 | A 1369970640 | SEAL RING |
| TO 312 470 12 05 | ||
| 032 | A 3034700031 | CHAIN |
| 040 | N 007603016300 | SEAL RING |
| FUEL LINE TO TANK | ||
| 044 | A 3414717120 | FITTING |
| FUEL LINE TO TANK | ||
| 048 | A 3414707126 | RISING PIPE |
| FUEL LINE TO TANK | ||
| 056 | A 3414717120 | FITTING |
| FUEL LINE TO TANK | ||
| 064 | A 3414707206 | FUEL STRAINER |
| AT TANK | ||
| 072 | A 0029977245 | SEAL RING |
| 080 | A 4044710080 | GASKET |
| Repalced by: A 3524710080 | ||
| 080 | A 3524710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 088 | A 0005426317 | SENDER UNIT |
| ELECTRIC | ||
| 091 | A 3455427919 | RELAY |
| 096 | N 000934005004 | NUT |
| 104 | A 3414717280 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 112 | A 3414707042 | SUPPORT |
| FUEL TANK | ||
| 120 | A 3514757001 | SUPPORT |
| REAR | ||
| 120 | A 3514757101 | SUPPORT |
| FRONT | ||
| 120 | A 3514757201 | SUPPORT |
| FRONT | ||
| 128 | N 000961014105 | SCREW |
| SUPPORT TO CONSOLE | ||
| 136 | N 000127014201 | LOCK WASHER |
| SUPPORT TO CONSOLE | ||
| 138 | A 3379870014 | RUBBER STRIP |
| FUEL TANK TO CONSOLE | ||
| 144 | A 3514757119 | BASE |
| SUPPORT TO SIDE MEMBER | ||
| 152 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M14X40 | ||
| 152 | N 000961014116 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M14X50 | ||
| 160 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 160 | A 3379900440 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 168 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 176 | A 3414707240 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 184 | N 000934012004 | NUT |
| FUEL TANK TO CONSOLE | ||
| 184 | N 000934012039 | NUT |
| FUEL TANK TO CONSOLE | ||
| 192 | N 000125013008 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 192 | N 000125013008 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 200 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 11X1.5 MM | ||
| 208 | N 915052008000 | BANJO UNION |
| LINE CONNECTION | ||
| 210 | N 915036010100 | HOLLOW SCREW |
| LINE CONNECTION | ||
| 212 | N 007603014300 | SEAL RING |
| LINE CONNECTION | ||
| 214 | A 0019974972 | FITTING |
| 215 | N 915017010200 | UNION NUT |
| 216 | A 0089976082 | HOSE |
| FEED & RETURN | ||
| 12X1.5 MM | ||
| 218 | A 3514709764 | LINE |
| FUEL FILTER | ||
| 224 | N 007604014106 | SCREW PLUG |
| LINE CONNECTION | ||
| 232 | A 0019975072 | FITTING |
| LINE CONNECTION | ||
| 240 | N 915017006200 | UNION NUT |
| LINE CONNECTION | ||
| 248 | A 0029972290 | LOOM TIE |
| LINE MOUNTING | ||
| 146 MM | ||
| 248 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 256 | A 3514297140 | BRACKET |
| LINE MOUNTING | ||
| 264 | A 3514297240 | BRACKET |
| LINE MOUNTING | ||
| 272 | N 000961010040 | SCREW |
| BRACKET TO FRAME | ||
| 280 | N 000127010202 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 288 | N 000934010035 | NUT |
| BRACKET TO FRAME | ||
| 296 | A 6209970181 | GROMMET |
| LINE THRU FRAME | ||
| 42/36 MM | ||
