Transporto priemonė: LS 1526; VIN numerio dalis: 351087

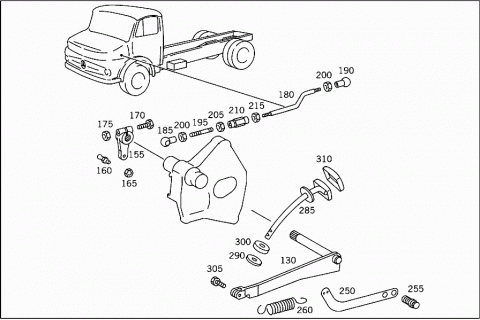

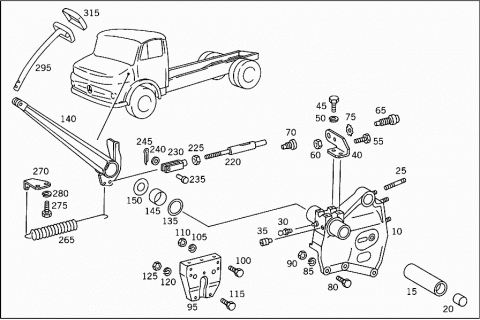

Grupė: 29 PEDAL ASSEMBLE - 001 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3452907419 | BEARING BRACKET |
| PEDAL BEARING BRACKET | ||
| 015 | A 3442907036 | BEARING TUBE |
| 020 | A 3442940150 | BUSHING |
| 025 | N 000835008061 | STUD |
| 030 | N 071412010100 | GREASE NIPPLE |
| 035 | A 3529900080 | SCREW |
| 040 | A 3452920130 | STOP |
| BRAKE PEDAL STOP | ||
| 045 | N 000933010128 | SCREW |
| STOP TO BEARING BRACKET | ||
| 050 | N 000127010202 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 055 | N 000933010254 | SCREW |
| STOP | ||
| 060 | N 000934010000 | NUT |
| STOP | ||
| 065 | A 0005457009 | SWITCH |
| STOP LIGHT SWITCH | ||
| 070 | A 3465450045 | BOOT |
| STOP LIGHT SWITCH | ||
| 075 | N 006797016152 | TOOTHED WASHER |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 080 | N 000933010056 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 080 | N 000933010129 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 085 | N 000127010205 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 090 | N 000934010000 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 095 | A 3513230095 | REINFORCEMENT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 100 | N 000933010129 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 105 | N 000127010205 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 110 | N 000934010000 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 115 | N 000963012002 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 115 | A 3419907130 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 120 | N 000127012203 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 125 | N 000934012021 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 130 | A 3522902216 | PEDAL |
| CLUTCH | ||
| 135 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3 MM | ||
| 135 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 135 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 140 | A 3452900318 | PEDAL |
| (BRAKE PEDAL) | ||
| 145 | A 3452927050 | BUSHING |
| 150 | A 3039910345 | RING |
| PEDAL TO BEARING BRACKET | ||
| 155 | A 3452908427 | LEVER |
| CLUTCH | ||
| 160 | A 3029910115 | BALL PIVOT |
| 165 | N 913021014000 | NUT |
| 170 | N 000931010080 | SCREW |
| LEVER TO CLUTCH SHAFT | ||
| 175 | N 913004010008 | NUT |
| LEVER TO CLUTCH SHAFT | ||
| 180 | A 3452907139 | ROD |
| 185 | A 3509917022 | BALL SOCKET |
| 190 | N 071805019401 | BALL SOCKET |
| 195 | A 3442930129 | ROD |
| 200 | N 000936014010 | NUT |
| 205 | A 3449900651 | NUT |
| 210 | N 900333014000 | TURNBUCKLE |
| 215 | A 3449900751 | NUT |
| 220 | A 3452957033 | ROD |
| Repalced by: A 3762950033 | ||
| 220 | A 3762950033 | ROD |
| 225 | N 000934012022 | NUT |
| 230 | A 3459967001 | YOKE |
| Repalced by: A 3769960001 | ||
| 230 | A 3769960001 | YOKE |
| 235 | A 3529910007 | PIN |
| 240 | N 000433010504 | WASHER |
| 245 | N 000094003212 | COTTER PIN |
| 250 | A 3522910732 | LEVER |
| Repalced by: A 3412917032 | ||
| 250 | A 3412917032 | LEVER |
| RELEASE SPRING | ||
| 255 | A 3522910474 | PIN |
| Repalced by: A 3412917074 | ||
| 255 | A 3412917074 | PIN |
| RELEASE SPRING | ||
| 260 | A 3529931310 | SPRING |
| CLUTCH PEDAL RELEASE SPRING | ||
| 265 | A 3609930210 | SPRING |
| TWO-CIRCUIT BRAKE VALVE | ||
| 270 | A 3452920040 | BRACKET |
| RELEASE SPRING | ||
| 275 | N 000933008268 | SCREW |
| BRACKET TO CAB | ||
| 280 | N 912004008102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 285 | A 3452907324 | PEDAL PLATE |
| CLUTCH | ||
| 290 | N 009021017100 | WASHER |
| CLUTCH PEDAL | ||
| 295 | A 3452907224 | PEDAL PLATE |
| BRAKE | ||
| 295 | A 3222901324 | PEDAL PLATE |
| BRAKE | ||
| 300 | A 3122911197 | SEAL WASHER |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 305 | N 000933010034 | SCREW |
| PEDAL TO PEDAL LEVER | ||
| 310 | A 3202925082 | PAD |
| CLUTCH PEDAL | ||
| 315 | A 3052910182 | PAD |
| BRAKE PEDAL | ||
