Transporto priemonė: LS 1526; VIN numerio dalis: 351087

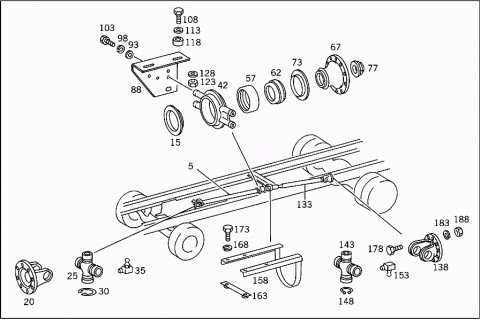

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 3434103001	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		986 MM
005	A 3934100004	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1524 MM
005	A 3434103301	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1818 MM
015	A 3874130061	PROTECTIVE CAP
020	A 3634110111	DRIVE FLANGE
025	A 3874100031	UNIVERSAL JOINT CROSS
030	A 3634110773	LOCK
		AS REQUIRED
		2.00 MM
030	A 3634110873	LOCK
		AS REQUIRED
		2.05 MM
030	A 3634110973	LOCK
		AS REQUIRED
		2.10 MM
030	A 3634111073	LOCK
		AS REQUIRED
		2.15 MM
030	A 3634111173	LOCK
		AS REQUIRED
		2.20 MM
035	N 071412008300	GREASE NIPPLE
035	A 3459977288	GREASE NIPPLE
042	A 3634130001	HOUSING
		PROPELLER SHAFT BEARING
057	A 3634130012	RUBBER MOUNTING
		PROPELLER SHAFT
062	A 3634100151	BALL BEARING
		PROPELLER SHAFT
062	A 3864100051	BALL BEARING
067	A 3954100030	CENTERING FLANGE
073	A 3874130061	PROTECTIVE CAP
077	A 3663530072	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
088	A 6204138442	BRACKET
		PROPELLER SHAFT BEARING,LEFT
088	A 6204138542	BRACKET
		PROPELLER SHAFT BEARING,RIGHT
093	A 3879900040	WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
098	N 000127012201	LOCK WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
103	N 000961012106	SCREW
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
108	N 000960012383	SCREW
		BRACKET TO CROSS MEMBER
113	A 3879900040	WASHER
		BRACKET TO CROSS MEMBER
118	A 3464135011	REINFORCEMENT
		BRACKET TO CROSS MEMBER
123	N 913001012000	NUT
		BRACKET TO CROSS MEMBER
128	A 3879900040	WASHER
		BRACKET TO CROSS MEMBER
133	A 3874107501	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1570 MM
133	A 3954107901	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		172 MM
138	A 3634110111	DRIVE FLANGE
143	A 3874100031	UNIVERSAL JOINT CROSS
148	A 3634110773	LOCK
		AS REQUIRED
		2.00 MM
148	A 3634110873	LOCK
		AS REQUIRED
		2.05 MM
148	A 3634110973	LOCK
		AS REQUIRED
		2.10 MM
148	A 3634111073	LOCK
		AS REQUIRED
		2.15 MM
148	A 3634111173	LOCK
		AS REQUIRED
		2.20 MM
153	N 071412008300	GREASE NIPPLE
153	A 3459977288	GREASE NIPPLE
158	A 3504100040	BRACKET
		PROPELLER SHAFT RETAINING STRAP
	A 3454107940	BRACKET
		PROPELLER SHAFT RETAINING STRAP
163	A 3504107093	MOUNTING PLATE
		BRACKET TO CROSS MEMBER
168	N 000127010202	LOCK WASHER
		BRACKET TO CROSS MEMBER
173	N 000933010270	SCREW
		BRACKET TO CROSS MEMBER
178	A 0029909901	SCREW
	Repalced by: A 3959900501
178	A 3959900501	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
183	N 000127016201	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
		TO 002 990 99 01
188	N 000934016026	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
