Transporto priemonė: LS 1526; VIN numerio dalis: 351087
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |

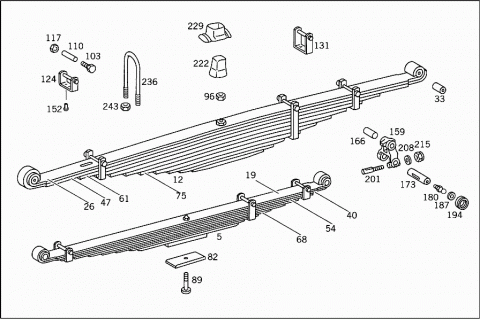

| FRONT SPRING | ||
| 005 | A 3603200102 | FRONT SPRING |
| 9-LEAF | ||
| 012 | A 3603200702 | FRONT SPRING |
| 11-LEAF | ||
| 019 | A 3603200394 | SPRING LEAF |
| NO.1 | ||
| 026 | A 3603201094 | SPRING LEAF |
| NO.1 | ||
| 033 | A 3523220050 | BUSHING |
| 033 | A 3853220050 | BUSHING |
| 040 | A 3603210112 | SPRING LEAF |
| NO.2 | ||
| 047 | A 3603210712 | SPRING LEAF |
| NO.2 | ||
| 054 | A 3603200494 | SPRING LEAF |
| NO.3 | ||
| 061 | A 3603201194 | SPRING LEAF |
| NO.3 | ||
| 068 | A 3603200594 | SPRING LEAF |
| NO.6 | ||
| 075 | H 983453200094 | SPRING LEAF |
| NO.7; | ||
| 082 | A 3603220184 | SHIM |
| 089 | N 004626012110 | SPRING BOLT |
| 096 | N 000934012040 | NUT |
| 103 | N 000601008037 | SCREW |
| 110 | A 0003212353 | SPACER TUBE |
| 117 | N 000934008000 | NUT |
| 124 | A 0033212733 | SPRING CLAMP |
| 124 | A 0033213033 | SPRING CLAMP |
| 131 | A 0033212633 | SPRING CLAMP |
| 131 | A 0033213233 | SPRING CLAMP |
| 152 | N 910006008022 | RIVET |
| 8X20 MM | ||
| 159 | A 3523200063 | SHACKLE |
| 166 | A 3523220050 | BUSHING |
| 166 | A 3853220050 | BUSHING |
| 173 | A 3413227230 | SHACKLE PIN |
| Repalced by: A 3923227030 | ||
| 173 | A 3923227030 | SHACKLE PIN |
| 180 | N 071412010300 | GREASE NIPPLE |
| 187 | A 3523230376 | WASHER |
| 4.00 MM | ||
| 187 | A 3523230476 | WASHER |
| 4.20 MM | ||
| 194 | A 0029973140 | SEAL RING |
| 201 | A 3529900337 | BOLT |
| 208 | N 000125010518 | WASHER |
| 215 | N 913004010008 | NUT |
| 222 | A 3523310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 229 | A 3523220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 229 | A 3453227224 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 236 | A 3523510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 236 | A 3403510325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 243 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |

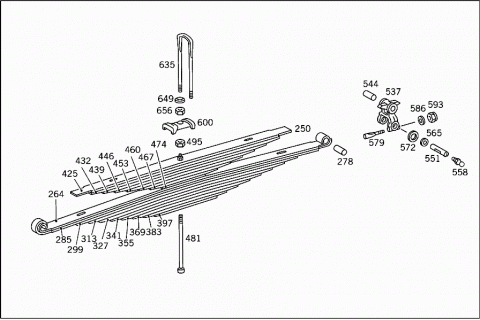

| REAR SPRING | ||
| 250 | A 3453200008 | REAR SPRING |
| WITH HELPER SPRING | ||
| 257 | A 3453200306 | REAR SPRING |
| 12-LEAF | ||
| 264 | A 3453207194 | SPRING LEAF |
| NO.1; | ||
| 271 | A 3453200193 | SPRING LEAF |
| NO.1; | ||
| 278 | A 3523250150 | BUSHING |
| 278 | A 3853250050 | BUSHING |
| 285 | A 3453240212 | SPRING LEAF |
| NO.2; | ||
| 292 | A 3453240412 | SPRING LEAF |
| NO.2; | ||
| 299 | A 3453240213 | SPRING LEAF |
| NO.3; | ||
| 306 | A 3453240413 | SPRING LEAF |
| NO.3; | ||
| 313 | A 3453240214 | SPRING LEAF |
| NO.4; | ||
| 320 | A 3453200293 | SPRING LEAF |
| NO.4; | ||
| 327 | A 3453240215 | SPRING LEAF |
| NO.5; | ||
| 334 | A 3453240415 | SPRING LEAF |
| NO.5; | ||
| 341 | A 3453240216 | SPRING LEAF |
| NO.6; | ||
| 348 | A 3453240416 | SPRING LEAF |
| NO.6; | ||
| 355 | A 3453240217 | SPRING LEAF |
| NO.7; | ||
| 362 | A 3453240417 | SPRING LEAF |
| NO.7; | ||
| 369 | A 3513247008 | HELPER SPRING |
| NO.8; | ||
| 369 | A 3453240218 | SPRING LEAF |
| NO.8; | ||
| 376 | A 3453240418 | SPRING LEAF |
| NO.8; | ||
| 383 | A 3453240219 | SPRING LEAF |
| NO.9; | ||
| 390 | A 3453240419 | SPRING LEAF |
| NO.9; | ||
| 397 | A 3453240420 | SPRING LEAF |
| NO.10 | ||
| 404 | A 3453240320 | SPRING LEAF |
| NO.10 | ||
| 411 | A 3453240221 | SPRING LEAF |
| NO.11 | ||
| 418 | A 3453240122 | SPRING LEAF |
| NO.12 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HELPER SPRING | ||
| 425 | A 3453240040 | SPRING LEAF |
| NO.1 | ||
| 432 | A 3453240041 | SPRING LEAF |
| NO.2 | ||
| 439 | A 3453240042 | SPRING LEAF |
| NO.3 | ||
| 446 | A 3453240043 | SPRING LEAF |
| NO.4 | ||
| 453 | A 3453240044 | SPRING LEAF |
| NO.5 | ||
| 460 | A 3453240045 | SPRING LEAF |
| NO.6 | ||
| 467 | A 3453240046 | SPRING LEAF |
| NO.7 | ||
| 474 | A 3453240047 | SPRING LEAF |
| NO.8 | ||
| 481 | A 0003220271 | SCREW |
| 488 | N 004626012137 | SPRING BOLT |
| 495 | N 000934012043 | NUT |
| 502 | A 0003212553 | SPACER TUBE |
| 509 | N 000601012006 | SCREW |
| 516 | N 000934012000 | NUT |
| 523 | A 3453248133 | SPRING CLAMP |
| 530 | N 910006008024 | RIVET |
| 8X25 MM | ||
| 537 | A 3523200163 | SHACKLE |
| 544 | A 3523250150 | BUSHING |
| 544 | A 3853250050 | BUSHING |
| 551 | A 3413257030 | SHACKLE PIN |
| Repalced by: A 3923257230 | ||
| 551 | A 3923257230 | SHACKLE PIN |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 551 | A 3413257030 | SHACKLE PIN |
| Repalced by: A 3923257130 | ||
| 551 | A 3923257130 | SHACKLE PIN |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 551 | A 3923257130 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE | ||
| 558 | N 071412010100 | GREASE NIPPLE |
| 565 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 565 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 572 | A 0029973040 | SEAL RING |
| 579 | A 3529900337 | BOLT |
| 586 | N 000125010518 | WASHER |
| 593 | N 913004010008 | NUT |
| 600 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 607 | A 3523200035 | PLATE |
| 607 | A 3523250331 | PLATE |
| 614 | A 0009810831 | JOINT BEARING |
| 614 | A 0009811231 | JOINT BEARING |
| 621 | N 000472055000 | LOCK RING |
| 628 | N 071412008300 | GREASE NIPPLE |
| 635 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 642 | A 3273510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 642 | A 3213512225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 649 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 656 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 663 | A 3453207029 | STOP |
| REAR SPRING TO FRAME | ||
| A 3513207043 | BRACKET | |
| A 3853300275 | RUBBER MOUNTING | |
| N 912004008102 | LOCK WASHER | |
| RUBBER BUFFER TO BRACKET | ||
| N 000934008108 | NUT | |
| RUBBER BUFFER TO BRACKET | ||
| 670 | N 000963010036 | SCREW |
| STOP BUFFER TO FRAME | ||
| N 000933010129 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| 677 | N 000125010518 | WASHER |
| STOP BUFFER TO FRAME | ||
| 677 | N 000125010518 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 684 | N 000934010040 | NUT |
| STOP BUFFER TO FRAME | ||
| 684 | N 000934010040 | NUT |
| BRACKET TO SIDE MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |

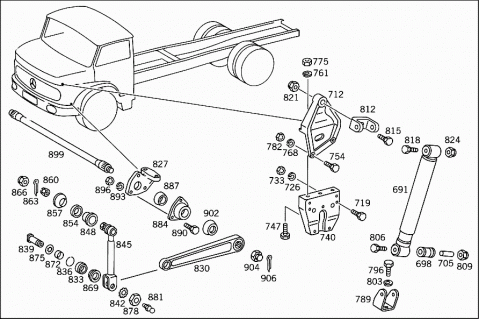

| SHOCK ABSORBERS AND MOUNTING | ||
| 691 | A 3453230100 | SHOCK ABSORBER |
| FRONT | ||
| 691 | A 3513207030 | SHOCK ABSORBER |
| Repalced by: A 3513237100 | ||
| 691 | A 3513237100 | SHOCK ABSORBER |
| FRONT | ||
| 698 | A 0003230585 | RUBBER MOUNTING |
| TO 345 323 01 00 | ||
| 698 | A 3513237085 | RUBBER MOUNTING |
| TO 351 320 70 30 | ||
| 698 | A 0003170412 | RUBBER BUFFER |
| TO 351 323 71 00 | ||
| 705 | A 0003230453 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 323 31 50 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 323 01 00 | ||
| 705 | A 3513237050 | BUSHING |
| TO 351 320 70 30 | ||
| 705 | A 0003170450 | BUSHING |
| TO 351 323 71 00 | ||
| 712 | A 3523232463 | BEARING BRACKET |
| 719 | N 000933010056 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 726 | N 000127010205 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 733 | N 000934010000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 740 | A 3513230095 | REINFORCEMENT |
| BEARING BRACKET TO FRAME | ||
| 747 | N 000933010129 | SCREW |
| REINFORCEMENT ANGLE TO FRAME | ||
| 754 | N 000963012027 | SCREW |
| REINFORCEMENT ANGLE TO FRAME | ||
| 754 | A 3419907130 | SCREW |
| REINFORCEMENT ANGLE TO FRAME | ||
| 761 | N 000127010205 | LOCK WASHER |
| REINFORCEMENT ANGLE TO FRAME | ||
| 768 | N 000127012203 | LOCK WASHER |
| REINFORCEMENT ANGLE TO FRAME | ||
| 775 | N 000934010000 | NUT |
| REINFORCEMENT ANGLE TO FRAME | ||
| 782 | N 000934012040 | NUT |
| REINFORCEMENT ANGLE TO FRAME | ||
| 789 | A 3523231663 | BEARING BRACKET |
| LEFT BOTTOM | ||
| 789 | A 3523231763 | BEARING BRACKET |
| RIGHT BOTTOM | ||
| 796 | N 000961012165 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 803 | N 000127012201 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 806 | N 000960016238 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 809 | N 913004016004 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 812 | A 3523230340 | BRACKET |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 815 | A 3529903201 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 818 | N 000960016238 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 821 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 824 | N 913004016004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 827 | A 3523231463 | BEARING BRACKET |
| STABILIZER | ||
| 830 | A 3603230869 | LEVER |
| STABILIZER | ||
| 833 | A 0009810731 | JOINT BEARING |
| 833 | A 0009810931 | JOINT BEARING |
| 833 | A 0009816631 | JOINT BEARING |
| 836 | N 009045035001 | SNAP RING |
| 839 | A 3603230274 | PIN |
| ARTICULATED ROD TO LEVER | ||
| 842 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 845 | A 3603200189 | ROD |
| 845 | A 3603200789 | ROD |
| 845 | A 3453207389 | ROD |
| 848 | A 3083387051 | SPACER RING |
| TO 345 320 73 89 | ||
| 854 | A 0003300185 | BOOT |
| TO 360 320 01 89 | ||
| 857 | A 3083387056 | DUST CAP |
| TO 345 320 73 89 | ||
| 860 | N 000937014001 | NUT |
| TO 360 320 01 89 | ||
| 863 | N 000094003029 | COTTER PIN |
| TO 360 320 01 89 | ||
| 866 | N 913004014004 | NUT |
| ARTICULATED ROD | ||
| 869 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 872 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 875 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 878 | N 000936020000 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 881 | N 071412010100 | GREASE NIPPLE |
| 884 | A 3523230283 | HOUSING |
| 887 | A 3603230085 | RUBBER MOUNTING |
| 890 | N 000933010145 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 893 | N 000127010202 | LOCK WASHER |
| HOUSING TO BEARING BRACKET | ||
| 896 | N 000934010040 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 899 | A 3603230065 | TORSION BAR |
| STABILIZER | ||
| 902 | A 3603230151 | SPACER RING |
| 904 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 906 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||

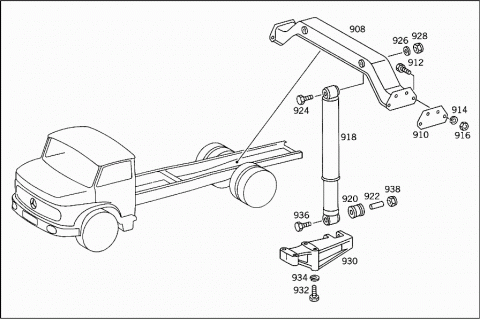

| 908 | A 3523100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 908 | A 3453107240 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 908 | A 3513107340 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 910 | A 3523120084 | SHIM |
| CROSS MEMBER TO FRAME | ||
| 912 | N 000933010267 | SCREW |
| CROSS MEMBER TO FRAME | ||
| M 10X28 | ||
| 912 | N 000933010145 | SCREW |
| CROSS MEMBER TO FRAME | ||
| M 10X35 | ||
| 914 | N 000127010202 | LOCK WASHER |
| CROSS MEMBER TO FRAME | ||
| 916 | N 000934010040 | NUT |
| CROSS MEMBER TO FRAME | ||
| 918 | A 0013268500 | SHOCK ABSORBER |
| F.U.S. | ||
| 918 | A 0013266500 | SHOCK ABSORBER |
| BOGE | ||
| 918 | A 3453267200 | SHOCK ABSORBER |
| 918 | A 3453267700 | SHOCK ABSORBER |
| AMORTEX | ||
| 918 | A 3513267500 | SHOCK ABSORBER |
| FRIC-ROT | ||
| 918 | A 0013264600 | SHOCK ABSORBER |
| 918 | A 0023261000 | SHOCK ABSORBER |
| 918 | A 3453267100 | SHOCK ABSORBER |
| 920 | A 0003230785 | RUBBER MOUNTING |
| 922 | A 0003230553 | SPACER TUBE |
| 924 | A 3979900001 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 926 | A 3529901540 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 928 | N 913004020003 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 930 | A 3513260240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 930 | A 3513260340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 932 | N 000960014247 | SCREW |
| BRACKET TO SHIM | ||
| 932 | N 000960014260 | SCREW |
| BRACKET TO SHIM | ||
| 934 | N 000127014201 | LOCK WASHER |
| 936 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 938 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||

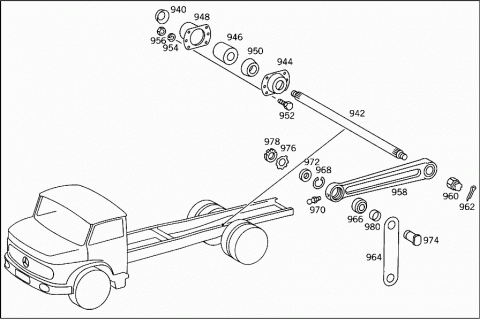

| 940 | A 3403260051 | SPACER RING |
| 942 | A 3603260165 | TORSION BAR |
| 944 | A 3403260082 | HOUSING |
| 946 | A 3403260081 | RUBBER MOUNTING |
| 948 | A 3403260182 | HOUSING |
| 950 | A 3403260181 | RUBBER MOUNTING |
| 952 | N 000933010129 | SCREW |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 954 | N 000127010205 | LOCK WASHER |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 956 | N 000934010000 | NUT |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 958 | A 3453260169 | LEVER |
| 960 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 962 | N 000094005040 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 964 | A 3523260216 | LINK |
| LEVER TO GUIDE PLATE | ||
| 966 | A 0009810831 | JOINT BEARING |
| 966 | A 0009811231 | JOINT BEARING |
| 968 | N 000472055000 | LOCK RING |
| 970 | N 071412008100 | GREASE NIPPLE |
| 972 | A 3603230560 | SEAL RING |
| LEVER TO GUIDE PLATE | ||
| 974 | A 3523260274 | PIN |
| LEVER TO GUIDE PLATE | ||
| 976 | N 070952035100 | LOCK PLATE |
| LEVER TO GUIDE PLATE | ||
| 978 | N 070852035000 | NUT |
| LEVER TO GUIDE PLATE | ||
| 980 | A 3523260153 | SPACER TUBE |
| LEVER TO GUIDE PLATE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
