Transporto priemonė: LS 1526; VIN numerio dalis: 351087
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING, SEE PARTS LIST: | ||
| 766 | ||

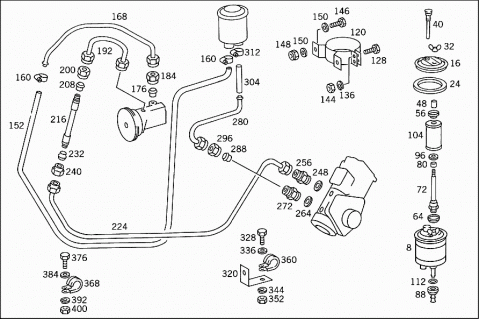

| 008 | A 3844667002 | TANK |
| 008 | A 0004664502 | TANK |
| 008 | A 0004663802 | TANK |
| 016 | A 0004662005 | COVER |
| 024 | A 0004660260 | SEAL RING |
| 032 | A 0009901462 | NUT |
| 040 | A 0004660218 | PIPE |
| 048 | A 0009870643 | RUBBER SLEEVE |
| 056 | A 0004660675 | CENTERING RING |
| 064 | A 0004660238 | COVER PLATE |
| 072 | A 0004610065 | FILTER SUPPORT |
| 080 | A 0004660153 | SPACER TUBE |
| 088 | A 0004660558 | CONNECTOR |
| 096 | A 0004660275 | WASHER |
| 104 | A 0004660604 | FILTER |
| 112 | A 0059970848 | SEAL RING |
| 120 | A 3644607035 | BRACKET |
| OIL TANK | ||
| TO 384 466 70 02,000 466 38 02 | ||
| 120 | A 3514607035 | BRACKET |
| OIL TANK | ||
| TO 000 466 45 02 | ||
| 128 | N 000933008268 | SCREW |
| OIL TANK TO BRACKET | ||
| M8X16 | ||
| 136 | N 912004008102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 144 | N 000934008010 | NUT |
| OIL TANK TO BRACKET | ||
| 146 | N 000933006220 | SCREW |
| OIL TANK BRACKET TO BRACKET | ||
| 148 | N 913004006002 | NUT |
| OIL TANK BRACKET TO BRACKET | ||
| 150 | N 000125006421 | WASHER |
| OIL TANK BRACKET TO BRACKET | ||
| 152 | A 3609970982 | HOSE |
| OIL LINE CONNECTION | ||
| 160 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 160 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 168 | A 3454601724 | LINE |
| FROM HOSE TO PUMP | ||
| 176 | N 003861022004 | GLAND |
| 184 | N 915017022100 | UNION NUT |
| 192 | A 3514607924 | LINE |
| FROM PUMP TO HOSE | ||
| 200 | N 003861012007 | GLAND |
| 208 | N 915017012100 | UNION NUT |
| 216 | A 0109971682 | HOSE |
| Repalced by: A 0019972652 | ||
| 216 | A 0019972652 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 216 | A 3459977382 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 224 | A 3514608024 | LINE |
| FROM HOSE TO STEERING | ||
| 232 | N 003861012007 | GLAND |
| 240 | N 915017012100 | UNION NUT |
| 248 | N 007603016105 | SEAL RING |
| PIPE LINE TO STEERING | ||
| 256 | N 003901012001 | SCREW-IN FITTING |
| PIPE LINE TO STEERING | ||
| 264 | N 007603018101 | SEAL RING |
| FROM LINE TO OIL TANK | ||
| 272 | N 003901015002 | SCREW-IN FITTING |
| FROM LINE TO OIL TANK | ||
| 280 | A 3454607788 | LINE |
| FROM STEERING TO OIL TANK | ||
| 288 | N 003861015004 | GLAND |
| 296 | N 915017015100 | UNION NUT |
| 304 | A 3454667081 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 312 | A 3459977990 | LOOM TIE |
| Repalced by: A 3459978890 | ||
| 312 | A 3459978890 | LOOM TIE |
| Repalced by: N 916017016000 | ||
| 312 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 312 | N 000000000666 | CLAMP |
| LINE MOUNTING | ||
| 312 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 312 | N 000000000667 | CLAMP |
| LINE MOUNTING | ||
| 320 | A 3454667440 | BRACKET |
| LINE MOUNTING | ||
| 328 | N 000933012131 | SCREW |
| BRACKET TO FRAME | ||
| 336 | N 000125013008 | WASHER |
| BRACKET TO FRAME | ||
| 344 | N 912004012100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 352 | N 000934012021 | NUT |
| BRACKET TO FRAME | ||
| 360 | N 916016012201 | CLAMP |
| LINES TO BRACKET | ||
| 368 | N 916016015200 | CLAMP |
| LINES TO BRACKET | ||
| 376 | N 000933008271 | SCREW |
| LINES TO BRACKET | ||
| M 8X20 | ||
| 376 | N 000933008014 | SCREW |
| LINES TO BRACKET | ||
| M 8X15 | ||
| 376 | N 000933008268 | SCREW |
| LINES TO BRACKET | ||
| M 8X16 | ||
| 384 | N 000125008417 | WASHER |
| LINES TO BRACKET | ||
| 392 | N 912004008102 | LOCK WASHER |
| LINES TO BRACKET | ||
| 400 | N 000934008010 | NUT |
| LINES TO BRACKET | ||

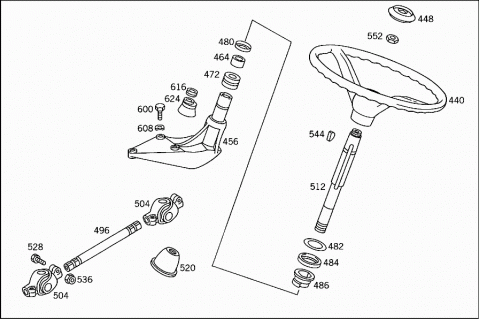

| 440 | A 3644607003 | STEERING WHEEL |
| IVORY | ||
| 440 | A 3514607003 | STEERING WHEEL |
| 448 | A 3644647032 | BADGE |
| 448 | A 0004640432 | BADGE |
| 456 | A 3454607237 | BEARING |
| 464 | A 3454627050 | BUSHING |
| 472 | A 3454627065 | RING |
| 480 | A 3454627023 | COVER |
| 482 | A 3764620075 | WASHER |
| 484 | A 3454627028 | BEARING RING |
| 486 | A 3524620251 | RING |
| 488 | A 3454630701 | PITMAN ARM |
| 496 | A 3504627101 | STEERING SHAFT |
| BOTTOM | ||
| 504 | A 3164600057 | UNIVERSAL JOINT |
| 504 | A 3444607057 | UNIVERSAL JOINT |
| 504 | A 3444607157 | UNIVERSAL JOINT |
| 504 | A 3444607257 | UNIVERSAL JOINT |
| 512 | A 3454627201 | STEERING SHAFT |
| TOP | ||
| 520 | A 3604620596 | BOOT |
| 528 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 536 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 544 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 552 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||

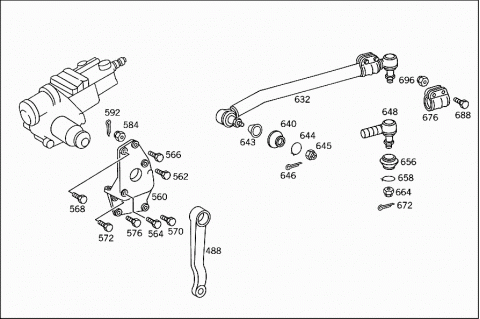

| 560 | A 3444610040 | STEERING SUPPORT |
| 560 | A 3454617040 | STEERING SUPPORT |
| 562 | A 3529900202 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 42 MM | ||
| 564 | A 3529900302 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 37 MM | ||
| 566 | N 000961012104 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X70 | ||
| 568 | N 000961012074 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X65 | ||
| 570 | N 000961012103 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X60 | ||
| 572 | N 000961012073 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X55 | ||
| 576 | N 000961012102 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X50 | ||
| 584 | N 000935012003 | NUT |
| STEERING BRACKET TO FRAME | ||
| 592 | N 000094003217 | COTTER PIN |
| STEERING BRACKET TO FRAME | ||
| 600 | N 000931010212 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 600 | N 000933010093 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 608 | N 000137010202 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 616 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 624 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| A 3514600105 | DRAG LINK | |
| 632 | A 3764600105 | DRAG LINK |
| 632 | A 3454608805 | DRAG LINK |
| 632 | A 3454608105 | DRAG LINK |
| 632 | A 3514607105 | DRAG LINK |
| 640 | A 0003300385 | BOOT |
| FIXED PART OF JOINT | ||
| TO 351 460 71 05,376 460 01 05 | ||
| 640 | A 3643307085 | BOOT |
| FIXED PART OF JOINT | ||
| TO 345 460 88 05 | ||
| 640 | A 3503387056 | DUST CAP |
| FIXED PART OF JOINT | ||
| TO 345 460 81 05 | ||
| 643 | A 3643387082 | RUBBER RING |
| FIXED PART OF JOINT | ||
| TO 345 460 88 05 | ||
| 644 | A 3503387063 | CLAMPING RING |
| FIXED PART OF JOINT | ||
| TO 345 460 81 05 | ||
| 645 | N 000937020001 | NUT |
| FIXED PART OF JOINT | ||
| 646 | N 000094004066 | COTTER PIN |
| FIXED PART OF JOINT | ||
| 648 | A 0004600148 | DRAG LINK END |
| TO 351 460 71 05,376 460 01 05 | ||
| 648 | A 3453307135 | JOINT |
| TO 345 460 88 05 | ||
| 648 | A 3503307035 | JOINT |
| TO 345 460 81 05 | ||
| 656 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 656 | A 0004621796 | BOOT |
| SCREWED PART OF JOINT | ||
| TO 351 460 71 05;376 460 01 05 | ||
| 656 | A 3503387056 | DUST CAP |
| SCREWED PART OF JOINT | ||
| TO 345 460 81 05 | ||
| 658 | A 3503387063 | CLAMPING RING |
| SCREWED PART OF JOINT | ||
| TO 345 460 81 05 | ||
| 664 | N 000937020001 | NUT |
| SCREWED PART OF JOINT | ||
| 672 | N 000094004066 | COTTER PIN |
| SCREWED PART OF JOINT | ||
| 676 | A 0003381445 | CLAMP |
| TO 345 460 88 05,376 460 01 05 | ||
| 676 | A 0003382145 | CLAMP |
| 676 | A 3503387045 | CLAMP |
| TO 345 460 81 05 | ||
| 676 | A 0003382445 | CLAMP |
| TO 351 460 71 05 | ||
| 688 | N 000960012349 | SCREW |
| CLAMP TO DRAG LINK | ||
| TO 376 460 01 05,345 460 81 05,8805 | ||
| 688 | N 000960012262 | SCREW |
| TO 351 460 71 05 | ||
| 696 | N 913004012003 | NUT |
| CLAMP TO DRAG LINK | ||
| TO 376 460 01 05,345 460 81 05,8805 | ||
| 696 | N 913004012003 | NUT |
| CLAMP TO DRAG LINK | ||
| TO 351 460 71 05 | ||
