Transporto priemonė: LS 1621; VIN numerio dalis: 349304

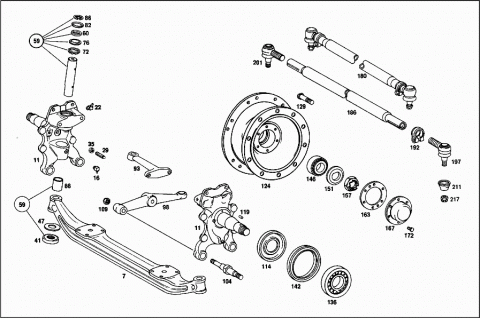

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3463307200 | FRONT AXLE | |
| A 3463307300 | FRONT AXLE | |
| 007 | A 3433310101 | FRONT AXLE BEAM |
| 011 | A 3353320101 | STEERING KNUCKLE |
| LESS BUSHING | ||
| 016 | N 071412008302 | GREASE NIPPLE |
| 022 | N 071412008200 | GREASE NIPPLE |
| 029 | A 3633320071 | SCREW |
| 035 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 035 | N 308673014001 | NUT |
| 041 | A 0009818318 | ROLLER BEARING |
| 047 | A 3173321252 | SPACER WASHER |
| 1 MM | ||
| 047 | A 3173320252 | SPACER WASHER |
| Repalced by: A 3173321952 | ||
| 047 | A 3173320652 | SPACER WASHER |
| 1.9 MM | ||
| 047 | A 3173320852 | SPACER WASHER |
| 2.1 MM | ||
| 047 | A 3173320952 | SPACER WASHER |
| 2.2 MM | ||
| 047 | A 3173321452 | SPACER WASHER |
| 1.3 MM | ||
| 047 | A 3173321552 | SPACER WASHER |
| 1.2 MM | ||
| 047 | A 3173321752 | SPACER WASHER |
| 0.9 MM | ||
| 047 | A 3173321852 | SPACER WASHER |
| 0.8 MM | ||
| 047 | A 3173321952 | SPACER WASHER |
| 0.7O MM | ||
| 059 | A 3433300219 | KING PIN |
| KINGPIN,STANDARD | ||
| 45.0 MM | ||
| 059 | A 3433300419 | KING PIN |
| Repalced by: A 3433320406 | ||
| 059 | A 3433320406 | KINGPIN |
| KINGPIN,REPAIR SIZE I | ||
| 45.6 | ||
| 060 | A 3179970045 | SEAL RING |
| TOP AND BOTTOM | ||
| 066 | A 3173320048 | BUSHING |
| BOTTOM | ||
| 066 | A 3433320048 | BUSHING |
| TOP | ||
| 072 | A 3173320051 | SPACER RING |
| 076 | A 3173320229 | SEALING CAP |
| INSIDE | ||
| 082 | A 3173320129 | SEALING CAP |
| OUTSIDE | ||
| 086 | N 000472055000 | LOCK RING |
| 093 | A 3343381001 | STEERING ARM |
| 093 | A 3363380002 | STEERING ARM |
| A 3439900002 | SCREW | |
| N 000935018001 | NUT | |
| N 000094004065 | COTTER PIN | |
| 098 | A 3433380105 | STEERING ARM |
| LEFT | ||
| A 3433380106 | STEERING ARM | |
| RIGHT | ||
| 104 | A 3354210218 | PIVOT PIN |
| 109 | N 000935020006 | NUT |
| N 000094004065 | COTTER PIN | |
| 114 | A 3173340015 | RING |
| 119 | N 001481005022 | CLAMPING SLEEVE |
| 124 | A 3353340101 | WHEEL HUB |
| 129 | A 3384015071 | WHEEL MOUNTING BOLT |
| 136 | A 0019817705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 136 | A 0019817505 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 142 | A 3359970047 | SEAL RING |
| 146 | A 0019812905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 146 | A 0019817405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 146 | A 0019817605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 151 | A 3173340062 | THRUST WASHER |
| 157 | A 0009901555 | NUT |
| 163 | A 3173340059 | SEAL RING |
| 167 | A 3173340025 | HUB CAP |
| 172 | N 304017010027 | SCREW |
| 180 | A 3463302903 | TIE ROD |
| Repalced by: A 3463304303 | ||
| 180 | A 3463304303 | TIE ROD |
| LEMFOERDER | ||
| 180 | A 3463304403 | TIE ROD |
| EHRENREICH | ||
| 186 | A 0003380216 | TIE ROD TUBE |
| A 0003380645 | CLAMP | |
| 192 | A 0003382545 | CLAMP |
| N 000960012349 | SCREW | |
| N 000960012246 | SCREW | |
| Repalced by: N 000960012353 | ||
| N 000960012353 | SCREW | |
| N 000935012014 | NUT | |
| N 910113012002 | NUT | |
| N 000094003219 | COTTER PIN | |
| 197 | A 3023300035 | JOINT |
| Repalced by: A 3023300235 | ||
| 197 | A 3023300235 | JOINT |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 197 | A 3023300335 | JOINT |
| L.H. THREAD | ||
| EHRENREICH | ||
| 201 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 201 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 201 | A 0013300235 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 211 | A 0003301085 | BOOT |
| 217 | N 000937020001 | NUT |
| N 000094004065 | COTTER PIN | |
