Transporto priemonė: LS 1621; VIN numerio dalis: 685256

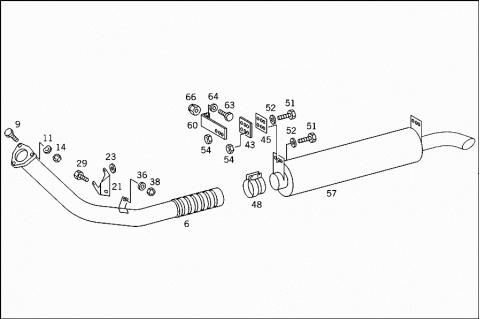

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | H XM6854902619 | EXHAUST PIPE |
| FRONT | ||
| 006 | H XM6854902619 | EXHAUST PIPE |
| FRONT | ||
| H XM6854904219 | EXHAUST PIPE | |
| FRONT | ||
| A 6004920080 | FLANGE GASKET | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 009 | Q 23-09440-200 | PART NAME MISSING |
| SCREW | ||
| 1/2-13 X 2 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 011 | Q 23-09319-013 | PART NAME MISSING |
| SPRING WASHER | ||
| 1/2 X.883 X.151 CAD | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 014 | Q 23-09247-108 | PART NAME MISSING |
| NUT | ||
| 1/2-13 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 021 | H XM6854920241 | BRACKET |
| AT BELL HOUSING | ||
| 023 | N 000125010517 | WASHER |
| AT BELL HOUSING | ||
| 029 | Q 23-09436-125 | PART NAME MISSING |
| SCREW | ||
| 3/8-16 X 1 1/4 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO EXHAUST MUFFLER BRACKET | ||
| 036 | Q 23-09114-002 | PART NAME MISSING |
| WASHER | ||
| 3/8-.812-.072 Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 038 | Q 23-09901-106 | PART NAME MISSING |
| NUT | ||
| 3/8-16 CAD G8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 043 | A 6804910020 | MOUNTING STRAP |
| BRACKET TO EXHAUST MUFFLER | ||
| 043 | H XM6854910020 | MOUNTING STRAP |
| BRACKET TO EXHAUST MUFFLER | ||
| 045 | A 6804910018 | PLATE |
| BRACKET TO EXHAUST MUFFLER | ||
| 048 | Q A04-12096-001 | PART NAME MISSING |
| CLAMP | ||
| 4" | ||
| 048 | Q A04-12096-001 | PART NAME MISSING |
| CLAMP | ||
| 4" | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO MUFFLER | ||
| H XM6854920840 | CLAMP | |
| 051 | Q 23-11609-125 | PART NAME MISSING |
| SCREW | ||
| 10-24 UNC X 1 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 052 | Q 23-00600-010 | PART NAME MISSING |
| WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 054 | Q 23-09336-005 | PART NAME MISSING |
| NUT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 057 | H XM6854900901 | EXHAUST MUFFLER |
| 060 | H XM6854922217 | ANGLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 063 | Q 23-09436-125 | PART NAME MISSING |
| SCREW | ||
| 3/8-16 X 1 1/4 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| Q 23-09436-150 | PART NAME MISSING | |
| SCREW | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| 064 | Q 23-09114-002 | PART NAME MISSING |
| WASHER | ||
| 3/8-.812-.072 Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| 066 | Q 23-09901-106 | PART NAME MISSING |
| NUT | ||
| 3/8-16 CAD G8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| H XM6854920614 | END PIECE | |
| N 071555104501 | CLAMP | |
| EXHAUST PIPE TO MUFFLER |
