Transporto priemonė: LS 1621; VIN numerio dalis: 685256

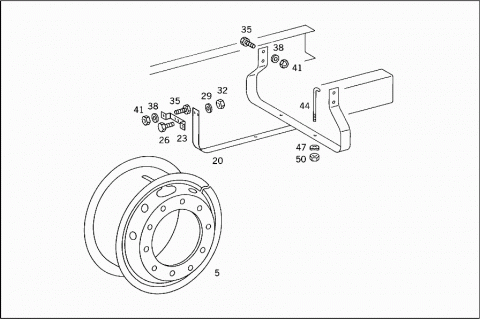

Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER

#	Kodas	Pavadinimas
005	H XM6854000802	DISC WHEEL
	H XM6854000302	DISC WHEEL
	H XM6854010006	SIDE RING
	H XM6854020069	CLAMPING PIECE
		DISC WHEEL TO FRONT AXLE
	H XM6854020169	CLAMPING PIECE
		DISC WHEEL TO REAR AXLE
	H XM6859900551	NUT
		DISC WHEELS TO FRONT AND REAR AXLES
		3/4 - 10
	A 6814020315	SPACER
020	H XM6854000239	BRACKET
		SPARE WHEEL
020	H XM6854000039	BRACKET
		SPARE WHEEL
023	H XM6854030040	BRACKET
		AT BRACKET
026	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2 - 13 X 1 1/2 FG 8
029	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2 - 1.062 - 14 Z
032	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2 - 13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO BRACKET
035	Q 23-09440-175	PART NAME MISSING
		SCREW
		1/2 - 13 X 1 3/4 FG 8
035	Q 23-09440-200	PART NAME MISSING
		SCREW
		1/2 - 13 X 2 FG 8
038	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2 - 1.062 - 14 Z
041	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2 - 13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
044	H XM6854030129	HOOK BOLT
		"2"
047	Q 23-09318-015	PART NAME MISSING
		SPRING WASHER
		5/8
050	Q 23-09339-012	PART NAME MISSING
		NUT
		5/8 - 11 FG 5
