Transporto priemonė: LS 1622; VIN numerio dalis: 386052

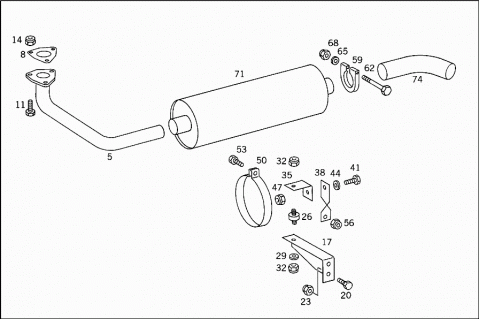

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3924908119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3944907019 | EXHAUST PIPE |
| Repalced by: A 3864907719 | ||
| 005 | A 3864907719 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3944907119 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 6844927080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 008 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 008 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 000931010436 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X40 | ||
| 011 | N 000961012209 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X1.5X40 | ||
| 014 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 913004012018 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | A 3864917216 | SUPPORT |
| 020 | N 000961014088 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1,5X35 | ||
| 020 | N 000961014101 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1,5X45 | ||
| 023 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 026 | A 0019873140 | RUBBER BUFFER |
| 029 | N 000125010517 | WASHER |
| 032 | N 913004010008 | NUT |
| 035 | A 3864917041 | BRACKET |
| 038 | A 3864917116 | SUPPORT |
| 041 | N 000933010129 | SCREW |
| BRACKET TO BRACKET | ||
| 044 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 047 | N 913004010008 | NUT |
| BRACKET TO BRACKET | ||
| 050 | A 3844917040 | CLAMP |
| EXHAUST MUFFLER | ||
| 050 | A 3884917140 | CLAMP |
| EXHAUST MUFFLER | ||
| 053 | N 000933010269 | SCREW |
| CLAMP TO BRACKET | ||
| 056 | N 913004010011 | NUT |
| CLAMP TO BRACKET | ||
| 059 | A 3844927040 | CLAMP |
| Repalced by: A 3644927040 | ||
| 059 | A 3644927040 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 059 | A 3644927040 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 059 | A 3864927040 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 059 | A 3864927040 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 062 | N 000931010167 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| M 10X130 | ||
| 062 | N 000931010317 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| M 10X140 | ||
| 065 | N 000125010517 | WASHER |
| 068 | N 913004010000 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 071 | A 3924907001 | EXHAUST MUFFLER |
| 071 | A 3844907001 | EXHAUST MUFFLER |
| 071 | A 3844907401 | EXHAUST MUFFLER |
| 071 | A 3924907201 | EXHAUST MUFFLER |
| 071 | A 3824907001 | EXHAUST MUFFLER |
| 071 | A 3824907201 | EXHAUST MUFFLER |
| 071 | A 3944907101 | EXHAUST MUFFLER |
| 071 | A 3944907201 | EXHAUST MUFFLER |
| 071 | A 3504907215 | EXHAUST MUFFLER WITH PIPE |
| 074 | A 3924927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 074 | A 3924927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 074 | A 3944927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 074 | A 3864927904 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 074 | A 3864927904 | REAR EXHAUST PIPE |
| Repalced by: A 3504927204 | ||
| 074 | A 3504927204 | REAR EXHAUST PIPE |
