Transporto priemonė: LS 1630; VIN numerio dalis: 386059

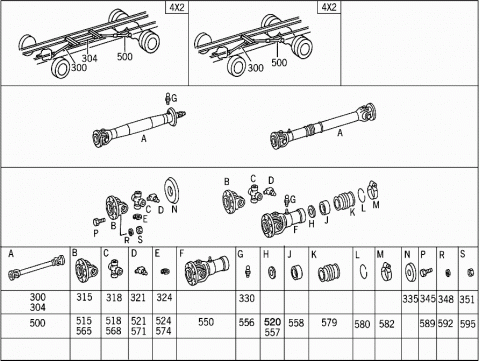

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 300 | A 3444100004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 837 MM - KRUPP | ||
| 300 | A 3764101904 | PROPELLER SHAFT |
| Repalced by: A 3844103807 | ||
| 300 | A 3844103807 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 856 MM - ALBARUS | ||
| 300 | A 3844109601 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 2041 MM - ALBARUS | ||
| 300 | A 3764102104 | PROPELLER SHAFT |
| Repalced by: A 3864104207 | ||
| 300 | A 3864104207 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1661 MM - ALBARUS | ||
| 300 | A 3864104207 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 300 | A 3844109201 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1722 MM - KRUPP | ||
| 300 | A 3864100401 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1804 MM - KRUPP | ||
| 300 | A 3364104301 | PROPELLER SHAFT |
| Repalced by: A 3864103507 | ||
| 300 | A 3864103507 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1543 MM - ALBARUS | ||
| 300 | A 3364103801 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1747 MM - KRUPP | ||
| 300 | A 3844100604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1303 MM - KRUPP | ||
| 300 | A 3764102004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1496 MM - KRUPP | ||
| 300 | A 3354107401 | PROPELLER SHAFT |
| Repalced by: A 3864103207 | ||
| 300 | A 3864103207 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1279 MM - ALBARUS | ||
| 300 | A 3354106701 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1470 MM - KRUPP | ||
| 300 | A 3764102604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1428 MM - KRUPP | ||
| 300 | A 3764102704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1375 MM - KRUPP | ||
| 300 | A 3754100004 | PROPELLER SHAFT |
| Repalced by: A 3864103001 | ||
| 300 | A 3864103001 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1240 MM - ALBARUS | ||
| 304 | A 3844100604 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1303 MM - ALBARUS | ||
| 304 | A 3764102404 | PROPELLER SHAFT |
| Repalced by: A 3864103807 | ||
| 304 | A 3864103807 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1311 MM - ALBARUS | ||
| 304 | A 3764102204 | PROPELLER SHAFT |
| Repalced by: A 3864103707 | ||
| 304 | A 3864103707 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1676 MM - ALBARUS | ||
| 304 | A 3364104101 | PROPELLER SHAFT |
| Repalced by: A 3864103407 | ||
| 304 | A 3864103407 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1423 MM - ALBARUS | ||
| 304 | A 3764102704 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| KRUPP | ||
| 315 | A 3524110011 | DRIVE FLANGE |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 315 | A 3524110011 | DRIVE FLANGE |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 315 | A 3544110011 | DRIVE FLANGE |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 315 | A 3544110011 | DRIVE FLANGE |
| 315 | A 3354110211 | DRIVE FLANGE |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 315 | A 3354110211 | DRIVE FLANGE |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 315 | A 3634110111 | DRIVE FLANGE |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 315 | A 3634110111 | DRIVE FLANGE |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 315 | A 3754110011 | DRIVE FLANGE |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 315 | A 3364110011 | DRIVE FLANGE |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| KRUPP | ||
| 315 | A 0004100830 | CENTERING FLANGE |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| TO 386 410 30 01 | ||
| 318 | A 3454107031 | UNIVERSAL JOINT CROSS |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 318 | A 0004101431 | UNIVERSAL JOINT CROSS |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 318 | A 0004102131 | UNIVERSAL JOINT CROSS |
| TO A 3864103001 | ||
| 318 | A 0004102131 | UNIVERSAL JOINT CROSS |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 318 | A 3854100131 | UNIVERSAL JOINT CROSS |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| ALBARUS TO 386 410 42 07 | ||
| 318 | A 3854100131 | UNIVERSAL JOINT CROSS |
| 318 | A 0004101731 | UNIVERSAL JOINT CROSS |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| ALBARUS | ||
| 318 | A 0004101731 | UNIVERSAL JOINT CROSS |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 318 | A 3354100031 | UNIVERSAL JOINT CROSS |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 318 | A 3354100031 | UNIVERSAL JOINT CROSS |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 318 | A 3874100031 | UNIVERSAL JOINT CROSS |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 318 | A 3874100031 | UNIVERSAL JOINT CROSS |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 318 | A 3314100031 | UNIVERSAL JOINT CROSS |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| KRUPP | ||
| 318 | A 6204100031 | UNIVERSAL JOINT CROSS |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| KRUPP | ||
| 318 | A 0004102131 | UNIVERSAL JOINT CROSS |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| TO 386 410 30 01 | ||
| 319 | A 0069903601 | SCREW |
| ALBARUS | ||
| 319 | A 0069903601 | SCREW |
| TO 386 410 30 01 | ||
| 321 | N 071412008300 | GREASE NIPPLE |
| KRUPP | ||
| 321 | N 071412008300 | GREASE NIPPLE |
| KRUPP | ||
| 321 | A 3459977288 | GREASE NIPPLE |
| KRUPP | ||
| 321 | A 3459977288 | GREASE NIPPLE |
| KRUPP | ||
| 321 | A 0009974788 | GREASE NIPPLE |
| ALBARUS | ||
| 321 | A 0009974788 | GREASE NIPPLE |
| TO 386 410 30 01 | ||
| 324 | A 3449947135 | SNAP RING |
| 2.500 MM - KRUPP | ||
| 324 | A 3129941135 | SNAP RING |
| 2.500 MM - KRUPP | ||
| 324 | A 3449947235 | SNAP RING |
| 2.525 MM - KRUPP | ||
| 324 | A 3449947335 | SNAP RING |
| 2.550 MM - KRUPP | ||
| 324 | A 3129941635 | SNAP RING |
| 2.550 MM - KRUPP | ||
| 324 | A 3449947435 | SNAP RING |
| 2.575 MM - KRUPP | ||
| 324 | A 3449947535 | SNAP RING |
| 2.600 MM - KRUPP | ||
| 324 | A 3129941335 | SNAP RING |
| 2.600 MM - KRUPP | ||
| 324 | A 3449947635 | SNAP RING |
| 2.625 MM - KRUPP | ||
| 324 | A 3449947735 | SNAP RING |
| 2.650 MM - KRUPP | ||
| 324 | A 3129941435 | SNAP RING |
| 2.650 MM - KRUPP | ||
| 324 | A 3449947835 | SNAP RING |
| 2.675 MM - KRUPP | ||
| 324 | A 3449947935 | SNAP RING |
| 2.700 MM - KRUPP | ||
| 324 | A 3129941535 | SNAP RING |
| 2.700 MM - KRUPP | ||
| 324 | A 3449948035 | SNAP RING |
| 2.725 MM - KRUPP | ||
| 324 | A 3449948135 | SNAP RING |
| 2.750 MM - KRUPP | ||
| 324 | A 3129941735 | SNAP RING |
| 2.750 MM - KRUPP | ||
| 324 | A 3379945035 | SNAP RING |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.800 MM - KRUPP | ||
| 324 | A 3379945035 | SNAP RING |
| 324 | A 3354111773 | LOCK |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.000 MM - KRUPP | ||
| 324 | A 3354111773 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 324 | A 3379945435 | SNAP RING |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.850 MM - KRUPP | ||
| 324 | A 3379945435 | SNAP RING |
| A 3354111873 | LOCK | |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.025 MM | ||
| A 3354111873 | LOCK | |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 324 | A 3379945135 | SNAP RING |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.900 MM - KRUPP | ||
| 324 | A 3379945135 | SNAP RING |
| 324 | A 3354111973 | LOCK |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.050 MM - KRUPP | ||
| 324 | A 3354111973 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 324 | A 3379945235 | SNAP RING |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.950 MM - KRUPP | ||
| 324 | A 3379945235 | SNAP RING |
| 324 | A 3354112073 | LOCK |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.075 MM - KRUPP | ||
| 324 | A 3354112073 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 324 | A 3379945335 | SNAP RING |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 3.000 MM - KRUPP | ||
| 324 | A 3379945335 | SNAP RING |
| 324 | A 3354112173 | LOCK |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.100 MM - KRUPP | ||
| 324 | A 3354112173 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 324 | A 3634111173 | LOCK |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 2.20 MM - KRUPP | ||
| 324 | A 3634111173 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 324 | A 3354111173 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1.700 MM - KRUPP | ||
| 324 | A 3354111273 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1.725 MM - KRUPP | ||
| 324 | A 3354111373 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1.750 MM - KRUPP | ||
| 324 | A 3354111473 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1.775 MM - KRUPP | ||
| 324 | A 3354111573 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1.80 MM - KRUPP | ||
| 324 | A 3454110073 | LOCK |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1.825 MM - KRUPP | ||
| 324 | A 0069943041 | LOCK |
| 1,975 MM - KRUPP | ||
| 324 | A 0069943141 | LOCK |
| 2,000 MM - KRUPP | ||
| 324 | A 0069943241 | LOCK |
| 2,025 MM - KRUPP | ||
| 324 | A 0069943341 | LOCK |
| 2,050 MM - KRUPP | ||
| 324 | A 0069943441 | LOCK |
| 2,075 MM - KRUPP | ||
| 324 | A 0069943541 | LOCK |
| 2,100 MM - KRUPP | ||
| 324 | A 0069943641 | LOCK |
| 2,125 MM - KRUPP | ||
| 324 | A 0069943741 | LOCK |
| 2,150 MM - KRUPP | ||
| 324 | A 0069943841 | LOCK |
| 2,175 MM - KRUPP | ||
| 324 | A 0069943941 | LOCK |
| 2,200 MM - KRUPP | ||
| 324 | A 0069944041 | LOCK |
| 2,225 MM - KRUPP | ||
| 330 | N 071412008100 | GREASE NIPPLE |
| KRUPP | ||
| 330 | N 071412010100 | GREASE NIPPLE |
| KRUPP | ||
| 330 | N 071412010100 | LUBRICATING NIPPLE |
| 335 | A 3524130061 | PROTECTIVE CAP |
| KRUPP | ||
| 335 | A 3354130061 | PROTECTIVE CAP |
| KRUPP | ||
| 335 | A 3354130061 | PROTECTIVE CAP |
| 335 | A 3954130061 | PROTECTIVE CAP |
| KRUPP/ALBARUS | ||
| 335 | A 3954130061 | PROTECTIVE CAP |
| TO 386 410 30 01 | ||

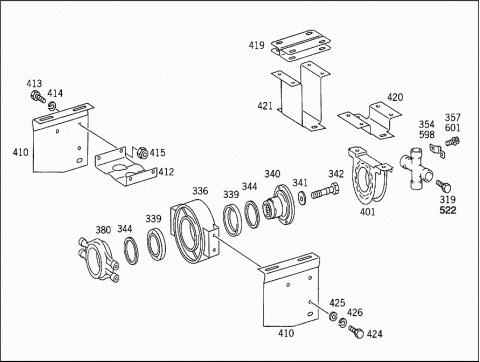

| 336 | A 3954100622 | INTERMEDIATE BEARING |
| Repalced by: A 6554100122 | ||
| 336 | A 6554100122 | INTERMEDIATE BEARING |
| A 0079818725 | BALL BEARING | |
| MOUNTING | ||
| A 0029819225 | BALL BEARING | |
| MOUNTING | ||
| TO A 395 410 06 22 | ||
| A 0029819325 | BALL BEARING | |
| MOUNTING | ||
| TO A 395 410 06 22 | ||
| 339 | A 3954130161 | PROTECTIVE CAP |
| 340 | A 3954100130 | CENTERING FLANGE |
| 341 | A 3894110062 | THRUST WASHER |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 342 | A 3899900019 | SCREW |
| Repalced by: N 000961020063 | ||
| 342 | N 000961020063 | SCREW |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 344 | A 6554110052 | SPACER WASHER |
| PROPELLER SHAFT BEARING | ||
| 345 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 345 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| M 10 X 1 MM | ||
| 345 | A 0029908301 | SCREW |
| Repalced by: A 3609901901 | ||
| 345 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 345 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| M 12 X 1,25 MM | ||
| 345 | A 3609903001 | SCREW |
| 345 | A 3469902701 | SCREW |
| Repalced by: A 3869900101 | ||
| 345 | A 3869900101 | SCREW |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 345 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 345 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 348 | N 000127010202 | LOCK WASHER |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 348 | N 000127012201 | LOCK WASHER |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 348 | N 000127012201 | SPRING LOCK WASHER |
| 348 | N 000127016201 | LOCK WASHER |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 351 | N 000934010042 | NUT |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| M10 X 1 | ||
| 351 | N 000934012013 | NUT |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| M12 X 1,5 MM | ||
| 351 | N 000934012013 | NUT |
| 351 | N 000934014025 | NUT |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 351 | N 000934016026 | NUT |
| PROPELLER SHAFT TO COUPLING FLANGE | ||
| 354 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 357 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 380 | A 3354130001 | HOUSING |
| 380 | A 3634130001 | HOUSING |

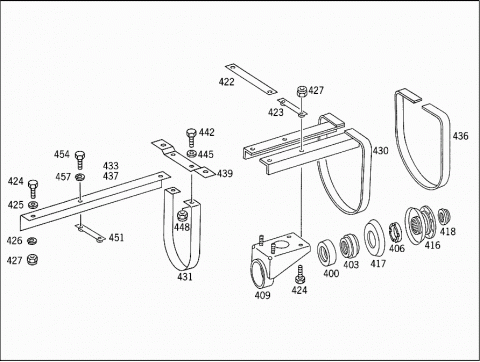

| 400 | A 3524130012 | RUBBER MOUNTING |
| 400 | A 3384130012 | RUBBER MOUNTING |
| 400 | A 3384130012 | RUBBER MOUNTING |
| 400 | A 3634130012 | RUBBER MOUNTING |
| 401 | A 0004100222 | INTERMEDIATE BEARING |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| 384 410 92 01,93 01,96 01 | ||
| 401 | A 0004130112 | RUBBER MOUNTING |
| 403 | A 3524100051 | BALL BEARING |
| 403 | A 3454100051 | BALL BEARING |
| 403 | A 3544100051 | BALL BEARING |
| 403 | A 3544100051 | BALL BEARING |
| 403 | A 3634100151 | BALL BEARING |
| 406 | A 3124131231 | BEARING RING |
| 406 | A 3374130131 | BEARING RING |
| 406 | A 3374130131 | BEARING RING |
| 409 | A 3764100740 | BRACKET |
| INTERMEDIATE BEARING | ||
| NO.1 | ||
| 409 | A 3764100740 | BRACKET |
| 409 | A 3454100240 | BRACKET |
| INTERMEDIATE BEARING | ||
| NO.1 | ||
| 409 | A 3454100240 | BRACKET |
| 409 | A 3454100340 | BRACKET |
| INTERMEDIATE BEARING | ||
| NO.2 | ||
| 409 | A 3454100340 | BRACKET |
| 409 | A 3454100340 | BRACKET |
| INTERMEDIATE BEARING | ||
| NO.1 | ||
| 410 | A 3864131742 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.1 | ||
| 410 | A 3864131542 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.1 | ||
| 410 | A 3864131542 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.1 | ||
| 410 | A 3864131442 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.1 | ||
| 410 | A 3864131442 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.1 | ||
| 410 | A 3864130542 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.1 | ||
| 410 | A 3864130542 | BRACKET |
| Repalced by: A 3864133742 | ||
| 410 | A 3864133742 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.1 | ||
| 410 | A 3864130142 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.1 | ||
| 410 | A 3864134042 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.1 | ||
| 410 | A 3864131642 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.1 | ||
| 410 | A 3864130642 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.1 | ||
| 410 | A 3864130642 | BRACKET |
| Repalced by: A 3864133842 | ||
| 410 | A 3864133842 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.1 | ||
| 410 | A 3864133942 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.1 | ||
| 410 | A 3864130242 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.1 | ||
| 410 | A 3864131942 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.2 | ||
| 410 | A 3864130842 | BRACKET |
| INTERMEDIATE BEARING,LEFT | ||
| NO.2 | ||
| 410 | A 3864131842 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.2 | ||
| 410 | A 3864130742 | BRACKET |
| INTERMEDIATE BEARING,RIGHT | ||
| NO.2 | ||
| 412 | A 3864130011 | REINFORCEMENT |
| INTERMEDIATE BEARING | ||
| NO.2 | ||
| 412 | A 3954130011 | REINFORCEMENT |
| INTERMEDIATE BEARING | ||
| NO.1 | ||
| 412 | A 3954130011 | REINFORCEMENT |
| INTERMEDIATE BEARING | ||
| NO.2 | ||
| 413 | N 000961012154 | SCREW |
| STRUT TO BRACKET | ||
| 414 | N 000127012201 | LOCK WASHER |
| STRUT TO BRACKET | ||
| 415 | N 913004012006 | NUT |
| STRUT TO BRACKET | ||
| 416 | A 3524100130 | CENTERING FLANGE |
| 416 | A 3364100030 | CENTERING FLANGE |
| 416 | A 3364100030 | CENTERING FLANGE |
| 416 | A 0004100430 | CENTERING FLANGE |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| 384 410 92 01,93 01,96 01 | ||
| 416 | A 3354100130 | CENTERING FLANGE |
| 416 | A 3954100030 | CENTERING FLANGE |
| 417 | A 3524130061 | PROTECTIVE CAP |
| 417 | A 3354130061 | PROTECTIVE CAP |
| 417 | A 3354130061 | PROTECTIVE CAP |
| 417 | A 3874130061 | PROTECTIVE CAP |
| 418 | A 3449907050 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 418 | A 3853510072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3853510072 | NUT |
| 418 | A 3853510172 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3853510172 | NUT |
| 418 | A 0009905050 | NUT |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| 384 410 92 01,93 01,96 01 | ||
| 418 | A 3853510072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3663530072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 419 | A 3864107040 | BRACKET |
| TO INTERMEDIATE SHAFT BEARING | ||
| 419 | A 3864107240 | BRACKET |
| TO INTERMEDIATE SHAFT BEARING | ||
| 420 | A 3844137242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 421 | A 3864137842 | BRACKET |
| AT CROSS MEMBER | ||
| 422 | A 3864130084 | SHIM |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 423 | A 3524130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 424 | N 000961010039 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M 10X1X30 | ||
| 424 | N 000961010042 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X1X35 | ||
| 424 | N 000961010042 | SCREW |
| 424 | N 000961014105 | SCREW |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| M 14X1.5X30 | ||
| 424 | N 000961012171 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 424 | N 000961012154 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING | ||
| 425 | A 3879900040 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 425 | N 009021010102 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 425 | N 009021010102 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING | ||
| 426 | N 000127012201 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING | ||
| 427 | N 913002010002 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 427 | N 913002010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 427 | N 913002010002 | NUT |
| 427 | N 913004014005 | NUT |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 427 | N 913001012000 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 430 | A 3454107640 | BRACKET |
| 431 | A 3864130146 | REBOUND STRAP |
| 433 | A 3504130014 | SUPPORT |
| LEFT | ||
| 433 | A 3504130114 | SUPPORT |
| RIGHT | ||
| 436 | A 3844137046 | REBOUND STRAP |
| 437 | A 3864137114 | SUPPORT |
| Repalced by: A 3864130014 | ||
| 437 | A 3864130014 | SUPPORT |
| LEFT | ||
| 437 | A 3864130014 | SUPPORT |
| 437 | A 3844137414 | SUPPORT |
| LEFT | ||
| 437 | A 3864137214 | SUPPORT |
| Repalced by: A 3864130114 | ||
| 437 | A 3864130114 | SUPPORT |
| Repalced by: A 3864130414 | ||
| 437 | A 3864130414 | SUPPORT |
| RIGHT | ||
| 437 | A 3864130414 | SUPPORT |
| 437 | A 3844137514 | SUPPORT |
| RIGHT | ||
| 439 | A 3864137014 | SUPPORT |
| 442 | N 000961010038 | SCREW |
| BRAKE ANCHOR | ||
| M 10X1X25 | ||
| 442 | N 000961010038 | SCREW |
| SUPPORT TO SUPPORT | ||
| 442 | N 000961010039 | SCREW |
| SUPPORT TO SUPPORT | ||
| M 10X1X30 | ||
| 445 | N 000125010517 | WASHER |
| SUPPORT TO SUPPORT | ||
| 448 | N 913004010010 | NUT |
| BRAKE ANCHOR | ||
| 448 | N 913004010010 | NUT |
| SUPPORT TO SUPPORT | ||
| 451 | A 3504107093 | MOUNTING PLATE |
| 454 | N 000933010174 | SCREW |
| 457 | N 000127010202 | LOCK WASHER |
| 500 | A 3444101602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1775 MM | ||
| 500 | A 3844100302 | PROPELLER SHAFT |
| Repalced by: A 3844103806 | ||
| 500 | A 3844103806 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1749 MM ALBARUS | ||
| 500 | A 3844107102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1752 MM | ||
| 500 | A 3454100602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1303 MM | ||
| 500 | A 3844107402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1327 MMM | ||
| 500 | A 3844100402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1551 MMM | ||
| 500 | A 3494100401 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1845 MM | ||
| 500 | A 3864100501 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1887 MM | ||
| 500 | A 3454100702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1420 MM | ||
| 500 | A 3444101402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1652 MM | ||
| 500 | A 3364104701 | PROPELLER SHAFT |
| Repalced by: A 3864104406 | ||
| 500 | A 3864104406 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1424 MM | ||
| 500 | A 3864104406 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 500 | A 3354104201 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1490 MM | ||
| 500 | A 3954100801 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1380 MM | ||
| 500 | A 3754100802 | PROPELLER SHAFT |
| Repalced by: A 3864104106 | ||
| 500 | A 3864104106 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1405 MM - ALBARUS | ||
| 500 | A 3954102101 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1430 MM | ||
| 515 | A 3524110011 | DRIVE FLANGE |
| 515 | A 3364110011 | DRIVE FLANGE |
| KRUPP | ||
| 515 | A 3364110011 | DRIVE FLANGE |
| 515 | A 3354110211 | DRIVE FLANGE |
| 515 | A 3634110111 | DRIVE FLANGE |
| 515 | A 3754110011 | DRIVE FLANGE |
| 515 | A 0004110445 | FLANGE |
| ALBARUS TO 3844103806 | ||
| 515 | A 0004100630 | CENTERING FLANGE |
| ALBARUS TO 3864104406 | ||
| 518 | A 3454107031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 0004101431 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 3314100031 | UNIVERSAL JOINT CROSS |
| KRUPP | ||
| 518 | A 3314100031 | UNIVERSAL JOINT CROSS |
| 518 | A 0004101731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| TO 384 410 71 02, 74 02 KRUPP | ||
| 518 | A 3354100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 3874100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 6204100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 0004102731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| ALBARUS TO A3844103806 | ||
| 518 | A 3864100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| ALBARUS TO A3864104406 | ||
| 520 | A 0004110359 | SEAL RING |
| ALBARUS TO A3844103806 | ||
| 521 | N 071412008300 | GREASE NIPPLE |
| 521 | N 071412008300 | GREASE NIPPLE |
| KRUPP | ||
| 521 | A 3459977288 | GREASE NIPPLE |
| 521 | A 0009975688 | GREASE NIPPLE |
| TO A3844103806 | ||
| 521 | A 0009975688 | GREASE NIPPLE |
| 521 | N 071412008200 | GREASE NIPPLE |
| TO A 386 410 44 06 | ||
| 521 | A 0009974788 | GREASE NIPPLE |
| ALBARUS | ||
| 522 | A 0069903601 | SCREW |
| 524 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 524 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 524 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 524 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 524 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 524 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 524 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 524 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 524 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 524 | A 0029943235 | SNAP RING |
| 1,72 | ||
| 524 | A 3354111173 | LOCK |
| 1.700 MM | ||
| 524 | A 3354111173 | LOCK |
| 524 | A 3354111273 | LOCK |
| 1.725 MM | ||
| 524 | A 3354111273 | LOCK |
| 524 | A 3354111373 | LOCK |
| 1.750 MM | ||
| 524 | A 3354111373 | LOCK |
| 524 | A 3354111473 | LOCK |
| 1.775 MM | ||
| 524 | A 3354111473 | LOCK |
| 524 | A 3354111573 | LOCK |
| 1.800 MM | ||
| 524 | A 3354111573 | LOCK |
| 524 | A 3454110073 | LOCK |
| 1.825 MM | ||
| 524 | A 3454110073 | LOCK |
| 524 | A 3354111773 | LOCK |
| 2.000 MM | ||
| A 3354111873 | LOCK | |
| 2.025 MM | ||
| 524 | A 3354111973 | LOCK |
| 2.050 MM | ||
| 524 | A 3354112073 | LOCK |
| 2.075 MM | ||
| 524 | A 3354112173 | LOCK |
| 2.100 MM | ||
| 524 | A 3634111173 | LOCK |
| 2.20 MM | ||
| 524 | A 0069943041 | LOCK |
| 1,975 MM | ||
| 524 | A 0069943141 | LOCK |
| 2,000 MM | ||
| 524 | A 0069943241 | LOCK |
| 2,025 MM | ||
| 524 | A 0069943341 | LOCK |
| 2,050 MM | ||
| 524 | A 0069943441 | LOCK |
| 2,075 MM | ||
| 524 | A 0069943541 | LOCK |
| 2,100 MM | ||
| 524 | A 0069943641 | LOCK |
| 2,125 MM | ||
| 524 | A 0069943741 | LOCK |
| 2,150 MM | ||
| 524 | A 0069943841 | LOCK |
| 2,175 MM | ||
| 524 | A 0069943941 | LOCK |
| 2,200 MM | ||
| 524 | A 0069944041 | LOCK |
| 2,225 MM | ||
| 550 | A 3444100008 | UNIVERSAL JOINT YOKE |
| 550 | A 3444100108 | UNIVERSAL JOINT YOKE |
| 550 | A 3354100728 | UNIVERSAL JOINT |
| KRUPP | ||
| 550 | A 3354100728 | UNIVERSAL JOINT |
| 550 | A 3354101928 | UNIVERSAL JOINT |
| 550 | A 3874100328 | UNIVERSAL JOINT |
| 550 | A 3754100128 | UNIVERSAL JOINT |
| 550 | A 0004100033 | SLIDE |
| ALBAROS TO A3844103806 | ||
| 556 | N 071412008100 | GREASE NIPPLE |
| 556 | N 071412008100 | LUBRICATING NIPPLE |
| 556 | A 0009974888 | GREASE NIPPLE |
| 557 | A 3374130080 | SEAL RING |
| 557 | A 3354110180 | GASKET |
| 557 | A 3354110180 | GASKET |
| 557 | A 0004130380 | SEAL RING |
| NOTE THREAD DIAMETER | ||
| TO 384 410 71 02, 74 02;2 1/2" | ||
| 557 | A 0004130780 | SEAL RING |
| NOTE THREAD DIAMETER | ||
| TO 384 410 71 02, 74 02;2 1/4" | ||
| 557 | A 3354110480 | GASKET |
| 557 | A 3354110580 | GASKET |
| 557 | A 6654130061 | PROTECTIVE CAP |
| 558 | A 3214110158 | SEAL HOLDER |
| 558 | A 3354110058 | SEAL HOLDER |
| 558 | A 3354110058 | SEAL HOLDER |
| 558 | A 3354110158 | SEAL HOLDER |
| 565 | A 3524110011 | DRIVE FLANGE |
| 565 | A 3364110011 | DRIVE FLANGE |
| KRUPP | ||
| 565 | A 3364110011 | DRIVE FLANGE |
| 565 | A 3354110211 | DRIVE FLANGE |
| 565 | A 3634110111 | DRIVE FLANGE |
| 565 | A 0004110445 | FLANGE |
| ALBARUS TO A3844103806 | ||
| 565 | A 0004100630 | CENTERING FLANGE |
| ALBARUS TO A3864104406 | ||
| 568 | A 3454107031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 568 | A 0004101431 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 568 | A 3314100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| KRUPP | ||
| 568 | A 3314100031 | UNIVERSAL JOINT CROSS |
| 568 | A 0004101731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| KRUPP | ||
| 568 | A 3354100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 568 | A 3874100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 568 | A 0004102731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| ALBARUS TO A3844103806 | ||
| 568 | A 3864100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| ALBARUS TO A3864104406 | ||
| 571 | N 071412008300 | GREASE NIPPLE |
| 571 | N 071412008300 | GREASE NIPPLE |
| 571 | A 3459977288 | GREASE NIPPLE |
| 571 | A 0009975688 | GREASE NIPPLE |
| TO A3844103806 | ||
| 571 | A 0009975688 | GREASE NIPPLE |
| KRUPP | ||
| 571 | A 0009974788 | GREASE NIPPLE |
| TO 384 410 71 02, 74 02 | ||
| 571 | N 071412008200 | GREASE NIPPLE |
| TO 386 410 44 06 | ||
| 574 | A 3449947135 | SNAP RING |
| 574 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 574 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 574 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 574 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 574 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 574 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 574 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 574 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 574 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 574 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 574 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 574 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 574 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 574 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 574 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 574 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 574 | A 0029943235 | SNAP RING |
| 1.72 MM | ||
| 574 | A 3354111173 | LOCK |
| 1.700 MM | ||
| 574 | A 3354111173 | LOCK |
| 574 | A 3354111273 | LOCK |
| 1.725 MM | ||
| 574 | A 3354111273 | LOCK |
| 574 | A 3354111373 | LOCK |
| 1.750 MM | ||
| 574 | A 3354111373 | LOCK |
| 574 | A 3354111473 | LOCK |
| 1.775 MM | ||
| 574 | A 3354111473 | LOCK |
| 574 | A 3354111573 | LOCK |
| 1.800 MM | ||
| 574 | A 3354111573 | LOCK |
| 574 | A 3454110073 | LOCK |
| 1.825 MM | ||
| 574 | A 3454110073 | LOCK |
| 574 | A 3354111773 | LOCK |
| 2.000 MM | ||
| A 3354111873 | LOCK | |
| 2.025 MM | ||
| 574 | A 3354111973 | LOCK |
| 2.050 MM | ||
| 574 | A 3354112073 | LOCK |
| 2.075 MM | ||
| 574 | A 3354112173 | LOCK |
| 2.100 MM | ||
| 574 | A 3634111173 | LOCK |
| 2.20 MM | ||
| 574 | A 0069943041 | LOCK |
| 1,975 MM | ||
| 574 | A 0069943141 | LOCK |
| 2,000 MM | ||
| 574 | A 0069943241 | LOCK |
| 2,025 MM | ||
| 574 | A 0069943341 | LOCK |
| 2,050 MM | ||
| 574 | A 0069943441 | LOCK |
| 2,075 MM | ||
| 574 | A 0069943541 | LOCK |
| 2,100 MM | ||
| 574 | A 0069943641 | LOCK |
| 2,125 MM | ||
| 574 | A 0069943741 | LOCK |
| 2,150 MM | ||
| 574 | A 0069943841 | LOCK |
| 2,175 MM | ||
| 574 | A 0069943941 | LOCK |
| 2,200 MM | ||
| 574 | A 0069944041 | LOCK |
| 2,225 MM | ||
| 579 | A 3454107280 | BOOT |
| 579 | A 3524100080 | BOOT |
| 579 | A 3454107180 | BOOT |
| 579 | A 3454107180 | BOOT |
| 580 | A 3214110053 | WIRE RING |
| 580 | A 3454117092 | CLAMPING RING |
| 580 | A 3454117092 | CLAMPING RING |
| 582 | A 3449979790 | CLAMP |
| 70-89 | ||
| 582 | A 3449979790 | LOOM TIE |
| 582 | A 3449979890 | CLAMP |
| 89-108 | ||
| 582 | A 3449979890 | CLAMP |
| 89-108 | ||
| 582 | A 0019972890 | LOOM TIE |
| 90-110 | ||
| 582 | A 0019972890 | LOOM TIE |
| 90-110 | ||
| 589 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 589 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| M 10 X 1 MM | ||
| 589 | A 0029908301 | SCREW |
| Repalced by: A 3609901901 | ||
| 589 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| M 12 X 1,25 MM | ||
| 589 | A 3609903001 | SCREW |
| 589 | A 3469902701 | SCREW |
| Repalced by: A 3869900101 | ||
| 589 | A 3869900101 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| 589 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 589 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| 592 | N 000127010202 | LOCK WASHER |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| 592 | N 000127012201 | LOCK WASHER |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| 592 | N 000127012201 | SPRING LOCK WASHER |
| 592 | N 000127016201 | LOCK WASHER |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| 595 | N 000934010042 | NUT |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| M10 X 1 | ||
| 595 | N 000934012013 | NUT |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| M12 X 1,5 MM | ||
| 595 | N 000934012013 | NUT |
| 595 | N 000934014020 | NUT |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| 595 | N 000934016026 | NUT |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| 598 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO REAR AXLE | ||
| 601 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
