Transporto priemonė: LS 1634; VIN numerio dalis: 695052

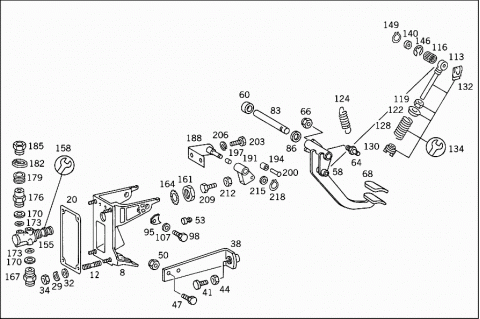

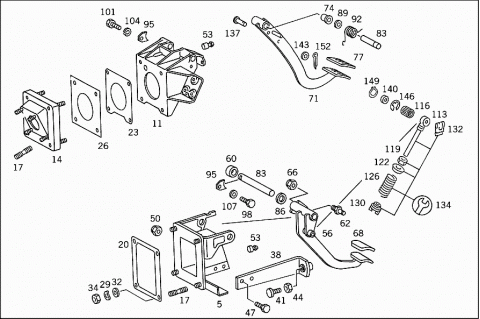

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6882940201 | BEARING BRACKET |
| Repalced by: A 6882947001 | ||
| 005 | A 6882947001 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | A 3862947001 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 011 | A 3842947001 | BEARING BRACKET |
| Repalced by: A 3842947201 | ||
| 011 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 012 | A 6882920070 | STUD |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 014 | A 3844307010 | BRACKET |
| BRAKE VALVE | ||
| 014 | A 3844307210 | BRACKET |
| BRAKE VALVE | ||
| 017 | N 000835008086 | STUD |
| M8X25 | ||
| 017 | N 000835008096 | STUD |
| Repalced by: A 6732940370 | ||
| 017 | A 6732940370 | STUD |
| M8X51 | ||
| 020 | A 6452940080 | GASKET |
| Repalced by: A 6452940280 | ||
| 020 | A 6452940280 | GASKET |
| CLUTCH PEDAL BEARING BRACKET | ||
| 023 | A 3842947080 | GASKET |
| BRAKE PEDAL BEARING BRACKET TO CAB | ||
| 026 | A 6884310080 | GASKET |
| BRACKET TO BEARING BRACKET | ||
| 029 | N 000137008202 | SPRING WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 032 | N 001440008002 | WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 034 | N 000934008008 | NUT |
| Repalced by: N 910112008000 | ||
| 034 | N 910112008000 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 038 | A 3842907032 | STOP |
| CLUTCH PEDAL | ||
| 038 | A 3842907132 | STOP |
| CLUTCH PEDAL | ||
| 041 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| M8 | ||
| 044 | N 000934008000 | NUT |
| CLUTCH PEDAL | ||
| 047 | N 000933006221 | SCREW |
| STOP TO BEARING BRACKET | ||
| M 6X20 | ||
| 050 | N 913023006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 053 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 053 | A 6882917286 | STOP |
| CLUTCH PEDAL | ||
| 053 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 056 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 058 | A 3882907516 | PEDAL |
| CLUTCH | ||
| 058 | A 6842907216 | PEDAL |
| CLUTCH | ||
| 060 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 060 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 062 | A 6882910074 | PIN |
| CLUTCH PEDAL | ||
| 39 MM (M10) | ||
| 064 | A 3882917074 | PIN |
| CLUTCH PEDAL | ||
| 066 | N 913002010001 | NUT |
| CLUTCH PEDAL | ||
| 068 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 071 | A 3842907018 | PEDAL |
| BRAKE | ||
| 074 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 077 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 083 | A 3842927174 | PIN |
| Repalced by: A 6452940074 | ||
| 083 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 083 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 086 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 089 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 092 | A 3849937020 | SPRING |
| BRAKE PEDAL | ||
| 095 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 098 | N 000933006220 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 101 | N 000000001145 | SCREW |
| M6X12 | ||
| 104 | N 000127006203 | LOCK WASHER |
| LOCK TO BRAKE PEDAL BEARING BRACKET | ||
| 107 | N 000125006420 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 113 | A 3812901439 | ROD |
| Repalced by: A 3822908419 | ||
| 113 | A 3822908419 | ROD |
| 116 | A 0059814410 | NEEDLE BEARING |
| 116 | A 0059813810 | NEEDLE BEARING |
| 116 | A 0089811210 | NEEDLE BEARING |
| 116 | A 0139818210 | NEEDLE BEARING |
| 119 | N 000439010221 | NUT |
| SPRING TO PUSH ROD | ||
| 122 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 124 | A 3889937010 | SPRING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 126 | A 3869937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 128 | A 3889937001 | SPRING |
| CLUTCH PEDAL PUSH ROD | ||
| 128 | A 3849937001 | SPRING |
| CLUTCH PEDAL PUSH ROD | ||
| 130 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 132 | A 6459880178 | CLIP |
| 134 | A 3822900093 | SPRING |
| PARTS KIT | ||
| 137 | A 3529910007 | PIN |
| ROD TO BRAKE PEDAL | ||
| 140 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 143 | N 000433010504 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 146 | N 006799006002 | LOCK PLATE |
| PUSH ROD TO CLUTCH PEDAL | ||
| 149 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 152 | N 000094003238 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 155 | A 0004342901 | VALVE |
| OPERATING VALVE TO BEARING BRACKET | ||
| "KNORR" | ||
| 155 | A 3454347401 | VALVE |
| OPERATING VALVE TO BEARING BRACKET | ||
| WABCO DO BRASIL | ||
| 155 | A 0004342201 | VALVE |
| OPERATING VALVE TO BEARING BRACKET | ||
| 158 | A 0004304106 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 29 01 | ||
| 158 | A 0005869743 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 434 74 01 | ||
| 158 | A 0014301460 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 29 01 | ||
| 158 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 434 74 01 | ||
| 158 | A 0025869803 | REPAIR KIT |
| TO 000 434 22 01 | ||
| 161 | N 080705026000 | NUT |
| SERVICE BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 164 | N 006798028200 | SERRATED WASHER |
| SERVICE BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 167 | A 3454298136 | CONNECTOR |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 170 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 170 | A 0009940103 | THRUST RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 173 | A 0019875046 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 176 | A 0059978972 | FITTING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 179 | A 0009940047 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| TO M16 / VOSS 230 | ||
| 182 | A 0009941248 | LOCK |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| TO M16 / VOSS 230 | ||
| 185 | A 0009970834 | UNION SCREW |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| M 16X1,5 / VOSS 230 | ||
| 188 | A 3882607162 | BRACKET |
| OPERATING VALVE SETTING | ||
| 191 | A 3454300123 | LEVER |
| OPERATING VALVE SETTING | ||
| 194 | A 3604300050 | ROLLER |
| 197 | A 3524340350 | BUSHING |
| 197 | A 3502677050 | BUSHING |
| 200 | N 007341005108 | RIVET |
| 203 | N 000933006223 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 206 | N 000127006203 | LOCK WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 209 | A 3529902101 | SCREW |
| OPERATING VALVE SETTING | ||
| 212 | N 000934008000 | NUT |
| OPERATING VALVE SETTING | ||
| 215 | N 000125010513 | WASHER |
| LEVER TO BRACKET | ||
| 218 | N 000471010000 | LOCK RING |
| LEVER TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP / TU: | ||
| 25/330 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/360 | ||
