Transporto priemonė: LS 1924; VIN numerio dalis: 346003

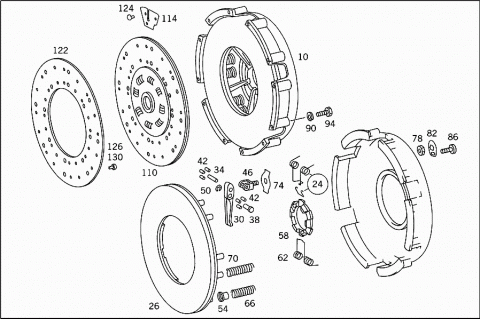

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0032502504 | CLUTCH PRESSURE PLATE |
| 010 | A 0032502604 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032507004 | ||
| 010 | A 0032507004 | CLUTCH PRESSURE PLATE |
| A 0002520932 | HOUSING | |
| A 0002524232 | HOUSING | |
| A 0002521927 | SPRING | |
| Repalced by: A 0002523227 | ||
| A 0002521829 | CLAMP | |
| Repalced by: A 0002523227 | ||
| 024 | A 0002523227 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 024 | A 0002524027 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 026 | A 0002520412 | PRESSURE PLATE |
| 026 | A 0002524912 | PRESSURE PLATE |
| 030 | A 0002524613 | RELEASE LEVER |
| 034 | A 0002520616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 034 | A 0002522216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 038 | A 0002522816 | SPINDLE |
| FOR BRACKETS | ||
| 038 | A 0002522816 | SPINDLE |
| FOR BRACKETS | ||
| 038 | A 0002523116 | SPINDLE |
| FOR BRACKETS | ||
| 042 | A 0002520118 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 046 | A 0002520614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 046 | A 0002520614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 046 | A 0002522614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 050 | N 006799007007 | LOCK PLATE |
| 054 | A 0002520535 | SLEEVE |
| 058 | A 0002522145 | FLANGE |
| 058 | A 0002521745 | FLANGE |
| Repalced by: A 0002521245 | ||
| 058 | A 0002521245 | FLANGE |
| 062 | A 0002520727 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 062 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 066 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 066 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 066 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 070 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 070 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 070 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 074 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 074 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 078 | A 0002523072 | NUT |
| 082 | A 0002521073 | LOCK |
| 086 | A 0002522971 | SCREW |
| 090 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 094 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 094 | N 304017010050 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 110 | A 0072500903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 110 | A 0072501003 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 110 | A 0022509803 | CLUTCH DISC |
| Repalced by: A 0052506403 | ||
| 110 | A 0052506403 | CLUTCH DISC |
| Repalced by: A 0062504603 | ||
| 110 | A 0062504603 | CLUTCH DISC |
| 110 | A 0052504303 | CLUTCH DISC |
| Repalced by: A 0062504503 | ||
| 110 | A 0062504503 | CLUTCH DISC |
| Repalced by: A 0072500803 | ||
| 110 | A 0072500803 | CLUTCH DISC |
| 110 | A 0072504203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 110 | A 0072504303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 110 | A 0032500003 | CLUTCH DISC |
| Repalced by: A 0052500103 | ||
| 110 | A 0052500103 | CLUTCH DISC |
| 110 | A 0052500203 | CLUTCH DISC |
| 114 | A 0002520419 | LEAF SPRING |
| Repalced by: A 0002523819 | ||
| 114 | A 0002523819 | LEAF SPRING |
| 114 | A 0002522419 | LEAF SPRING |
| Repalced by: A 0002523319 | ||
| 114 | A 0002523319 | LEAF SPRING |
| Repalced by: A 0002523919 | ||
| 114 | A 0002523919 | LEAF SPRING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 124 | ||
| 122 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 122 | A 0002528310 | CLUTCH LINING |
| Repalced by: A 0012522910 | ||
| 122 | A 0012522910 | CLUTCH LINING |
| 122 | A 0012523310 | CLUTCH LINING |
| Repalced by: A 0012528310 | ||
| 122 | A 0012528310 | CLUTCH LINING |
| Repalced by: A 0022520010 | ||
| 122 | A 0022520010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 122 | A 0002528510 | CLUTCH LINING |
| Repalced by: A 0012522010 | ||
| 122 | A 0012522010 | CLUTCH LINING |
| 124 | A 0002520675 | RIVET |
| Repalced by: A 0002522075 | ||
| 124 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 124 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 126 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 126 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 126 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 126 | A 0002522375 | RIVET |
| Repalced by: A 0002523375 | ||
| 126 | A 0002523375 | RIVET |
| Repalced by: A 0002523775 | ||
| 126 | A 0002523775 | RIVET |
| Repalced by: A 0002524675 | ||
| 126 | A 0002524675 | RIVET |
| Repalced by: A 0002524875 | ||
| 126 | A 0002524875 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 126 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| TO 005 250 01 03,005 250 02 03 | ||
| 130 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 130 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 130 | A 0002522475 | RIVET |
| Repalced by: A 0002524875 | ||
| 130 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 6X6 MM,TO 003 250 00 03 | ||

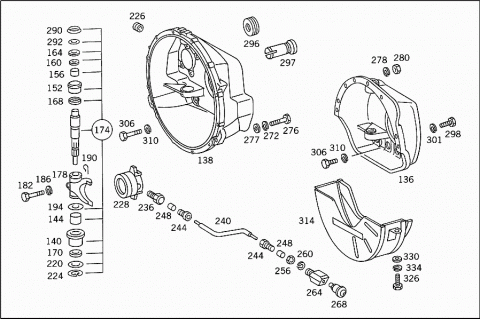

| 136 | A 3462501305 | HOUSING |
| Repalced by: A 3462502005 | ||
| 136 | A 3462502005 | HOUSING |
| Repalced by: A 3462502505 | ||
| 136 | A 3462502505 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 138 | A 3462501005 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 138 | A 3462500905 | HOUSING |
| Repalced by: A 3462501705 | ||
| 138 | A 3462501705 | HOUSING |
| Repalced by: A 3462502105 | ||
| 138 | A 3462502105 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 140 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 144 | A 3439920103 | BUSHING |
| BOTTOM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 170 | ||
| 152 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 152 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 152 | A 6202510050 | BUSHING |
| TOP | ||
| 156 | A 3389920103 | BUSHING |
| TOP | ||
| 160 | A 3859970040 | SEAL RING |
| TOP | ||
| 164 | A 0119978846 | SEAL RING |
| TOP | ||
| 164 | A 0099971547 | SEAL RING |
| TOP | ||
| 168 | A 3852930027 | COVER PLATE |
| TOP | ||
| 170 | A 3379975040 | SEAL RING |
| BOTTOM | ||
| 174 | A 3432500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 174 | A 3852540507 | SHAFT |
| Repalced by: A 3895860025 | ||
| 174 | A 3895860025 | REPAIR KIT |
| Repalced by: A 3892500014 | ||
| 174 | A 3892500014 | SHAFT |
| Repalced by: A 3852500014 | ||
| 174 | A 3852500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 178 | A 3372540208 | RELEASE LEVER |
| Repalced by: A 6202540108 | ||
| 178 | A 6202540108 | RELEASE LEVER |
| 182 | N 000931012033 | SCREW |
| Repalced by: N 000933012102 | ||
| 182 | N 000933012102 | SCREW |
| Repalced by: N 304017012018 | ||
| 182 | N 304017012018 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 186 | N 912004012100 | LOCK WASHER |
| RELEASE YOKE TO SHAFT | ||
| 190 | A 3179930225 | SPRING |
| RELEASE YOKE TO RELEASE BEARING | ||
| 194 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 194 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 194 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 194 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 194 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 194 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 220 | A 3432930052 | SPACER WASHER |
| BOTTOM | ||
| 224 | N 000471024000 | LOCK RING |
| BOTTOM | ||
| 226 | A 3852510083 | PLUG |
| Repalced by: A 6202510383 | ||
| 226 | A 6202510383 | PLUG |
| BELL HOUSING | ||
| 226 | A 3852510083 | PLUG |
| Repalced by: A 6202510383 | ||
| 226 | A 6202510383 | PLUG |
| BELL HOUSING | ||
| 228 | A 0002506415 | RELEASE BEARING |
| 228 | A 0002501915 | RELEASE BEARING |
| Repalced by: A 0002507415 | ||
| 228 | A 0002502515 | RELEASE BEARING |
| Repalced by: A 0002507415 | ||
| 228 | A 0002507715 | RELEASE BEARING |
| Repalced by: A 0002507415 | ||
| 228 | A 0002507415 | RELEASE BEARING |
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 236 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 240 | A 3859970582 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 244 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 248 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 256 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 256 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 256 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 260 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 264 | A 3872510108 | INTERMEDIATE PIECE |
| Repalced by: A 6209970088 | ||
| 264 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 268 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 268 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 272 | N 912004010102 | LOCK WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 276 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 277 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 277 | N 000125010532 | WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 278 | N 912004016101 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 280 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 280 | N 308673016001 | NUT |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 290 | A 3462500055 | COVER |
| RELEASE SHAFT,TOP | ||
| 290 | A 3502540076 | WASHER |
| RELEASE SHAFT,TOP | ||
| 292 | A 0029972948 | SEAL RING |
| RELEASE SHAFT,TOP | ||
| A 3852510210 | COVER PLATE | |
| Repalced by: A 0002510283 | ||
| 296 | A 0002510283 | PLUG |
| COVER PLATE TO BELL HOUSING | ||
| 296 | A 0002510283 | PLUG |
| COVER PLATE TO BELL HOUSING | ||
| 297 | A 0002510183 | PLUG |
| BELL HOUSING | ||
| 297 | A 0002510183 | PLUG |
| BELL HOUSING | ||
| 298 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 298 | N 304017008016 | SCREW |
| COVER PLATE TO BELL HOUSING | ||
| 301 | N 912004008102 | LOCK WASHER |
| COVER PLATE TO BELL HOUSING | ||
| 306 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 306 | N 308676018010 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 306 | N 308676018010 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 310 | N 912004018101 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 310 | N 912004018101 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 314 | A 3435200043 | PROTECTIVE PLATE |
| ENGINE | ||
| 326 | A 0019908104 | SCREW |
| PROTECTIVE PLATE TO ENGINE SUPPORT | ||
| 330 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 330 | N 000125010532 | WASHER |
| PROTECTIVE PLATE TO ENGINE SUPPORT | ||
| 334 | N 912004010102 | LOCK WASHER |
| PROTECTIVE PLATE TO ENGINE SUPPORT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
