Transporto priemonė: LS 1924; VIN numerio dalis: 346003

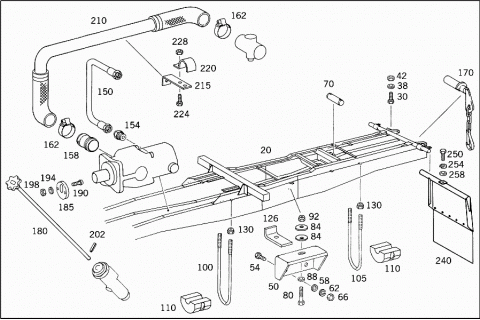

Grupė: 60 DUMPING PLATFORM - 001 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3466102203 | SUBSTRUCTURE | |
| AUXILIARY FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM USED FOR MEILLER THREE-SIDE DUMP TRUCK | ||
| A 3466103703 | SUBSTRUCTURE | |
| AUXILIARY FRAME | ||
| 020 | A 3496100201 | SUBSTRUCTURE |
| AUXILIARY FRAME | ||
| A 3466103903 | SUBSTRUCTURE | |
| AUXILIARY FRAME | ||
| A 3496101301 | SUBSTRUCTURE | |
| AUXILIARY FRAME | ||
| 030 | N 000961012122 | SCREW |
| AUXILIARY FRAME MOUNTING | ||
| 12X1.5X40 MM | ||
| N 000960012189 | SCREW | |
| Repalced by: N 308676012031 | ||
| N 308676012031 | SCREW | |
| Repalced by: N 308676012011 | ||
| N 308676012011 | SCREW | |
| AUXILIARY FRAME MOUNTING | ||
| 12X50 | ||
| N 000960012342 | SCREW | |
| Repalced by: N 308676012015 | ||
| N 308676012015 | SCREW | |
| AUXILIARY FRAME MOUNTING | ||
| 12X1.5X45 MM | ||
| 038 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 038 | N 007349013005 | WASHER |
| AUXILIARY FRAME MOUNTING | ||
| 042 | N 910113012002 | NUT |
| AUXILIARY FRAME MOUNTING | ||
| 050 | A 3438910331 | CONSOLE |
| AUXILIARY FRAME MOUNTING | ||
| A 3358910131 | CONSOLE | |
| AUXILIARY FRAME MOUNTING | ||
| 054 | N 000933010145 | SCREW |
| CONSOLE TO AUXILIARY FRAME | ||
| M 10X35 | ||
| 054 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 054 | N 308676014020 | SCREW |
| M 14X35 | ||
| 058 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 058 | N 000125010532 | WASHER |
| CONSOLE TO AUXILIARY FRAME | ||
| N 000125015003 | WASHER | |
| 062 | N 912004010102 | LOCK WASHER |
| CONSOLE TO AUXILIARY FRAME | ||
| 066 | N 000934010014 | NUT |
| CONSOLE TO AUXILIARY FRAME | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| CONSOLE TO AUXILIARY FRAME | ||
| 070 | N 001433030000 | PIN |
| RETAINING ROPE TO AUXILIARY FRAME | ||
| 070 | N 001443030200 | PIN |
| RETAINING ROPE TO AUXILIARY FRAME | ||
| N 000094006317 | COTTER PIN | |
| RETAINING ROPE TO AUXILIARY FRAME | ||
| N 000094008014 | COTTER PIN | |
| RETAINING ROPE TO AUXILIARY FRAME | ||
| 080 | N 000960014221 | SCREW |
| AUXILIARY FRAME MOUNTING | ||
| M 14X80 | ||
| N 000960016105 | SCREW | |
| AUXILIARY FRAME MOUNTING | ||
| M 16X80 | ||
| 084 | A 0009930526 | DISC SPRING |
| AUXILIARY FRAME MOUNTING | ||
| A 3468910053 | SPACER TUBE | |
| AUXILIARY FRAME MOUNTING | ||
| 088 | N 007349015003 | WASHER |
| AUXILIARY FRAME MOUNTING | ||
| N 007349017002 | WASHER | |
| AUXILIARY FRAME MOUNTING | ||
| Repalced by: N 007349017003 | ||
| N 007349017003 | WASHER | |
| AUXILIARY FRAME MOUNTING | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| AUXILIARY FRAME MOUNTING | ||
| 092 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 092 | N 910113014000 | NUT |
| AUXILIARY FRAME MOUNTING | ||
| 100 | A 3358912030 | CLAMP |
| AUXILIARY FRAME MOUNTING | ||
| 385 MM | ||
| 100 | A 3358912030 | CLAMP |
| AUXILIARY FRAME MOUNTING | ||
| 385 MM | ||
| 105 | A 3358911530 | CLAMP |
| AUXILIARY FRAME MOUNTING | ||
| 335 MM | ||
| 110 | A 3158910096 | BASE |
| AUXILIARY FRAME MOUNTING | ||
| 110 | A 3158910096 | BASE |
| AUXILIARY FRAME MOUNTING | ||
| A 3438910098 | SHIM | |
| AUXILIARY FRAME MOUNTING | ||
| A 3358910198 | SHIM | |
| N 000960014164 | SCREW | |
| AUXILIARY FRAME MOUNTING | ||
| M 14X360 | ||
| N 007349015003 | WASHER | |
| AUXILIARY FRAME MOUNTING | ||
| 126 | A 3468910012 | ANGLE |
| AUXILIARY FRAME MOUNTING | ||
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| CLAMP TO FRAME | ||
| 130 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 130 | N 910113014001 | NUT |
| CLAMP TO FRAME | ||
| 150 | A 0089971882 | HOSE |
| FROM PUMP TO T-FITTING | ||
| 154 | A 0019971672 | FITTING |
| LINES TO PUMP AND TO OIL TANK | ||
| 158 | A 0019974472 | FITTING |
| Repalced by: A 0019909478 | ||
| 158 | A 0019909478 | CONNECTOR |
| LINES TO PUMP AND TO OIL TANK | ||
| 162 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 162 | N 000000000671 | CLAMP |
| SUCTION LINE TO PUMP | ||
| 170 | A 0003150706 | COUPLING PIN |
| DUMPER AUXILIARY FRAME TO CHASSIS | ||
| 180 | A 3356190115 | SHAFT |
| DUMPER VALVE OPERATION | ||
| 185 | A 3396470021 | GUIDE |
| Repalced by: A 3436470021 | ||
| 185 | A 3436470021 | GUIDE |
| CAB | ||
| 190 | N 000085004107 | SCREW |
| GUIDE TO CAB | ||
| 194 | N 009021004202 | WASHER |
| Repalced by: N 009021004207 | ||
| 194 | N 009021004207 | WASHER |
| GUIDE TO CAB | ||
| 198 | N 913010004101 | RIVETED NUT |
| Repalced by: N 913024004100 | ||
| 198 | N 913024004100 | RIVETED NUT |
| GUIDE TO CAB | ||
| 202 | N 001481005030 | CLAMPING SLEEVE |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| 210 | A 3466190565 | LINE |
| FROM HIGH PRESSURE HOSE TO DUMPER VALVE | ||
| 215 | A 3874922741 | BRACKET |
| OIL TANK | ||
| 220 | A 3357910014 | BRACKET |
| LINES TO BRACKET | ||
| 224 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 224 | N 304017008021 | SCREW |
| LINES TO BRACKET | ||
| 228 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 228 | N 913004008001 | NUT |
| LINES TO BRACKET | ||
| A 3355800390 | BRACKET | |
| Repalced by: A 3355800290 | ||
| A 3355800290 | BRACKET | |
| CHOCK TO PLATFORM | ||
| A 3828900079 | CLAMP | |
| CHOCK TO PLATFORM | ||
| N 000966008016 | SCREW | |
| BRACKET TO PLATFORM | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO PLATFORM | ||
| A 3468800108 | MUD APRON | |
| Repalced by: A 3938800108 | ||
| 240 | A 3938800108 | MUD APRON |
| LEFT | ||
| A 3468800208 | MUD APRON | |
| Repalced by: A 3938800208 | ||
| A 3938800208 | MUD APRON | |
| RIGHT | ||
| 250 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 250 | N 308676012038 | SCREW |
| MUD APRON TO AUXILIARY FRAME | ||
| M 12X20 | ||
| 254 | N 000125013008 | WASHER |
| 258 | N 912004012100 | LOCK WASHER |
| MUD APRON TO AUXILIARY FRAME | ||
