Transporto priemonė: LS 1924; VIN numerio dalis: 346003

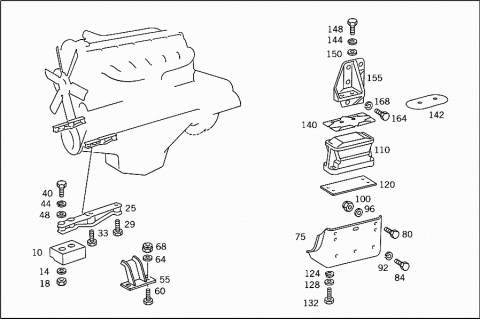

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3432410013 | RUBBER MOUNTING |
| FRONT | ||
| 014 | N 000125013008 | WASHER |
| 018 | N 910113012002 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 025 | A 3042410005 | SUPPORTING ARM |
| ENGINE FRONT SUSPENSION | ||
| 029 | N 000931016026 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 16X65 | ||
| 033 | N 000931016037 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 16X82 | ||
| 040 | N 000960014194 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 14X58 | ||
| 040 | N 000960014249 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 14X55 | ||
| 044 | N 912004014100 | LOCK WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 048 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 048 | N 000125015019 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 055 | A 3462400065 | STOP |
| Repalced by: A 3462410165 | ||
| 055 | A 3462410165 | RUBBER BUFFER |
| ENGINE FRONT SUSPENSION | ||
| 060 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 060 | N 308676012026 | SCREW |
| STOP TO ENGINE CROSS MEMBER | ||
| 064 | N 000125013008 | WASHER |
| 068 | N 910113012002 | NUT |
| STOP TO ENGINE CROSS MEMBER | ||
| 075 | A 3502400006 | CONSOLE |
| Repalced by: A 3462400006 | ||
| 075 | A 3462400006 | CONSOLE |
| ENGINE REAR SUSPENSION | ||
| 080 | N 000960012334 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X45 | ||
| 080 | N 000961012122 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X40 | ||
| 080 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 084 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 084 | N 308676012013 | HEXAGON HEAD BOLT |
| CONSOLE TO SIDE MEMBER | ||
| M12X1.5X30 | ||
| 092 | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 096 | N 000125013008 | WASHER |
| 100 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 100 | N 910113012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 110 | A 3872400218 | RUBBER MOUNTING |
| Repalced by: A 6172400318 | ||
| 110 | A 6172400318 | RUBBER MOUNTING |
| Repalced by: A 6452400118 | ||
| 110 | A 6452400118 | RUBBER MOUNTING |
| Repalced by: A 6452400618 | ||
| 110 | A 6452400618 | RUBBER MOUNTING |
| 110 | A 3872400418 | RUBBER MOUNTING |
| Repalced by: A 6172400518 | ||
| 110 | A 6172400518 | RUBBER MOUNTING |
| Repalced by: A 6452400218 | ||
| 110 | A 6452400218 | RUBBER MOUNTING |
| Repalced by: A 6452400718 | ||
| 110 | A 6452400718 | RUBBER MOUNTING |
| 110 | A 3832400718 | RUBBER MOUNTING |
| Repalced by: A 6172400418 | ||
| 110 | A 6172400418 | RUBBER MOUNTING |
| Repalced by: A 6452400018 | ||
| 110 | A 6452400018 | RUBBER MOUNTING |
| Repalced by: A 6452400818 | ||
| 110 | A 6452400818 | RUBBER MOUNTING |
| 120 | A 3502660184 | SHIM |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| 120 | A 3502660184 | SHIM |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| 124 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| 128 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 128 | N 007349013005 | WASHER |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| 128 | N 000125013008 | WASHER |
| 128 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 128 | N 000125015019 | WASHER |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| TO 645 240 06 18, 07 18, 08 18 | ||
| 132 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 132 | N 308676012026 | SCREW |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| M 12X35 | ||
| 132 | N 000961012122 | SCREW |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| M 12X40 | ||
| 132 | N 000961012122 | SCREW |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| M 12X40 | ||
| 132 | N 000961012151 | SCREW |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| M12X30; TO 645 240 00 18, 01 18, 02 18 | ||
| 132 | N 000961014027 | SCREW |
| RUBBER MOUNTING TO ENGINE MOUNTING CONSOLE | ||
| M14X30; TO 645 240 06 18, 07 18, 08 18 | ||
| 140 | A 3832420034 | SCREENING PLATE |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| TO 645 240 00 18, 01 18, 02 18 | ||
| 140 | A 6202420034 | SCREENING PLATE |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| TO 645 240 06 18, 07 18, 08 18 | ||
| 142 | A 3502420026 | SHIM |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 144 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 148 | N 000960016140 | SCREW |
| Repalced by: N 000960016206 | ||
| 148 | N 000960016206 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M 16X70 | ||
| 148 | N 308676016022 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M 16X40 | ||
| 148 | N 000961016040 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M 16X45 | ||
| 148 | N 000961016064 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M16X48;TO 645 240 00 18, 01 18, 02 18 | ||
| 148 | N 000961016118 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M 16X42,TO 645 240 00 18, 01 18, 02 18 | ||
| 148 | N 914126018010 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M 18X45,TO 645 240 06 18, 07 18, 08 18 | ||
| 150 | A 3529902440 | WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| TO 645 240 00 18, 01 18, 02 18 | ||
| 155 | A 3502420005 | SUPPORTING ARM |
| Repalced by: A 3462420001 | ||
| 155 | A 3462420001 | ENGINE SUPPORT |
| LEFT REAR | ||
| 155 | A 3502420205 | SUPPORTING ARM |
| LEFT REAR | ||
| 155 | A 3502420105 | SUPPORTING ARM |
| Repalced by: A 3462420101 | ||
| 155 | A 3462420101 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 155 | A 3502420305 | SUPPORTING ARM |
| RIGHT REAR | ||
| 164 | N 000933012147 | SCREW |
| Repalced by: N 304017012012 | ||
| 164 | N 304017012012 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 12X40 | ||
| 164 | N 000933012133 | SCREW |
| Repalced by: N 304017012013 | ||
| 164 | N 304017012013 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 12X35 | ||
| 164 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 164 | N 308676014012 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| M 14X45 | ||
| 168 | N 912004012100 | LOCK WASHER |
| SUPPORTING ARM TO ENGINE | ||
| 168 | N 912004014100 | LOCK WASHER |
| SUPPORTING ARM TO ENGINE | ||
