Transporto priemonė: LS 1924; VIN numerio dalis: 346003

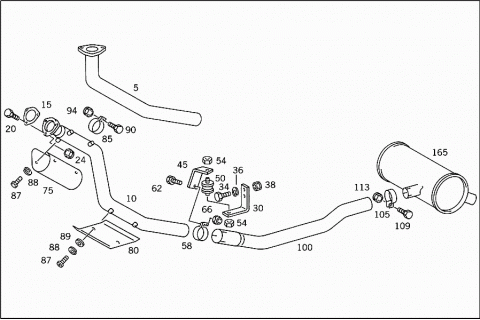

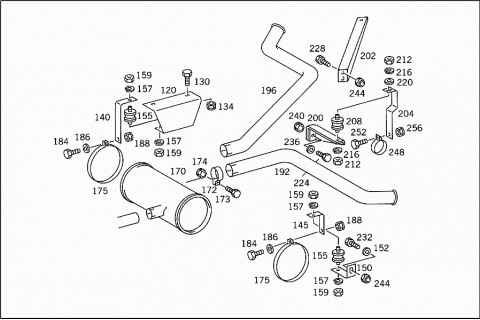

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3434900519 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| A 3464900119 | EXHAUST PIPE | |
| Repalced by: A 3464900419 | ||
| A 3464900419 | EXHAUST PIPE | |
| Repalced by: A 3464900519 | ||
| 010 | A 3464900519 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 015 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 015 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000931012114 | SCREW |
| FLANGE TO EXHAUST MANIFOLD | ||
| * M12X45 | ||
| N 000933012071 | SCREW | |
| FLANGE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 024 | N 913004012010 | NUT |
| FLANGE TO EXHAUST MANIFOLD | ||
| *M 12 | ||
| 030 | A 3464910841 | BRACKET |
| Repalced by: A 3464911741 | ||
| 030 | A 3464911741 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 034 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 036 | N 912004010102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 038 | N 000934010014 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 045 | A 3464920119 | BRACKET |
| Repalced by: A 3464920319 | ||
| 045 | A 3464920319 | BRACKET |
| EXHAUST PIPE | ||
| 050 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST PIPE SUSPENSION | ||
| 054 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 054 | N 910113010000 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| 058 | A 3034930643 | CLAMP |
| EXHAUST PIPE | ||
| 058 | N 071555104501 | CLAMP |
| EXHAUST PIPE | ||
| 062 | N 000933010145 | SCREW |
| CLAMP TO BRACKET | ||
| 066 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 066 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| A 3464900030 | PROTECTIVE PLATE | |
| Repalced by: A 3464900330 | ||
| 075 | A 3464900330 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 075 | A 3464920430 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 075 | A 3464920430 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 080 | A 3464920630 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 085 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 085 | N 071555100501 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 087 | N 007985008156 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| M 8X16 | ||
| 087 | N 007985008156 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| M 8X16 | ||
| 088 | N 912006008000 | LOCK WASHER |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 088 | N 912006008000 | LOCK WASHER |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 089 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 089 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 090 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 090 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 094 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 094 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 100 | A 3434921001 | FRONT EXHAUST PIPE |
| FRONT,REAR PART | ||
| 100 | A 3464920401 | FRONT EXHAUST PIPE |
| FRONT,REAR PART | ||
| 105 | A 3034930643 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 105 | N 071555104501 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 109 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 109 | N 304017010002 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 113 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 113 | N 910113010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 120 | A 3464910641 | BRACKET |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 120 | A 3464910741 | BRACKET |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 130 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 130 | N 308676012026 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 134 | N 910113012002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 140 | A 3464910541 | BRACKET |
| RUBBER MOUNT | ||
| 145 | A 3464910441 | BRACKET |
| EXHAUST MUFFLER | ||
| 150 | A 3464910341 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 152 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 152 | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 155 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO BRACKET | ||
| 157 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 159 | N 000934010014 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 165 | A 3434900401 | EXHAUST MUFFLER |
| 165 | A 3464900201 | EXHAUST MUFFLER |
| 170 | A 3464900701 | EXHAUST MUFFLER |
| 170 | A 3464900601 | EXHAUST MUFFLER |
| 172 | A 3034930343 | CLAMP |
| Repalced by: N 071555078503 | ||
| 172 | N 071555078503 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 172 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 172 | N 071555100501 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 173 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 173 | N 304017010002 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 174 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 174 | N 910113010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| M 10 | ||
| A 3354910040 | CLAMP | |
| Repalced by: A 3874900041 | ||
| 175 | A 3874900041 | CLAMP |
| EXHAUST MUFFLER TO BRACKET | ||
| 184 | N 000933010145 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X35 | ||
| 184 | N 000933010150 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X55 | ||
| 186 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 186 | N 000125010532 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 188 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 188 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 192 | A 3464921204 | REAR EXHAUST PIPE |
| 192 | A 3464921104 | REAR EXHAUST PIPE |
| 196 | A 3464920804 | REAR EXHAUST PIPE |
| 196 | A 3464921004 | REAR EXHAUST PIPE |
| 196 | A 3464920704 | REAR EXHAUST PIPE |
| 196 | A 3464920904 | REAR EXHAUST PIPE |
| 200 | A 3464920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | A 3464920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 202 | A 3464920741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 204 | A 3464920341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 208 | A 3475040012 | RUBBER MOUNTING |
| REAR EXHAUST PIPE | ||
| 212 | N 000934010014 | NUT |
| REAR EXHAUST PIPE | ||
| M 10 | ||
| 216 | N 912004010102 | LOCK WASHER |
| REAR EXHAUST PIPE | ||
| 220 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 220 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE | ||
| 10.5 MM | ||
| 224 | N 000933010157 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X28 | ||
| 224 | N 000933010157 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X28 | ||
| 228 | N 000961014100 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X1.5X30 | ||
| 232 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 232 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 236 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 236 | N 000125010532 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 240 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 240 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M 10 | ||
| 240 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M 10 | ||
| 244 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 244 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M 14X1.5 | ||
| 248 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 248 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 100.5 MM | ||
| 248 | A 3034930343 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 252 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 252 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 256 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 256 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10 | ||
