Transporto priemonė: LS 1924; VIN numerio dalis: 346003

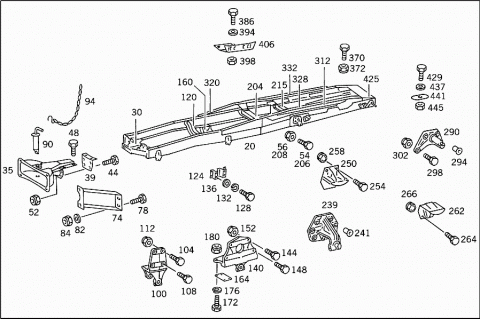

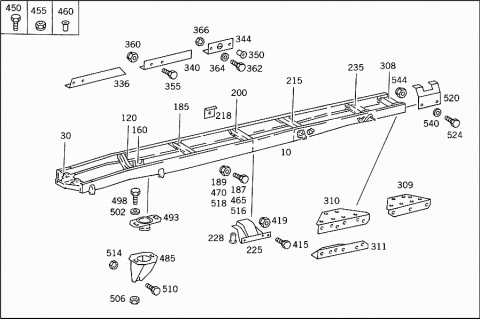

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3463101801 | FRAME |
| Repalced by: A 3463104801 | ||
| 010 | A 3463104801 | FRAME |
| 010 | A 3463101701 | FRAME |
| Repalced by: A 3463104701 | ||
| 010 | A 3463104701 | FRAME |
| 010 | A 3463101601 | FRAME |
| Repalced by: A 3463104601 | ||
| 010 | A 3463104601 | FRAME |
| 020 | A 3463101301 | FRAME |
| Repalced by: A 3463104501 | ||
| 020 | A 3463104501 | FRAME |
| 020 | A 3463101201 | FRAME |
| Repalced by: A 3463104401 | ||
| 020 | A 3463104401 | FRAME |
| 030 | A 3463100126 | ENGINE CROSS MEMBER |
| FRONT | ||
| 035 | A 3373100409 | BRACKET |
| WITH COUPLING MOUTH | ||
| 039 | A 3373150027 | ANGLE |
| COUPLING MOUTH | ||
| 044 | N 000933010105 | SCREW |
| ANGLE TO ENGINE CROSS MEMBER | ||
| M 10X25 | ||
| 048 | N 000933010128 | SCREW |
| ANGLE TO ENGINE CROSS MEMBER | ||
| M 10X20 | ||
| 052 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 052 | N 910113010000 | NUT |
| ANGLE TO ENGINE CROSS MEMBER | ||
| 054 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 054 | N 308676014020 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X35 | ||
| 054 | N 000961014100 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X30 | ||
| 056 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 056 | N 910113014001 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 074 | A 3613100053 | STRUT |
| COUPLING MOUTH | ||
| 078 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 078 | N 304017010002 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 082 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 082 | N 007349010007 | WASHER |
| STRUT TO CROSS MEMBER | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| STRUT TO CROSS MEMBER | ||
| 090 | A 3223150206 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 094 | A 0008500095 | FASTENER |
| FOR COUPLING MOUTH | ||
| 100 | A 3463225001 | FRONT SPRING BRACKET |
| Repalced by: A 3463220001 | ||
| 100 | A 3463220001 | FRONT SPRING BRACKET |
| FRONT | ||
| 100 | A 3463220101 | FRONT SPRING BRACKET |
| FRONT | ||
| 104 | A 3469900014 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X40 | ||
| 108 | A 3879900214 | SCREW |
| Repalced by: A 3469900114 | ||
| 108 | A 3469900114 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X50 | ||
| 112 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 112 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 120 | A 3433120209 | CROSS MEMBER |
| NO.2 | ||
| 124 | A 3433100553 | STRUT |
| CROSS MEMBER TO FRAME | ||
| 128 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 128 | N 308676012013 | HEXAGON HEAD BOLT |
| STRUT TO CROSS MEMBER | ||
| 132 | N 912004012100 | LOCK WASHER |
| STRUT TO CROSS MEMBER | ||
| 136 | N 000125013008 | WASHER |
| 140 | A 3463220003 | FRONT SPRING BRACKET |
| REAR | ||
| 140 | A 3463220103 | FRONT SPRING BRACKET |
| REAR | ||
| 144 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 144 | N 308676014012 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 148 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X55 | ||
| 152 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 152 | N 910113014000 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 160 | A 3873120610 | CROSS MEMBER |
| NO.3 | ||
| 164 | A 3873120084 | SHIM |
| Repalced by: A 6203121984 | ||
| 164 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRAME | ||
| 164 | A 3433120084 | SHIM |
| CROSS MEMBER TO FRAME | ||
| 172 | N 000961014054 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 14X45 | ||
| 172 | N 000961014054 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 14X45 | ||
| 172 | N 000961014100 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 14X30 | ||
| 172 | N 000961014100 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 14X30 | ||
| 172 | N 000961014100 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 14X30 | ||
| 176 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 180 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 180 | N 910113014001 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 185 | A 3463100136 | CROSS MEMBER |
| NO.4 | ||
| A 3873120025 | CROSS MEMBER | |
| NO. 4 | ||
| A 3873121961 | STRUT | |
| AT CROSS MEMBER | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 187 | N 000961014100 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 189 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 189 | N 910113014001 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 200 | A 3953100136 | CROSS MEMBER |
| NO.5 | ||
| A 3873120025 | CROSS MEMBER | |
| A 3953120261 | STRUT | |
| AT CROSS MEMBER | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 204 | A 3463100336 | CROSS MEMBER |
| NO.5 | ||
| 204 | A 3463100336 | CROSS MEMBER |
| NO.4 | ||
| 204 | A 6203100336 | CROSS MEMBER |
| NO.5 | ||
| 204 | A 3463100536 | CROSS MEMBER |
| NO.4 | ||
| 206 | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 208 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 208 | N 910113014001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 215 | A 3873120017 | CROSS MEMBER |
| NO.5 | ||
| 215 | A 3873120017 | CROSS MEMBER |
| NO.6 | ||
| 218 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| NO.4-6 | ||
| 225 | A 3873120161 | STRUT |
| CROSS MEMBER TO FRAME | ||
| 228 | N 910005012080 | RIVET |
| STRUT TO CROSS MEMBER | ||
| 12X42 MM | ||
| 235 | A 3893100137 | CROSS MEMBER |
| NO.7 | ||
| A 3873120017 | CROSS MEMBER | |
| A 3873120361 | STRUT | |
| AT CROSS MEMBER | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 239 | A 3873250001 | REAR SPRING BRACKET |
| FRONT | ||
| 241 | N 910005016027 | RIVET |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 16X50 MM | ||
| 241 | N 910005016027 | RIVET |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 16X58 MM | ||
| 250 | A 3893250217 | HELPER SPRING BRACKET |
| FRONT | ||
| 254 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 254 | N 308676012026 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 258 | N 910113012002 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 262 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 262 | A 6843250017 | HELPER SPRING BRACKET |
| REAR | ||
| 264 | N 000961014054 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 264 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 264 | N 308676012026 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 264 | N 000961012122 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 266 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 266 | N 910113014001 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 266 | N 910113012002 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 290 | A 3353250603 | REAR SPRING BRACKET |
| REAR | ||
| 294 | N 910005014056 | RIVET |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 298 | N 000961014054 | SCREW |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 302 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 302 | N 910113014001 | NUT |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 308 | A 3463125135 | CROSS MEMBER |
| REAR | ||
| 309 | A 3353121287 | GUSSET PLATE |
| TOP AND BOTTOM | ||
| A 3463125087 | GUSSET PLATE | |
| Repalced by: A 3433124787 | ||
| 310 | A 3433124787 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 311 | A 3463125187 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 312 | A 3463165101 | SIDE MEMBER |
| AUXILIARY FRAME,LEFT | ||
| 312 | A 3463160201 | SIDE MEMBER |
| AUXILIARY FRAME,LEFT | ||
| 312 | A 3463165001 | SIDE MEMBER |
| AUXILIARY FRAME,LEFT | ||
| 312 | A 3463160101 | SIDE MEMBER |
| AUXILIARY FRAME,LEFT | ||
| 320 | A 3463165102 | SIDE MEMBER |
| AUXILIARY FRAME,RIGHT | ||
| 320 | A 3463160102 | SIDE MEMBER |
| AUXILIARY FRAME,RIGHT | ||
| 320 | A 3463165002 | SIDE MEMBER |
| AUXILIARY FRAME,RIGHT | ||
| 320 | A 3463160002 | SIDE MEMBER |
| AUXILIARY FRAME,RIGHT | ||
| 328 | A 3463165252 | ANGLE |
| OUTSIDE LEFT | ||
| 332 | A 3463165352 | ANGLE |
| OUTSIDE RIGHT | ||
| 336 | A 3463165052 | ANGLE |
| LEFT AND RIGHT | ||
| 340 | A 3353160752 | ANGLE |
| LEFT AND RIGHT | ||
| 344 | A 3543160352 | ANGLE |
| LEFT AND RIGHT | ||
| 350 | N 910005012080 | RIVET |
| ANGLE TO SIDE MEMBER | ||
| 355 | N 000961012151 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 360 | N 910113012002 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 362 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 362 | N 304017010002 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 364 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 364 | N 000125010532 | WASHER |
| ANGLE TO SIDE MEMBER | ||
| 366 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 366 | N 910113010000 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 370 | N 000961014028 | SCREW |
| SIDE MEMBER TO FRAME | ||
| 372 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 372 | N 910113014001 | NUT |
| SIDE MEMBER TO FRAME | ||
| 386 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 386 | N 308676012026 | SCREW |
| SIDE MEMBER TO FRAME | ||
| M 12X35 | ||
| 386 | N 000961012151 | SCREW |
| SIDE MEMBER TO FRAME | ||
| M 12X30 | ||
| 394 | N 000125013008 | WASHER |
| 398 | N 910113012002 | NUT |
| SIDE MEMBER TO FRAME | ||
| 406 | A 3463160140 | BRACKET |
| AUXILIARY FRAME | ||
| 406 | A 3463160440 | BRACKET |
| AUXILIARY FRAME | ||
| 406 | A 3463160040 | BRACKET |
| AUXILIARY FRAME | ||
| 406 | A 3463160640 | BRACKET |
| AUXILIARY FRAME | ||
| 406 | A 3463160240 | BRACKET |
| AUXILIARY FRAME | ||
| 406 | A 3463160540 | BRACKET |
| AUXILIARY FRAME | ||
| 415 | N 000961012151 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 419 | N 910113012002 | NUT |
| STRUT TO SIDE MEMBER | ||
| 425 | A 3353160354 | COVER PLATE |
| AUXILIARY FRAME | ||
| 429 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 429 | N 000960012384 | SCREW |
| PLATE TO SIDE MEMBER | ||
| M 12X55 | ||
| 429 | N 000961012122 | SCREW |
| PLATE TO SIDE MEMBER | ||
| M 12X40 | ||
| 437 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 437 | N 007349013005 | WASHER |
| PLATE TO SIDE MEMBER | ||
| 441 | A 3353160076 | WASHER |
| PLATE TO SIDE MEMBER | ||
| 445 | N 910113012002 | NUT |
| PLATE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 450 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 450 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 450 | A 3859900514 | SCREW |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 450 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 450 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 450 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 450 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 450 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 450 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 450 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 450 | N 308676012013 | HEXAGON HEAD BOLT |
| M12X1.5X30 | ||
| 450 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 450 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 450 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 450 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 450 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 450 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 450 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 450 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 450 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 450 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | A 3229903101 | SCREW |
| M 14X14X14X32 | ||
| 450 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 450 | A 3229903101 | SCREW |
| M 14X14X16X32 | ||
| 450 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 450 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 450 | A 3219901601 | SCREW |
| Repalced by: A 3169900014 | ||
| 450 | A 3169900014 | SCREW |
| M 14X14X17X35 | ||
| 450 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 450 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 450 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 450 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 450 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 450 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 450 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 450 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 450 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 450 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 450 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 450 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 450 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 450 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 450 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 450 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 450 | A 3859901114 | SCREW |
| Repalced by: N 000961016118 | ||
| 450 | N 000961016118 | SCREW |
| M 16X16X24X42 | ||
| 450 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 450 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 450 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 450 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 450 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 450 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 450 | A 3609900114 | SCREW |
| Repalced by: A 0009906314 | ||
| 450 | A 0009906314 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 450 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 450 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 450 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 450 | A 3859902414 | SCREW |
| Repalced by: N 000961018043 | ||
| 450 | N 000961018043 | SCREW |
| M 18X18X33X55 | ||
| 450 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 450 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 450 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 450 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 450 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 450 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 455 | N 913004010011 | NUT |
| M 10 | ||
| 455 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 455 | N 910113012003 | NUT |
| M 12 | ||
| 455 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 455 | N 910113014000 | NUT |
| M 14 | ||
| 455 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 455 | N 910113016001 | NUT |
| M 16 | ||
| 455 | N 913004018004 | NUT |
| M 18 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 460 | N 910005012087 | RIVET |
| 12X58 MM | ||
| 460 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 460 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 460 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 460 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 465 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 465 | N 308676014020 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLE | ||
| M 14X35 | ||
| 465 | N 000961014100 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLE | ||
| M 14X30 | ||
| 470 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 470 | N 910113014001 | NUT |
| ENGINE CROSS MEMBER TO CONSOLE | ||
| 485 | A 3463105367 | BODY SUPPORT |
| CAB,LEFT | ||
| 485 | A 3463105467 | BODY SUPPORT |
| CAB, RIGHT | ||
| 493 | A 3353100057 | PLATE |
| CAB SUSPENSION | ||
| 498 | N 000961012122 | SCREW |
| PLATE WITH CUP TO BODY SUPPORT | ||
| 502 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 502 | N 007349013005 | WASHER |
| PLATE WITH CUP TO BODY SUPPORT | ||
| 506 | N 910113012002 | NUT |
| PLATE WITH CUP TO BODY SUPPORT | ||
| 510 | N 000961012151 | SCREW |
| BODY SUPPORT TO FRAME | ||
| M 12X30 | ||
| 510 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 510 | N 308676012026 | SCREW |
| BODY SUPPORT TO FRAME | ||
| M 12X35 | ||
| 514 | N 910113012002 | NUT |
| BODY SUPPORT TO FRAME | ||
| 516 | N 000961012151 | SCREW |
| STRUT TO PROPELLER SHAFT BEARING CROSS MEMBER | ||
| 518 | N 910113012002 | NUT |
| STRUT TO PROPELLER SHAFT BEARING CROSS MEMBER | ||
| 520 | A 3465405473 | BRACKET |
| CABLE CONNECTOR | ||
| 524 | N 000961012151 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X30 | ||
| 524 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 524 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M12X1.5X25 | ||
| 524 | N 000961012122 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 524 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 524 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 540 | N 000125013008 | WASHER |
| 544 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||

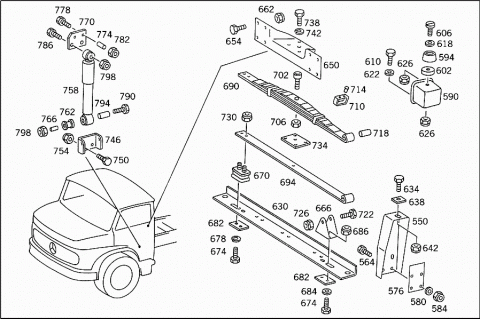

| 550 | A 3463170001 | CONSOLE |
| REAR LEFT | ||
| 550 | A 3463170101 | CONSOLE |
| REAR RIGHT | ||
| 564 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 564 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 564 | N 000961014028 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 564 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 564 | N 000961014064 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X50 | ||
| 564 | N 000960014249 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X55 | ||
| 576 | A 3468910096 | BASE |
| CONSOLE TO FRAME | ||
| 580 | N 007349015003 | WASHER |
| CONSOLE TO FRAME | ||
| 584 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 584 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 590 | A 3358910431 | CONSOLE |
| RUBBER MOUNT | ||
| 594 | A 3348910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 602 | A 3389900040 | WASHER |
| Repalced by: A 4422660376 | ||
| 602 | A 4422660376 | WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 602 | A 3438910010 | WASHER |
| RUBBER MOUNTING TO CONSOLE | ||
| 606 | N 000085008212 | SCREW |
| RUBBER BUFFER TO BRACKET | ||
| M 8X55 | ||
| 606 | N 000085008213 | SCREW |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| M 8X80 | ||
| 610 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 610 | N 304017008018 | SCREW |
| CONSOLE TO FRAME | ||
| M 8X35 | ||
| 618 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 618 | N 009021008213 | WASHER |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| Repalced by: N 000000003250 | ||
| 618 | N 000000003250 | WASHER |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 622 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 622 | N 000125008443 | WASHER |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 626 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 626 | N 913004008001 | NUT |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 630 | A 3358910831 | CONSOLE |
| (CONNECTING RAIL) | ||
| 634 | N 000961014054 | SCREW |
| CONNECTING RAIL TO CONSOLE | ||
| 638 | A 3359900540 | WASHER |
| CONNECTING RAIL TO CONSOLE | ||
| 642 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 642 | N 910113014001 | NUT |
| CONNECTING RAIL TO CONSOLE | ||
| 650 | A 3358910210 | CONSOLE |
| SPRING SUSPENSION | ||
| 654 | N 000933010105 | SCREW |
| CONSOLE TO CAB | ||
| M 10X25 | ||
| 654 | N 000931010271 | SCREW |
| CONSOLE TO CAB | ||
| M 10X60 | ||
| 662 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 662 | N 910113010000 | NUT |
| CONSOLE TO CAB | ||
| 666 | A 3358910820 | MOUNTING |
| LEAF SPRING | ||
| 670 | A 3358900001 | MOUNTING |
| LEAF SPRING | ||
| 674 | N 000933010157 | SCREW |
| MOUNTING TO CONNECTING RAIL | ||
| 678 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CONNECTING RAIL | ||
| 682 | A 3353170884 | SHIM |
| MOUNTING TO CONNECTING RAIL | ||
| 684 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 684 | N 009021010209 | WASHER |
| MOUNTING TO CONNECTING RAIL | ||
| 686 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 686 | N 910113010000 | NUT |
| MOUNTING TO CONNECTING RAIL | ||
| 690 | A 3368900005 | SPRING |
| 5-LEAF | ||
| 694 | A 3368910151 | SPRING |
| NO.1 | ||
| A 3368910251 | SPRING | |
| NO.2 | ||
| 702 | N 004626008100 | SPRING BOLT |
| 706 | N 304032008006 | NUT |
| 710 | A 0033210633 | SPRING CLAMP |
| Repalced by: A 0033211933 | ||
| 710 | A 0033211933 | SPRING CLAMP |
| 714 | N 000661006006 | RIVET |
| 718 | A 3368910050 | SPRING BUSHING |
| LEAF SPRING TO BEARING BRACKET | ||
| 722 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 722 | N 000960012353 | SCREW |
| LEAF SPRING TO BEARING BRACKET | ||
| 726 | N 910113012002 | NUT |
| LEAF SPRING TO BEARING BRACKET | ||
| 730 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 730 | N 910113010000 | NUT |
| LEAF SPRING TO BEARING BRACKET | ||
| 734 | A 3358911511 | PLATE |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 738 | N 304017010030 | HEXAGON HEAD BOLT |
| Repalced by: N 304017010053 | ||
| 738 | N 304017010053 | SCREW |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 742 | N 912004010102 | LOCK WASHER |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 746 | A 3468910020 | MOUNTING |
| CAB SHOCK ABSORBER | ||
| 750 | N 000961012122 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 754 | N 910113012002 | NUT |
| MOUNTING TO SIDE MEMBER | ||
| 758 | A 0008910305 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 762 | A 0003232644 | RUBBER BUFFER |
| Repalced by: A 0003234385 | ||
| 762 | A 0003234385 | RUBBER MOUNTING |
| 766 | A 0003231150 | BUSHING |
| 770 | A 3358913311 | PLATE |
| SHOCK ABSORBER TO CAB | ||
| 774 | A 3358910410 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 778 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 778 | N 000960012353 | SCREW |
| SHOCK ABSORBER TO CAB | ||
| 782 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 786 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 786 | N 000960012384 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 12X55 | ||
| 790 | N 000960012153 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 12X110 | ||
| 794 | A 3358910010 | WASHER |
| Repalced by: A 3813170553 | ||
| 794 | A 3813170553 | SPACER TUBE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 798 | N 910113012002 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
