Transporto priemonė: LS 1924; VIN numerio dalis: 346003

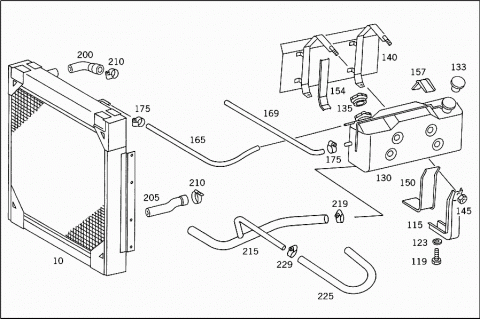

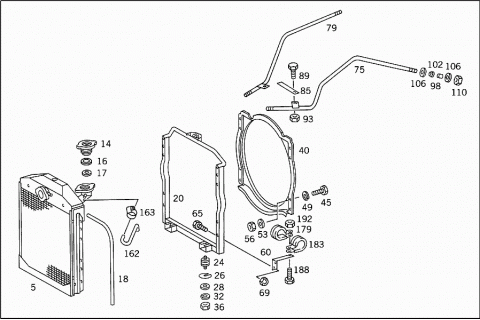

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3355001203 | RADIATOR |
| Repalced by: A 3355002303 | ||
| 005 | A 3355002303 | RADIATOR |
| Repalced by: A 3465006103 | ||
| 005 | A 3465006103 | RADIATOR |
| BEHR | ||
| 005 | A 3465005503 | RADIATOR |
| Repalced by: A 3465005703 | ||
| 005 | A 3465005703 | RADIATOR |
| Repalced by: A 3465006003 | ||
| 005 | A 3465006003 | RADIATOR |
| HAUGG | ||
| 010 | A 3465005603 | RADIATOR |
| BEHR | ||
| 010 | A 3465006203 | RADIATOR |
| WKF | ||
| 014 | A 0005013515 | RADIATOR CAP |
| TO 335 500 12 03 | ||
| 014 | A 0005014915 | RADIATOR CAP |
| TO 346 500 55 03,346 500 57 03 | ||
| 014 | A 0005013115 | RADIATOR CAP |
| TO 335 500 23 03 | ||
| 014 | A 0005014315 | RADIATOR CAP |
| TO 335 500 23 03,346 500 61 03 | ||
| 014 | A 0005015315 | RADIATOR CAP |
| TO 346 500 60 03,346 500 61 03 | ||
| 014 | A 0005017315 | RADIATOR CAP |
| Repalced by: A 0005017215 | ||
| 014 | A 0005017215 | RADIATOR CAP |
| TO 346 500 60 03,346 500 61 03 | ||
| 014 | A 0005015415 | RADIATOR CAP |
| TO 346 500 60 03 | ||
| 016 | A 0005010580 | GASKET |
| TO 000 501 49 15 | ||
| 016 | A 0005010780 | GASKET |
| TO 000 501 49 15 | ||
| 017 | A 0005010880 | GASKET |
| TO 000 501 35 15 | ||
| 018 | A 0139978682 | HOSE |
| TO 335 500 23 03,346 500 61 03 | ||
| A 0159979082 | HOSE | |
| Repalced by: A 0019970652 | ||
| 018 | A 0019970652 | HOSE |
| TO 346 500 60 03 | ||
| 020 | A 3355001127 | SUPPORT |
| RADIATOR | ||
| 020 | A 3465000027 | SUPPORT |
| RADIATOR | ||
| 024 | A 3475040012 | RUBBER MOUNTING |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 026 | A 3265040284 | SHIM |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 028 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 028 | N 009021010209 | WASHER |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 032 | N 912004010102 | LOCK WASHER |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 036 | N 000934010014 | NUT |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 040 | A 3355050730 | AIR BAFFLE |
| TO 335 500 12 03,335 500 23 03 | ||
| 040 | A 3355050730 | AIR BAFFLE |
| TO 346 500 61 03 | ||
| 040 | A 3435050130 | AIR BAFFLE |
| TO 346 500 55 03,346 500 57 03 | ||
| 040 | A 3435050130 | AIR BAFFLE |
| TO 346 500 60 03 | ||
| 040 | A 3465000016 | AIR BAFFLE |
| RADIATOR | ||
| 045 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 045 | N 304017008043 | SCREW |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| M 8X55 | ||
| 045 | N 000933010145 | SCREW |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| M 10X35 | ||
| 049 | N 912004010102 | LOCK WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 053 | N 007349008003 | WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 053 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 053 | N 000125010532 | WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 056 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 056 | N 913004008001 | NUT |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 060 | A 3465040040 | BRACKET |
| SUPPORT TO FRAME | ||
| 065 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 065 | N 304017006012 | SCREW |
| BASE FRAME TO BRACKET | ||
| 069 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 069 | N 913004006001 | NUT |
| BASE FRAME TO BRACKET | ||
| 075 | A 3385000045 | RADIATOR STRUT |
| 075 | A 3465000045 | RADIATOR STRUT |
| LEFT | ||
| 079 | A 3465000145 | RADIATOR STRUT |
| Repalced by: A 3465000345 | ||
| 079 | A 3465000345 | RADIATOR STRUT |
| RIGHT | ||
| 085 | A 3465040022 | STRUT |
| Repalced by: A 3604290340 | ||
| 085 | A 3604290340 | BRACKET |
| Repalced by: A 3604293140 | ||
| 085 | A 3604293140 | BRACKET |
| CENTRAL | ||
| 089 | N 000933006102 | SCREW |
| STAY TO FRAME | ||
| 093 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 093 | N 913004006001 | NUT |
| STAY TO FRAME | ||
| 098 | A 3199910540 | SPACER TUBE |
| BASE FRAME TO CAB | ||
| 102 | A 3275045082 | RUBBER RING |
| BASE FRAME TO CAB | ||
| 106 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 106 | N 009021010209 | WASHER |
| BASE FRAME TO CAB | ||
| 110 | N 000934010014 | NUT |
| BASE FRAME TO CAB | ||

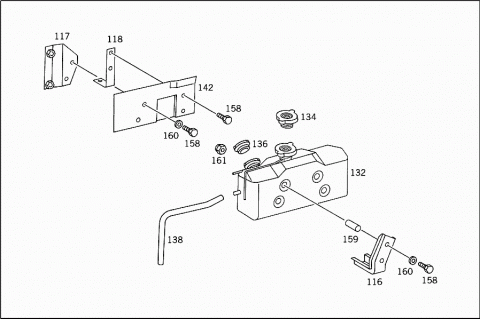

| 115 | A 3465010021 | CONSOLE |
| EXPANSION TANK | ||
| 116 | A 3465010121 | CONSOLE |
| FRONT TANK | ||
| 116 | A 3465010221 | CONSOLE |
| REAR TANK | ||
| 117 | A 3465000431 | BRACKET |
| EXPANSION TANK TO CONSOLE | ||
| 118 | A 3465000331 | BRACKET |
| EXPANSION TANK TO CONSOLE | ||
| 119 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 123 | N 912004010102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 130 | A 3465000149 | TANK |
| Repalced by: A 3465000249 | ||
| 132 | A 3465000249 | TANK |
| EXPANSION TANK | ||
| 133 | A 0005014515 | RADIATOR CAP |
| FILLER NECK | ||
| 134 | A 3765010015 | RADIATOR CAP |
| FILLER NECK | ||
| 135 | A 0005014615 | RADIATOR CAP |
| PRESSURE RELIEF | ||
| 135 | A 0005017215 | RADIATOR CAP |
| PRESSURE RELIEF | ||
| 136 | A 0005015815 | RADIATOR CAP |
| PRESSURE RELIEF | ||
| 138 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 138 | A 0219977682 | HOSE |
| OVERFLOW | ||
| 140 | A 3465000035 | PANELLING |
| EXPANSION TANK | ||
| 142 | A 3465010035 | COVER PLATE |
| EXPANSION TANK | ||
| 145 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 145 | N 913004008001 | NUT |
| STRAP TO EXPANSION TANK | ||
| 150 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| A 3465010395 | SHIM | |
| Repalced by: A 3815010295 | ||
| 154 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 154 | A 3815010495 | SHIM |
| (STRAP) | ||
| 157 | A 3465010195 | SHIM |
| (STRAP) | ||
| 158 | N 000931008220 | SCREW |
| Repalced by: N 304017008067 | ||
| 158 | N 304017008067 | SCREW |
| EXPANSION TANK TO CONSOLE | ||
| M 8X110 | ||
| 158 | N 000931008435 | SCREW |
| EXPANSION TANK TO CONSOLE | ||
| M 8X190 | ||
| 158 | N 000933008145 | SCREW |
| EXPANSION TANK TO CONSOLE | ||
| M 8X18 | ||
| 159 | A 3465040253 | SPACER TUBE |
| EXPANSION TANK TO CONSOLE | ||
| 160 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 160 | N 009021008213 | WASHER |
| EXPANSION TANK TO CONSOLE | ||
| Repalced by: N 000000003250 | ||
| 160 | N 000000003250 | WASHER |
| EXPANSION TANK TO CONSOLE | ||
| 161 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 161 | N 913004008001 | NUT |
| EXPANSION TANK TO CONSOLE | ||
| 162 | A 3465015282 | HOSE |
| DE-AERATION | ||
| 162 | A 3465015982 | HOSE |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| 163 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 163 | N 000000000665 | CLAMP |
| DE-AERATION LINE | ||
| 163 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 163 | N 000000000666 | CLAMP |
| DE-AERATION LINE | ||
| 165 | N 900271008043 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 165 | A 3465016182 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 169 | A 3465015782 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 169 | A 3465016282 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 175 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 175 | N 000000000666 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 179 | N 916016022206 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| Repalced by: N 916016022203 | ||
| 179 | N 916016022203 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 183 | N 916016018201 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 188 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 188 | N 304017006020 | SCREW |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 192 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 192 | N 913004006001 | NUT |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 200 | A 3465015082 | HOSE |
| FROM INLET,OR COOLING WATER LINE,TO THERMOSTAT | ||
| 205 | A 3465015182 | HOSE |
| FROM RADIATOR TO OIL COOLER | ||
| 205 | A 3465015582 | HOSE |
| FROM RADIATOR TO OIL COOLER | ||
| 210 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 210 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 215 | A 3465015382 | HOSE |
| HEATING FEED | ||
| 215 | A 3465015682 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 215 | A 3465016082 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 219 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 219 | N 000000000668 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| 219 | N 000000000668 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| 219 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 219 | N 000000000667 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| 225 | N 900271015037 | HOSE |
| HEATING FEED | ||
| 225 | A 3465015382 | HOSE |
| HEATING FEED | ||
| 229 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 229 | N 000000000666 | CLAMP |
| HEATING FEED | ||
