Transporto priemonė: LS 1924; VIN numerio dalis: 346003
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

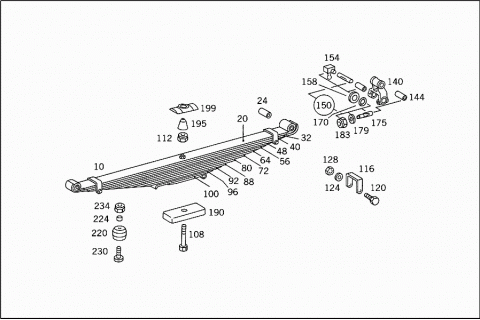

| 010 | A 3873200002 | FRONT SPRING |
| 9-LEAF | ||
| 010 | A 3873200002 | FRONT SPRING |
| 9-LEAF | ||
| 010 | A 3953200002 | FRONT SPRING |
| 10-LEAF | ||
| 010 | A 3873200102 | FRONT SPRING |
| 12-LEAF | ||
| 020 | A 3873200394 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3873200394 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3953200394 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 024 | A 3043210150 | BUSHING |
| 024 | A 6203210050 | BUSHING |
| 032 | A 3873210312 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3873210312 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3953210312 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| 040 | A 3873210013 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3873210013 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3463215613 | SPRING LEAF |
| Repalced by: A 3953210013 | ||
| 040 | A 3953210013 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3633210013 | SPRING LEAF |
| Repalced by: A 6593210713 | ||
| 040 | A 6593210713 | SPRING LEAF |
| NO.3 | ||
| 048 | A 3873210014 | SPRING LEAF |
| NO.4 | ||
| 048 | A 3873210014 | SPRING LEAF |
| NO.4 | ||
| 048 | A 3463215614 | SPRING LEAF |
| Repalced by: A 6593210614 | ||
| 048 | A 6593210614 | SPRING LEAF |
| NO.4 | ||
| 048 | A 3633210014 | SPRING LEAF |
| Repalced by: A 6593210714 | ||
| 048 | A 6593210714 | SPRING LEAF |
| NO.4 | ||
| 056 | A 3873210015 | SPRING LEAF |
| NO.5 | ||
| 056 | A 3873210015 | SPRING LEAF |
| NO.5 | ||
| 056 | A 3463215615 | SPRING LEAF |
| Repalced by: A 3953210015 | ||
| 056 | A 3953210015 | SPRING LEAF |
| NO.5 | ||
| 056 | A 3633210015 | SPRING LEAF |
| Repalced by: A 6593210615 | ||
| 056 | A 6593210615 | SPRING LEAF |
| NO.5 | ||
| 064 | A 3873210016 | SPRING LEAF |
| NO.6 | ||
| 064 | A 3873210016 | SPRING LEAF |
| NO.6 | ||
| 064 | A 3463215616 | SPRING LEAF |
| Repalced by: A 3953210016 | ||
| 064 | A 3953210016 | SPRING LEAF |
| NO.6 | ||
| 064 | A 3633210016 | SPRING LEAF |
| Repalced by: A 6593210616 | ||
| 064 | A 6593210616 | SPRING LEAF |
| NO.6 | ||
| 072 | A 3873210017 | SPRING LEAF |
| NO.7 | ||
| 072 | A 3873210017 | SPRING LEAF |
| NO.7 | ||
| 072 | A 3463215617 | SPRING LEAF |
| Repalced by: A 6593210517 | ||
| 072 | A 6593210517 | SPRING LEAF |
| NO.7 | ||
| 072 | A 3633210017 | SPRING LEAF |
| Repalced by: A 6593210617 | ||
| 072 | A 6593210617 | SPRING LEAF |
| NO.7 | ||
| 080 | A 3873210018 | SPRING LEAF |
| NO.8 | ||
| 080 | A 3873210018 | SPRING LEAF |
| NO.8 | ||
| 080 | A 3463215618 | SPRING LEAF |
| NO.8 | ||
| 080 | A 3633210018 | SPRING LEAF |
| Repalced by: A 6593210618 | ||
| 080 | A 6593210618 | SPRING LEAF |
| NO.8 | ||
| 088 | A 3873210019 | SPRING LEAF |
| NO.9 | ||
| 088 | A 3873210019 | SPRING LEAF |
| NO.9 | ||
| 088 | A 3463215619 | SPRING LEAF |
| Repalced by: A 6593210519 | ||
| 088 | A 6593210519 | SPRING LEAF |
| NO.9 | ||
| 088 | A 3633210019 | SPRING LEAF |
| Repalced by: A 6593210619 | ||
| 088 | A 6593210619 | SPRING LEAF |
| NO.9 | ||
| 092 | A 3463215620 | SPRING LEAF |
| NO.10 | ||
| 092 | A 3633210020 | SPRING LEAF |
| NO.10 | ||
| 096 | A 3633210021 | SPRING LEAF |
| Repalced by: A 6593210421 | ||
| 096 | A 6593210421 | SPRING LEAF |
| NO.11 | ||
| 100 | A 3873210122 | SPRING LEAF |
| Repalced by: A 6593210422 | ||
| 100 | A 6593210422 | SPRING LEAF |
| NO.12 | ||
| 108 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 108 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 108 | A 3463215071 | SCREW |
| (SPRING BOLT) | ||
| 108 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| 112 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 112 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 116 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 116 | A 0023219233 | SPRING CLAMP |
| 116 | A 0003249633 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 116 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 116 | A 6203240433 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| NO.3 | ||
| 120 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 120 | N 308765012007 | SCREW |
| SPRING CLAMP | ||
| M 12X120 | ||
| 120 | N 308765012007 | SCREW |
| SPRING CLAMP | ||
| M 12X120 | ||
| 120 | N 000960012333 | SCREW |
| SPRING CLAMP | ||
| M 12X125 | ||
| 120 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| M 12X110 | ||
| 124 | A 3039902440 | WASHER |
| SPRING CLAMP | ||
| 128 | N 000934012022 | NUT |
| SPRING CLAMP | ||
| 140 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 144 | A 3043210150 | BUSHING |
| 144 | A 6203210050 | BUSHING |
| A 3953220330 | SHACKLE PIN | |
| Repalced by: A 3955860232 | ||
| 150 | A 3955860032 | REPAIR KIT |
| Repalced by: A 3955860232 | ||
| 150 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 150 | A 3953200265 | SHACKLE PIN |
| PARTS KIT | ||
| 154 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 158 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 158 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 158 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 170 | A 0029973140 | SEAL RING |
| FRONT SPRING TO SPRING SHACKLE | ||
| 175 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE | ||
| 179 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 179 | N 000125010532 | WASHER |
| FRONT SPRING TO SPRING SHACKLE | ||
| 183 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 183 | N 910113010000 | NUT |
| FRONT SPRING TO SPRING SHACKLE | ||
| 190 | A 3353310328 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 190 | A 3353510428 | PAD |
| FRONT SPRINGS TO FRONT AXLE | ||
| 195 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 195 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 199 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 199 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 199 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 199 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||

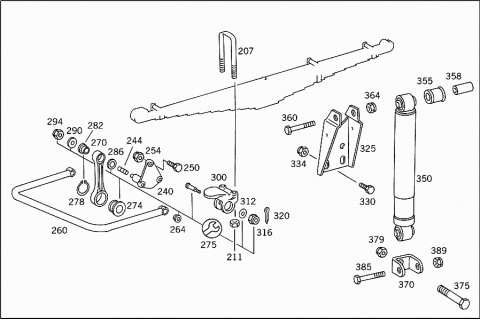

| 207 | A 3203310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 212 MM | ||
| 207 | A 3203310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 212 MM | ||
| 207 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 207 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 211 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 211 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 211 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 | A 0019871140 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 224 | A 3633220051 | SPACER RING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| A 6209870039 | RUBBER BUFFER | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| A 3953210040 | BRACKET | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 230 | N 007985010127 | SCREW |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 234 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 234 | N 910113010000 | NUT |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 240 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 240 | A 3873230563 | BEARING BRACKET |
| FRONT STABILIZER | ||
| 244 | N 000939012102 | STUD BOLT |
| CONSOLE TO FRAME | ||
| 250 | A 0039904104 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X1,5X50 | ||
| 250 | N 308676016007 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X1,5X50 | ||
| 254 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 254 | N 910113016002 | NUT |
| CONSOLE TO FRAME | ||
| 260 | A 3633230065 | TORSION BAR |
| FRONT | ||
| 264 | A 0003230950 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 270 | A 3893230016 | LINK |
| Repalced by: A 3893230116 | ||
| 270 | A 3893230116 | SHACKLE |
| TORSION BAR,FRONT | ||
| 274 | A 0003233785 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 274 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 275 | A 3875860032 | REPAIR KIT |
| Repalced by: A 3873200028 | ||
| 275 | A 3873200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 275 | A 6205860032 | REPAIR KIT |
| Repalced by: A 6203200228 | ||
| 275 | A 6203200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 278 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| N 000961012056 | SCREW | |
| Repalced by: N 308676012038 | ||
| N 308676012038 | SCREW | |
| SHACKLE TO CONSOLE | ||
| 282 | A 0003232150 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 286 | A 3873230052 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 290 | A 3873230152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 294 | N 910113012002 | NUT |
| SHACKLE TO CONSOLE | ||
| 300 | A 3703230020 | BEARING |
| LEFT | ||
| 300 | A 3703230120 | BEARING |
| RIGHT | ||
| A 3353230074 | PIN | |
| Repalced by: A 3875860032 | ||
| A 3353230074 | PIN | |
| Repalced by: A 6205860032 | ||
| 312 | A 0009932026 | DISC SPRING |
| TORSION BAR TO BEARING BRACKET | ||
| 316 | N 000935020001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 320 | N 000094004065 | COTTER PIN |
| TORSION BAR TO BEARING BRACKET | ||
| 325 | A 3363230040 | BRACKET |
| SHOCK ABSORBER | ||
| 330 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 330 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 334 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 350 | A 0023235300 | SHOCK ABSORBER |
| Repalced by: A 0043236100 | ||
| 350 | A 0043236100 | SHOCK ABSORBER |
| 350 | A 0043236100 | SHOCK ABSORBER |
| 350 | A 0023231500 | SHOCK ABSORBER |
| Repalced by: A 0043234300 | ||
| 350 | A 0043234300 | SHOCK ABSORBER |
| 350 | A 0043234300 | SHOCK ABSORBER |
| 350 | A 0023237200 | SHOCK ABSORBER |
| Repalced by: A 0033239700 | ||
| 350 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 350 | A 0023237300 | SHOCK ABSORBER |
| Repalced by: A 0043234400 | ||
| 350 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 350 | A 0063230700 | SHOCK ABSORBER |
| 350 | A 0023235400 | SHOCK ABSORBER |
| 350 | A 0023231600 | SHOCK ABSORBER |
| Repalced by: A 0043234900 | ||
| 350 | A 0043234900 | SHOCK ABSORBER |
| 355 | A 0003231944 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 355 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 355 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 15 00,002 323 16 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 54 00,002 323 73 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 43 00,004 323 49 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 53 00,002 323 72 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00 | ||
| 355 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 355 | A 0003233144 | RUBBER BUFFER |
| TO 003 323 97 00,004 323 61 00 | ||
| Repalced by: A 0003238085 | ||
| 355 | A 0003238085 | RUBBER MOUNTING |
| TO 003 323 97 00,004 323 61 00 | ||
| 358 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 358 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 358 | A 0003233150 | SPACER RING |
| TO 002 323 15 00,002 323 16 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 54 00,002 323 73 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 43 00,004 323 49 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 53 00,002 323 72 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00 | ||
| 358 | A 0003235050 | BUSHING |
| TO 004 323 61 00 | ||
| 358 | A 0003235250 | BUSHING |
| TO 003 323 97 00 | ||
| 360 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 360 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 364 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 364 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 370 | A 3953230140 | BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 375 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 375 | N 000960020084 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 379 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 379 | N 913004020003 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 385 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 385 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 389 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 389 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||

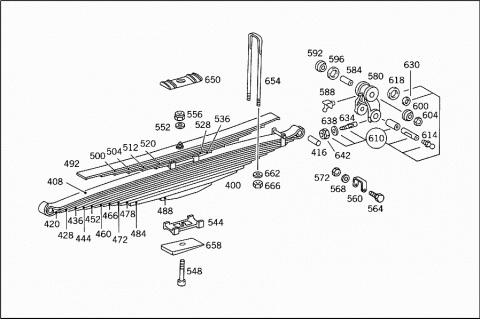

| 400 | A 3893200308 | REAR SPRING |
| 8-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 400 | A 3633200608 | REAR SPRING |
| 12-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 408 | A 3893200393 | SPRING LEAF |
| Repalced by: A 3893200593 | ||
| 408 | A 3893200593 | SPRING LEAF |
| NO.1 | ||
| 408 | A 3633200693 | SPRING LEAF |
| NO.1 | ||
| 416 | A 3353240350 | BUSHING |
| 416 | A 6203240050 | BUSHING |
| 420 | A 3893240312 | SPRING LEAF |
| Repalced by: A 3893240512 | ||
| 420 | A 3893240512 | SPRING LEAF |
| NO.2 | ||
| 420 | A 3633240612 | SPRING LEAF |
| NO.2 | ||
| 428 | A 3893240313 | SPRING LEAF |
| Repalced by: A 6563240514 | ||
| 428 | A 6563240514 | SPRING LEAF |
| NO.3 | ||
| 428 | A 3363240513 | SPRING LEAF |
| NO.3 | ||
| 436 | A 3893240515 | SPRING LEAF |
| Repalced by: A 6563240315 | ||
| 436 | A 6563240315 | SPRING LEAF |
| NO.4 | ||
| 436 | A 3363240514 | SPRING LEAF |
| NO.4 | ||
| 444 | A 3893240516 | SPRING LEAF |
| NO.5 | ||
| 444 | A 3363240515 | SPRING LEAF |
| NO.5 | ||
| 452 | A 3893240517 | SPRING LEAF |
| Repalced by: A 6563240317 | ||
| 452 | A 6563240317 | SPRING LEAF |
| NO.6 | ||
| 452 | A 3363240516 | SPRING LEAF |
| NO.6 | ||
| 460 | A 3893240518 | SPRING LEAF |
| Repalced by: A 6563240318 | ||
| 460 | A 6563240318 | SPRING LEAF |
| NO.7 | ||
| 460 | A 3363240517 | SPRING LEAF |
| NO.7 | ||
| 466 | A 3893240019 | SPRING LEAF |
| Repalced by: A 6563240219 | ||
| 466 | A 6563240219 | SPRING LEAF |
| NO.8 | ||
| 466 | A 3363240518 | SPRING LEAF |
| NO.8 | ||
| 472 | A 3363240519 | SPRING LEAF |
| NO.9 | ||
| 478 | A 3363240520 | SPRING LEAF |
| NO.10 | ||
| 484 | A 3893240121 | SPRING LEAF |
| NO.11 | ||
| 488 | A 3893240122 | SPRING LEAF |
| NO.12 | ||
| 492 | A 3893200310 | HELPER SPRING |
| Repalced by: A 6563200110 | ||
| 492 | A 6563200110 | HELPER SPRING |
| 6-LEAF | ||
| 492 | A 3893200110 | HELPER SPRING |
| 6-LEAF | ||
| 500 | A 3893240340 | SPRING LEAF |
| Repalced by: A 3893240541 | ||
| 500 | A 3893240541 | SPRING LEAF |
| Repalced by: A 6563240541 | ||
| 500 | A 6563240541 | SPRING LEAF |
| NO.1 | ||
| 500 | A 3363240540 | SPRING LEAF |
| NO.1 | ||
| 504 | A 3893240341 | SPRING LEAF |
| Repalced by: A 3893240542 | ||
| 504 | A 3893240542 | SPRING LEAF |
| Repalced by: A 6563240342 | ||
| 504 | A 6563240342 | SPRING LEAF |
| Repalced by: A 6563240041 | ||
| 504 | A 6563240041 | SPRING LEAF |
| NO.2 | ||
| 504 | A 3363240541 | SPRING LEAF |
| NO.2 | ||
| 512 | A 3893240342 | SPRING LEAF |
| Repalced by: A 3893240543 | ||
| 512 | A 3893240543 | SPRING LEAF |
| Repalced by: A 6563240343 | ||
| 512 | A 6563240343 | SPRING LEAF |
| Repalced by: A 6563240042 | ||
| 512 | A 6563240042 | SPRING LEAF |
| NO.3 | ||
| 512 | A 3363240542 | SPRING LEAF |
| NO.3 | ||
| A 3893240343 | SPRING LEAF | |
| Repalced by: A 3893240544 | ||
| 520 | A 3893240544 | SPRING LEAF |
| Repalced by: A 6563240344 | ||
| 520 | A 6563240344 | SPRING LEAF |
| NO.4 | ||
| 520 | A 3363240543 | SPRING LEAF |
| NO.4 | ||
| A 3893240344 | SPRING LEAF | |
| Repalced by: A 3893240545 | ||
| 528 | A 3893240545 | SPRING LEAF |
| Repalced by: A 6563240345 | ||
| 528 | A 6563240345 | SPRING LEAF |
| Repalced by: A 6563240044 | ||
| 528 | A 6563240044 | SPRING LEAF |
| NO.5 | ||
| 528 | A 3893240144 | SPRING LEAF |
| NO.5 | ||
| A 3893240345 | SPRING LEAF | |
| Repalced by: A 3893240546 | ||
| 536 | A 3893240546 | SPRING LEAF |
| NO.6 | ||
| 536 | A 3893240145 | SPRING LEAF |
| NO.6 | ||
| 544 | A 3873240035 | SPACER |
| 548 | A 3463245071 | SPRING BOLT |
| 552 | N 007349019002 | WASHER |
| 556 | N 913004018004 | NUT |
| 560 | A 0023218933 | SPRING CLAMP |
| Repalced by: A 0023219833 | ||
| 560 | A 0023219833 | SPRING CLAMP |
| Repalced by: A 0003244233 | ||
| 560 | A 0003244233 | SPRING CLAMP |
| 564 | N 000960012222 | SCREW |
| 568 | A 3039902440 | WASHER |
| 572 | N 000934012022 | NUT |
| 580 | A 3463205063 | SHACKLE |
| Repalced by: A 6213250020 | ||
| 580 | A 6213250020 | SHACKLE |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 584 | A 3353240050 | BUSHING |
| 588 | N 071412008200 | GREASE NIPPLE |
| 592 | A 3463255062 | THRUST WASHER |
| Repalced by: A 6213250062 | ||
| 592 | A 6213250062 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 596 | A 0029973640 | SEAL RING |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 600 | A 3463255162 | THRUST WASHER |
| Repalced by: A 6213250162 | ||
| 600 | A 6213250162 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 604 | N 000936024000 | NUT |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| A 3893250230 | SHACKLE PIN | |
| Repalced by: A 3895860132 | ||
| 610 | A 3895860032 | REPAIR KIT |
| Repalced by: A 3895860132 | ||
| 610 | A 3895860132 | REPAIR KIT |
| Repalced by: A 3893200065 | ||
| 610 | A 3893200065 | SHACKLE PIN |
| (PARTS KIT),REAR SPRING EYE | ||
| 610 | A 6583200065 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING EYE | ||
| 614 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 618 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 618 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 618 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 630 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING SHACKLE | ||
| 634 | A 3529900337 | BOLT |
| SHACKLE PIN TO SPRING BRACKET AND TO SPRING SHACKLE | ||
| 638 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 638 | N 000125010532 | WASHER |
| SHACKLE PIN TO SPRING BRACKET AND TO SPRING SHACKLE | ||
| 642 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 642 | N 910113010000 | NUT |
| SHACKLE PIN TO SPRING BRACKET AND TO SPRING SHACKLE | ||
| 650 | A 3873510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 650 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 654 | A 3353510125 | U-BOLT |
| Repalced by: A 9433510225 | ||
| 654 | A 9433510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 485 MM | ||
| 658 | A 3873510128 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 658 | A 3873510128 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 658 | A 3633510128 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 658 | A 3633510228 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 662 | A 3879975026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 666 | N 000934024006 | NUT |
| REAR SPRING TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
