Transporto priemonė: LS 1924; VIN numerio dalis: 346003

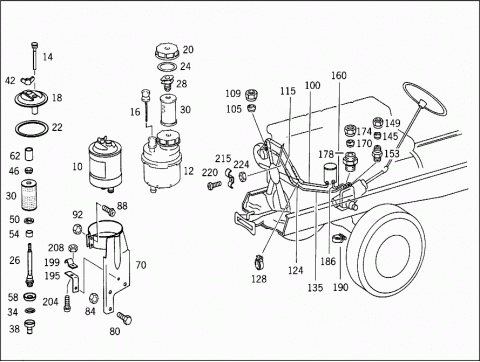

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 012 | A 0004664502 | TANK |
| 014 | A 0004660218 | PIPE |
| TO 000 466 38 02 | ||
| 016 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 016 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 018 | A 0004662005 | COVER |
| TO 000 466 38 02 | ||
| 020 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 022 | A 0004660260 | SEAL RING |
| TO 000 466 38 02 | ||
| 024 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 026 | A 0014664465 | FILTER CARRIER |
| TO 000 466 38 02 | ||
| 028 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 030 | A 0004660604 | FILTER |
| 030 | A 0004662804 | FILTER |
| 034 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 034 | A 0059970848 | SEAL RING |
| TO 000 466 38 02 | ||
| 038 | A 0004660558 | CONNECTOR |
| TO 000 46 38 02 | ||
| 042 | N 000315008006 | NUT |
| TO 000 466 38 02 | ||
| 046 | A 0004660675 | CENTERING RING |
| TO 000 466 38 02 | ||
| 050 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 050 | A 9402680552 | SPACER WASHER |
| TO 000 466 38 02 | ||
| 054 | A 0004660153 | SPACER TUBE |
| TO 000 466 38 02 | ||
| 058 | A 0004660238 | COVER PLATE |
| TO 000 466 38 02 | ||
| 062 | A 0009870643 | RUBBER SLEEVE |
| TO 000 466 38 02 | ||
| 070 | A 3434600135 | BRACKET |
| OIL TANK | ||
| A 3464605135 | BRACKET | |
| OIL TANK | ||
| A 3464605035 | BRACKET | |
| OIL TANK | ||
| 080 | N 000931010282 | SCREW |
| BRACKET TO STEERING BRACKET | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| BRACKET TO STEERING BRACKET | ||
| N 000961012122 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 007349013003 | WASHER | |
| Repalced by: N 007349013005 | ||
| N 007349013005 | WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 910113012002 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 088 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 088 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 088 | N 000000001149 | HEXALOBULAR BOLT |
| OIL TANK TO BRACKET | ||
| M 6X25 | ||
| 088 | N 000000001149 | HEXALOBULAR BOLT |
| OIL TANK TO BRACKET | ||
| M 6X25 | ||
| 092 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 092 | N 913004006001 | NUT |
| OIL TANK TO BRACKET | ||
| 092 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 092 | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| 100 | A 3434601224 | LINE |
| FROM OIL TANK TO PUMP | ||
| 105 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 105 | A 0019901267 | SEAL CONE |
| 109 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 109 | N 000000006243 | NUT |
| 115 | A 3464660465 | LINE |
| FROM PUMP TO STEERING | ||
| N 910113012002 | NUT | |
| Repalced by: A 3609970982 | ||
| 124 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 124 | A 3859971582 | HOSE |
| 124 | A 3859971582 | HOSE |
| A 3464660081 | HOSE | |
| 128 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 128 | N 000000000667 | CLAMP |
| 135 | A 3464660665 | LINE |
| Repalced by: A 3434600024 | ||
| 135 | A 3434600024 | LINE |
| FROM POWER STEERING PUMP TO STEERING | ||
| A 3464660765 | LINE | |
| FROM POWER STEERING PUMP TO STEERING | ||
| A 3464660965 | LINE | |
| FROM POWER STEERING PUMP TO STEERING | ||
| A 3464661065 | LINE | |
| FROM POWER STEERING PUMP TO STEERING | ||
| A 0014666565 | LINE | |
| Repalced by: A 3434600124 | ||
| A 3434600124 | LINE | |
| FROM POWER STEERING PUMP TO STEERING | ||
| 145 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 145 | A 0019901967 | SEAL CONE |
| 149 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 149 | N 000000006239 | UNION NUT |
| 153 | N 003901012011 | SCREW-IN FITTING |
| OIL LINE CONNECTION | ||
| 160 | A 3434600824 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| A 3434600924 | LINE | |
| FROM RETURN LINE TO OIL TANK | ||
| 170 | N 003861015004 | GLAND |
| 174 | N 915017015100 | UNION NUT |
| 174 | N 915017015100 | UNION NUT |
| A 3464660181 | HOSE | |
| A 3464660365 | LINE | |
| FROM STEERING TO OIL TANK | ||
| A 3464660365 | LINE | |
| FROM STEERING TO OIL TANK | ||
| A 3464660865 | LINE | |
| 178 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE | ||
| 178 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE | ||
| A 3839970072 | FITTING | |
| RETURN LINE | ||
| 186 | A 3609971182 | HOSE |
| Repalced by: A 3439970582 | ||
| 186 | A 3439970582 | HOSE |
| Repalced by: A 6999974082 | ||
| 186 | A 6999974082 | HOSE |
| Repalced by: A 3859971682 | ||
| 186 | A 3859971682 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 186 | A 3859971682 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 190 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 190 | N 000000000666 | CLAMP |
| FROM STEERING TO OIL TANK | ||
| 190 | N 000000000666 | CLAMP |
| FROM STEERING TO OIL TANK | ||
| 195 | A 3354660440 | BRACKET |
| FROM LINE TO OIL TANK | ||
| 199 | N 072571001025 | CLAMP |
| LINES TO BRACKET | ||
| 204 | N 007985005141 | SCREW |
| CLAMP TO BRACKET | ||
| 208 | N 913004005001 | NUT |
| CLAMP TO BRACKET | ||
| 215 | A 3219950532 | CLAMP |
| DELIVERY AND RETURN LINES | ||
| A 3389950032 | CLAMP | |
| DELIVERY AND RETURN LINES | ||
| 220 | N 000000001147 | SCREW |
| CLAMP TO BRACKET | ||
| M 6X20 | ||
| 220 | N 000000001147 | SCREW |
| CLAMP TO BRACKET | ||
| M 6X20 | ||
| A 3609950401 | CLAMP | |
| LINES TO BRACKET | ||
| N 007985006546 | SCREW | |
| CLAMP TO BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| CLAMP TO BRACKET | ||
| A 3609950701 | CLAMP | |
| Repalced by: N 916016018202 | ||
| N 916016018202 | CLAMP | |
| LINES TO BRACKET | ||
| N 007985006157 | SCREW | |
| Repalced by: N 000000001145 | ||
| N 000000001145 | SCREW | |
| CLAMP TO BRACKET | ||
| 224 | N 912004006102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| A 3375420140 | BRACKET | |
| DELIVERY LINE | ||
| N 072571001025 | CLAMP | |
| LINE MOUNTING | ||
| N 000084005180 | SCREW | |
| Repalced by: N 007985005175 | ||
| N 007985005175 | SCREW | |
| LINE MOUNTING | ||
| N 912004005103 | LOCK WASHER | |
| LINE MOUNTING | ||
| N 000934005009 | NUT | |
| LINE MOUNTING | ||
| A 3464665140 | BRACKET | |
| RETURN LINE | ||
| A 3464665070 | STUD | |
| LINES TO BRACKET | ||
| N 913004008008 | NUT | |
| Repalced by: N 910113008007 | ||
| N 910113008007 | NUT | |
| LINES TO BRACKET | ||
| A 3049950220 | CLAMP | |
| Repalced by: A 3129952420 | ||
| A 3129952420 | CLAMP | |
| Repalced by: A 1109950401 | ||
| A 1109950401 | CLAMP | |
| RETURN LINE | ||
| N 000000001147 | SCREW | |
| CLAMP TO BRACKET | ||
| M 6X20 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| CLAMP TO BRACKET | ||

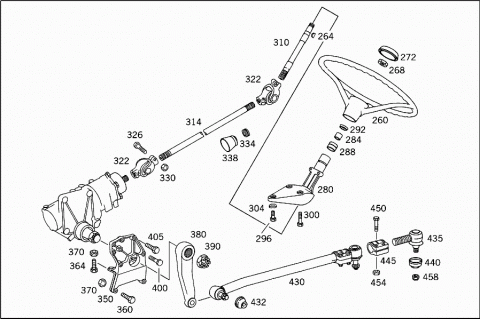

| 260 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 260 | A 0004641101 | STEERING WHEEL |
| A 0004641201 | STEERING WHEEL | |
| 264 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 268 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 272 | A 0004640131 | CAP |
| Repalced by: A 0004641231 | ||
| 272 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 272 | A 0004642631 | CAP |
| STEERING WHEEL TO STEERING COLUMN | ||
| 280 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 280 | A 3434600037 | BEARING |
| Repalced by: A 3434600137 | ||
| 280 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 280 | A 3434600237 | BEARING |
| STEERING SHAFT TO JOINT | ||
| 280 | A 3434600237 | BEARING |
| STEERING SHAFT TO JOINT | ||
| 284 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 284 | A 0119815110 | NEEDLE BEARING |
| 284 | A 0119815110 | NEEDLE BEARING |
| 288 | A 3214620165 | RING |
| 292 | A 3224620023 | COVER |
| 292 | A 3224620023 | COVER |
| A 3434600231 | STEERING COLUMN BRACKET | |
| 296 | A 0019908304 | SCREW |
| STEERING SHAFT BEARING TO CAB | ||
| M 10X30 | ||
| 300 | A 0019908904 | SCREW |
| STEERING SHAFT BEARING TO CAB | ||
| M 10X55 | ||
| 304 | N 000137010201 | SPRING WASHER |
| STEERING SHAFT BEARING TO CAB | ||
| 310 | A 3354620101 | STEERING SHAFT |
| Repalced by: A 3354621101 | ||
| 310 | A 3354621101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 310 | A 3354620401 | STEERING SHAFT |
| Repalced by: A 3354620701 | ||
| 310 | A 3354620701 | STEERING SHAFT |
| TOP | ||
| 310 | A 3354620701 | STEERING SHAFT |
| TOP | ||
| 310 | A 3354620301 | STEERING SHAFT |
| Repalced by: A 3354621001 | ||
| 310 | A 3354621001 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 310 | A 3354620501 | STEERING SHAFT |
| Repalced by: A 3354620801 | ||
| 310 | A 3354620801 | STEERING SHAFT |
| TOP | ||
| 310 | A 3354620801 | STEERING SHAFT |
| TOP | ||
| 314 | A 3464620001 | STEERING SHAFT |
| BOTTOM | ||
| 314 | A 3464620101 | STEERING SHAFT |
| BOTTOM | ||
| 314 | A 3494620201 | STEERING SHAFT |
| BOTTOM | ||
| 314 | A 3494620401 | STEERING SHAFT |
| BOTTOM | ||
| A 4254600157 | UNIVERSAL JOINT | |
| Repalced by: A 4254600457 | ||
| 322 | A 4254600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 322 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 322 | A 0004600057 | UNIVERSAL JOINT |
| 322 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 322 | A 0004600157 | UNIVERSAL JOINT |
| A 4259905601 | SCREW | |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 10X45 | ||
| 326 | A 4259906101 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 10X48 | ||
| 326 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| 326 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 330 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 330 | N 910113010000 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 330 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 334 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 338 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 350 | A 3464615440 | STEERING SUPPORT |
| A 3464615540 | STEERING SUPPORT | |
| 360 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 364 | N 000961014042 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X35 | ||
| 364 | N 000961014042 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X35 | ||
| N 000961014101 | SCREW | |
| Repalced by: N 308676014012 | ||
| N 308676014012 | SCREW | |
| STEERING SUPPORT TO FRAME | ||
| M 14X45 | ||
| 370 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 370 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 380 | A 3464635201 | PITMAN ARM |
| Repalced by: A 3464635401 | ||
| 380 | A 3464635401 | PITMAN ARM |
| A 3464635301 | PITMAN ARM | |
| A 3464635501 | PITMAN ARM | |
| 390 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| A 0019908151 | NUT | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 400 | N 000960016013 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X60 | ||
| 405 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 405 | N 308676016006 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X45 | ||
| N 000961016036 | SCREW | |
| Repalced by: N 308676016013 | ||
| N 308676016013 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X40 | ||
| A 3499900114 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| M 16X1,5X64 | ||
| N 000960016261 | SCREW | |
| Repalced by: N 308676016014 | ||
| N 308676016014 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| M 16X1,5X65 | ||
| N 000935016004 | NUT | |
| STEERING TO STEERING BRACKET | ||
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| STEERING TO STEERING BRACKET | ||
| N 000094004023 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||
| N 000177001003 | WIRE | |
| STEERING TO STEERING BRACKET | ||
| 430 | A 3434601005 | DRAG LINK |
| Repalced by: A 3434601405 | ||
| 430 | A 3434601405 | DRAG LINK |
| LEMFOERDER | ||
| 430 | A 3434601205 | DRAG LINK |
| Repalced by: A 3434601505 | ||
| 430 | A 3434601505 | DRAG LINK |
| EHRENREICH | ||
| 432 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 432 | A 0004621796 | BOOT |
| 435 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 435 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 435 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 435 | A 0014602248 | DRAG LINK END |
| Repalced by: A 0014607748 | ||
| 435 | A 0014607748 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 435 | A 0004601048 | DRAG LINK END |
| Repalced by: A 0004602948 | ||
| 435 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 435 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 435 | A 0014602248 | DRAG LINK END |
| Repalced by: A 0014607748 | ||
| 435 | A 0014607748 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 440 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 440 | A 0004621796 | BOOT |
| 445 | A 0003382345 | CLAMP |
| Repalced by: A 0003382545 | ||
| 445 | A 0003382545 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER,42 MM | ||
| A 0003383145 | CLAMP | |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH,42 MM | ||
| A 0003382445 | CLAMP | |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER,40 MM | ||
| A 0003383445 | CLAMP | |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH,40 MM | ||
| 450 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 450 | N 000960012384 | SCREW |
| CLAMP TO DRAG LINK | ||
| M 12X1.5X55 | ||
| 450 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 450 | N 308676012017 | SCREW |
| CLAMP TO DRAG LINK | ||
| M 12X1.5X62 | ||
| 450 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 450 | N 000960012353 | SCREW |
| CLAMP TO DRAG LINK | ||
| M 12X1,5X60 | ||
| 454 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 454 | N 910113012003 | NUT |
| CLAMP TO DRAG LINK | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| CLAMP TO DRAG LINK | ||
| A 0019905451 | NUT | |
| DRAG LINK TO LEVER | ||
| 458 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094005045 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
