Transporto priemonė: LS 1924; VIN numerio dalis: 350004
Grupė: 25 CLUTCH
16853
16854
# Kodas Pavadinimas

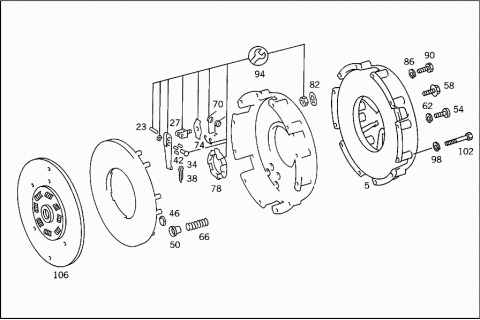

005 A 0012506804 CLUTCH PRESSURE PLATE
A 0032500004 CLUTCH PRESSURE PLATE
Repalced by: A 0032500904
A 0032500904 CLUTCH PRESSURE PLATE
Repalced by: A 0032507004
005 A 0032507004 CLUTCH PRESSURE PLATE
005 A 0032507004 CLUTCH PRESSURE PLATE
005 A 3502507004 CLUTCH PRESSURE PLATE
005 A 3502507004 CLUTCH PRESSURE PLATE
A 0002520412 PRESSURE PLATE
A 0002524212 PRESSURE PLATE
Repalced by: A 0002523012
A 0002523012 PRESSURE PLATE
TO 003 250 00 04
A 0002524912 PRESSURE PLATE
TO 003 250 09 04,0032507004
A 0002524912 PRESSURE PLATE
TO 350 250 70 04
A 0002524912 PRESSURE PLATE
TO 003 250 09 04,003 250 70 04
A 0002524912 PRESSURE PLATE
TO 350 250 70 04
023 A 0002520616 SPINDLE
RELEASE LEVER,CLUTCH PRESSURE PLATE
023 A 0002522216 SPINDLE
RELEASE LEVER,CLUTCH PRESSURE PLATE
TO 003 250 09 04,003 250 70 04
023 A 0002522216 SPINDLE
RELEASE LEVER,CLUTCH PRESSURE PLATE
TO 003 250 00 04,003 250 09 04
023 A 0002522216 SPINDLE
RELEASE LEVER,CLUTCH PRESSURE PLATE
TO 003 250 70 04
027 A 0002522614 BRACKET
TO 003 250 70 04
A 0002520716 SPINDLE
Repalced by: A 0002522816
034 A 0002522816 SPINDLE
TO 001 250 68 04,003 250 00 04,
034 A 0002522816 SPINDLE
TO 003 250 09 04
034 A 0002523116 SPINDLE
TO 003 250 70 04
038 N 000094002008 COTTER PIN
042 A 0002520118 ROLLER
TO 001 250 68 04,003 250 00 04,
042 A 0002520118 ROLLER
TO 003 250 09 04,003 250 70 04
046 A 0002520024 INSULATING WASHER
046 A 0002520024 INSULATING WASHER
TO 003 250 00 04
050 A 0002520535 SLEEVE
A 0009900020 SCREW
Repalced by: N 007985005144
054 N 007985005144 SCREW
TO 003 250 09 04
054 N 007985005144 SCREW
TO 003 250 09 04
058 A 0002522971 SCREW
TO 003 250 70 04
058 A 0002522971 SCREW
TO 003 250 70 04;003 250 90 04
062 A 0009901647 LOCK WASHER
TO 003 250 09 04
062 A 0009901647 LOCK WASHER
TO 003 250 09 04
A 0002524320 PRESSURE SPRING
066 A 0002524420 PRESSURE SPRING
066 A 0002524420 PRESSURE SPRING
TO 003 250 09 04,350 250 70 04
066 A 0002524420 PRESSURE SPRING
TO 003 250 00 04,003 250 09 04
066 A 0002524420 PRESSURE SPRING
TO 350 250 70 04
066 A 0002524820 PRESSURE SPRING
TO 003 250 09 04
066 A 0002524820 PRESSURE SPRING
TO 003 250 09 04
066 A 0002524820 PRESSURE SPRING
TO 003 250 70 04
066 A 0002524820 PRESSURE SPRING
TO 003 250 70 04
070 A 0002521927 SPRING
TO 001 250 68 04,003 250 00 04
070 A 0002521927 SPRING
TO 003 250 09 04
070 A 0002523227 SPRING
TO 003 250 70 04
074 A 0002520929 CLAMP
074 A 0002520929 CLAMP
TO 003 250 00 04
074 A 0002521829 CLAMP
TO 003 250 09 04
074 A 0002521829 CLAMP
TO 003 250 09 04
078 A 0002520345 FLANGE
A 0002521745 FLANGE
Repalced by: A 0002521245
078 A 0002521245 FLANGE
TO 003 250 09 04,350 250 70 04
078 A 0002521245 FLANGE
TO 003 250 70 04
078 A 0002521245 FLANGE
TO 003 250 00 04,003 250 09 04
078 A 0002521245 FLANGE
TO 350 250 70 04,003 250 70 04
078 A 0002521245 FLANGE
TO 003 250 70 04
A 0002520932 HOUSING
Repalced by: A 0002525432
A 0002525432 HOUSING
A 0002524232 HOUSING
Repalced by: A 0002525132
A 0002525132 HOUSING
TO 003 250 09 04,003 250 70 04
A 0002525132 HOUSING
TO 350 250 70 04
A 0002525132 HOUSING
TO 003 250 00 04,003 250 09 04
A 0002525132 HOUSING
TO 003 250 70 04,350 250 70 04
A 0002521372 NUT
Repalced by: A 0002523072
A 0002520727 SPRING
TO 003 250 09 04,003 250 70 04
A 0002520727 SPRING
TO 003 250 00 04,003 250 09 04
A 0002520727 SPRING
TO 003 250 70 04
082 A 0002520373 LOCK
086 N 000127005001 LOCK WASHER
TO 001 250 68 04,003 250 00 04, 003 250 09 04
090 A 0002522971 SCREW
A 3505867225 REPAIR KIT
Repalced by: A 0002500913
094 A 0002500913 REPAIR KIT
TO 350 250 70 04
094 A 0002500913 REPAIR KIT
TO 350 250 70 04,003 250 00 04
098 N 000127010202 LOCK WASHER
CLUTCH TO FLYWHEEL
102 N 000931010409 SCREW
CLUTCH TO FLYWHEEL
106 A 0012505503 CLUTCH DISC
A 0042501403 CLUTCH DISC
Repalced by: A 0032500003
106 A 0032500003 CLUTCH DISC
106 A 0112508303 CLUTCH DISC
106 A 0112508403 CLUTCH DISC
A 0002523110 CLUTCH LINING
Repalced by: A 0012522910
A 0012522910 CLUTCH LINING
TO 001 250 55 03
A 0002528510 CLUTCH LINING
TO 003 250 00 03
A 0002521275 RIVET
LINING WITH INTERMEDIATE SPRING
A 0002522375 RIVET
Repalced by: A 0002523375
A 0002523375 RIVET
LINING WITH INTERMEDIATE SPRING
TO 001 250 55 03
A 0002521475 RIVET
LINING WITH CLUTCH DISC
A 0002522475 RIVET
TO 003 250 00 03
A 0002520419 LEAF SPRING
A 0002522419 LEAF SPRING
Repalced by: A 0002523319
A 0002523319 LEAF SPRING
TO 003 250 00 03
A 0002520675 RIVET
Repalced by: A 0002522075
A 0002522075 RIVET
A 3505867125 REPAIR KIT
TO 003 250 00 03

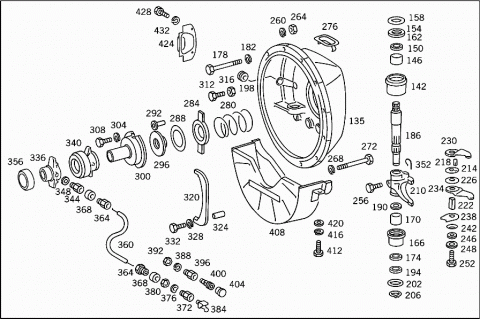

A 3462515001 BELL HOUSING
A 3852510601 BELL HOUSING
Repalced by: A 3502510001
A 3502510001 BELL HOUSING
Repalced by: A 3502510201
135 A 3502510201 BELL HOUSING
135 A 3502510201 BELL HOUSING
135 A 3502517001 BELL HOUSING
142 A 3432510050 BUSHING
TOP
A 3852510250 BUSHING
Repalced by: A 3852510450
142 A 3852510450 BUSHING
TOP
146 A 3439920003 BUSHING
146 A 3389920103 BUSHING
150 N 005419035101 FELT RING
154 A 3859970040 SEAL RING
158 A 3432930027 COVER PLATE
158 A 3852930027 COVER PLATE
162 A 0119978846 SEAL RING
162 A 3509977746 SEAL RING
166 A 3432510150 BUSHING
BOTTOM
170 A 3439920103 BUSHING
174 A 3379975040 SEAL RING
178 N 000960018013 SCREW
TRANSMISSION TO BELL HOUSING
178 N 000960018143 SCREW
TRANSMISSION TO BELL HOUSING
182 N 000127018203 LOCK WASHER
TRANSMISSION TO BELL HOUSING
186 A 3432930001 RELEASE SHAFT
186 A 3502547007 SHAFT
190 A 3172930177 WASHER
AS REQUIRED
0.80 MM
190 A 3172930277 WASHER
AS REQUIRED
0.90 MM
190 A 3172930377 WASHER
AS REQUIRED
1.00 MM
190 A 3172930477 WASHER
AS REQUIRED
1.10 MM
190 A 3172930577 WASHER
AS REQUIRED
1.20 MM
190 A 3172930677 WASHER
AS REQUIRED
1.30 MM
194 N 005419025101 FELT RING
198 A 6202510383 PLUG
BELL HOUSING
202 A 3432930052 SPACER WASHER
206 N 000471024000 LOCK RING
A 3372540208 RELEASE LEVER
Repalced by: A 3452937011
A 3452937011 RELEASE YOKE
Repalced by: A 3452930111
210 A 3452930111 RELEASE YOKE
A 3432930011 RELEASE YOKE
Repalced by: A 3452937111
A 3452937111 RELEASE YOKE
Repalced by: A 3452930211
210 A 3452930211 RELEASE YOKE
214 A 3262930077 WASHER
218 N 001481005022 CLAMPING SLEEVE
222 A 3262930053 SPACER TUBE
226 A 3262910076 WASHER
230 A 3432550016 LEVER
LEFT
234 A 3432550116 LEVER
RIGHT
238 A 3262910073 LOCK
242 N 002093031101 DISC SPRING
246 N 000988010016 FITTED WASHER
246 N 000988010019 FITTED WASHER
246 N 000988010020 FITTED WASHER
248 N 000125010517 WASHER
252 N 000960010023 SCREW
256 N 000931012283 SCREW
RELEASE YOKE TO SHAFT
260 N 912004016101 LOCK WASHER
BELL HOUSING TO ENGINE
264 N 000934016003 NUT
BELL HOUSING TO ENGINE
268 N 000127010202 LOCK WASHER
BELL HOUSING TO TIMING GEAR CASE
272 N 000931010264 SCREW
BELL HOUSING TO TIMING GEAR CASE
276 A 3352500055 COVER
BELL HOUSING
276 A 3852500155 COVER
BELL HOUSING
280 A 3439930105 SPRING
A 3432500070 PRESSURE PLATE
Repalced by: A 3452507070
284 A 3452507070 PRESSURE PLATE
288 A 3432550010 BRAKE LINING
292 N 007338005300 RIVET
296 A 3432550001 BRAKE DISC
A 3432540016 GUIDE
Repalced by: A 3432540216
300 A 3432540216 GUIDE
304 N 000127010202 LOCK WASHER
308 N 000933010294 SCREW
312 N 000933006221 SCREW
316 N 000934006006 NUT
320 A 3432550019 FRICTION PIECE
324 A 3432550053 SPACER TUBE
328 N 000127010202 LOCK WASHER
332 N 000931010409 SCREW
336 A 3432540010 RELEASE COLLAR
A 0002501915 RELEASE BEARING
Repalced by: A 0002507415
A 0002502515 RELEASE BEARING
Repalced by: A 0002507415
340 A 0002507415 RELEASE BEARING
344 N 071428004102 SCREW-IN FITTING
348 N 007603008112 SEAL RING
352 A 3179930225 SPRING
356 A 3202500015 RELEASE BEARING
360 A 3355730036 HOSE
RELEASE COLLAR LUBRICATION
170 MM
360 A 3859970582 HOSE
RELEASE COLLAR LUBRICATION
360 A 3509977182 HOSE
RELEASE COLLAR LUBRICATION
364 N 003871004100 UNION SCREW
RELEASE COLLAR LUBRICATION
368 N 003862004001 DOUBLE TAPER RING
RELEASE COLLAR LUBRICATION
372 N 071429014110 BULKHEAD FITTING
RELEASE COLLAR LUBRICATION
376 N 000137014203 SPRING WASHER
RELEASE COLLAR LUBRICATION
380 N 080705014001 NUT
RELEASE COLLAR LUBRICATION
384 N 071412008200 GREASE NIPPLE
RELEASE COLLAR LUBRICATION
384 A 3459977188 GREASE NIPPLE
RELEASE COLLAR LUBRICATION
388 N 912004014100 LOCK WASHER
RELEASE COLLAR LUBRICATION
392 N 000934014020 NUT
RELEASE COLLAR LUBRICATION
396 N 071428004102 SCREW-IN FITTING
RELEASE COLLAR LUBRICATION
A 3872510108 INTERMEDIATE PIECE
Repalced by: A 6209970088
N 003411002001 GREASE CUP
Repalced by: A 6209970088
400 A 6209970088 GREASE NIPPLE
RELEASE COLLAR LUBRICATION
404 A 6209880135 CAP
RELEASE COLLAR LUBRICATION
408 A 3435200043 PROTECTIVE PLATE
412 N 000933010294 SCREW
416 N 000127010202 LOCK WASHER
420 N 000125010517 WASHER
424 A 3852510210 COVER PLATE
TO 350 251 02 01
424 A 3852510210 COVER PLATE
TO 350 251 02 01
424 A 3502517010 COVER PLATE
TO 350 251 70 01
428 N 000933008268 SCREW
CLUTCH COVER PLATE TO BELL HOUSING
TO 350 251 02 01,350 251 70 01
432 N 912004008100 LOCK WASHER
CLUTCH COVER PLATE TO BELL HOUSING
TO 350 251 02 01,350 251 70 01
