Transporto priemonė: LS 1924; VIN numerio dalis: 350004

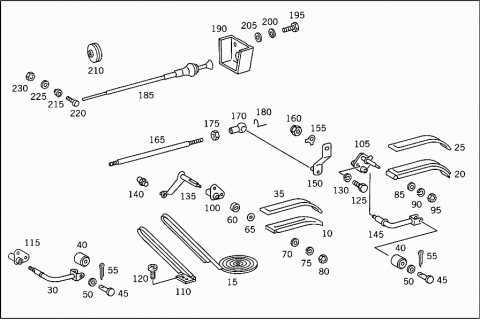

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3523000802 | PLATE |
| 015 | A 3443010082 | PAD |
| ACCELERATOR PEDAL CONTROL | ||
| 020 | A 3503007004 | ACCELERATOR PEDAL |
| 025 | A 3453017082 | PAD |
| 030 | A 3503007225 | LEVER |
| 035 | A 3503017082 | PAD |
| 040 | A 3443000006 | ROLLER |
| 045 | N 001444006220 | PIN |
| ROLLER TO LEVER | ||
| 050 | N 000125006420 | WASHER |
| ROLLER TO LEVER | ||
| 055 | N 000094001610 | COTTER PIN |
| ROLLER TO LEVER | ||
| 060 | A 3523010088 | COVERING |
| PEDAL PLATE TO SHAFT | ||
| 065 | A 3223010054 | GUARD PLATE |
| PEDAL PLATE TO SHAFT | ||
| 070 | N 000125008417 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 075 | N 912004008100 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 080 | N 000934008000 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 085 | N 000433008403 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 090 | N 912004008100 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 095 | N 000934008013 | NUT |
| PEDAL PLATE TO SHAFT | ||
| A 3223000021 | BEARING TUBE | |
| Repalced by: A 3453000021 | ||
| 100 | A 3453000021 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 105 | A 3503007036 | BEARING BRACKET |
| 110 | A 3453007002 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 115 | A 3453007221 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 120 | N 007985006512 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 125 | N 000933008145 | SCREW |
| PEDAL BEARING | ||
| 130 | N 912004008100 | LOCK WASHER |
| PEDAL BEARING | ||
| 135 | A 3373000125 | LEVER |
| A 3129910120 | BALL PIVOT | |
| Repalced by: N 071803010209 | ||
| 140 | N 071803010209 | BALL PIVOT |
| 140 | N 071803010204 | BALL PIVOT |
| 145 | A 3503007025 | LEVER |
| 150 | A 3503007125 | LEVER |
| 155 | A 3603010073 | LOCK |
| LEVER TO LEVER | ||
| 160 | N 913004008001 | NUT |
| LEVER TO LEVER | ||
| 165 | A 3353010315 | ROD |
| 170 | A 0009912422 | BALL SOCKET |
| 175 | N 000934006006 | NUT |
| 180 | N 071805010402 | CIRCLIP |
| A 3353000026 | MANUAL CONTROL | |
| Repalced by: A 3503007026 | ||
| A 3503007026 | MANUAL CONTROL | |
| Repalced by: A 3503007007 | ||
| A 3353020001 | KNOB | |
| TO 335 300 00 26 | ||
| A 3353020092 | THREADED UNION | |
| TO 335 300 00 26 | ||
| 185 | A 3503007007 | KNOB |
| 185 | A 3503007107 | KNOB |
| A 3083007007 | KNOB | |
| Repalced by: A 3503007307 | ||
| A 3503007307 | KNOB | |
| Repalced by: A 3503007907 | ||
| 185 | A 3503007907 | KNOB |
| A 3083007107 | KNOB | |
| Repalced by: A 3083007307 | ||
| A 3083007307 | KNOB | |
| Repalced by: A 3503008007 | ||
| 185 | A 3503008007 | KNOB |
| A 3129901151 | NUT | |
| A 0019900040 | WASHER | |
| 190 | A 3453007340 | BRACKET |
| MANUAL CONTROL | ||
| 195 | N 007985006197 | SCREW |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 200 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 205 | N 000125006420 | WASHER |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 210 | A 3459977181 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| A 0019900040 | WASHER | |
| TO 335 300 00 26 | ||
| A 3129901151 | NUT | |
| TO 335 300 00 26 | ||
| 215 | A 1360720050 | BUSHING |
| MANUAL CONTROL | ||
| 220 | A 1360720071 | SCREW |
| MANUAL CONTROL | ||
| 225 | N 000125004313 | WASHER |
| MANUAL CONTROL | ||
| 230 | N 000934004014 | NUT |
| MANUAL CONTROL | ||
