Transporto priemonė: LS 1924; VIN numerio dalis: 350004

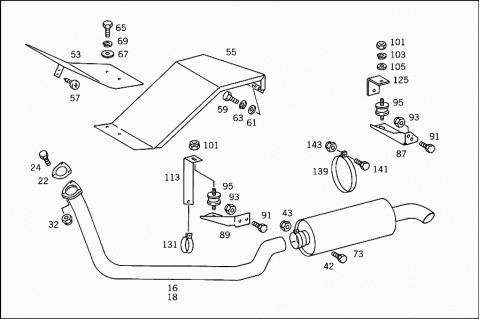

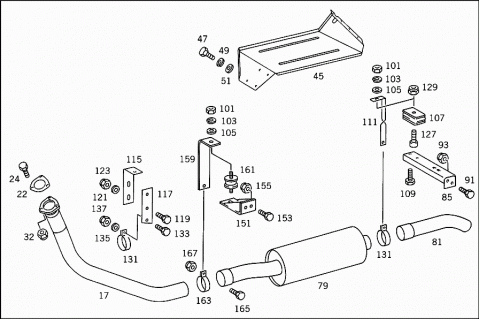

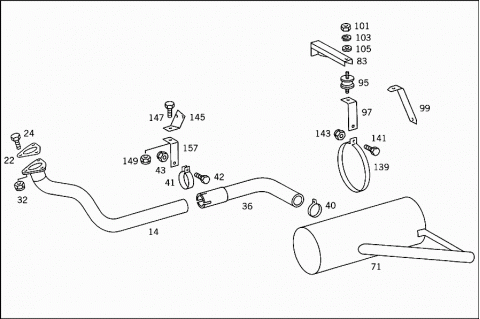

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 014 | A 3504907019 | EXHAUST PIPE |
| FRONT | ||
| 016 | A 3504907319 | EXHAUST PIPE |
| Repalced by: A 3504907519 | ||
| 016 | A 3504907519 | EXHAUST PIPE |
| FRONT | ||
| 017 | A 3504907119 | EXHAUST PIPE |
| 017 | A 3504907219 | EXHAUST PIPE |
| FRONT | ||
| 018 | A 3504907419 | EXHAUST PIPE |
| Repalced by: A 3504907619 | ||
| 018 | A 3504907619 | EXHAUST PIPE |
| FRONT | ||
| 022 | A 0664920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 022 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 022 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | N 000933012135 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 032 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 036 | A 3464925101 | FRONT EXHAUST PIPE |
| FRONT | ||
| 036 | A 3504927201 | FRONT EXHAUST PIPE |
| FRONT | ||
| 040 | A 3034930643 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 041 | N 071555104500 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 042 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 043 | N 913004010004 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 045 | A 3504927030 | PROTECTIVE PLATE |
| 047 | N 000933008228 | SCREW |
| PROTECTIVE PLATE TO AIR DUCT | ||
| M 8X16 | ||
| 047 | N 000933008288 | SCREW |
| PROTECTIVE PLATE TO AIR DUCT | ||
| M 8X25 | ||
| 049 | N 912004008100 | LOCK WASHER |
| PROTECTIVE PLATE TO AIR DUCT | ||
| 051 | N 009021008102 | WASHER |
| PROTECTIVE PLATE TO AIR DUCT | ||
| 053 | A 3504907130 | PROTECTIVE PLATE |
| 053 | A 3504907330 | PROTECTIVE PLATE |
| 053 | A 3504907730 | PROTECTIVE PLATE |
| 055 | A 3504907430 | PROTECTIVE PLATE |
| 055 | A 3505007727 | SUPPORT |
| 057 | N 007981004252 | SHEET METAL SCREW |
| PROTECTIVE PLATE TO AIR DUCT | ||
| 4.8X19 | ||
| 059 | N 000933008228 | SCREW |
| PROTECTIVE PLATE TO FIRE WALL | ||
| M 8X16 | ||
| 061 | N 009021008100 | WASHER |
| PROTECTIVE PLATE TO FIRE WALL | ||
| 063 | N 912004008100 | LOCK WASHER |
| PROTECTIVE PLATE TO FIRE WALL | ||
| 065 | N 000933008288 | SCREW |
| PROTECTIVE PLATE TO SUPPORT | ||
| M 8X25 | ||
| 067 | N 009021008100 | WASHER |
| PROTECTIVE PLATE TO SUPPORT | ||
| 069 | N 912004008100 | LOCK WASHER |
| PROTECTIVE PLATE TO SUPPORT | ||
| 071 | A 3504900201 | EXHAUST MUFFLER |
| 071 | A 3504907001 | EXHAUST MUFFLER |
| 073 | A 3504907015 | EXHAUST MUFFLER WITH PIPE |
| 079 | A 3504907101 | EXHAUST MUFFLER |
| 079 | A 3504907201 | EXHAUST MUFFLER |
| 081 | A 3504927104 | REAR EXHAUST PIPE |
| TO 350 490 71 01 | ||
| 081 | A 3504927204 | REAR EXHAUST PIPE |
| 081 | A 3504927204 | REAR EXHAUST PIPE |
| 083 | A 3504900034 | SUPPORT |
| 083 | A 3504900034 | SUPPORT |
| 085 | A 3504907134 | SUPPORT |
| 087 | A 3504917115 | CONSOLE |
| EXHAUST MUFFLER | ||
| 089 | A 3504917215 | CONSOLE |
| EXHAUST PIPE | ||
| 091 | N 000961012020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X30 | ||
| 091 | N 000933012122 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X30 | ||
| 091 | N 000961012160 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X25 | ||
| 093 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 095 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO CONSOLE | ||
| 097 | A 3504917041 | BRACKET |
| EXHAUST MUFFLER | ||
| 097 | A 3504917141 | BRACKET |
| EXHAUST MUFFLER | ||
| 099 | A 3504917241 | BRACKET |
| EXHAUST MUFFLER | ||
| 101 | N 000934010000 | NUT |
| BRACKET TO CONSOLE | ||
| 103 | N 000127010202 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 105 | N 000125010517 | WASHER |
| BRACKET TO CONSOLE | ||
| 107 | A 3083100077 | BUFFER |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 109 | N 000933010270 | SCREW |
| REAR EXHAUST PIPE TO CONSOLE | ||
| M 10X12 | ||
| 111 | A 3504917341 | BRACKET |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 113 | A 3504927341 | BRACKET |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 115 | A 3504927641 | BRACKET |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 117 | A 3504927741 | BRACKET |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 119 | N 000933010129 | SCREW |
| BRACKET TO BRACKET | ||
| 121 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 123 | N 913004010004 | NUT |
| BRACKET TO BRACKET | ||
| 125 | A 3504917116 | SUPPORT |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 127 | N 000912012002 | SCREW |
| REAR EXHAUST PIPE TO CONSOLE | ||
| M 12X25 | ||
| 129 | N 913004012012 | NUT |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 131 | N 071555104500 | CLAMP |
| REAR EXHAUST PIPE TO CONSOLE | ||
| 131 | N 071555104500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 133 | N 000933008273 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| 135 | N 000125008417 | WASHER |
| EXHAUST PIPE TO BRACKET | ||
| 137 | N 913004008001 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 139 | A 3504917040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET | ||
| 139 | A 3504917040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET | ||
| 141 | N 000933010129 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X30 | ||
| 143 | N 913004010004 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 145 | A 3504920041 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 147 | N 000933008288 | SCREW |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| M 8X25 | ||
| 149 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 151 | A 3504907034 | SUPPORT |
| 153 | N 000961012160 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 12X1.5X25 | ||
| 155 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 157 | A 3504917041 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 159 | A 3504927241 | BRACKET |
| 161 | A 3475040012 | RUBBER MOUNTING |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 163 | N 071555104500 | CLAMP |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 165 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| M 10X30 | ||
| 167 | N 913004010004 | NUT |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
