Transporto priemonė: LS 1924; VIN numerio dalis: 350004
Grupė: 31 FRAME

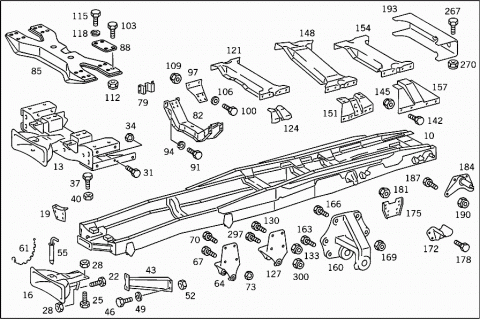

| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3503101801 | FRAME |
| 010 | A 3503101701 | FRAME |
| 010 | A 3503109802 | FRAME |
| A 3503101901 | FRAME | |
| A 3503107801 | FRAME | |
| A 3503107801 | FRAME | |
| 013 | A 3503100226 | ENGINE CROSS MEMBER |
| NO.1 | ||
| 013 | A 3503100326 | ENGINE CROSS MEMBER |
| NO. 1 | ||
| 013 | A 3503100326 | ENGINE CROSS MEMBER |
| NO. 1 | ||
| 013 | A 3503107226 | ENGINE CROSS MEMBER |
| NO.1 | ||
| 016 | A 3373100409 | BRACKET |
| Repalced by: A 3503107009 | ||
| 016 | A 3503107009 | BRACKET |
| WITH COUPLING MOUTH | ||
| 016 | A 3503100009 | BRACKET |
| WITH COUPLING MOUTH | ||
| 016 | A 3503100009 | BRACKET |
| WITH COUPLING MOUTH | ||
| 016 | A 3503107209 | BRACKET |
| WITH COUPLING MOUTH | ||
| 019 | A 3503150027 | ANGLE |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 022 | N 000933010129 | SCREW |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 025 | N 000933010174 | SCREW |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 028 | N 913004010004 | NUT |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 031 | N 000961014105 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 031 | N 000961014106 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 031 | N 000961014107 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 034 | N 913004014004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 037 | N 000961012020 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 040 | N 913004012003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 043 | A 3613100053 | STRUT |
| COUPLING MOUTH | ||
| 046 | N 000933010129 | SCREW |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 049 | N 000125010517 | WASHER |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 052 | N 913004010004 | NUT |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 055 | A 3223150206 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 055 | A 3453157206 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 061 | A 0008500095 | FASTENER |
| FOR COUPLING MOUTH | ||
| 064 | A 3873220301 | FRONT SPRING BRACKET |
| Repalced by: A 3503220101 | ||
| 064 | A 3503220101 | FRONT SPRING BRACKET |
| FRONT | ||
| 067 | A 3879900214 | SCREW |
| 070 | A 3469900014 | SCREW |
| 073 | N 913004016005 | NUT |
| 076 | A 3463105030 | CROSS MEMBER |
| NO.2 | ||
| 079 | A 3503100053 | STRUT |
| 079 | A 3503100053 | STRUT |
| 082 | A 3503120209 | CROSS MEMBER |
| Repalced by: A 3503127005 | ||
| 082 | A 3503127005 | ENGINE CROSS MEMBER |
| REAR | ||
| NO.2 | ||
| 082 | A 3503127005 | ENGINE CROSS MEMBER |
| REAR | ||
| NO.2 | ||
| 085 | A 3503127010 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 088 | A 3503137084 | SHIM |
| Repalced by: A 3873120084 | ||
| 088 | A 3873120084 | SHIM |
| 091 | N 000961012020 | SCREW |
| REAR | ||
| 091 | N 000961012020 | SCREW |
| REAR | ||
| 094 | N 000127012201 | LOCK WASHER |
| REAR | ||
| 094 | N 000127012201 | LOCK WASHER |
| REAR | ||
| 097 | A 3503120961 | STRUT |
| 097 | A 3503120961 | STRUT |
| 100 | N 000961012020 | SCREW |
| STRUT TO SIDE MEMBER AND TO ENGINE SUPPORT | ||
| 100 | N 000961012020 | SCREW |
| STRUT TO SIDE MEMBER AND TO ENGINE SUPPORT | ||
| 103 | N 000961014107 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 103 | N 000961014101 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X45 | ||
| 106 | N 000125013012 | WASHER |
| STRUT TO SIDE MEMBER AND TO ENGINE SUPPORT | ||
| 106 | N 000125013012 | WASHER |
| STRUT TO SIDE MEMBER AND TO ENGINE SUPPORT | ||
| 109 | N 913004012003 | NUT |
| STRUT TO SIDE MEMBER AND TO ENGINE SUPPORT | ||
| 112 | N 913004014004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 112 | N 913004014004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 115 | N 000961014105 | SCREW |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| M 14X30 | ||
| 118 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| 121 | A 3353122225 | CROSS MEMBER |
| TRANSMISSION | ||
| NO. 3 | ||
| 124 | A 3503120461 | STRUT |
| (CROSS MEMBER) | ||
| 127 | A 3503220103 | FRONT SPRING BRACKET |
| REAR | ||
| 127 | A 3503220103 | FRONT SPRING BRACKET |
| REAR | ||
| 127 | A 6203220003 | FRONT SPRING BRACKET |
| REAR | ||
| 127 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 130 | N 000961014109 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X48 MM | ||
| 130 | N 000961014109 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X48 MM | ||
| 130 | N 000961014106 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X35 MM | ||
| 130 | N 000961014106 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X35 MM | ||
| 133 | N 913004014004 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 133 | N 913004014004 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 118 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 118K | ||
| 142 | N 000961014105 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 142 | N 000961014107 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 145 | N 913004014004 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 148 | A 3463125025 | CROSS MEMBER |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| NO.3 | ||
| 148 | A 3463125025 | CROSS MEMBER |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| NO.4 | ||
| 151 | A 3503120561 | STRUT |
| LEFT | ||
| 151 | A 3503120661 | STRUT |
| RIGHT | ||
| 154 | A 3873120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.4 | ||
| 154 | A 3873120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.5 | ||
| 157 | A 3873120161 | STRUT |
| REAR SPRING RIGHT FRONT BRACKET | ||
| 157 | A 3503127161 | STRUT |
| REAR SPRING LEFT FRONT BRACKET | ||
| 160 | A 3873250001 | REAR SPRING BRACKET |
| FRONT | ||
| 163 | N 000961016102 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 166 | N 000961016012 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 169 | N 913004016004 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 172 | A 3453257017 | HELPER SPRING BRACKET |
| Repalced by: A 3523250417 | ||
| 172 | A 3523250417 | HELPER SPRING BRACKET |
| HELPER SPRING | ||
| 175 | A 3353250241 | STIFFENING |
| HELPER SPRING BRACKET | ||
| 178 | N 000961012171 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 181 | N 913004012003 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 184 | A 3353250603 | REAR SPRING BRACKET |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 187 | N 000961014106 | SCREW |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 190 | N 913004014004 | NUT |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 193 | A 3873120035 | CROSS MEMBER |
| Repalced by: A 3503127135 | ||
| 193 | A 3503127135 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||

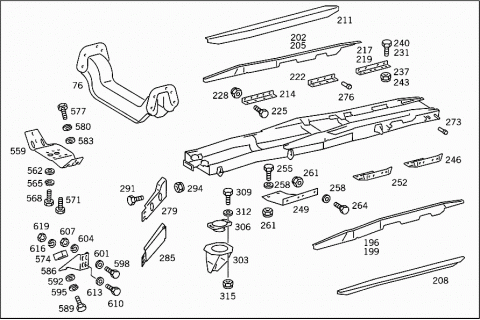

| 196 | A 3503160401 | SIDE MEMBER |
| LEFT | ||
| 199 | A 3503160501 | SIDE MEMBER |
| LEFT | ||
| 199 | A 3503160501 | SIDE MEMBER |
| LEFT | ||
| 202 | A 3503160402 | SIDE MEMBER |
| RIGHT | ||
| 205 | A 3503160502 | SIDE MEMBER |
| RIGHT | ||
| 205 | A 3503160502 | SIDE MEMBER |
| RIGHT | ||
| 208 | A 3503160352 | ANGLE |
| LEFT OUTSIDE | ||
| 211 | A 3503160452 | ANGLE |
| RIGHT OUTSIDE | ||
| 214 | A 3503160052 | ANGLE |
| 217 | A 3503167052 | ANGLE |
| 219 | A 3503167452 | ANGLE |
| LEFT | ||
| 222 | A 3503160252 | ANGLE |
| 225 | N 000961012020 | SCREW |
| ANGLE TO FRAME | ||
| 228 | N 913004012003 | NUT |
| ANGLE TO FRAME | ||
| 231 | N 000961012171 | SCREW |
| ANGLE TO FRAME | ||
| 231 | N 000961014107 | SCREW |
| ANGLE TO FRAME | ||
| 237 | N 913004014005 | NUT |
| ANGLE TO FRAME | ||
| 240 | N 000961012106 | SCREW |
| SIDE MEMBER TO FRAME | ||
| 243 | N 913001012000 | NUT |
| SIDE MEMBER TO FRAME | ||
| 246 | A 3503160140 | BRACKET |
| AUXILIARY FRAME | ||
| 249 | A 3503160340 | BRACKET |
| AUXILIARY FRAME | ||
| 252 | A 3503160240 | BRACKET |
| AUXILIARY FRAME | ||
| 255 | N 000961012171 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 255 | N 000961012106 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 258 | N 000125013012 | WASHER |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 261 | N 913004012003 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 264 | N 000961012154 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 267 | N 000961012151 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 270 | N 913004012003 | NUT |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 273 | N 910005010019 | RIVET |
| 10X32 MM | ||
| 273 | N 910005010021 | RIVET |
| 10X34 MM | ||
| 276 | N 910005012001 | RIVET |
| 12X28 MM | ||
| 276 | A 0009900696 | RIVET |
| Repalced by: N 910005012002 | ||
| 276 | N 910005012002 | RIVET |
| 12X30 MM | ||
| 276 | N 910005012001 | RIVET |
| 12X31 MM | ||
| 276 | A 0009900796 | RIVET |
| Repalced by: N 910005012015 | ||
| 276 | N 910005012029 | RIVET |
| 12X32 MM | ||
| 276 | A 0009900896 | RIVET |
| Repalced by: N 910005012016 | ||
| 276 | N 910005012076 | RIVET |
| 12X34 MM | ||
| 276 | A 0009900996 | RIVET |
| Repalced by: N 910005012017 | ||
| 276 | N 910005012017 | RIVET |
| 12X36 MM | ||
| 276 | A 0009901096 | RIVET |
| Repalced by: N 910005012018 | ||
| 276 | N 910005012018 | RIVET |
| 12X38 MM | ||
| 276 | A 0009901196 | RIVET |
| Repalced by: N 910005012019 | ||
| 276 | N 910005012019 | RIVET |
| 12X40 MM | ||
| 276 | A 0009902296 | RIVET |
| Repalced by: N 910005012020 | ||
| 276 | N 910005012006 | RIVET |
| 12X42 MM | ||
| 276 | A 0009902396 | RIVET |
| Repalced by: N 910005012021 | ||
| 276 | N 910005012021 | RIVET |
| 12 X 45 MM | ||
| 276 | N 910005012036 | RIVET |
| 12X48 MM | ||
| 276 | A 0009902796 | RIVET |
| Repalced by: N 910005012023 | ||
| 276 | N 910005012023 | RIVET |
| 12X50 MM | ||
| 276 | N 910005014026 | RIVET |
| 14X34 MM | ||
| 276 | N 910005014005 | RIVET |
| 14X42 MM | ||
| 279 | A 3523130826 | BRACKET |
| LEFT | ||
| 279 | A 3523130826 | BRACKET |
| LEFT | ||
| 279 | A 3503157194 | REINFORCEMENT |
| LEFT | ||
| 285 | A 3523130926 | BRACKET |
| RIGHT | ||
| 285 | A 3523130926 | BRACKET |
| RIGHT | ||
| 285 | A 3503157294 | REINFORCEMENT |
| RIGHT | ||
| 291 | N 000933010174 | SCREW |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 294 | N 913004010004 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 297 | N 000961014106 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 300 | N 913004014004 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 303 | A 3503100167 | BODY SUPPORT |
| 306 | A 3503107057 | PLATE |
| WITH CUP | ||
| 309 | N 000961012106 | SCREW |
| PLATE WITH CUP TO BODY SUPPORT | ||
| 312 | A 3509907140 | WASHER |
| PLATE WITH CUP TO BODY SUPPORT | ||
| 315 | N 913004012003 | NUT |
| PLATE WITH CUP TO BODY SUPPORT | ||
| N 000961012020 | SCREW | |
| BODY SUPPORT TO FRAME | ||
| N 913004012003 | NUT | |
| BODY SUPPORT TO FRAME | ||
| 324 | A 3615200072 | ANGLE |
| BUMPER,LEFT | ||
| 324 | A 3505200072 | ANGLE |
| BUMPER,LEFT | ||
| 327 | A 3615200172 | ANGLE |
| BUMPER,RIGHT | ||
| 327 | A 3505200172 | ANGLE |
| BUMPER,RIGHT | ||
| 330 | N 000961012020 | SCREW |
| 333 | N 000127012201 | LOCK WASHER |
| 336 | N 000934012004 | NUT |
| 339 | N 000961014106 | SCREW |
| 342 | N 000961014107 | SCREW |
| 345 | N 000127014201 | LOCK WASHER |
| 348 | N 000934014020 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |

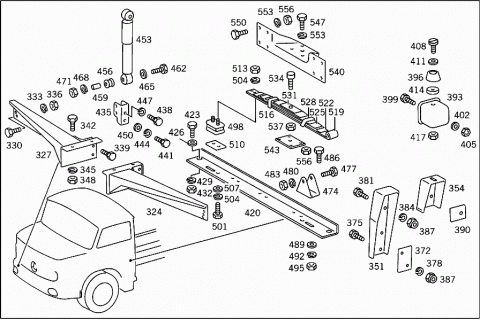

| CAB SUSPENSION | ||
| 351 | A 3503170301 | CONSOLE |
| REAR LEFT | ||
| 351 | A 3503170301 | CONSOLE |
| REAR LEFT | ||
| 351 | A 3503170401 | CONSOLE |
| RIGHT REAR | ||
| 351 | A 3503170401 | CONSOLE |
| RIGHT REAR | ||
| 354 | A 3503170101 | CONSOLE |
| REAR LEFT | ||
| 354 | A 3503170201 | CONSOLE |
| RIGHT REAR | ||
| 354 | A 3503170101 | CONSOLE |
| LEFT | ||
| 354 | A 3503170201 | CONSOLE |
| RIGHT | ||
| 357 | A 3508907031 | CONSOLE |
| 360 | N 000933008288 | SCREW |
| CONSOLE TO FRAME | ||
| 363 | N 009021008102 | WASHER |
| CONSOLE TO FRAME | ||
| 366 | N 912004008100 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 369 | N 000934008010 | NUT |
| CONSOLE TO FRAME | ||
| 372 | A 3508910110 | WASHER |
| 375 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 375 | N 000961012171 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 378 | N 000127012201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 381 | N 000961012020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 381 | N 000960012041 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 384 | N 000127012201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 387 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 390 | A 3505410184 | SHIM |
| 390 | A 3505410184 | SHIM |
| 393 | A 3508907031 | CONSOLE |
| 396 | A 3348910072 | MOUNTING |
| 399 | N 000933008288 | SCREW |
| CONSOLE TO FRAME | ||
| 402 | N 009021008102 | WASHER |
| CONSOLE TO FRAME | ||
| 402 | N 009021008102 | WASHER |
| CONSOLE TO FRAME | ||
| 405 | N 000934008010 | NUT |
| CONSOLE TO FRAME | ||
| 408 | N 000085008121 | SCREW |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 408 | N 000085008121 | SCREW |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 408 | N 000085008130 | SCREW |
| 411 | N 009021008100 | WASHER |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 414 | A 3469905040 | WASHER |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 414 | A 3469905040 | WASHER |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 417 | N 000934008000 | NUT |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 420 | A 3508917031 | CONSOLE |
| 423 | N 000961014192 | SCREW |
| CONSOLE TO CONSOLE | ||
| 426 | A 3359900540 | WASHER |
| CONSOLE TO CONSOLE | ||
| 429 | N 000127014201 | LOCK WASHER |
| CONSOLE TO CONSOLE | ||
| 432 | N 000934014020 | NUT |
| CONSOLE TO CONSOLE | ||
| 435 | A 3508900003 | MOUNTING |
| VIBRATION ABSORBER | ||
| 438 | N 000961012160 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 441 | N 000933010129 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 444 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 447 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 450 | N 009021010102 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 453 | A 0008910505 | SHOCK ABSORBER |
| Repalced by: A 3508917005 | ||
| 453 | A 3508917005 | SHOCK ABSORBER |
| 453 | A 0008911205 | SHOCK ABSORBER |
| FICHTEL & SACHS | ||
| 456 | A 0008910001 | RUBBER MOUNTING |
| TO 000 891 12 05 | ||
| 459 | A 0008910017 | BUSHING |
| TO 000 891 12 05 | ||
| 459 | A 3368910050 | SPRING BUSHING |
| 462 | N 000961012184 | SCREW |
| SHOCK ABSORBER MOUNTING | ||
| 462 | N 000961012192 | SCREW |
| SHOCK ABSORBER MOUNTING | ||
| 465 | N 000125013012 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 468 | N 000127012201 | LOCK WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 471 | N 000934012004 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 474 | A 3358910820 | MOUNTING |
| 477 | N 000961012079 | SCREW |
| BEARING BRACKET TO LEAF SPRING | ||
| 480 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO LEAF SPRING | ||
| 483 | N 000934012004 | NUT |
| BEARING BRACKET TO LEAF SPRING | ||
| 486 | N 000933010129 | SCREW |
| MOUNTING TO CONSOLE | ||
| 489 | N 009021010102 | WASHER |
| LEAF SPRING TO CAB | ||
| 492 | N 000127010202 | LOCK WASHER |
| LEAF SPRING TO CAB | ||
| 495 | N 000934010000 | NUT |
| LEAF SPRING TO CAB | ||
| 498 | A 3358900001 | MOUNTING |
| CAB | ||
| 501 | N 000933010174 | SCREW |
| MOUNTING TO CONSOLE | ||
| 504 | N 000127010202 | LOCK WASHER |
| MOUNTING TO CONSOLE | ||
| 507 | N 009021010102 | WASHER |
| MOUNTING TO CONSOLE | ||
| 510 | A 3353170884 | SHIM |
| MOUNTING TO CONSOLE | ||
| 513 | N 000934010000 | NUT |
| MOUNTING TO CONSOLE | ||
| 516 | A 3368900005 | SPRING |
| CAB | ||
| 519 | A 3368910151 | SPRING |
| 755 MM | ||
| 522 | A 3368910251 | SPRING |
| 650 MM | ||
| 525 | A 3368910351 | SPRING |
| 510 MM | ||
| 528 | A 3368910451 | SPRING |
| 370 MM | ||
| 531 | A 3368910551 | SPRING |
| 240 MM | ||
| 534 | N 004626008103 | SPRING BOLT |
| 537 | N 000934008000 | NUT |
| 540 | A 3358910210 | CONSOLE |
| SPRING SUSPENSION | ||
| 543 | A 3358911511 | PLATE |
| 547 | N 000933010261 | SCREW |
| 547 | N 000931010102 | SCREW |
| CONSOLE TO CAB | ||
| 547 | N 000931010102 | SCREW |
| CONSOLE TO CAB | ||
| 550 | N 000933010174 | SCREW |
| CONSOLE TO CAB | ||
| 550 | N 000933010174 | SCREW |
| CONSOLE TO CAB | ||
| 550 | N 000931010399 | SCREW |
| CONSOLE TO CAB | ||
| 553 | N 000127010202 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 556 | N 000934010000 | NUT |
| CONSOLE TO CAB | ||
| 559 | A 3502600060 | SUPPORT |
| TRANSMISSION BRACING | ||
| 559 | A 3502600060 | SUPPORT |
| TRANSMISSION BRACING | ||
| 562 | N 000125013012 | WASHER |
| SUPPORT TO TRANSMISSION | ||
| 562 | N 000125013012 | WASHER |
| SUPPORT TO TRANSMISSION | ||
| 565 | N 000127012201 | LOCK WASHER |
| SUPPORT TO TRANSMISSION | ||
| 565 | N 000127012201 | LOCK WASHER |
| SUPPORT TO TRANSMISSION | ||
| 568 | N 000961012106 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| 571 | N 000960012041 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| 571 | N 000960012041 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| 574 | A 3502660084 | SHIM |
| SUPPORT TO TRANSMISSION | ||
| 574 | A 3502660084 | SHIM |
| SUPPORT TO TRANSMISSION | ||
| 574 | A 3612660084 | RUBBER MOUNTING |
| 574 | A 3612660084 | RUBBER MOUNTING |
| 574 | A 3452667084 | SHIM |
| Repalced by: A 3612660184 | ||
| 574 | A 3612660184 | RUBBER MOUNTING |
| 574 | A 3612660184 | RUBBER MOUNTING |
| 577 | N 000933010174 | SCREW |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 577 | N 000933010174 | SCREW |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 580 | N 000127010202 | LOCK WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 580 | N 000127010202 | LOCK WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 583 | N 009021010102 | WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 583 | N 009021010102 | WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 586 | A 3502660101 | CONSOLE |
| TRANSMISSION SUSPENSION | ||
| 586 | A 3502660101 | CONSOLE |
| TRANSMISSION SUSPENSION | ||
| 586 | A 3502660201 | CONSOLE |
| TRANSMISSION SUSPENSION | ||
| 586 | A 3502660201 | CONSOLE |
| TRANSMISSION SUSPENSION | ||
| 589 | N 000933010294 | SCREW |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 589 | N 000933010294 | SCREW |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 592 | N 009021010102 | WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 592 | N 009021010102 | WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 595 | N 000127010202 | LOCK WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 595 | N 000127010202 | LOCK WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 598 | N 000961012171 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 598 | N 000961012020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 598 | N 000961012020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 601 | A 1839903140 | WASHER |
| Repalced by: N 000125013009 | ||
| 601 | N 000125013012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 601 | N 000125013012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 604 | N 000127012201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 607 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 607 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 610 | N 000961014101 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 610 | N 000961014105 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 610 | N 000961014105 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 613 | N 000125015012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 613 | N 000125015012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 616 | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 619 | N 913004014004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 619 | N 913004014004 | NUT |
| CONSOLE TO SIDE MEMBER | ||

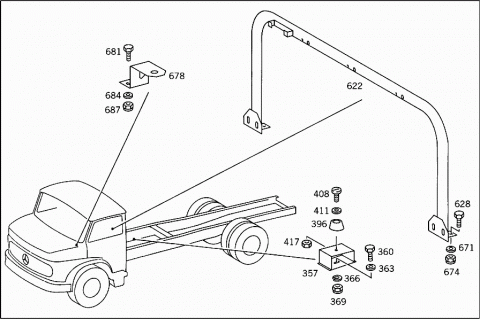

| 622 | A 3505207151 | CLAMP |
| N 900271045016 | HOSE | |
| 628 | N 000933010129 | SCREW |
| CLAMP TO CONSOLE | ||
| 671 | N 000125010517 | WASHER |
| CLAMP TO CONSOLE | ||
| 674 | N 913004010014 | NUT |
| CLAMP TO CONSOLE | ||
| 678 | A 3505207941 | BRACKET |
| REAR RIGHT,ENGINE SUSPENSION | ||
| 681 | N 000933010129 | SCREW |
| BRACKET TO CONSOLE | ||
| 684 | N 000125010517 | WASHER |
| BRACKET TO CONSOLE | ||
| 687 | N 913004010014 | NUT |
| BRACKET TO CONSOLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
