Transporto priemonė: LS 1924; VIN numerio dalis: 350004
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

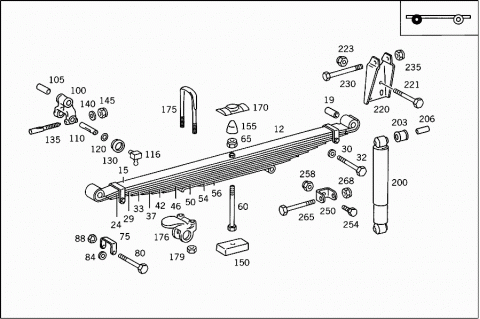

| 012 | A 3893200002 | FRONT SPRING |
| Repalced by: A 3503207102 | ||
| 012 | A 3503207102 | FRONT SPRING |
| 8-LEAF | ||
| 012 | A 3953200002 | FRONT SPRING |
| 10-LEAF | ||
| 015 | A 3893200094 | SPRING LEAF |
| Repalced by: A 3503200394 | ||
| 015 | A 3503200394 | SPRING LEAF |
| NO.1 | ||
| 015 | A 3953200394 | SPRING LEAF |
| NO.1 | ||
| 019 | A 3043210150 | BUSHING |
| 019 | A 6203210050 | BUSHING |
| 024 | A 3893210012 | SPRING LEAF |
| Repalced by: A 3503217012 | ||
| 024 | A 3503217012 | SPRING LEAF |
| NO.2 | ||
| 024 | A 3953210312 | SPRING LEAF |
| NO.1 | ||
| NO.2 | ||
| 029 | A 3463215513 | SPRING LEAF |
| Repalced by: A 3503217013 | ||
| 029 | A 3503217013 | SPRING LEAF |
| NO.3 | ||
| 029 | A 3953210013 | SPRING LEAF |
| NO. 3 | ||
| 029 | A 3503200494 | SPRING LEAF |
| NO.3 | ||
| 030 | A 3039902440 | WASHER |
| 032 | N 000963012011 | SCREW |
| 033 | A 3463215514 | SPRING LEAF |
| NO.4 | ||
| 033 | A 3953210014 | SPRING LEAF |
| NO. 4 | ||
| 037 | A 3463215515 | SPRING LEAF |
| NO.5 | ||
| 037 | A 3953210015 | SPRING LEAF |
| NO. 5 | ||
| 042 | A 3463215516 | SPRING LEAF |
| NO.6 | ||
| 042 | A 3953210016 | SPRING LEAF |
| NO. 6 | ||
| 046 | A 3463215517 | SPRING LEAF |
| NO.7 | ||
| 046 | A 3953210017 | SPRING LEAF |
| NO. 7 | ||
| 050 | A 3463215518 | SPRING LEAF |
| NO.8 | ||
| 050 | A 3953210018 | SPRING LEAF |
| NO. 8 | ||
| 054 | A 3953210019 | SPRING LEAF |
| NO. 9 | ||
| 056 | A 3953210020 | SPRING LEAF |
| NO. 10 | ||
| 060 | A 3353210071 | SCREW |
| 060 | A 3463215071 | SCREW |
| 065 | N 913004014005 | NUT |
| 075 | A 0003246433 | SPRING CLAMP |
| Repalced by: A 0003249633 | ||
| 075 | A 0003249633 | SPRING CLAMP |
| 080 | N 000960012351 | SCREW |
| 084 | A 3039902440 | WASHER |
| 088 | N 000934012004 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT SPRING SUSPENSION,FRONT | ||
| 100 | A 3703200062 | SHACKLE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 387 320 01 62 | ||
| 105 | A 3043210150 | BUSHING |
| 105 | A 6203210050 | BUSHING |
| 110 | A 3703220030 | SHACKLE PIN |
| Repalced by: A 3503227030 | ||
| 110 | A 3503227030 | SHACKLE PIN |
| Repalced by: A 3503227130 | ||
| 110 | A 3503227130 | SHACKLE PIN |
| 116 | N 071412010300 | GREASE NIPPLE |
| 120 | A 3523230376 | WASHER |
| 4.00 MM | ||
| 120 | A 3453230376 | WASHER |
| 4.00 MM | ||
| 120 | A 3523230476 | WASHER |
| 4.20 MM | ||
| 120 | A 3453230276 | WASHER |
| 4.20 MM | ||
| 120 | A 3523230576 | WASHER |
| 4.30 MM | ||
| 120 | A 3453230176 | WASHER |
| 4.30 MM | ||
| 130 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 135 | A 3529900337 | BOLT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 140 | N 000125010517 | WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 145 | N 913004010004 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 150 | A 3353310328 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3263310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 170 | A 3043310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 175 | A 3203310325 | U-BOLT |
| 175 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 176 | A 3703230020 | BEARING |
| 176 | A 3703230120 | BEARING |
| 179 | N 000934020002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE SHOCK ABSORBER | ||
| 200 | A 3503237000 | SHOCK ABSORBER |
| AMORTEX | ||
| 200 | A 0023235300 | SHOCK ABSORBER |
| BOGE | ||
| 200 | A 3503237100 | SHOCK ABSORBER |
| COFOP | ||
| 203 | A 0003232444 | RUBBER BUFFER |
| TO 002 323 53 00 | ||
| 206 | A 0003232550 | BUSHING |
| TO 002 323 53 00 | ||
| 220 | A 3363230040 | BRACKET |
| SHOCK ABSORBER | ||
| 221 | N 000961012020 | SCREW |
| BRACKET TO SUPPORT | ||
| 221 | N 000961012106 | SCREW |
| BRACKET TO SUPPORT | ||
| 223 | N 913004012003 | NUT |
| BRACKET TO SUPPORT | ||
| 230 | N 000960016238 | SCREW |
| SHOCK ABSORBER MOUNTING | ||
| 235 | N 913004016004 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 250 | A 3393230040 | BRACKET |
| Repalced by: A 3953230140 | ||
| 250 | A 3953230140 | BRACKET |
| 254 | A 3349900001 | SCREW |
| BRACKET TO SPRING BRACKET | ||
| 258 | N 913004020004 | NUT |
| BRACKET TO SPRING BRACKET | ||
| 265 | N 000960016238 | SCREW |
| SHOCK ABSORBER MOUNTING | ||
| 268 | N 913004016004 | NUT |
| SHOCK ABSORBER MOUNTING | ||

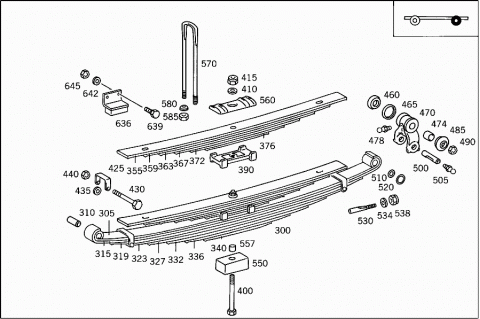

| 300 | A 3893200308 | REAR SPRING |
| 8-LEAF | ||
| 300 | A 3633200508 | REAR SPRING |
| 6-LEAF | ||
| 305 | A 3893200393 | SPRING LEAF |
| NO.1 | ||
| 305 | A 3463205493 | SPRING LEAF |
| NO.1,TO 363 320 05 08 | ||
| 310 | A 3353240350 | BUSHING |
| 310 | A 6203240050 | BUSHING |
| 315 | A 3893240312 | SPRING LEAF |
| NO.2 | ||
| 315 | A 3353241412 | SPRING LEAF |
| NO.2,TO 363 320 05 08 | ||
| 319 | A 3893240313 | SPRING LEAF |
| NO.3 | ||
| 319 | A 3503200293 | SPRING LEAF |
| NO.3,TO 363 320 05 08 | ||
| A 3353241413 | SPRING LEAF | |
| NO.3,TO 363 320 05 08 | ||
| 323 | A 3893240314 | SPRING LEAF |
| NO.4 | ||
| 323 | A 3353241414 | SPRING LEAF |
| NO.4,TO 363 320 05 08 | ||
| 327 | A 3893240315 | SPRING LEAF |
| NO.5 | ||
| 327 | A 3353241415 | SPRING LEAF |
| NO.5,TO 363 320 05 08 | ||
| 332 | A 3893240316 | SPRING LEAF |
| NO.6 | ||
| 332 | A 3353241416 | SPRING LEAF |
| NO.6,TO 363 320 05 08 | ||
| 336 | A 3893240317 | SPRING LEAF |
| NO.7 | ||
| 340 | A 3893240318 | SPRING LEAF |
| NO.8 | ||
| A 3893200010 | HELPER SPRING | |
| 6-LEAF | ||
| 355 | A 3893240340 | SPRING LEAF |
| NO.1 | ||
| 355 | A 3363240940 | SPRING LEAF |
| NO.1 | ||
| 359 | A 3893240341 | SPRING LEAF |
| NO.2 | ||
| 359 | A 3353241440 | SPRING LEAF |
| NO.2 | ||
| 363 | A 3893240342 | SPRING LEAF |
| NO.3 | ||
| 363 | A 3353241414 | SPRING LEAF |
| NO.3 | ||
| 367 | A 3893240343 | SPRING LEAF |
| NO.4 | ||
| 367 | A 3353241415 | SPRING LEAF |
| NO.4 | ||
| 372 | A 3893240344 | SPRING LEAF |
| NO.5 | ||
| 372 | A 3353241416 | SPRING LEAF |
| NO.5 | ||
| 376 | A 3893240345 | SPRING LEAF |
| NO.6 | ||
| 390 | A 3873240035 | SPACER |
| 400 | A 3463245071 | SPRING BOLT |
| 400 | A 3473240271 | SPRING BOLT |
| TO 363 320 05 08 | ||
| 410 | N 007349019002 | WASHER |
| 415 | N 913004018000 | NUT |
| 425 | A 0003246733 | SPRING CLAMP |
| 425 | A 0003246333 | SPRING CLAMP |
| TO 363 320 05 08 | ||
| 430 | N 000960012351 | SCREW |
| 435 | A 3039902440 | WASHER |
| 440 | N 000934012041 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR SPRING SUSPENSION | ||
| 460 | A 3463255062 | THRUST WASHER |
| 465 | A 0029973640 | SEAL RING |
| 470 | A 3463205063 | SHACKLE |
| REAR SPRING | ||
| 474 | A 3353240050 | BUSHING |
| REAR SPRING | ||
| 478 | N 071412008200 | GREASE NIPPLE |
| REAR SPRING | ||
| 478 | A 3459977188 | GREASE NIPPLE |
| REAR SPRING | ||
| 485 | A 3463255162 | THRUST WASHER |
| Repalced by: A 3503257062 | ||
| 485 | A 3503257062 | THRUST WASHER |
| 490 | N 000439024202 | NUT |
| 500 | A 3353250030 | SHACKLE PIN |
| Repalced by: A 3893250230 | ||
| 500 | A 3893250230 | SHACKLE PIN |
| Repalced by: A 3503257130 | ||
| 500 | A 3503257130 | SHACKLE PIN |
| 505 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING PIN | ||
| 510 | A 3523230976 | WASHER |
| 4.00 MM | ||
| 510 | A 3453230776 | WASHER |
| 4.00 MM | ||
| 510 | A 3523231076 | WASHER |
| 4.20 MM | ||
| 510 | A 3453230676 | WASHER |
| 4.20 MM | ||
| 510 | A 3523231176 | WASHER |
| 4.30 MM | ||
| 510 | A 3453230576 | WASHER |
| 4.30 MM | ||
| 520 | A 0029973040 | SEAL RING |
| 530 | A 3529900337 | BOLT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 534 | N 000125010517 | WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 538 | N 913004010004 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 550 | A 3503510128 | PAD |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 550 | A 3503510128 | PAD |
| Repalced by: A 3503257084 | ||
| 550 | A 3503257084 | SHIM |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 550 | A 3873510128 | PAD |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 550 | A 3873510128 | PAD |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 557 | A 3893250074 | PIN |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| TO 387 351 00 25,350 351 01 28 | ||
| 560 | A 3873510026 | SPRING CLAMPING PLATE |
| Repalced by: A 6203510026 | ||
| 560 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 570 | A 3873510025 | U-BOLT |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 570 | A 3353510725 | U-BOLT |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 570 | A 3353510025 | U-BOLT |
| Repalced by: A 3353510125 | ||
| 570 | A 3353510125 | U-BOLT |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 580 | A 3879975026 | WASHER |
| Repalced by: A 3509977026 | ||
| 580 | A 3509977026 | WASHER |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||
| 585 | N 000934024006 | NUT |
| REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL | ||

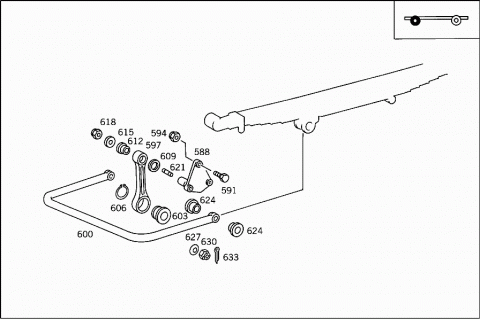

| 588 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 588 | A 3873230563 | BEARING BRACKET |
| STABILIZER | ||
| 591 | N 000961016077 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 594 | N 913004016004 | NUT |
| BEARING BRACKET TO FRAME | ||
| 597 | A 3873231016 | LINK |
| 600 | A 3873230165 | TORSION BAR |
| 603 | A 3873230285 | RUBBER MOUNTING |
| 606 | N 000983068000 | LOCK RING |
| 68 X 2.5 | ||
| 609 | A 3873230052 | SPACER WASHER |
| 612 | A 0003232150 | BUSHING |
| 615 | A 3873230152 | SPACER WASHER |
| 618 | N 913004012003 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 621 | A 3353230074 | PIN |
| 624 | A 0003230950 | BUSHING |
| 627 | A 0009932026 | DISC SPRING |
| 630 | N 000935020000 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 633 | N 000094004065 | COTTER PIN |
| TORSION BAR TO BEARING BRACKET | ||
| 636 | A 3443207029 | STOP |
| 639 | N 000963010025 | SCREW |
| STOP TO FRAME | ||
| 642 | N 000125010517 | WASHER |
| STOP TO FRAME | ||
| 645 | N 000934010005 | NUT |
| STOP TO FRAME | ||
