Transporto priemonė: LS 1924; VIN numerio dalis: 350013
Grupė: 42 BRAKES

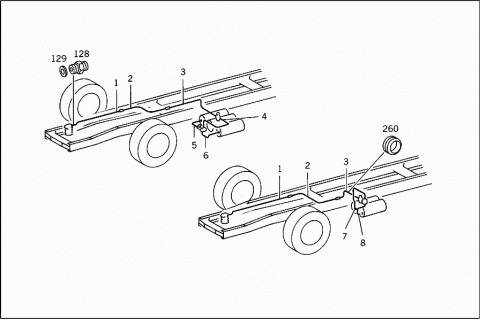

42064
42065
42066
42067
42068
42069

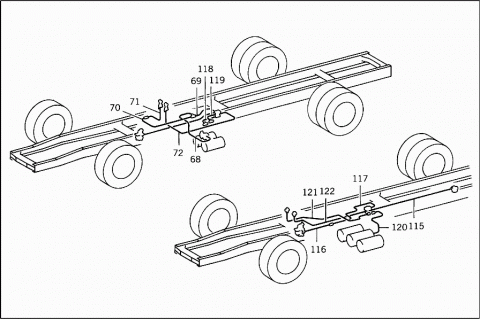

42070
42071
42072

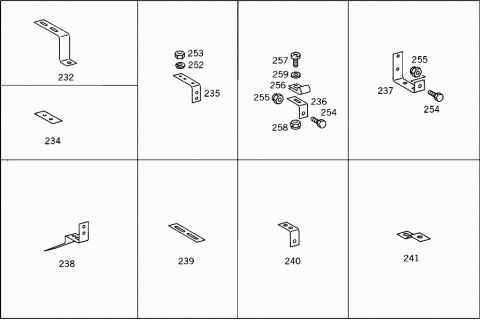

42073
42074

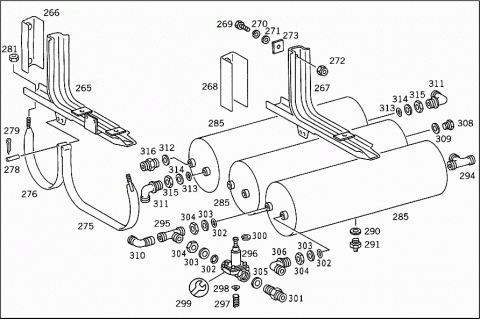

42075
42076

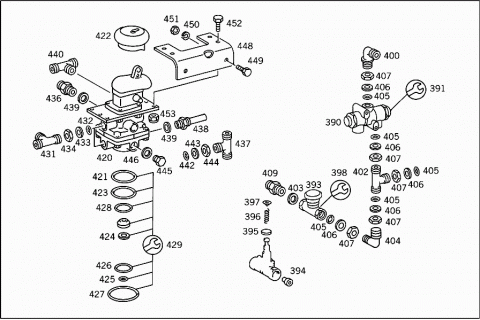

42077
42078
42079

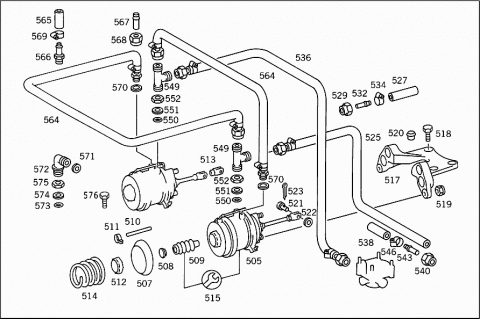

42080
42081
42082
42083
42084
42085
# Kodas Pavadinimas
001 A 3504203236 LINE
FROM AIR COMPRESSOR TO FITTING
18X1.5 MM
001 A 3504204426 LINE
FROM AIR COMPRESSOR TO FITTING
15X1,5 MM
001 A 3504208128 LINE
Repalced by: A 3504209728
001 A 3504209728 LINE
FROM AIR COMPRESSOR TO FITTING
15X1,5 MM
002 A 3504201237 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
18X1.5 MM
002 A 3504204526 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
15X1,5 MM
002 A 3504204526 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
15X1,5 MM
002 A 3504208428 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
15X1,5 MM
002 A 3504208228 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
15X1.5 MM
003 A 3504201337 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
18X1.5 MM
003 A 3504204726 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
15X1,5 MM
003 A 3504208628 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
15X1,5 MM
003 A 3504204626 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
15X1,5 MM
003 A 3504204626 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
15X1,5 MM
003 A 3504208528 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
15X1,5 MM
003 A 3504208328 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
15X1.5 MM
004 A 3504201437 LINE
FROM PRESSURE REGULATOR TO PROTECTIVE VALVE
15X1.5 MM
005 A 3504201637 LINE
FROM OVERFLOW VALVE TO AIR RESERVOIR III
15X1.5 MM
006 A 3504201537 LINE
FROM PROTECT. VALVE TO AIR RESERVOIR I
15X1.5 MM
007 A 3504204945 LINE
FROM PROTECTIVE VALVE TO AIR RESERVOIR
12X1 MM
007 A 3504204945 LINE
FROM PROTECTIVE VALVE TO AIR RESERVOIR
12X1 MM
007 A 3504206449 LINE
FROM PROTECTIVE VALVE TO AIR RESERVOIR
008 A 3504205045 LINE
FROM PROTECTIVE VALVE TO AIR RESERVOIR
12X1 MM
008 A 3504205045 LINE
FROM PROTECTIVE VALVE TO AIR RESERVOIR
12X1 MM
008 A 3504206549 LINE
FROM PROTECTIVE VALVE TO AIR RESERVOIR
009 A 3504201737 LINE
FROM RESERVOIR I T-FITTING TO BRAKE VALVE "V2" CONNECTION
15X1.5 MM
009 A 3504202526 LINE
FROM RESERVOIR I T-FITTING TO BRAKE VALVE "V2" CONNECTION
15X1.5 MM
009 A 3504208649 LINE
FROM RESERVOIR I T-FITTING TO BRAKE VALVE "V2" CONNECTION
12X1 MM
009 A 3504208549 LINE
FROM RESERVOIR I T-FITTING TO BRAKE VALVE "V2" CONNECTION
12X1 MM
009 A 3504208549 LINE
FROM RESERVOIR I T-FITTING TO BRAKE VALVE "V2" CONNECTION
12X1 MM
009 A 3504205749 LINE
FROM AIR RESERVOIR TO BRAKE VALVE
010 A 3504201837 LINE
FROM FITTING AT RESERVOIR II TO BRAKE VALVE "V1" CONNECTION
15X1.5 MM
010 A 3504202726 LINE
FROM FITTING AT RESERVOIR II TO BRAKE VALVE "V1" CONNECTION
15X1.5 MM
010 A 3504208449 LINE
FROM FITTING AT RESERVOIR II TO BRAKE VALVE "V1" CONNECTION
12X1 MM
010 A 3504205649 LINE
FROM AIR RESERVOIR TO BRAKE VALVE
010 A 3504208349 LINE
FROM FITTING AT RESERVOIR II TO BRAKE VALVE "V1" CONNECTION
12X1 MM
010 A 3504208349 LINE
FROM FITTING AT RESERVOIR II TO BRAKE VALVE "V1" CONNECTION
12X1 MM
011 A 3504201937 LINE
FROM BRAKE VALVE "Z2" CONNECTION TO CROSS FITTING
15X1.5 MM
012 A 3504202137 LINE
FROM CROSS FITTING TO LEFT DIAPHRAGM CYLINDER
15X1.5 MM
013 A 3504202926 LINE
FROM T-FITTING TO LEFT DIAPHRAGM CYLINDER
15X1.5 MM
013 A 3504205026 LINE
LEFT FRONT WHEEL BRAKE CYLINDER
12X1 MM
013 A 3504205026 LINE
LEFT FRONT WHEEL BRAKE CYLINDER
12X1 MM
013 A 3504208035 LINE
LEFT FRONT WHEEL BRAKE CYLINDER
12X1 MM
014 A 3504202037 LINE
FROM CROSS FITTING TO RIGHT DIAPHRAGM CYLINDER
15X1.5 MM
015 A 3504203026 LINE
FROM T-FITTING TO RIGHT DIAPHRAGM CYLINDER
015 A 3504205126 LINE
RIGHT FRONT WHEEL BRAKE CYLINDER
12X1 MM
015 A 3504205126 LINE
RIGHT FRONT WHEEL BRAKE CYLINDER
12X1 MM
015 A 3504208135 LINE
RIGHT FRONT WHEEL BRAKE CYLINDER
12X1 MM
016 A 3504202026 LINE
FROM DIAPHRAGM CYLINDER TO LEFT BRAKE HOSE
15X1.5 MM
016 A 3504207928 LINE
FROM BRAKE HOSE TO LEFT DIAPHRAGM CYLINDER
016 A 3504207928 LINE
LINES TO BODY
017 A 3504201926 LINE
FROM DIAPHRAGM CYLINDER TO RIGHT BRAKE HOSE
15X1.5 MM
017 A 3504207828 LINE
FROM BRAKE HOSE TO RIGHT DIAPHRAGM CYLINDER
017 A 3504207828 LINE
FROM DIAPHRAGM CYLINDER TO RIGHT BRAKE HOSE
017 A 3504204826 LINE
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
12X1 MM
017 A 3454208632 LINE
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
12X1 MM
017 A 3504209326 LINE
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
018 N 916027011014 HOSE
FROM BRAKE HOSE TO FRONT AXLE
018 A 3354200148 BRAKE HOSE
Repalced by: A 3504207148
018 A 3504207148 BRAKE HOSE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS
018 N 916027011005 HOSE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS
11X530 MM
018 N 916027011015 HOSE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS
11X590 MM
018 N 916027011014 HOSE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS
11X570 MM
019 A 0009950565 CLAMP
Repalced by: A 3449978490
019 A 3449978490 CLAMP
BRAKE HOSE TO COMPRESSED AIR LINE AT FRONT AXLE
019 A 3459977990 LOOM TIE
Repalced by: A 3459978890
019 A 3459978890 CLAMP
BRAKE HOSE TO COMPRESSED AIR LINE AT FRONT AXLE
019 A 3459977690 LOOM TIE
BRAKE HOSE TO COMPRESSED AIR LINE AT FRONT AXLE
019 A 0019978590 LOOM TIE
BRAKE HOSE TO COMPRESSED AIR LINE AT FRONT AXLE
020 N 074301022202 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
021 A 3089907171 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
022 A 0009870446 O-RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
023 A 0009971548 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
023 A 0009971548 SEAL RING
DIAPHRAGM CYLINDER
024 A 0004290227 THRUST RING
Repalced by: A 0009940203
024 A 0009940203 THRUST RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
025 A 0004290927 THRUST RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
025 A 0004290927 THRUST RING
DIAPHRAGM CYLINDER
026 N 074305022202 NUT
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
027 N 000936016003 NUT
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
027 N 000936016003 NUT
DIAPHRAGM CYLINDER
028 N 915045012100 SEAL RING
029 N 007603016102 SEAL RING
DIAPHRAGM CYLINDER
029 N 007603016102 SEAL RING
DIAPHRAGM CYLINDER
030 A 0009974172 FITTING
DIAPHRAGM CYLINDER
031 A 3454297238 ELBOW FITTING
DIAPHRAGM CYLINDER
032 N 915065015101 THRUST RING
033 N 915045012100 SEAL RING
034 A 3449978490 CLAMP
BRAKE HOSE
035 N 001593015500 CLAMP
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
035 N 001593015500 CLAMP
LINE TO SHOCK ABSORBER
036 N 007985006502 SCREW
CLAMP TO BRACKET
036 N 000933006221 SCREW
LINE TO SHOCK ABSORBER
037 N 000127006203 LOCK WASHER
CLAMP TO BRACKET
037 N 000127006203 LOCK WASHER
LINE TO SHOCK ABSORBER
038 N 000934006006 NUT
LINE TO SHOCK ABSORBER
039 A 3454287840 BRACKET
RIGHT
039 A 3454288240 BRACKET
LEFT
040 A 3454299840 BRACKET
041 A 3509950010 CLAMP
AT DIAPHRAGM CYLINDER BRACKET
042 N 916016012200 CLAMP
042 A 3459957901 CLAMP
043 N 007985006502 SCREW
AT DIAPHRAGM CYLINDER BRACKET
044 N 007985006515 SCREW
AT DIAPHRAGM CYLINDER BRACKET
045 N 000125006420 WASHER
AT DIAPHRAGM CYLINDER BRACKET
046 N 913004006001 NUT
AT DIAPHRAGM CYLINDER BRACKET
047 A 3454307379 CONNECTOR
048 A 3504207066 CONNECTOR
LEFT SIDE MEMBER
049 A 0004314831 TEST CONNECTION
LEFT SIDE MEMBER
050 N 915039012200 HOLLOW SCREW FITTING
LEFT SIDE MEMBER
051 N 007603016103 SEAL RING
LEFT SIDE MEMBER
052 N 000125017010 WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
052 N 000125017010 WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
053 N 006797016152 TOOTHED WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
054 N 000936016003 NUT
HOSE FITTING TO FRONT AXLE SIDE MEMBER
055 A 3504206626 LINE
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
11,12-12X1 MM
056 A 3504202237 LINE
FROM BRAKE VALVE "Z2" CONNECTION TO FITTING
15X1.5 MM
056 A 3504203126 LINE
FROM BRAKE VALVE "Z2" CONNECTION TO FITTING
15X1.5 MM
057 A 3504202637 LINE
FROM BRAKE VALVE "Z2" CONNECTION TO FITTING
15X1.5 MM
057 A 3504202437 LINE
Repalced by: A 3504209426
057 A 3504209426 LINE
FROM FITTING TO SERVICE BRAKE FITTING
15X1.5 MM
057 A 3504202337 LINE
FROM FITTING TO SERVICE BRAKE FITTING
15X1.5 MM
058 A 3504201345 LINE
FROM BRAKE VALVE "Z2" CONNECTION TO FITTING
12X1 MM
058 A 3504201245 LINE
FROM BRAKE VALVE "Z2" CONNECTION TO FITTING
12X1 MM
059 A 0109975982 HOSE
Repalced by: A 0009872827
059 A 0009872827 PLASTIC PIPE
Repalced by: A 0009875027
059 A 0009875027 PLASTIC PIPE
FROM BRAKE VALVE,CONNECTION "22",TO FRONT AXLE BRAKE HOSE
12 X 1.5 MM
059 A 0009875027 PLASTIC PIPE
BRAKE VALVE,CONNECTIONS "21,22"
12 X 1.5 MM
059 A 0009875027 PLASTIC PIPE
FROM BRAKE VALVE TO RELAY VALVE, CONNECTION:
"1"
059 A 0009875027 PLASTIC PIPE
FROM CHECK VALVE TO RELAY VALVE
12 X 1.5 MM
059 A 0009875027 PLASTIC PIPE
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
11,12-12X1 MM
059 A 0009875027 PLASTIC PIPE
TRAILER CONTROL VALVE,CONNECTION:
"41"
060 A 3504202737 LINE
FROM FITTING TO SERVICE BRAKE HOSE CONNECTION
15X1.5 MM
061 A 3504202937 LINE
FROM RESERVOIR III TO RELAY VALVE "V" CONNECTION
15X1.5 MM
061 A 3504202837 LINE
FROM RESERVOIR III TO RELAY VALVE "V" CONNECTION
15X1.5 MM
062 A 3504200945 LINE
FROM CHECK VALVE TO CONNECTOR
12X1 MM
062 A 3504200845 LINE
FROM CHECK VALVE TO CONNECTOR
12X1 MM
062 A 3504200845 LINE
FROM CHECK VALVE TO CONNECTOR
12X1 MM
062 A 3502608649 LINE
FROM CHECK VALVE TO CONNECTOR
063 A 3504206026 LINE
FROM CONNECTOR TO BRAKE HOSE
12X1 MM
064 A 3504206126 LINE
FROM CONNECTION FITTING TO RELAY VALVE ,CONNECTION:
1,12X1 MM
064 A 0089979082 HOSE
Repalced by: A 0009874927
064 A 0009874927 PLASTIC PIPE
FROM CONNECTION FITTING TO RELAY VALVE ,CONNECTION:
8X6 MM
064 A 0009874927 PLASTIC PIPE
FROM FITTING TO RELAY VALVE
8X6 MM
068 A 3504207128 LINE
068 A 3504207128 LINE
PROTECTIVE VALVE,CONNECTION "24"
069 A 3504203245 LINE
TRAILER CONTROL VALVE,CONNECTION:
1,12X1 MM
069 A 3504203245 LINE
TRAILER CONTROL VALVE,CONNECTION:
1,12X1 MM
069 A 3504203145 LINE
TRAILER CONTROL VALVE,CONNECTION:
1,12X1 MM
070 A 3504207045 LINE
FROM T-FITTING TO FITTING
12X1 MM
070 A 3504202545 LINE
FROM T-FITTING TO FITTING
12X1 MM
071 A 3504208745 LINE
FROM VALVE TO FITTING
12X1 MM
072 A 3504202845 LINE
FROM TRAILER CONTROL VALVE TO SHUT-OFF VALVE
12X1 MM
072 A 3504207445 LINE
FROM TRAILER CONTROL VALVE TO SHUT-OFF VALVE
12X1 MM
075 A 3504203237 LINE
FROM RESERVOIR III TO HAND-BRAKE-VALVE HOSE
8X0.7 MM
076 A 3504208849 LINE
HAND BRAKE VALVE
8X0.7 MM
076 A 3504208749 LINE
HAND BRAKE VALVE
8X0.7 MM
076 A 3504208749 LINE
HAND BRAKE VALVE
8X0.7 MM
077 A 3504309164 LINE
078 A 3504208928 LINE
HAND BRAKE VALVE
079 A 3464206234 LINE
Repalced by: A 3504204426
079 A 3504204426 LINE
FROM HOSE TO CONNECTION "1"
8X0.7 MM
080 A 3464205734 LINE
Repalced by: A 3454202926
080 A 3454202926 LINE
FROM HAND BRAKE VALVE CONNECTION "2" TO HOSE
081 A 3504203337 LINE
FROM HOSE TO CONTROL LINE FITTING
8X0.7 MM
082 A 3504208537 LINE
FROM FITTING TO T-FITTING,CONTROL VALVE "M" CONNECTION
8X0.7 MM
082 A 3504208637 LINE
FROM FITTING TO T-FITTING,CONTROL VALVE "M" CONNECTION
8X0.7 MM
083 A 3504203537 LINE
FROM FITTING TO CONNECTION FITTING
8X0.7 MM
083 A 3504208335 LINE
FROM FITTING TO CONNECTION FITTING
8X0.7 MM
083 A 3504203437 LINE
FROM FITTING,CONNECTION "2",TO CONTROL LINE CONNECTION FITTING
8X0.7 MM
083 A 3504208235 LINE
FROM FITTING,CONNECTION "2",TO CONTROL LINE CONNECTION FITTING
8X0.7 MM
084 A 3504204037 LINE
FROM FITTING TO RELAY VALVE
8X0.7 MM
085 A 0004295235 HOSE
400 MM
085 A 3504206049 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
086 N 916017011000 CLAMP
Repalced by: N 000000000665
086 N 000000000665 CLAMP
087 A 3504203837 LINE
FROM T-FITTING "V1" CONNECTION TO DOUBLE FITTING
6X0.7 MM
087 A 3504203326 LINE
FROM T-FITTING "V1" CONNECTION TO DOUBLE FITTING
6X0.7 MM
087 A 3504200245 LINE
FROM T-FITTING "V1" CONNECTION TO DOUBLE FITTING
6X0.7 MM

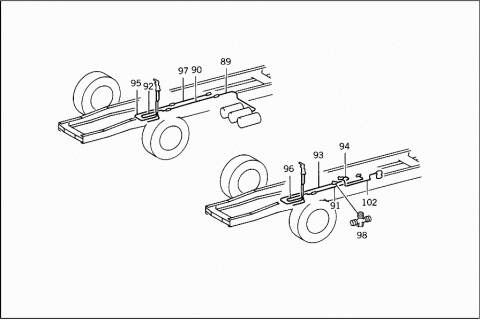

089 A 3504205337 LINE
FROM AIR RESERVOIR T-FITTING TO DOUBLE FITTING
8X0.7 MM
090 A 3504205437 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
8X0.7 MM
091 A 3504209749 LINE
FROM CROSS FITTING TO FITTING
8X0.7 MM
091 A 3504208535 LINE
FROM CROSS FITTING TO FITTING
8X0.7 MM
091 A 3504209649 LINE
FROM CROSS FITTING TO FITTING
8X0.7 MM
091 A 3504208435 LINE
FROM CROSS FITTING TO FITTING
8X0.7 MM
092 A 3504205937 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
8X0.7 MM
093 A 3504209949 LINE
FROM FITTING AT FIRE WALL TO DOUBLE FITTING
8X0.7 MM
094 A 3504209849 LINE
FROM FITTING TO TWO-WAY VALVE
8X0.7 MM
095 A 3504205637 LINE
FROM FITTING AT FIRE WALL TO DOUBLE FITTING
8X0.7 MM
096 A 3504307064 LINE
FROM FITTING AT FIRE WALL TO DOUBLE FITTING
8X0.7 MM
097 A 3504205537 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
8X0.7 MM
098 A 3454297132 T-FITTING
TO LINE
098 A 0009901070 PART NAME MISSING
TO LINE
M14X1,5 / M14X1,5 / M12X1,5
099 A 3504208728 LINE
PRESSURE GAUGE LINES
099 A 3504208526 LINE
FROM BULKHEAD FITTING TO CONNECTION FITTING
100 A 3504208828 LINE
PRESSURE GAUGE LINES
100 A 3504207826 LINE
FROM FITTING TO HOSE IN CAB
6X0.7 MM
102 A 3504204445 LINE
FROM TWO-WAY VALVE,CONNECTION "2.0", TO TRAILER CONTROL VALVE
41.8X0.7 MM
102 A 3504204345 LINE
FROM TWO-WAY VALVE,CONNECTION "2.0", TO TRAILER CONTROL VALVE
41.8X0.7 MM
104 A 3504206149 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
104 A 3504203937 LINE
FROM "V2" CONNECTION TO DOUBLE FITTING
6X0.7 MM
104 A 3504203426 LINE
FROM "V2" CONNECTION TO DOUBLE FITTING
6X0.7 MM
104 A 3504200145 LINE
FROM "V2" CONNECTION TO DOUBLE FITTING
6X0.7 MM

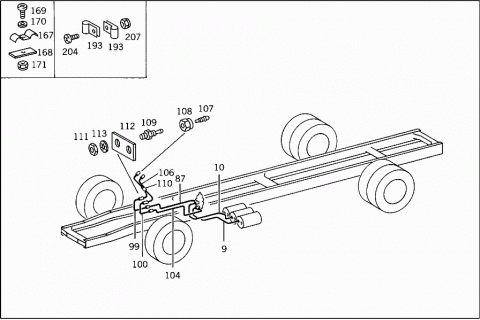

106 A 3525407461 ELECTRIC CABLE
TO INSTRUMENT CLUSTER
106 A 0089976082 HOSE
107 A 0019975072 FITTING
108 N 915017006200 UNION NUT
109 A 0019973772 FITTING
Repalced by: A 3454297139
109 A 3454297139 CONNECTOR
110 N 040621012200 INSULATING HOSE
111 N 080705012003 NUT
FITTING TO FIRE WALL
112 A 3454297046 PAD
FITTING TO FIRE WALL
113 N 006797012251 TOOTHED WASHER
FITTING TO FIRE WALL
115 A 3504207437 LINE
FROM T-FITTING "M" CONNECTION TO VALVE "S" CONNECTION
8X0.7 MM
116 A 3504207126 LINE
FROM BRAKE VALVE "Z 1" CONNECTION TO FITTING
8X0.7 MM
117 A 3504208937 LINE
FROM FITTING TO CONTROL VALVE
8X0.7 MM
117 A 3504209037 LINE
FROM FITTING TO CONTROL VALVE
8X0.7 MM
118 A 3504203445 LINE
TRAILER CONTROL VALVE,CONNECTION:
42,8X0.7 MM
118 A 3504203445 LINE
TRAILER CONTROL VALVE,CONNECTION:
42,8X0.7 MM
119 A 3504203545 LINE
TRAILER CONTROL VALVE,CONNECTION:
43,8X0.7 MM
119 A 3504203545 LINE
TRAILER CONTROL VALVE,CONNECTION:
43,8X0.7 MM
119 A 0089979082 HOSE
Repalced by: A 0009874927
119 A 0009874927 PLASTIC PIPE
8X6 MM
119 A 0009874927 PLASTIC PIPE
FROM FITTING TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
"23"
120 A 3504209337 LINE
FROM AIR RESERVOIR TO PRESSURE CONTROL VALVE
15X1.5 MM
120 A 3504209437 LINE
FROM AIR RESERVOIR TO PRESSURE CONTROL VALVE
15X1.5 MM
121 A 3504207837 LINE
FROM T-FITTING "V" CONNECTION TO SHUTOFF COCK FITTING
15X1.5 MM
121 A 3504207937 LINE
FROM T-FITTING "V" CONNECTION TO SHUTOFF COCK FITTING
15X1.5 MM
122 A 3504208237 LINE
FROM CONTROL VALVE "Z" CONNECTION TO SHUT-OFF COCK FITTING
15X1.5 MM
122 A 3504208137 LINE
FROM CONTROL VALVE "Z" CONNECTION TO SHUT-OFF COCK FITTING
15X1.5 MM

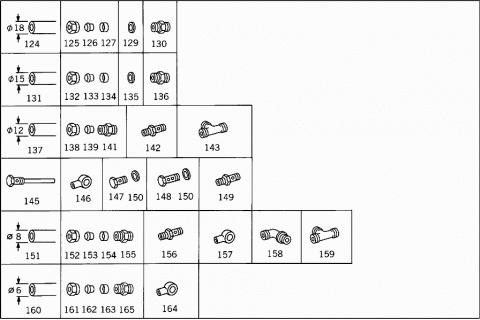

124 A 0004293701 LINE
18X1.5 MM
125 N 003872018100 UNION NUT
FOR 18-MM LINES
126 N 003861018003 GLAND
FOR LINE CONNECTION
18 MM
127 N 915065018101 THRUST RING
FOR LINE CONNECTION
18 MM
128 A 3454298436 CONNECTOR
AT AIR COMPRESSOR
129 N 007603026104 SEAL RING
129 N 915045015100 SEAL RING
18-MM-DIA. LINE
129 A 0004291584 SEAL RING
Repalced by: N 915045015100
129 N 915045015100 SEAL RING
130 N 074313016204 FITTING
FOR LINE CONNECTION
18 MM
130 A 0029971272 FITTING
FOR LINE CONNECTION
130 N 003902015001 CONNECTION FITTING
131 A 0004295101 LINE
15X1.5 MM
131 A 0004295201 LINE
15X1.5 MM
132 N 915017015100 UNION NUT
FOR LINE CONNECTION
15 MM
133 N 003861015004 GLAND
FOR LINE CONNECTION
15 MM
134 N 915065015101 THRUST RING
FOR LINE CONNECTION
15 MM
135 N 915045012100 SEAL RING
15-MM-DIA. LINE
136 N 074299022203 DOUBLE FITTING
15-MM-DIA. LINE
136 N 074313016401 FITTING
136 A 0019972372 FITTING
136 N 074313016201 FITTING
15-MM-DIA. LINE
136 A 0019972172 FITTING
15-MM-DIA. LINE
137 A 0004294601 LINE
12X1 MM
137 A 0004294901 LINE
12X1.5 MM
138 N 915017012100 UNION NUT
TO LINE
12 MM
138 N 915017012100 UNION NUT
TO LINE
12 MM
139 N 003861012007 GLAND
TO LINE
12 MM
141 N 003902012001 CONNECTION FITTING
TO LINE
12 MM
141 A 0029971472 FITTING
TO LINE
12 MM
142 N 003910012001 BULKHEAD FITTING
TO LINE
143 N 074317012300 FITTING
Repalced by: A 0019901970
143 A 0019901970 T-FITTING
TO LINE
12 MM
143 A 0019901970 T-FITTING
TO LINE
12 MM
145 A 3504307079 CONNECTOR
LINE MOUNTING
146 N 915052009009 BANJO UNION
TO LINE
147 N 915036012200 HOLLOW SCREW
LINE MOUNTING
148 N 915047012203 HOLLOW SCREW
LINE MOUNTING
149 N 915039012205 HOLLOW SCREW FITTING
LINE MOUNTING
150 N 007603016103 SEAL RING
LINE MOUNTING
151 A 3084299501 LINE
8X0.7 MM
152 N 915017008100 UNION NUT
TO LINE
8 MM
152 N 915017008100 UNION NUT
TO LINE
8 MM
153 N 003861008005 GLAND
TO LINE
8 MM
154 A 0019976672 FITTING
Repalced by: N 915062006000
154 N 915062006000 SLEEVE
TO LINE
155 N 003902008001 CONNECTION FITTING
TO LINE
8 MM
155 A 0019972672 FITTING
TO LINE
8 MM
156 N 003910008003 FITTING
TO LINE
8 MM
157 N 915052006002 BANJO UNION
TO LINE
158 A 0019903171 ELBOW FITTING
TO LINE
8 MM
159 N 003908008001 T-FITTING
TO LINE
8 MM
159 A 0009902670 T-FITTING
TO LINE
8 MM
160 A 3084299401 LINE
6X0.7 MM
161 N 915017006100 UNION NUT
TO LINE
6 MM
162 N 003861006007 GLAND
TO LINE
6 MM
163 N 915062004000 SLEEVE
TO LINE
163 A 0009920105 BUSHING
TO LINE
164 N 915052004019 BANJO UNION
165 N 003902006001 CONNECTION FITTING
TO LINE
6 MM
167 A 1159950032 CLAMP
COMPRESSED AIR LINE MOUNTING
167 A 3379950032 CLAMP
COMPRESSED AIR LINE MOUNTING
167 A 3379950032 CLAMP
COMPRESSED AIR LINE MOUNTING
168 A 3179950148 CLAMPING PIECE
COMPRESSED AIR LINE MOUNTING
169 N 007985006515 SCREW
COMPRESSED AIR LINE MOUNTING
170 N 000125006420 WASHER
COMPRESSED AIR LINE MOUNTING
171 N 913004006001 NUT
COMPRESSED AIR LINE MOUNTING
173 A 3509950010 CLAMP
LINE MOUNTING
173 A 3509950010 CLAMP
LINE MOUNTING
174 N 007985006502 SCREW
LINE MOUNTING
174 N 007985006502 SCREW
LINE MOUNTING
175 N 913004006001 NUT
LINE MOUNTING
175 N 913004006001 NUT
LINE MOUNTING
177 N 001593019001 CLAMP
LINE MOUNTING
177 N 001593015500 CLAMP
LINE MOUNTING
178 A 3049950220 CLAMP
LINE MOUNTING
179 N 000933012123 SCREW
LINE MOUNTING
180 N 912004012100 LOCK WASHER
LINE MOUNTING
181 N 007985006502 SCREW
LINE MOUNTING
181 N 007985006515 SCREW
182 N 000933005034 SCREW
183 N 007981004226 SHEET METAL SCREW
LINE MOUNTING
183 N 007981004226 SHEET METAL SCREW
LINE MOUNTING
184 N 000125006420 WASHER
LINE MOUNTING
184 N 000125006420 WASHER
LINE MOUNTING
185 N 000127005001 LOCK WASHER
186 N 000125005315 WASHER
187 N 913004012012 NUT
188 N 913004006001 NUT
188 N 000934005008 NUT
190 A 3434290940 BRACKET
190 A 3504291340 BRACKET
COMPRESSED AIR LINES
191 A 3354293440 BRACKET
COMPRESSED AIR LINES
191 A 3354293440 BRACKET
TO LINE
193 A 3609950101 CLAMP
LINE MOUNTING
194 A 3219950332 CLAMP
195 A 3129950332 CLAMP
LINE MOUNTING
196 A 3609950201 CLAMP
Repalced by: A 3604300143
196 A 3604300143 CLAMP
Repalced by: N 916016008200
196 N 916016008200 CLAMP
LINE MOUNTING
196 A 3609950501 CLAMP
LINE TO SIDE MEMBER
197 A 3444290240 CLAMP
COMPRESSED AIR LINE
198 A 3444297340 BRACKET
198 A 3509957033 CLAMP
200 A 3124761036 BRACKET
Repalced by: A 3124761236
200 A 3124761236 BRACKET
LINE MOUNTING
200 A 3124761236 BRACKET
LINE MOUNTING
201 A 3049950132 CLAMP
202 A 3449950132 CLAMP
LINE MOUNTING
203 N 007985006157 SCREW
203 N 007985006502 SCREW
LINE TO SIDE MEMBER
204 N 007985006515 SCREW
LINE MOUNTING
205 N 000125006420 WASHER
206 N 000127006203 LOCK WASHER
206 N 000127006203 LOCK WASHER
LINE TO SIDE MEMBER
207 N 913004006001 NUT
LINE MOUNTING
208 N 000934006006 NUT
LINE MOUNTING
208 N 000934006006 NUT
LINE TO SIDE MEMBER
210 N 916017011000 CLAMP
Repalced by: N 000000000665
210 N 000000000665 CLAMP
212 A 3504297340 BRACKET
212 A 3504297340 BRACKET
COMPRESSED AIR LINE MOUNTING
212 A 3504297340 BRACKET
COMPRESSED AIR LINE MOUNTING
212 A 3524290740 BRACKET
AIR PRESSURE GAUGE LINES
214 A 3049950120 CLAMP
Repalced by: A 3049950220
214 A 3049950220 CLAMP
LINE TO BRACKET
215 A 3609950401 CLAMP
LINE TO BRACKET
215 A 3609950201 CLAMP
Repalced by: A 3604300143
215 A 3604300143 CLAMP
Repalced by: N 916016008200
215 N 916016008200 CLAMP
LINE TO BRACKET
216 N 916016012200 CLAMP
LINE TO BRACKET
216 A 3459957901 CLAMP
LINE TO BRACKET
217 N 007985006502 SCREW
LINE TO BRACKET
217 N 007985006502 SCREW
LINE TO BRACKET
218 N 000125006420 WASHER
LINE TO BRACKET
218 N 000125006420 WASHER
LINE TO BRACKET
219 N 913004006001 NUT
LINE TO BRACKET
220 N 000933005034 SCREW
LINE TO BRACKET
220 N 000933005034 SCREW
COMPRESSED AIR LINE MOUNTING
220 N 007985005171 SCREW
COMPRESSED AIR LINE MOUNTING
221 N 000125005315 WASHER
LINE TO BRACKET
221 N 000125005315 WASHER
COMPRESSED AIR LINE MOUNTING
221 N 000125005315 WASHER
COMPRESSED AIR LINE MOUNTING
222 N 000127005001 LOCK WASHER
LINE TO BRACKET
222 N 000127005001 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
223 N 000934005008 NUT
LINE TO BRACKET
223 N 000934005008 NUT
COMPRESSED AIR LINE MOUNTING
225 A 3544295940 BRACKET
COMPRESSED AIR LINES
226 A 3444290340 BRACKET
COMPRESSED AIR LINE
226 A 3215422340 BRACKET
COMPRESSED AIR LINE
227 A 3454288040 BRACKET
COMPRESSED AIR LINE
227 A 3454288040 BRACKET
COMPRESSED AIR LINE
227 A 3454288040 BRACKET
COMPRESSED AIR LINE MOUNTING
228 A 3504290740 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
229 A 3464295940 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
229 A 3464295940 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
230 A 3454288440 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
231 A 3464295640 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
232 A 3454667240 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
A 3504297240 BRACKET
LINES
234 A 3124761236 BRACKET
235 A 3634292740 BRACKET
236 A 3464295540 BRACKET
COMPRESSED AIR LINE MOUNTING
237 A 3504290640 BRACKET
COMPRESSED AIR LINE MOUNTING
238 A 3614296140 BRACKET
COMPRESSED AIR LINE MOUNTING
239 A 3454297540 BRACKET
COMPRESSED AIR LINE MOUNTING
240 A 3504297540 BRACKET
COMPRESSED AIR LINE MOUNTING
241 A 3094760236 BRACKET
COMPRESSED AIR LINE MOUNTING

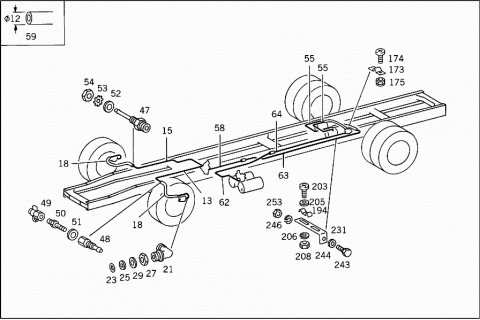

243 N 000933010174 SCREW
COMPRESSED AIR LINE MOUNTING
M 10X25 MM
243 N 000933010294 SCREW
COMPRESSED AIR LINE MOUNTING
M 10X18
243 N 000933012124 SCREW
COMPRESSED AIR LINE MOUNTING
M 12X25 MM
243 N 000933008282 SCREW
COMPRESSED AIR LINE MOUNTING
M 8X20 MM
243 N 000933008288 SCREW
COMPRESSED AIR LINE MOUNTING
M 8X25 MM
243 N 000933008273 SCREW
COMPRESSED AIR LINE MOUNTING
M 8X30
243 N 000933010174 SCREW
COMPRESSED AIR LINE MOUNTING
243 N 000961014107 SCREW
BRACKET TO SIDE MEMBER
244 N 000125010517 WASHER
COMPRESSED AIR LINE MOUNTING
244 N 000125010517 WASHER
COMPRESSED AIR LINE MOUNTING
244 N 000125013012 WASHER
COMPRESSED AIR LINE MOUNTING
245 N 009021008102 WASHER
COMPRESSED AIR LINE MOUNTING
246 N 000127010202 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
247 N 007985006515 SCREW
COMPRESSED AIR LINE MOUNTING
M 6X16 MM
247 N 007985006515 SCREW
COMPRESSED AIR LINE MOUNTING
M 6X16 MM
248 N 000125006420 WASHER
COMPRESSED AIR LINE MOUNTING
250 N 913004010004 NUT
COMPRESSED AIR LINE MOUNTING
250 N 913004014004 NUT
BRACKET TO SIDE MEMBER
250 N 913004012012 NUT
COMPRESSED AIR LINE MOUNTING
250 N 913004008001 NUT
COMPRESSED AIR LINE MOUNTING
251 N 913004005001 NUT
COMPRESSED AIR LINE MOUNTING
251 N 913004006001 NUT
COMPRESSED AIR LINE MOUNTING
252 N 912004008100 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
253 N 000934008000 NUT
COMPRESSED AIR LINE MOUNTING
253 N 000934010000 NUT
COMPRESSED AIR LINE MOUNTING
254 N 000961012106 SCREW
COMPRESSED AIR LINE MOUNTING
254 N 000933012124 SCREW
BRACKET TO SIDE MEMBER
255 N 913004012003 NUT
COMPRESSED AIR LINE MOUNTING
255 N 913004012012 NUT
BRACKET TO SIDE MEMBER
256 A 3609950401 CLAMP
LINE TO BRACKET
257 N 007985006502 SCREW
LINE TO BRACKET
257 N 007985006502 SCREW
LINE TO BRACKET
258 N 913004006001 NUT
LINE TO BRACKET
258 N 913004006001 NUT
LINE TO BRACKET
259 N 000125006420 WASHER
LINE TO BRACKET
260 A 3509977181 GROMMET
THROUGH SIDE MEMBER
265 A 3504300211 CONSOLE
FRONT
265 A 3504300311 CONSOLE
FRONT
266 A 3504300410 BRACKET
267 A 3504300411 CONSOLE
REAR
267 A 3504300511 CONSOLE
REAR
268 A 3504300510 BRACKET
269 N 000961014107 SCREW
CONSOLE TO SIDE MEMBER
269 N 000961014101 SCREW
CONSOLE TO SIDE MEMBER
270 N 000127014201 LOCK WASHER
CONSOLE TO SIDE MEMBER
271 N 000125015012 WASHER
CONSOLE TO SIDE MEMBER
272 N 913004014005 NUT
CONSOLE TO SIDE MEMBER
273 A 3044750019 BASE
CONSOLE TO SIDE MEMBER
273 A 3044750019 BASE
CONSOLE TO SIDE MEMBER
275 A 3504300440 STRAP
AIR RESERVOIR TO CONSOLE
276 A 3504300540 STRAP
AIR RESERVOIR TO CONSOLE
277 A 3504300740 STRAP
AIR RESERVOIR TO CONSOLE
278 N 001433012027 PIN
AIR RESERVOIR TO CONSOLE
279 N 000094004023 COTTER PIN
AIR RESERVOIR TO CONSOLE
279 N 000094004056 COTTER PIN
AIR RESERVOIR TO CONSOLE
280 A 3354320218 BASE
AIR RESERVOIR TO CONSOLE
281 N 000934010000 NUT
AIR RESERVOIR TO CONSOLE
282 N 000933010174 SCREW
STRAP TO BATTERY CASE
283 N 913004010004 NUT
STRAP TO BATTERY CASE
284 N 000125010517 WASHER
STRAP TO BATTERY CASE

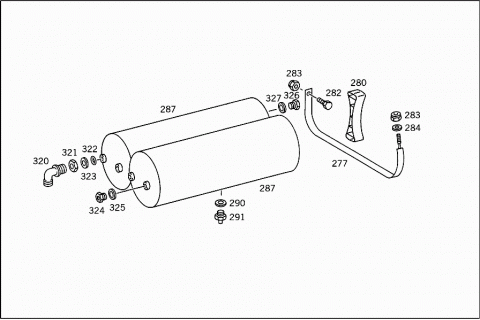

285 A 0004322101 RESERVOIR
COMPRESSED AIR
287 A 0004321001 RESERVOIR
Repalced by: A 3504327001
287 A 3504327001 RESERVOIR
COMPRESSED AIR
290 N 007603022102 SEAL RING
DRAIN
291 A 0004320807 VALVE
DRAIN
291 A 0004320807 VALVE
DRAIN
291 A 3644327107 VALVE
DRAIN
291 A 3644327107 VALVE
DRAIN
N 900397000201 RING
DRAIN
294 A 0009900970 T-FITTING
294 A 0009900970 T-FITTING
294 N 074317016401 FITTING
294 N 074317016401 FITTING
295 N 074302022202 T-FITTING
AT AIR RESERVOIR I
296 A 0014295144 VALVE
Repalced by: A 0004296244
296 A 0014293544 VALVE
Repalced by: A 0004296244
296 A 0004296244 VALVE
AT AIR RESERVOIR I
WESTINGHOUSE
297 A 0019932301 SPRING
TO 000 429 62 44
298 A 0004290389 SPRING RETAINER
TO 000 429 62 44
299 A 0005865842 REPAIR KIT
TO 000 429 62 44
A 0015862642 REPAIR KIT
TO 001 429 35 44
A 0004290545 DIAPHRAGM
TO 001 429 51 44
300 N 000127006200 LOCK WASHER
TO 001 429 51 44
301 N 074313008101 FITTING
AT AIR RESERVOIR I
302 A 0009870446 O-RING
AT AIR RESERVOIR I
303 A 0004290227 THRUST RING
Repalced by: A 0009940203
303 A 0009940203 THRUST RING
AT AIR RESERVOIR I
304 N 074305022202 NUT
AT AIR RESERVOIR I
305 N 007603022102 SEAL RING
AT AIR RESERVOIR I
306 N 074315000200 FITTING
AT AIR RESERVOIR I
306 A 0009905871 ELBOW FITTING
AT AIR RESERVOIR I
308 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
308 A 3469970230 SCREW PLUG
AT AIR RESERVOIR I
309 N 007603022102 SEAL RING
AT AIR RESERVOIR
310 N 074315000300 FITTING
AT AIR RESERVOIR I
310 A 0009909171 ELBOW FITTING
AT AIR RESERVOIR I
311 N 074315000200 FITTING
AT AIR RESERVOIR
311 A 0009905871 ELBOW FITTING
AT AIR RESERVOIR
312 N 007603022102 SEAL RING
AT AIR RESERVOIR
313 A 0009870446 O-RING
AT AIR RESERVOIR
314 A 0004290227 THRUST RING
Repalced by: A 0009940203
314 A 0009940203 THRUST RING
AT AIR RESERVOIR
315 N 074305022202 NUT
AT AIR RESERVOIR
316 N 074313008101 FITTING
AT AIR RESERVOIR
320 N 074315012101 FITTING
CONNECTIONS:
11,12,21,22
320 A 0019903371 ELBOW FITTING
CONNECTIONS:
11,12,21,22
321 N 074305022202 NUT
CONNECTIONS:
11,12,21,22
322 A 0009870446 O-RING
CONNECTIONS:
11,12,21,22
323 A 0004290227 THRUST RING
Repalced by: A 0009940203
323 A 0009940203 THRUST RING
CONNECTIONS:
11,12,21,22
324 A 0009905168 FITTING
CONNECTIONS:
11,12,21,22
325 N 007603022102 SEAL RING
CONNECTIONS:
11,12,21,22
326 N 000908022001 SCREW PLUG
CONNECTIONS:
31,32
327 N 007603022100 SEAL RING
CONNECTIONS:
31,32

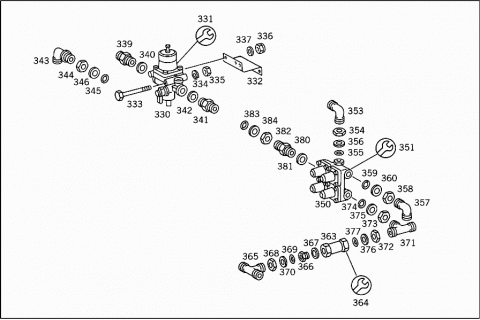

330 A 0014314106 PRESSURE REGULATOR
MAKE BOSCH
330 A 3454317206 PRESSURE REGULATOR
Repalced by: A 0014312206
330 A 0014312206 PRESSURE REGULATOR
"FA WABCO"
330 A 0014310006 PRESSURE REGULATOR
"FA. WABCO"
330 A 0014319806 PRESSURE REGULATOR
FA.KNORR
331 A 0015868543 REPAIR KIT
TO 001 431 41 06
331 A 3455868243 REPAIR KIT
Repalced by: A 0015864343
331 A 0015864343 REPAIR KIT
TO 001 431 00 06,001 431 22 06
331 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
331 A 0004201371 REPAIR KIT
TO 001 431 98 06
331 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06
331 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06
332 A 3504317340 BRACKET
333 N 000933008288 SCREW
PRESSURE REGULATOR TO BRACKET
333 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
333 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75 MM
333 N 000933008282 SCREW
BRACKET TO BATTERY CASE
M 8X20 MM
334 N 912004008100 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
335 N 000934008000 NUT
PRESSURE REGULATOR TO BRACKET
336 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
337 N 000125008417 WASHER
PRESSURE REGULATOR TO BRACKET
339 N 074298026202 DOUBLE FITTING
339 N 074313016202 FITTING
339 A 0029971272 FITTING
340 N 007603026104 SEAL RING
340 N 007603026106 SEAL RING
341 N 074313016201 FITTING
341 A 0019972172 FITTING
341 N 074313016201 FITTING
341 A 0019972172 FITTING
342 N 007603022102 SEAL RING
343 N 074315000200 FITTING
CONNECTIONS:
1
343 A 0009905871 ELBOW FITTING
CONNECTIONS:
1
344 N 074305022202 NUT
CONNECTIONS:
1
345 A 0009870446 O-RING
CONNECTIONS:
1
346 A 0004290227 THRUST RING
Repalced by: A 0009940203
346 A 0009940203 THRUST RING
CONNECTIONS:
1
350 A 0014318906 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
350 A 0014318706 VALVE
Repalced by: A 0024310106
350 A 0024310106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
"FA. KNORR"
351 A 0035860943 REPAIR KIT
TO 001 431 89 06
351 A 0035861043 REPAIR KIT
TO 001 431 87 06
351 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
351 A 0004201571 REPAIR KIT
TO 002 431 01 06
353 A 3089907171 ELBOW FITTING
CONNECTIONS:
21,22
354 N 000936016003 NUT
CONNECTIONS:
21,22
355 A 0009971548 SEAL RING
CONNECTIONS:
21,22
356 A 0004290927 THRUST RING
CONNECTIONS:
21,22
357 A 3459907571 ELBOW FITTING
CONNECTIONS:
"24"
358 N 000936016003 NUT
CONNECTIONS:
"24"
359 A 0009971548 SEAL RING
CONNECTIONS:
"24"
360 A 0004290927 THRUST RING
CONNECTIONS:
"24"
363 A 6634290444 VALVE
Repalced by: A 0034292844
363 A 0034292844 VALVE
(CHECK VALVE)
363 A 0004290444 VALVE
(CHECK VALVE)
"FA. WABCO"
364 A 0005865942 REPAIR KIT
TO 000 429 04 44
365 A 0029970772 FITTING
CONNECTIONS:
2
365 A 3454297432 T-FITTING
CONNECTIONS:
2
366 A 0009905168 FITTING
CONNECTION:
2
367 N 007603022102 SEAL RING
CONNECTION:
2
368 N 074305022202 NUT
CONNECTIONS:
2
369 A 0009870446 O-RING
CONNECTIONS:
2
370 A 0004290227 THRUST RING
Repalced by: A 0009940203
370 A 0009940203 THRUST RING
CONNECTIONS:
2
A 3454297738 ELBOW FITTING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
"24"
371 A 3454297532 T-FITTING
372 N 074305022202 NUT
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
"24"
373 N 000936016003 NUT
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
"24"
374 A 0009971548 SEAL RING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
"24"
375 A 0004290927 THRUST RING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
"24"
376 A 0004290227 THRUST RING
Repalced by: A 0009940203
376 A 0009940203 THRUST RING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
"24"
377 A 0009870446 O-RING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
"24"
380 N 074313016401 FITTING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
380 A 0019972372 FITTING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
381 N 007603022102 SEAL RING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
382 N 074305022202 NUT
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
383 A 0009870446 O-RING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
384 A 0004290227 THRUST RING
Repalced by: A 0009940203
384 A 0009940203 THRUST RING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
390 A 0004315006 VALVE
AT AIR RESERVOIR II
391 A 0015860843 REPAIR KIT
393 A 0004296044 VALVE
AT AIR RESERVOIR II
WESTINGHOUSE
393 A 0014293744 VALVE
AT AIR RESERVOIR II
393 A 0014297444 VALVE
AT AIR RESERVOIR II
A 0004290545 DIAPHRAGM
TO 001 429 49 44
394 A 0024298844 VALVE
TO 001 429 74 44
395 A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
395 A 0004290745 DIAPHRAGM
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
000 429 07 45; TO 001 429 74 44
396 A 0019932301 SPRING
TO 000 429 60 44
397 A 0004290389 SPRING RETAINER
TO 000 429 60 44
398 A 0005865842 REPAIR KIT
TO 000 429 60 44
A 0015862642 REPAIR KIT
TO 001 429 37 44
400 N 074315000200 FITTING
AT AIR RESERVOIR II
400 A 0009905871 ELBOW FITTING
AT AIR RESERVOIR II
400 N 074301022302 ELBOW FITTING
AT AIR RESERVOIR II
402 A 0009900970 T-FITTING
AT AIR RESERVOIR II
402 N 074302022202 T-FITTING
AT AIR RESERVOIR II
402 N 074302022202 T-FITTING
AT AIR RESERVOIR II
403 N 007603022102 SEAL RING
AT AIR RESERVOIR II
404 N 074301022302 ELBOW FITTING
AT AIR RESERVOIR II
404 N 074315000300 FITTING
AT AIR RESERVOIR II
404 A 0009909171 ELBOW FITTING
AT AIR RESERVOIR II
405 A 0009870446 O-RING
AT AIR RESERVOIR II
406 A 0004290227 THRUST RING
Repalced by: A 0009940203
406 A 0009940203 THRUST RING
AT AIR RESERVOIR II
407 N 074305022202 NUT
AT AIR RESERVOIR II
409 N 074313016201 FITTING
AT AIR RESERVOIR II
409 A 0019972172 FITTING
AT AIR RESERVOIR II
409 N 074313016401 FITTING
AT AIR RESERVOIR II
409 A 0019972372 FITTING
AT AIR RESERVOIR II
409 N 074313016201 FITTING
AT AIR RESERVOIR
409 A 0019972172 FITTING
AT AIR RESERVOIR
420 A 0014312305 BRAKE VALVE
Repalced by: A 0004319405
420 A 3504307006 BRAKE VALVE
Repalced by: A 0004319405
420 A 0004319405 BRAKE VALVE
421 A 0029974148 SEAL RING
A 0019920701 BUSHING
TO 001 431 23 05,350 430 70 06
422 A 0004317886 CUP
TO 001 431 23 05,350 430 70 06
422 A 0004315587 PROTECTIVE CAP
TO 000 431 94 05
423 A 0029974148 SEAL RING
TO 001 431 23 05,350 430 70 06
424 A 0004312088 VALVE SEAT
TO 000 431 94 05
425 A 0009874946 SEALING CORD
20.3 X 2.4 MM,TO 000 431 94 05
426 A 0019872146 SEALING CORD
32 X 3 MM,TO 000 431 94 05
427 A 0089975945 SEAL RING
100 X 3 MM,TO 000 431 94 05
428 A 0089971845 SEAL RING
54.2 X 3 MM,TO 000 431 94 05
429 A 0005867243 REPAIR KIT
TO 000 431 94 05
431 N 074302022304 T-FITTING
CONNECTIONS "V1" & "V2"
431 A 0009909070 T-FITTING
CONNECTIONS "V1" & "V2"
432 A 0009870446 O-RING
CONNECTIONS "V1" & "V2"
433 A 0004290227 THRUST RING
Repalced by: A 0009940203
433 A 0009940203 THRUST RING
CONNECTIONS "V1" & "V2"
434 N 074305022202 NUT
CONNECTIONS "V1" & "V2"
436 N 074313016201 FITTING
CONNECTIONS "Z1" & "Z2"
436 A 0019972172 FITTING
CONNECTIONS "Z1" & "Z2"
437 N 074317000100 FITTING
CONNECTION "Z2"
437 A 0009902470 T-FITTING
CONNECTION "Z2"
438 N 074313012100 FITTING
CONNECTION "Z2"
438 A 0029971172 FITTING
Repalced by: A 3454307879
438 A 3454307879 CONNECTOR
CONNECTION "Z2"
438 N 074313008101 FITTING
439 N 007603022102 SEAL RING
CONNECTIONS "Z1" & "Z2"
440 N 074317000100 FITTING
CONNECTION "Z1" TO BRAKE VALVE
440 A 0009902470 T-FITTING
CONNECTION "Z1" TO BRAKE VALVE
440 A 3169900070 T-FITTING
CONNECTION "Z1" TO BRAKE VALVE
442 A 0009870446 O-RING
CONNECTION "Z1" TO BRAKE VALVE
443 A 0004290227 THRUST RING
Repalced by: A 0009940203
443 A 0009940203 THRUST RING
CONNECTION "Z1" TO BRAKE VALVE
444 N 074305022202 NUT
CONNECTION "Z1" TO BRAKE VALVE
445 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
445 A 3469970230 SCREW PLUG
TO PLUG THE FREE CONNECTIONS
445 A 3469970230 SCREW PLUG
TO PLUG THE FREE CONNECTIONS
446 N 007603022102 SEAL RING
TO PLUG THE FREE CONNECTIONS
446 N 007603022102 SEAL RING
TO PLUG THE FREE CONNECTIONS
448 A 3504310840 BRACKET
BRAKE VALVE
449 N 000961012171 SCREW
BRACKET TO LEFT SIDE MEMBER
450 N 000127012201 LOCK WASHER
BRACKET TO LEFT SIDE MEMBER
451 N 000934012004 NUT
BRACKET TO LEFT SIDE MEMBER
452 N 000933010129 SCREW
BRAKE VALVE TO BRACKET
453 N 913004010004 NUT
BRAKE VALVE TO BRACKET

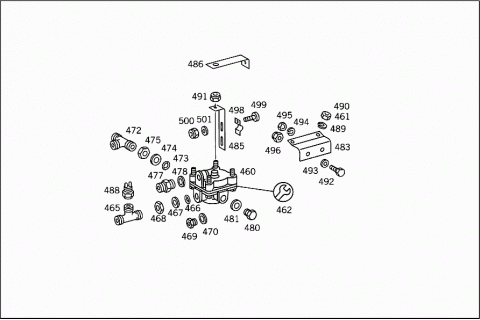

460 A 0014295444 VALVE
Repalced by: A 0034295244
460 A 0034295244 VALVE
(RELAY VALVE)
" KNORR "
460 A 0004296544 VALVE
(RELAY VALVE)
" WABCO "
460 A 0034295344 VALVE
Repalced by: A 0034293044
460 A 0034293044 VALVE
(RELAY VALVE)
"KNORR"
460 A 0014296844 VALVE
(RELAY VALVE)
"WABCO"
N 000127008205 LOCK WASHER
461 N 000934008010 NUT
462 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 000 429 65 44,001 429 68 44
462 H 983455860842 REPAIR KIT
Repalced by: A 0004205555
462 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 000 429 65 44,001 429 68 44
462 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 000 429 65 44, 001 429 68 44
462 A 0025863542 REPAIR KIT
TO 003 429 52 44,003 429 53 44
462 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
462 A 0004201471 REPAIR KIT
TO 003 429 30 44
465 N 074302022304 T-FITTING
"V" CONNECTION
465 A 3599900070 T-FITTING
RELAY VALVE,CONNECTION "1"
"1"
465 A 0019903770 T-FITTING
RELAY VALVE,CONNECTION "1"
"1"
466 A 0009870446 O-RING
"V" CONNECTION
466 A 0009870446 O-RING
RELAY VALVE,CONNECTION "1"
"1"
467 A 0004290227 THRUST RING
Repalced by: A 0009940203
467 A 0009940203 THRUST RING
"V" CONNECTION
467 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION "1"
"1"
468 N 074305022202 NUT
"V" CONNECTION
468 N 074305022202 NUT
RELAY VALVE,CONNECTION "1"
"1"
469 A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
470 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
472 N 074302022304 T-FITTING
CONNECTION "Z"
473 A 0009870446 O-RING
CONNECTION "Z"
474 A 0004290227 THRUST RING
Repalced by: A 0009940203
474 A 0009940203 THRUST RING
CONNECTION "Z"
475 N 074305022202 NUT
CONNECTION "Z"
477 N 074313008101 FITTING
"S" CONNECTION
477 N 074313008104 FITTING
RELAY VALVE,CONNECTION "4"
477 A 0029979572 FITTING
RELAY VALVE,CONNECTION "4"
478 N 007603022102 SEAL RING
"S" CONNECTION
478 N 007603016105 SEAL RING
RELAY VALVE,CONNECTION "4"
480 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
480 A 3469970230 SCREW PLUG
480 N 007604016102 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
481 N 007603022102 SEAL RING
481 N 007603016105 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
481 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
483 A 3634311740 BRACKET
RELAY VALVE
485 A 3274295340 BRACKET
RELAY VALVE
486 A 3504237023 BRACKET
RELAY VALVE
488 A 0005454314 SWITCH
RELAY VALVE
488 A 3445457314 SWITCH
RELAY VALVE
489 N 912004008100 LOCK WASHER
RELAY VALVE BRACKET TO SIDE MEMBER
490 N 000934008000 NUT
RELAY VALVE BRACKET TO SIDE MEMBER
491 N 913004008001 NUT
BRACKET TO RELAY VALVE
492 N 000933010174 SCREW
RELAY VALVE BRACKET TO SIDE MEMBER
492 N 000933010174 SCREW
RELAY VALVE BRACKET TO SIDE MEMBER
493 N 000125010517 WASHER
RELAY VALVE BRACKET TO SIDE MEMBER
494 N 000127010202 LOCK WASHER
RELAY VALVE BRACKET TO SIDE MEMBER
495 N 000934010000 NUT
RELAY VALVE BRACKET TO SIDE MEMBER
496 N 913004010004 NUT
RELAY VALVE BRACKET TO SIDE MEMBER
498 A 3509950010 CLAMP
LINE TO BRACKET
499 N 007985006502 SCREW
LINE TO BRACKET
500 N 913004006001 NUT
LINE TO BRACKET
501 N 000125006420 WASHER
LINE TO BRACKET

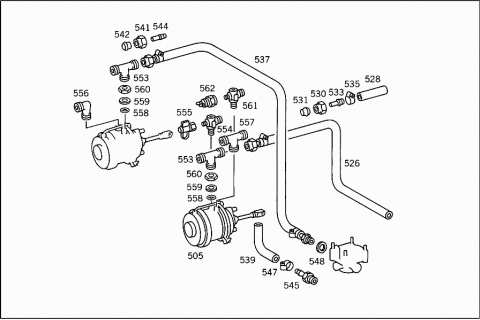

505 A 0044201018 WHEEL BRAKE CYLINDER
Repalced by: A 0054209218
505 A 0054209218 WHEEL BRAKE CYLINDER
505 A 0074201218 WHEEL BRAKE CYLINDER
505 A 0074203718 WHEEL BRAKE CYLINDER
WABCO
507 A 0004212086 DIAPHRAGM
TO 004 420 10 18
508 A 0004233187 PROTECTIVE CAP
TO 004 420 10 18
509 A 0003530191 BOOT
TO 004 420 10 18
509 A 0003530191 BOOT
TO 005 420 92 18,007 420 12 18
509 A 0004212286 CUP
Repalced by: A 0004215286
509 A 0004215286 CUP
Repalced by: A 0004212286
509 A 0004212286 CUP
TO 007 420 37 18
510 A 0099979482 HOSE
TO 004 420 10 18
511 A 0019976590 LOOM TIE
TO 004 420 10 18
512 A 0004233087 PROTECTIVE CAP
TO 004 420 10 18
513 A 0004210763 GUIDE
TO 005 420 92 18,007 420 12 18
514 A 0004235293 SPRING
TRISTOP CYLINDER
TO 007 420 37 18
514 A 0004234293 SPRING
SPRING LOAD ACCUMULATOR
TO 005 420 92 18,007 420 12 18
514 A 0004234393 SPRING
SPRING LOAD ACCUMULATOR
TO 007 420 12 18
514 A 0004235493 SPRING
SPRING LOAD ACCUMULATOR
TO 007 420 37 18
A 0004312728 DIAPHRAGM
TO 006 420 37 18
A 0004233886 CUP
TO 006 420 37 18
A 0004211263 GUIDE
TO 006 420 37 18
A 0004303860 REPAIR KIT
TO 006 420 37 18
515 A 0015864542 REPAIR KIT
DIAPHRAGM
TO 005 420 92 18
515 A 0025865142 REPAIR KIT
Repalced by: A 0044208524
515 A 0044208524 REPAIR KIT
DIAPHRAGM
TO 007 420 37 18
515 A 0004301168 REPAIR KIT
DIAPHRAGM
TO 007 420 12 18
515 A 0004303760 REPAIR KIT
SPRING LOAD ACCUMULATOR
TO 005 420 92 18
515 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
515 A 0024301560 REPAIR KIT
TO 007 420 12 18
515 A 0025862642 REPAIR KIT
Repalced by: A 0054205424
515 A 0054205424 REPAIR KIT
SPRING LOAD ACCUMULATOR
TO 007 420 37 18
517 A 3894230133 BEARING BRACKET
TRISTOP CYLINDER
518 A 3893250275 SCREW
Repalced by: N 000961016032
518 N 000961016098 SCREW
BEARING BRACKET TO REAR AXLE
518 N 914125016409 SCREW
BEARING BRACKET TO REAR AXLE
519 N 913004016004 NUT
520 N 915042015000 PLUG
521 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
522 N 000433015000 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
523 N 000094004050 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
525 A 3354200148 BRAKE HOSE
Repalced by: A 3504207148
525 A 3504207148 BRAKE HOSE
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
526 A 3504200048 BRAKE HOSE
TOWARDS SPRING LOAD ACCUMULATOR CYLINDER
650 MM
526 A 3504200048 BRAKE HOSE
TOWARDS SPRING LOAD ACCUMULATOR CYLINDER
650 MM
526 A 3504207648 BRAKE HOSE
TOWARDS SPRING LOAD ACCUMULATOR CYLINDER
550 MM
527 N 916027013002 HOSE
527 N 916027013002 HOSE
528 N 916027011008 HOSE
630 MM
528 N 916027011005 HOSE
530 MM
529 N 915001013002 UNION NUT
530 N 915017012100 UNION NUT
531 N 003861012007 GLAND
532 A 0029971872 FITTING
533 A 0004290541 FITTING
Repalced by: A 3454297041
533 A 3454297041 FITTING
534 A 0009950565 CLAMP
Repalced by: A 3449978490
534 A 3449978490 CLAMP
535 A 3459977990 LOOM TIE
Repalced by: A 3459978890
535 A 3459978890 LOOM TIE
535 A 3459977990 LOOM TIE
Repalced by: A 3459978890
535 A 3459978890 LOOM TIE
BRAKE HOSE TO COMPRESSED AIR LINE
536 A 3634203048 BRAKE HOSE
Repalced by: A 3504207448
536 A 3504207448 BRAKE HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
537 A 3504200148 BRAKE HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
675 MM
537 A 3504200148 BRAKE HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
675 MM
537 A 3504208348 BRAKE HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
575 MM
538 N 916027013004 HOSE
539 N 916027011008 HOSE
630 MM
539 N 916027011005 HOSE
530 MM
540 N 915001013002 UNION NUT
541 N 915017012100 UNION NUT
542 N 003861012007 GLAND
543 A 0029971872 FITTING
544 A 0004290541 FITTING
Repalced by: A 3454297041
544 A 3454297041 FITTING
545 N 074304016200 FITTING
546 A 0009950565 CLAMP
Repalced by: A 3449978490
546 A 3449978490 CLAMP
547 A 3459977990 LOOM TIE
Repalced by: A 3459978890
547 A 3459978890 LOOM TIE
548 N 007603016105 SEAL RING
CONNECTION:
"2"
548 N 007603016103 SEAL RING
CONNECTION:
"2"
549 N 074302022202 T-FITTING
550 A 0009870446 O-RING
551 A 0004290227 THRUST RING
Repalced by: A 0009940203
551 A 0009940203 THRUST RING
552 N 074305022202 NUT
553 A 0009904270 T-FITTING
CONNECTIONS "11",LEFT;"12",RIGHT
554 A 3504297336 CONNECTOR
CONNECTIONS "11",LEFT;"12",RIGHT
555 A 0004314831 TEST CONNECTION
CONNECTIONS "11",LEFT;"12",RIGHT
556 N 074315012100 FITTING
CONNECTION "11",RIGHT
556 A 0019903371 ELBOW FITTING
CONNECTION "11",RIGHT
557 A 0009904770 T-FITTING
CONNECTION "12",LEFT
558 A 0009971548 SEAL RING
FOR LINE CONNECTION
559 A 0004290927 THRUST RING
FOR LINE CONNECTION
560 N 000936016003 NUT
FOR LINE CONNECTION
561 A 3504297436 CONNECTOR
CONNECTION "12",LEFT
562 A 0005455414 SWITCH
CONNECTION "12",LEFT
562 A 3445457214 SWITCH
CONNECTION "12",LEFT
564 A 3464205048 BRAKE HOSE
Repalced by: A 3504207248
564 A 3504207248 BRAKE HOSE
565 N 074310013022 HOSE
13X270
565 N 074310013022 HOSE
13X535
566 N 074304022201 FITTING
567 A 0029971872 FITTING
568 N 915001013002 UNION NUT
569 A 3449978490 CLAMP
570 N 007603022102 SEAL RING
570 N 007603022102 SEAL RING
FROM HOSE TO TRISTOP CYLINDER
571 N 915045012100 SEAL RING
572 N 074315000200 FITTING
FROM HOSE TO TRISTOP CYLINDER
572 A 0009905871 ELBOW FITTING
FROM HOSE TO TRISTOP CYLINDER
573 A 0009870446 O-RING
FROM HOSE TO TRISTOP CYLINDER
574 A 0004290227 THRUST RING
Repalced by: A 0009940203
574 A 0009940203 THRUST RING
FROM HOSE TO TRISTOP CYLINDER
575 N 074305022202 NUT
FROM HOSE TO TRISTOP CYLINDER
576 N 000933010129 SCREW
FROM HOSE TO TRISTOP CYLINDER
580 A 0004304781 VALVE
Repalced by: A 3454307381
580 A 3454307381 VALVE
HAND BRAKE VALVE
581 A 0089973845 SEAL RING
TO 000 430 55 81,000 430 47 81
582 A 0089973745 SEAL RING
TO 000 430 55 81,000 430 47 81
583 A 0009933305 SPRING
TO 000 430 55 81,000 430 47 81
584 A 0089974045 SEAL RING
TO 000 430 55 81,000 430 47 81
585 A 0004312188 VALVE SEAT
TO 000 430 55 81,000 430 47 81
A 0089974145 SEAL RING
TO 000 430 47 81
586 A 0004313323 VALVE
TO 000 430 47 81
587 A 0009933205 SPRING
TO 000 430 47 81
588 A 0059976545 SEAL RING
TO 000 430 47 81
A 0014311093 SPRING
TO 000 430 47 81
589 A 0009973277 HANDLE
TO 345 430 73 81
A 0009974977 HANDLE
TO 350 430 70 09
A 0009911055 PIN
TO 350 430 70 09
A 0004305760 REPAIR KIT
TO 000 430 55 81
590 H 983455861043 REPAIR KIT
Repalced by: A 0034301181
590 A 0034301181 REPAIR KIT
SMALL SCOPE
TO 345 430 73 81
590 A 0005868043 REPAIR KIT
LARGE SCOPE
TO 345 430 73 81
A 0025867843 REPAIR KIT
TO 000 430 47 81
592 A 3504307009 VALVE
HAND BRAKE VALVE
593 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
593 A 0034303181 REPAIR KIT
TO 350 430 70 09
593 A 0024302360 REPAIR KIT
Repalced by: A 0004304006
593 A 0004304006 REPAIR KIT
TO 345 430 73 09
595 A 0009972072 FITTING
Repalced by: A 0039979972
595 A 0039979972 FITTING
AT HAND BRAKE VALVE
596 N 007603014102 SEAL RING
AT HAND BRAKE VALVE
A 3464316040 BRACKET
597 A 3454317184 SHIM
HAND BRAKE VALVE TO SEAT BOX
598 N 000963006030 SCREW
HAND BRAKE VALVE TO SEAT BOX
599 N 000125006420 WASHER
HAND BRAKE VALVE TO SEAT BOX
600 N 000127006203 LOCK WASHER
HAND BRAKE VALVE TO SEAT BOX
601 N 913004006001 NUT
HAND BRAKE VALVE TO SEAT BOX
602 N 007985008169 SCREW
HAND BRAKE VALVE TO CAB
603 N 912004008100 LOCK WASHER
HAND BRAKE VALVE TO CAB
A 3554270034 COVERING
N 007985008142 SCREW
N 912004008100 LOCK WASHER
N 000125008417 WASHER
610 A 0004311613 VALVE
Repalced by: A 0014315605
610 A 0014315605 BRAKE VALVE
CONTROL VALVE
611 A 0025863843 REPAIR KIT
TO 001 431 56 05
613 A 0014313705 BRAKE VALVE
CONTROL VALVE
"WESTINGHOUSE
614 A 0015866043 REPAIR KIT
Repalced by: A 0024306581
614 A 0024306581 REPAIR KIT
TO 001 431 37 05
A 0004302960 REPAIR KIT
TO 002 431 16 05
614 A 0024304781 REPAIR KIT
VALVE KIT
TO 001 431 37 05
616 N 074313008101 FITTING
616 N 074313008101 FITTING
616 A 0009970171 FITTING
616 A 0009970171 FITTING
617 N 007603022102 SEAL RING
618 N 000908022001 SCREW PLUG
A 3459907070 T-FITTING
619 N 074302022202 T-FITTING
620 N 074305022202 NUT
621 A 0004290227 THRUST RING
Repalced by: A 0009940203
621 A 0009940203 THRUST RING
622 A 0009870446 O-RING
623 A 3454297332 T-FITTING
CONTROL VALVE,CONNECTION "1"
624 N 000936016003 NUT
CONTROL VALVE,CONNECTION "1"
625 A 3084297027 THRUST RING
CONTROL VALVE,CONNECTION "1"
626 A 0029971640 SEAL RING
CONTROL VALVE,CONNECTION "1"
627 N 000908016001 SCREW PLUG
CONTROL VALVE,CONNECTION:
42
628 N 007603016102 SEAL RING
CONTROL VALVE,CONNECTION:
42
629 A 3089907171 ELBOW FITTING
TRAILER CONTROL VALVE,CONNECTIONS:
"1,2"
629 A 3089907171 ELBOW FITTING
TRAILER CONTROL VALVE,CONNECTIONS:
"1,2"
630 N 000936016003 NUT
TRAILER CONTROL VALVE,CONNECTIONS:
"1,2"
630 N 000936016003 NUT
TRAILER CONTROL VALVE,CONNECTIONS:
"1,2"
631 A 0009971548 SEAL RING
TRAILER CONTROL VALVE,CONNECTIONS:
"1,2"
632 A 0004290927 THRUST RING
TRAILER CONTROL VALVE,CONNECTIONS:
"1,2"
633 N 074313008104 FITTING
TRAILER CONTROL VALVE,CONNECTIONS:
"41,42,43"
633 A 0029979572 FITTING
TRAILER CONTROL VALVE,CONNECTIONS:
"41,42,43"
634 N 007603016105 SEAL RING
TRAILER CONTROL VALVE,CONNECTIONS:
"41,42,43"
635 A 3504767325 INTERMEDIATE PIECE
636 A 3464295840 BRACKET
INTERMEDIATE PIECE TO FRAME
637 N 000933008288 SCREW
INTERMEDIATE PIECE TO FRAME
638 N 000125008417 WASHER
INTERMEDIATE PIECE TO FRAME
639 N 913004008001 NUT
INTERMEDIATE PIECE TO FRAME
640 A 3504297840 CLAMP
INTERMEDIATE PIECE TO FRAME
641 N 007985006515 SCREW
INTERMEDIATE PIECE TO FRAME
642 N 000125006420 WASHER
INTERMEDIATE PIECE TO FRAME
643 N 913004006001 NUT
INTERMEDIATE PIECE TO FRAME
644 A 3504207066 CONNECTOR
TRAILER CONTROL VALVE,CONNECTIONS:
"41"
645 N 000936016003 NUT
646 N 000125017010 WASHER
647 N 006797016152 TOOTHED WASHER
650 A 0004291444 VALVE
(CONTROL VALVE)
652 A 3454327040 BRACKET
Repalced by: A 3504311240
652 A 3504311240 BRACKET
TRAILER CONTROL VALVE
653 A 3454318440 BRACKET
TRAILER CONTROL VALVE
653 A 3454318440 BRACKET
TRAILER CONTROL VALVE
654 N 000933010129 SCREW
BRACKET TO CONTROL VALVE
655 N 000127010202 LOCK WASHER
BRACKET TO CONTROL VALVE
656 N 000934010000 NUT
BRACKET TO CONTROL VALVE
657 N 913004008001 NUT
BRACKET TO CONTROL VALVE
658 N 000961012106 SCREW
BRACKET TO SIDE MEMBER
659 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
659 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
659 N 000961014106 SCREW
BRACKET TO SIDE MEMBER
660 N 000127012201 LOCK WASHER
BRACKET TO SIDE MEMBER
661 N 000934012004 NUT
BRACKET TO SIDE MEMBER
662 N 913004010004 NUT
BRACKET TO SIDE MEMBER
662 N 913004010004 NUT
BRACKET TO SIDE MEMBER
662 N 913004014005 NUT
680 A 3504297040 BRACKET
SHUT-OFF COCK
680 A 3504297440 BRACKET
SHUT-OFF COCK
680 A 3504297440 BRACKET
SHUT-OFF COCK
683 A 3464295440 BRACKET
LEFT SHUT-OFF COCK
684 A 3464295140 BRACKET
LEFT SHUT-OFF COCK
684 A 3464295140 BRACKET
LEFT SHUT-OFF COCK
685 A 3464295340 BRACKET
RIGHT SHUT-OFF COCK
686 N 000933010174 SCREW
SHUT-OFF COCK BRACKET
686 N 000933010174 SCREW
SHUT-OFF COCK BRACKET
687 N 000961012058 SCREW
SHUT-OFF COCK BRACKET
688 N 000127010202 LOCK WASHER
SHUT-OFF COCK BRACKET
689 N 913004010004 NUT
SHUT-OFF COCK BRACKET
689 N 913004010004 NUT
SHUT-OFF COCK BRACKET
690 N 913004012012 NUT
SHUT-OFF COCK BRACKET
692 A 3454297031 SHUT-OFF COCK
T YYYYYYYYYYYY PART NAME MISSING
692 A 3454297131 SHUT-OFF COCK
T YYYYYYYYYYYY PART NAME MISSING
694 A 0004291431 SHUT-OFF COCK
696 A 3454297036 CONNECTOR
696 A 3444297436 CONNECTOR
SHUT-OFF COCK TO BRACKET
697 A 0004296034 ADAPTER FITTING
698 N 006797023201 TOOTHED WASHER
698 N 006797019202 TOOTHED WASHER
SHUT-OFF COCK TO BRACKET
699 N 006797019202 TOOTHED WASHER
ADAPTER FITTING TO BRACKET
700 N 074305022202 NUT
SHUT-OFF COCK TO BRACKET
701 N 080705018002 NUT
SHUT-OFF COCK TO BRACKET
701 N 080705018002 NUT
ADAPTER FITTING TO BRACKET
703 N 074313012100 FITTING
SHUT-OFF COCK
703 A 0029971172 FITTING
Repalced by: A 3454307879
703 A 3454307879 CONNECTOR
SHUT-OFF COCK
704 N 007603022102 SEAL RING
SHUT-OFF COCK
706 A 3504207757 HOSE
LEFT BRAKE LINE COUPLING
706 A 3504307378 HOSE
LEFT BRAKE LINE COUPLING
706 A 3504207657 HOSE
RIGHT BRAKE LINE COUPLING
706 A 3504307278 HOSE
RIGHT BRAKE LINE COUPLING
707 A 3084297027 THRUST RING
BRAKE LINE COUPLING,RIGHT AND LEFT
707 A 0004290727 THRUST RING
BRAKE LINE COUPLING,RIGHT AND LEFT
707 A 0004290927 THRUST RING
BRAKE LINE COUPLING,RIGHT AND LEFT
708 A 0009971548 SEAL RING
BRAKE LINE COUPLING,RIGHT AND LEFT
709 A 3504207186 BRACKET
BRAKE LINE COUPLING,RIGHT AND LEFT
710 A 3509887095 SAFETY CHAIN
BRAKE LINE COUPLING,RIGHT AND LEFT
711 A 0004292830 BRAKE LINE COUPLING
712 A 0004298730 BRAKE LINE COUPLING
LEFT BRAKE LINE COUPLING
KNORR
712 A 0004298630 BRAKE LINE COUPLING
RIGHT BRAKE LINE COUPLING
KNORR
A 0004291290 COVER
TO 000 429 80 30
A 0004291690 COVER
TO 000 429 81 30
A 0025863842 REPAIR KIT
TO 000 429 80 30,000 429 81 30
713 A 0004309660 REPAIR KIT
TO 000 429 86 30,000 429 87 30
715 A 0009870446 O-RING
BRAKE LINE COUPLING TO SHUT-OFF COCK
716 A 0004290227 THRUST RING
Repalced by: A 0009940203
716 A 0009940203 THRUST RING
BRAKE LINE COUPLING TO SHUT-OFF COCK
717 N 074305022202 NUT
BRAKE LINE COUPLING TO SHUT-OFF COCK
718 N 074313016401 FITTING
BRAKE LINE COUPLING TO SHUT-OFF COCK
718 A 0019972372 FITTING
BRAKE LINE COUPLING TO SHUT-OFF COCK
719 N 007603022102 SEAL RING
BRAKE LINE COUPLING TO SHUT-OFF COCK
A 3505847137 PLATE
BRAKE
A 3505847337 PLATE
BRAKE
A 3505847037 PLATE
SUPPLY
A 3505847237 PLATE
SUPPLY
721 N 000931008100 SCREW
SHUT-OFF COCK TO BRACKET
722 N 913004008001 NUT
SHUT-OFF COCK TO BRACKET
725 A 3454297532 T-FITTING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
726 N 074305022202 NUT
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
727 N 000936016003 NUT
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
728 A 0009870446 O-RING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
729 A 0009971548 SEAL RING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
730 A 0004290927 THRUST RING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
731 A 0004290227 THRUST RING
Repalced by: A 0009940203
731 A 0009940203 THRUST RING
CHECK VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
734 A 3509900087 CROSS FITTING
SUPPLY LINE
740 A 0004303481 VALVE
Repalced by: A 3454307481
740 A 3454307481 VALVE
Repalced by: A 3454307581
740 A 0014302381 VALVE
Repalced by: A 3454307581
740 A 3454307581 VALVE
HAND BRAKE VALVE
"WABCO"
A 0009973977 HANDLE
TO 001 430 23 81
A 0009974977 HANDLE
TO 345 430 75 81
A 0009911055 PIN
TO 345 430 75 81
741 H 980005860043 REPAIR KIT
Repalced by: A 0034301081
741 A 0034301081 REPAIR KIT
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
000 586 23 43
Y YYYYYYYYYYYY PART NAME MISSING
TO 000 430 34 81;345 430 74 81
A 0004307060 REPAIR KIT
TO 001 430 23 81
741 A 0034301481 REPAIR KIT
TO 345 430 75 81
742 N 003901008001 SCREW-IN FITTING
CONNECTION TO VALVE
742 A 0019972572 FITTING
CONNECTION TO VALVE
743 N 007603012106 SEAL RING
CONNECTION TO VALVE
744 A 3364311040 BRACKET
HAND BRAKE VALVE
745 N 000933008279 SCREW
VALVE TO BRACKET
746 N 912004008100 LOCK WASHER
VALVE TO BRACKET
747 N 913004008001 NUT
VALVE TO BRACKET
748 N 000933008282 SCREW
BRACKET TO STEERING COLUMN
749 N 912004008100 LOCK WASHER
BRACKET TO STEERING COLUMN
750 A 3634201548 BRAKE HOSE
VALVE BLEEDING
751 A 0099979882 HOSE
Repalced by: A 0089979082
751 A 0109976982 HOSE
Repalced by: A 0089979082
751 A 0089979082 HOSE
Repalced by: A 0009874927
751 A 0009874927 PLASTIC PIPE
8X6 MM
752 A 0019976672 FITTING
Repalced by: N 915062006000
752 N 915062006000 SLEEVE
753 A 3534206226 LINE
Repalced by: A 3454209335
753 A 3454209335 LINE
FROM FITTING AT FIRE WALL TO VALVE
754 A 0089979082 HOSE
Repalced by: A 0009874927
754 A 0009874927 PLASTIC PIPE
8X6 MM
755 A 0109970182 HOSE
756 A 0109976982 HOSE
Repalced by: A 0089979082
756 A 0089979082 HOSE
Repalced by: A 0009874927
756 A 0009874927 PLASTIC PIPE
8X6 MM
757 N 040621016201 INSULATING HOSE
180 MM
758 N 915017008100 UNION NUT
759 N 003861008005 GLAND
760 A 0007630043 SLEEVE
Repalced by: N 915062006000
760 A 0019976672 FITTING
Repalced by: N 915062006000
760 N 915062006000 SLEEVE
761 A 8339970281 GROMMET
BREATHING; THRU CAB FLOOR
761 A 0009972181 GROMMET
Repalced by: A 0009972281
761 A 0009972281 GROMMET
BREATHING; THRU CAB FLOOR
762 A 3459978272 FITTING
LINE CONNECTION TO FIRE WALL AND TO CAB FLOOR
762 A 0009909271 ELBOW FITTING
LINE CONNECTION TO FIRE WALL AND TO CAB FLOOR
762 A 3459978272 FITTING
LINE CONNECTION TO FIRE WALL AND TO CAB FLOOR
763 N 080705014001 NUT
LINE CONNECTION TO FIRE WALL AND TO CAB FLOOR
764 A 3409910040 SPACER TUBE
LINE CONNECTION TO FIRE WALL AND TO CAB FLOOR
765 N 000125015012 WASHER
LINE CONNECTION TO FIRE WALL AND TO CAB FLOOR
766 N 006797014150 TOOTHED WASHER
LINE CONNECTION TO FIRE WALL AND TO CAB FLOOR
767 A 0014298744 VALVE
TWO-WAY VALVE
768 A 0014302960 REPAIR KIT
TO 001 429 87 44
769 A 0014292444 VALVE
Repalced by: A 0024299544
769 A 0024299544 VALVE
TWO-WAY VALVE
WESTINGHOUSE
769 A 0004291182 VALVE BODY
769 A 0024299944 VALVE
TWO-WAY VALVE
KNORR
770 A 3454297136 CONNECTOR
CONNECTION TO VALVE
771 A 3454297436 CONNECTOR
CONNECTION TO VALVE
772 A 3454297056 SCREW PLUG
CONNECTION TO VALVE
774 A 3454297740 BRACKET
COMPRESSED AIR LINE MOUNTING
780 N 074313008101 FITTING
TWO-WAY VALVE,CONNECTION "2"
780 A 0009970171 FITTING
TWO-WAY VALVE,CONNECTION "2"
781 N 007603022102 SEAL RING
TWO-WAY VALVE,CONNECTION "2"
782 A 3459907371 ELBOW FITTING
TWO-WAY VALVE,CONNECTION:
"12"
783 N 074305022202 NUT
TWO-WAY VALVE,CONNECTION:
"12"
784 A 0004290227 THRUST RING
Repalced by: A 0009940203
784 A 0009940203 THRUST RING
TWO-WAY VALVE,CONNECTION:
"12"
785 A 0009870446 O-RING
TWO-WAY VALVE,CONNECTION:
"12"
786 N 074313016401 FITTING
TWO-WAY VALVE TO BRAKE VALVE
786 A 0019972372 FITTING
TWO-WAY VALVE TO BRAKE VALVE
787 N 074305022202 NUT
TWO-WAY VALVE TO BRAKE VALVE
788 A 0004290227 THRUST RING
Repalced by: A 0009940203
788 A 0009940203 THRUST RING
TWO-WAY VALVE TO BRAKE VALVE
789 A 0009870446 O-RING
TWO-WAY VALVE TO BRAKE VALVE
790 N 007603022102 SEAL RING
TWO-WAY VALVE TO BRAKE VALVE
800 A 3464316540 BRACKET
BRACKET TO LEFT SIDE MEMBER
800 A 3464316540 BRACKET
BRACKET TO LEFT SIDE MEMBER
801 N 000933010174 SCREW
802 N 000125010517 WASHER
803 N 000127010202 LOCK WASHER
804 N 000934010000 NUT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
