Transporto priemonė: LS 1924; VIN numerio dalis: 350013
Grupė: 54 ELEKTR. EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

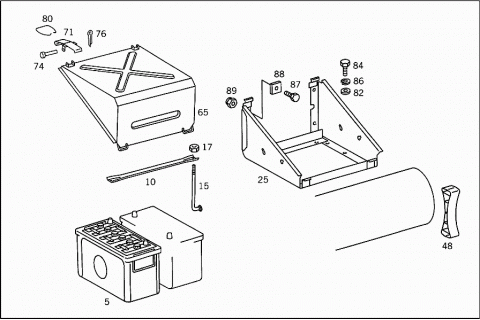

| 005 | H 983455410301 | BATTERY |
| Repalced by: A 3455410001 | ||
| 005 | A 3455410001 | BATTERY |
| LESS ACID | ||
| 12V-88AH | ||
| 010 | H 983455410113 | MOUNTING RAIL |
| Repalced by: A 3455417113 | ||
| 010 | A 3455417113 | MOUNTING RAIL |
| BATTERY MOUNTING | ||
| 010 | A 3455417113 | MOUNTING RAIL |
| BATTERY MOUNTING | ||
| 015 | A 3455417122 | HOOK |
| Repalced by: A 3455417222 | ||
| 015 | A 3455417222 | HOOK |
| BATTERY MOUNTING | ||
| 015 | A 3455417222 | HOOK |
| BATTERY MOUNTING | ||
| 017 | N 000934008000 | NUT |
| BATTERY MOUNTING | ||
| 017 | N 000934008000 | NUT |
| BATTERY MOUNTING | ||
| 025 | A 3455407014 | BATTERY CASE |
| 025 | A 3455400314 | BATTERY CASE |
| Repalced by: A 3455407214 | ||
| 025 | A 3455407214 | BATTERY CASE |
| A 3455417060 | SEAL RING | |
| BATTERY CASE | ||
| A 3505417060 | SEAL RING | |
| BATTERY CASE | ||
| 048 | A 3354320218 | BASE |
| BATTERY CASE | ||
| 065 | A 3455407082 | COVER |
| BATTERY CASE | ||
| 065 | A 3455407282 | COVER |
| BATTERY CASE | ||
| 071 | A 0445400019 | MOUNTING BOW |
| Repalced by: A 3445400019 | ||
| 071 | A 3445400019 | MOUNTING BOW |
| BATTERY CASE | ||
| 071 | A 3445400019 | MOUNTING BOW |
| BATTERY CASE | ||
| 074 | N 001434005029 | PIN |
| BRACKET TO BOX COVER | ||
| 074 | N 001434005029 | PIN |
| BRACKET TO BOX COVER | ||
| 076 | N 000094001609 | COTTER PIN |
| BRACKET TO BOX COVER | ||
| 076 | N 000094001609 | COTTER PIN |
| BRACKET TO BOX COVER | ||
| 080 | A 0445410039 | LOCK |
| Repalced by: A 3445410026 | ||
| 080 | A 3445410026 | BRACKET |
| BRACKET TO BOX COVER | ||
| 080 | A 3445410026 | BRACKET |
| BRACKET TO BOX COVER | ||
| 082 | A 3459907240 | WASHER |
| BATTERY CASE TO CONSOLE | ||
| 082 | A 3129904240 | WASHER |
| BATTERY CASE TO CONSOLE | ||
| 084 | N 000961012106 | SCREW |
| BATTERY CASE TO CONSOLE | ||
| 086 | N 000127012201 | LOCK WASHER |
| BATTERY CASE TO CONSOLE | ||
| 087 | N 000961014073 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X1.5X45 MM | ||
| 088 | A 3044750019 | BASE |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 089 | N 913004014005 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||

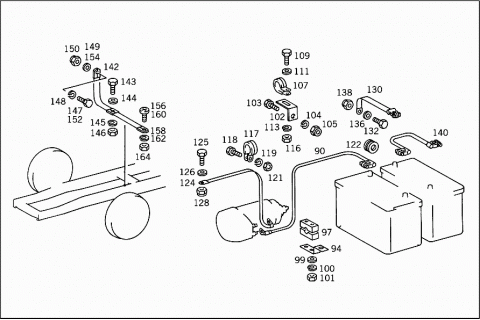

| 090 | A 3505400130 | POSITIVE CABLE |
| Repalced by: A 3505407130 | ||
| 090 | A 3505407130 | POSITIVE CABLE |
| FROM STARTING MOTOR TO BATTERY POS. POLE | ||
| A 3505460043 | BRACKET | |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 094 | A 3544295940 | BRACKET |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 097 | A 3505460044 | CLAMPING PIECE |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 097 | A 3505460044 | CLAMPING PIECE |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| N 000931005012 | SCREW | |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| N 000931005012 | SCREW | |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 099 | N 000125005315 | WASHER |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 099 | N 000125005315 | WASHER |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 100 | N 000127005001 | LOCK WASHER |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 100 | N 000127005001 | LOCK WASHER |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 101 | N 000934005008 | NUT |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 101 | N 000934005008 | NUT |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 102 | A 3464295640 | BRACKET |
| BATTERY CABLE | ||
| 102 | A 3464295540 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 103 | N 000961012160 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 104 | N 912004012100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 105 | N 913004012003 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 107 | A 0009950301 | CLAMP |
| Repalced by: N 916016015200 | ||
| 107 | N 916016015200 | CLAMP |
| BATTERY CABLE TO BRACKET | ||
| 107 | A 3459958101 | CLAMP |
| BATTERY CABLE TO BRACKET | ||
| 107 | N 916016018202 | CLAMP |
| BATTERY CABLE TO BRACKET | ||
| 109 | N 000933006221 | SCREW |
| BATTERY CABLE TO BRACKET | ||
| 109 | N 000933006220 | SCREW |
| BATTERY CABLE TO BRACKET | ||
| M 6X16 | ||
| 111 | N 000125006420 | WASHER |
| BATTERY CABLE TO BRACKET | ||
| 113 | N 000127006203 | LOCK WASHER |
| BATTERY CABLE TO BRACKET | ||
| 116 | N 000934006006 | NUT |
| BATTERY CABLE TO BRACKET | ||
| 117 | A 0009950301 | CLAMP |
| Repalced by: N 916016015200 | ||
| 117 | N 916016015200 | CLAMP |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 117 | A 3459958101 | CLAMP |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 117 | N 916016018202 | CLAMP |
| 118 | N 000933008288 | SCREW |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 119 | N 912004008100 | LOCK WASHER |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 121 | N 000934008000 | NUT |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 122 | A 3209970682 | HOSE |
| THRU SIDE MEMBER AND APPARATUS SUPPORT | ||
| 122 | A 3609970181 | GROMMET |
| THRU SIDE MEMBER AND APPARATUS SUPPORT | ||
| 122 | A 3609970181 | GROMMET |
| THRU SIDE MEMBER AND APPARATUS SUPPORT | ||
| 124 | A 3505400141 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 125 | N 000933010092 | SCREW |
| GROUND STRAP TO SIDE MEMBER | ||
| 126 | N 000125010517 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| N 000127010202 | LOCK WASHER | |
| GROUND STRAP TO SIDE MEMBER | ||
| 128 | N 913004010004 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||
| 130 | H 983455400131 | NEG. CABLE |
| Repalced by: A 3455407441 | ||
| 130 | A 3455407441 | GROUND STRAP |
| FROM BATTERY NEG. POLE TO GROUND | ||
| 132 | N 000961014046 | SCREW |
| GROUND STRAP TO SIDE MEMBER | ||
| N 000127014201 | LOCK WASHER | |
| GROUND STRAP TO SIDE MEMBER | ||
| 136 | N 000125015012 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 138 | N 913004014002 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||
| 140 | A 3505407030 | POSITIVE CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 142 | A 3375400341 | GROUND STRAP |
| Repalced by: A 3505407041 | ||
| 142 | A 3505407041 | GROUND STRAP |
| GROUND STRAP TO ENGINE | ||
| 143 | N 000933010294 | SCREW |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 144 | N 000125010517 | WASHER |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 145 | N 000127010202 | LOCK WASHER |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 146 | N 000934010000 | NUT |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 147 | N 000961012171 | SCREW |
| GROUND CABLE TO ENGINE | ||
| 147 | N 000933012124 | SCREW |
| GROUND CABLE TO ENGINE | ||
| 148 | N 000127012201 | LOCK WASHER |
| GROUND CABLE TO ENGINE | ||
| 149 | N 000125013012 | WASHER |
| GROUND CABLE TO ENGINE | ||
| 150 | N 913004012003 | NUT |
| GROUND CABLE TO ENGINE | ||
| 152 | N 000933008005 | SCREW |
| GROUND CABLE TO ENGINE | ||
| 154 | N 000125008417 | WASHER |
| GROUND CABLE TO ENGINE | ||
| 156 | N 007985006515 | SCREW |
| GROUND CABLE TO FENDER | ||
| 158 | N 000127006203 | LOCK WASHER |
| GROUND CABLE TO FENDER | ||
| 160 | N 007985006515 | SCREW |
| GROUND CABLE TO WINDOW SILL | ||
| 162 | N 000127006203 | LOCK WASHER |
| GROUND CABLE TO WINDOW SILL | ||
| 164 | N 000934006006 | NUT |
| GROUND CABLE TO WINDOW SILL | ||
| H 980005420206 | SPEEDOMETER | |
| Repalced by: A 3215420206 | ||
| 166 | A 3215420206 | SPEEDOMETER |
| 166 | A 3445427206 | SPEEDOMETER |
| 166 | A 3505427106 | SPEEDOMETER |
| HORASA | ||
| 168 | A 3505427210 | TACHOGRAPH |
| VDO | ||
| 170 | N 072601024801 | BULB |
| 24V-2W | ||
| A 3445427194 | DIAGRAM PAPER | |
| SET = 10 PACKS OF 7 PIECES | ||

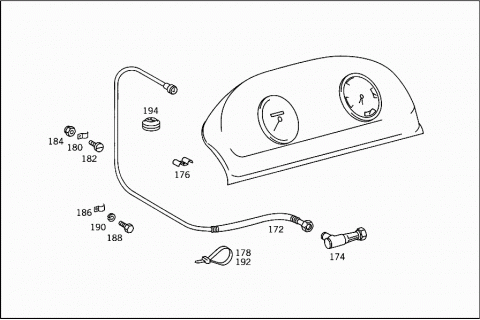

| 172 | A 3455427607 | FLEXIBLE SHAFT |
| 172 | A 3845427707 | FLEXIBLE SHAFT |
| H 983455420230 | ANGLE DRIVE | |
| Repalced by: A 3455420230 | ||
| A 0005422930 | ANGLE DRIVE | |
| Repalced by: A 3455420230 | ||
| 174 | A 3455420230 | ANGLE DRIVE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 542 29 30 | ||
| 176 | A 3359950032 | CLAMP |
| FLEXIBLE SHAFT TO COMPRESSED AIR LINE | ||
| 178 | A 3459977290 | LOOM TIE |
| FLEXIBLE SHAFT TO COMPRESSED AIR LINE | ||
| 180 | A 3049951520 | CLAMP |
| ELEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| Repalced by: A 1009950420 | ||
| 180 | A 1009950420 | CLAMP |
| ELEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| 182 | N 007985006515 | SCREW |
| ELEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| 184 | N 913004006001 | NUT |
| ELEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| 186 | A 3049951520 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| Repalced by: A 1009950420 | ||
| 186 | A 1009950420 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| 188 | N 000933006220 | SCREW |
| FLEXIBLE SHAFT TO CAB | ||
| 190 | N 000127006203 | LOCK WASHER |
| FLEXIBLE SHAFT TO CAB | ||
| 192 | A 3459977290 | LOOM TIE |
| FLEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| A 3229971681 | GROMMET | |
| Repalced by: A 3459977481 | ||
| 194 | A 3459977481 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||

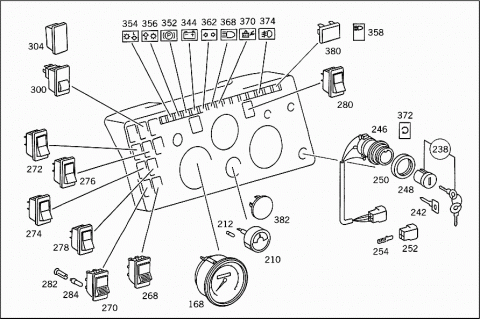

| 196 | A 0005427216 | TACHOMETER |
| 198 | A 0015422417 | SENDER UNIT |
| H 980005420916 | TACHOMETER | |
| Repalced by: A 3455420116 | ||
| 200 | A 3455420116 | TACHOMETER |
| H 980005420017 | SENDER UNIT | |
| Repalced by: A 3455420017 | ||
| 202 | A 3455420017 | SENDER UNIT |
| 204 | A 3505427016 | TACHOMETER |
| 204 | A 3505427016 | TACHOMETER |
| HORASA | ||
| 204 | A 3505427116 | TACHOMETER |
| 204 | A 3505427116 | TACHOMETER |
| VDO | ||
| 204 | A 3505427616 | TACHOMETER |
| VDO | ||
| 204 | A 3505427616 | TACHOMETER |
| VDO | ||
| 204 | A 3505427716 | TACHOMETER |
| HORASA | ||
| 204 | A 3505427716 | TACHOMETER |
| HORASA | ||
| 206 | N 072601024801 | BULB |
| 24V-2W | ||
| 208 | A 3455440093 | LAMP SOCKET |
| 210 | A 3455427224 | AMMETER |
| 210 | A 3455427224 | AMMETER |
| 212 | N 072601024801 | BULB |
| AMMETER | ||
| 24 V-2 W | ||
| 212 | N 072601024801 | BULB |
| AMMETER | ||
| 24 V-2 W | ||
| 214 | A 3505407047 | INSTRUMENT CLUSTER |
| 214 | A 3505407247 | INSTRUMENT CLUSTER |
| 214 | A 3505407247 | INSTRUMENT CLUSTER |
| 214 | A 3505407647 | INSTRUMENT CLUSTER |
| VDO | ||
| 214 | A 3505407647 | INSTRUMENT CLUSTER |
| VDO | ||
| 214 | A 3505407847 | INSTRUMENT CLUSTER |
| HORASA | ||
| 214 | A 3505407847 | INSTRUMENT CLUSTER |
| HORASA | ||
| 216 | A 3445427108 | AIR PRESSURE GAUGE |
| 216 | A 0015421808 | AIR PRESSURE GAUGE |
| TO 350 540 72 47 | ||
| 216 | A 0015422908 | AIR PRESSURE GAUGE |
| T 350 540 76 47,72 47 | ||
| 218 | A 3505427003 | FUEL GAUGE DASH UNIT |
| 218 | A 0025428303 | FUEL GAUGE DASH UNIT |
| TO 350 540 72 47 | ||
| 218 | A 0025428303 | FUEL GAUGE DASH UNIT |
| TO 350 540 72 47 | ||
| 218 | A 0025428803 | FUEL GAUGE DASH UNIT |
| TO 350 540 76 47 | ||
| 218 | A 0025428803 | FUEL GAUGE DASH UNIT |
| TO 350 540 76 47 | ||
| 220 | A 3505427005 | TEMPERATURE GAUGE |
| 220 | A 0035427105 | TEMPERATURE GAUGE |
| TO 350 540 72 47 | ||
| 220 | A 0035427105 | TEMPERATURE GAUGE |
| TO 350 540 72 47 | ||
| 220 | A 0035428305 | TEMPERATURE GAUGE |
| TO 350 540 76 47 | ||
| 220 | A 0035428305 | TEMPERATURE GAUGE |
| TO 350 540 76 47 | ||
| 222 | H 983455420032 | OIL PRESSURE GAUGE |
| 224 | A 3455440193 | LAMP SOCKET |
| INSTRUMENT CLUSTER | ||
| TO 350 540 70 47 | ||
| 224 | A 3455440093 | LAMP SOCKET |
| INSTRUMENT CLUSTER | ||
| TO 350 540 70 47 | ||
| 226 | N 072601024801 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 350 540 70 47 | ||
| 226 | A 0015443994 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 350 540 72 47 | ||
| 226 | A 0015443994 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 350 540 72 47 | ||
| A 0015422317 | SENDER UNIT | |
| Repalced by: A 3455427717 | ||

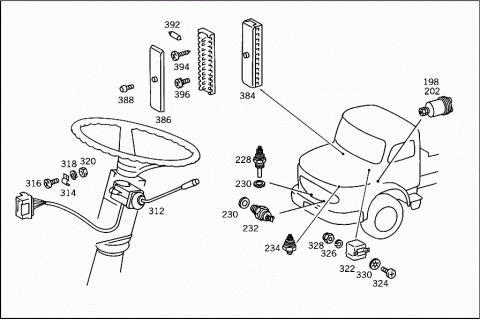

| 228 | A 3455427717 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 228 | A 0025425917 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 228 | A 3455427417 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 228 | A 3455427517 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 230 | N 007603014402 | SEAL RING |
| TO COOLING WATER TEMPERATURE SWITCH AND TO TEMPERATURE GAUGE SENDER UNIT | ||
| 232 | A 0025456324 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE | ||
| 232 | A 3455458224 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE | ||
| A 3455457324 | SWITCH,AUTOMATIC | |
| Repalced by: A 3455457824 | ||
| 232 | A 3455457824 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE | ||
| A 0015426917 | SENDER UNIT | |
| Repalced by: A 0015427017 | ||
| 234 | A 0015427017 | SENDER UNIT |
| OIL PRESSURE | ||
| 234 | A 3455427117 | SENDER UNIT |
| OIL PRESSURE | ||
| 236 | A 0005451213 | SWITCH BOX |
| 236 | A 0005451213 | SWITCH BOX |
| 236 | A 3455457013 | SWITCH BOX |
| 236 | A 3455457013 | SWITCH BOX |
| 236 | A 3455457113 | SWITCH BOX |
| 236 | A 3455457113 | SWITCH BOX |
| 238 | A 3458937103 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "UNIVEL" | ||
| 238 | A 3458937103 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "UNIVEL" | ||
| 238 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "HAGA" | ||
| 238 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "HAGA" | ||
| 240 | A 0005451235 | KEY |
| 240 | A 0005451235 | KEY |
| 240 | A 3455457035 | KEY |
| 240 | A 3455457035 | KEY |
| 240 | A 3455457135 | KEY |
| 240 | A 3455457135 | KEY |
| 242 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 242 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 242 | A 0007668506 | KEY |
| BLANK | ||
| "UNIVEL" | ||
| 242 | A 0007668506 | KEY |
| BLANK | ||
| "UNIVEL" | ||
| 244 | A 3455450114 | SWITCH |
| STARTING MOTOR | ||
| 244 | A 3455450114 | SWITCH |
| STARTING MOTOR | ||
| 244 | A 3455457714 | SWITCH |
| STARTING MOTOR | ||
| 244 | A 3455457714 | SWITCH |
| STARTING MOTOR | ||
| 246 | A 3455457213 | SWITCH BOX |
| IGNITION/STARTING SWITCH | ||
| 246 | A 3455457213 | SWITCH BOX |
| IGNITION/STARTING SWITCH | ||
| 248 | A 0005450042 | FOLLOWER |
| IGNITION/STARTING SWITCH | ||
| 250 | A 0005422172 | NUT |
| IGNITION/STARTING SWITCH | ||
| TO 345 545 72 13 | ||
| 250 | A 0005422172 | NUT |
| IGNITION/STARTING SWITCH | ||
| TO 345 545 72 13 | ||
| 252 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 254 | A 0025451428 | PLUG |
| 256 | A 0005459211 | SWITCH |
| PANE WIPER | ||
| 258 | A 3445450883 | CAP |
| PANE WIPER | ||
| 260 | A 0005459311 | SWITCH |
| PANE WIPER | ||
| 262 | A 3445450983 | CAP |
| PANE WIPER | ||
| 264 | A 3455457123 | SWITCH |
| PANE WIPER | ||
| 264 | A 3455457123 | SWITCH |
| PANE WIPER | ||
| 266 | A 3505447094 | BULB |
| Repalced by: A 3885447293 | ||
| 266 | A 3885447293 | LAMP SOCKET |
| 266 | A 3885447293 | LAMP SOCKET |
| 268 | A 3505457214 | SWITCH |
| PANE WIPER | ||
| 268 | A 3505457214 | SWITCH |
| PANE WIPER | ||
| 270 | A 3505458414 | SWITCH |
| PANE WASHER | ||
| 270 | A 3505458414 | SWITCH |
| PANE WASHER | ||
| 272 | A 3505458014 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| 274 | A 3505458214 | SWITCH |
| (LIGHT SWITCH) | ||
| 274 | A 3505458214 | SWITCH |
| (LIGHT SWITCH) | ||
| 276 | A 3505458114 | SWITCH |
| EXHAUST BRAKE DIRECT CONTROL | ||
| 278 | A 3505458614 | SWITCH |
| (INTERMITTENT ACTION SWITCH) | ||
| 278 | A 3505458614 | SWITCH |
| (INTERMITTENT ACTION SWITCH) | ||
| 280 | A 3505457314 | SWITCH |
| FOGLAMP | ||
| 282 | A 0005446293 | LAMP SOCKET |
| PUSH BUTTON SWITCH | ||
| KOSTAL | ||
| 282 | A 0005446293 | LAMP SOCKET |
| PUSH BUTTON SWITCH | ||
| KOSTAL | ||
| 284 | A 3505447094 | BULB |
| Repalced by: A 3885447293 | ||
| 284 | A 3885447293 | LAMP SOCKET |
| PUSH BUTTON SWITCH | ||
| 284 | A 3885447293 | LAMP SOCKET |
| PUSH BUTTON SWITCH | ||
| 286 | A 0005459111 | SWITCH |
| CAB LAMP AND HEATER BLOWER | ||
| 288 | A 3445451283 | CAP |
| INTERIOR LIGHTING | ||
| 288 | A 3445451183 | CAP |
| HEATING | ||
| 290 | A 3455447093 | LAMP SOCKET |
| HEATING | ||
| 290 | A 3455440193 | LAMP SOCKET |
| HEATING | ||
| 292 | A 0005422125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 292 | A 0005422125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 292 | A 0005422125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 294 | N 072601024801 | BULB |
| HEATING | ||
| 24V-2W | ||
| 296 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| 296 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| 296 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| 298 | A 0005421189 | KNOB |
| INSTRUMENT LIGHTING | ||
| 298 | A 0005421189 | KNOB |
| INSTRUMENT LIGHTING | ||
| 298 | A 0005421189 | KNOB |
| INSTRUMENT LIGHTING | ||
| A 3645427425 | POTENTIOMETER | |
| Repalced by: A 3645427625 | ||
| 300 | A 3645427625 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 300 | A 3645427625 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 302 | A 3099870144 | EXPANSION PLUG |
| INSTRUMENT PANEL | ||
| 304 | A 3645457083 | CAP |
| INSTRUMENT PANEL | ||
| 306 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 306 | A 3455457028 | PIN BUSHING HOUSING |
| A 3455457624 | SWITCH,AUTOMATIC | |
| Repalced by: A 3645457524 | ||
| A 3455457724 | SWITCH,AUTOMATIC | |
| Repalced by: A 3645457524 | ||
| 308 | A 3645457524 | SWITCH,AUTOMATIC |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 310 | A 3505447094 | BULB |
| Repalced by: A 3885447293 | ||
| 310 | A 3885447293 | LAMP SOCKET |
| (HAZARD WARNING LIGHT SWITCH) | ||
| A 0035458124 | SWITCH,AUTOMATIC | |
| Repalced by: A 3455457124 | ||
| 312 | A 3455457124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 312 | A 3455457424 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 312 | A 3455457524 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 314 | N 072571001012 | CLAMP |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 316 | N 007985005168 | SCREW |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| M 5X16 | ||
| 318 | N 000127005001 | LOCK WASHER |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 320 | N 000934005008 | NUT |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 322 | A 3505447032 | SENDER UNIT |
| BLINKER | ||
| 322 | A 3505447032 | SENDER UNIT |
| BLINKER | ||
| 322 | A 3505447132 | SENDER UNIT |
| BLINKER | ||
| 322 | A 3505447132 | SENDER UNIT |
| BLINKER | ||
| 322 | A 3505447632 | SENDER UNIT |
| BLINKER | ||
| 322 | A 3505447732 | SENDER UNIT |
| BLINKER | ||
| 324 | N 007985006127 | SCREW |
| BLINKER SENDER UNIT TO BODY | ||
| 326 | N 000127006203 | LOCK WASHER |
| BLINKER SENDER UNIT TO BODY | ||
| 328 | N 913004006001 | NUT |
| BLINKER SENDER UNIT TO BODY | ||
| 330 | N 006797006145 | TOOTHED WASHER |
| BLINKER SENDER UNIT TO BODY | ||
| 332 | A 0005450525 | PLUG SOCKET |
| HAND LAMP | ||
| 332 | A 3445457125 | PLUG SOCKET |
| HAND LAMP | ||
| 334 | N 006797019101 | TOOTHED WASHER |
| HAND LAMP | ||
| 336 | A 3445457176 | WASHER |
| HAND LAMP | ||
| A 0015450615 | TELL-TALE LAMP | |
| Repalced by: A 3455457015 | ||
| 338 | A 3455457015 | TELL-TALE LAMP |
| LESS LENS | ||
| 338 | A 3455457015 | TELL-TALE LAMP |
| FOR KEY,SEE GROUP: | ||
| 338 | A 0015451815 | TELL-TALE LAMP |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 338 | A 0015451815 | TELL-TALE LAMP |
| TRANSMISSION GEAR CLUSTER INDICATOR | ||
| 338 | A 3455457115 | TELL-TALE LAMP |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 340 | N 072601024801 | BULB |
| TELL-TALE LAMP | ||
| 24V-2W | ||
| 340 | N 072601024801 | BULB |
| TRANSMISSION GEAR CLUSTER INDICATOR | ||
| 24V-2W | ||
| 342 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 342 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 344 | A 3445458290 | LENS |
| CHARGE CONTROL | ||
| 346 | A 3455450090 | LENS |
| HAND BRAKE CONTROL | ||
| 348 | A 0005451090 | LENS |
| HAND BRAKE CIRCUIT | ||
| 350 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 352 | A 3445458390 | LENS |
| PARKING BRAKE | ||
| 354 | A 0025453890 | LENS |
| SLOW GROUP | ||
| 356 | A 0025453990 | LENS |
| FAST GROUP | ||
| 358 | A 3455457690 | LENS |
| SWITCH BOX | ||
| 358 | A 3455457690 | LENS |
| SWITCH BOX | ||
| 360 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 360 | A 0035455290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 362 | A 3445457990 | LENS |
| BLINKER | ||
| 364 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 364 | A 0035454290 | LENS |
| TRAILER BLINKER | ||
| 366 | A 0005451190 | LENS |
| HIGH BEAM INDICATION | ||
| 366 | A 0035453390 | LENS |
| HIGH BEAM INDICATION | ||
| 368 | A 3445458890 | LENS |
| HIGH BEAM INDICATION | ||
| 370 | A 3445459190 | LENS |
| AIR CLEANER | ||
| 370 | A 3445459190 | LENS |
| AIR CLEANER | ||
| 372 | A 3455457790 | LENS |
| IGNITION/STARTING SWITCH | ||
| 372 | A 3455457790 | LENS |
| IGNITION/STARTING SWITCH | ||
| 374 | A 3455459390 | LENS |
| FOGLAMP | ||
| 376 | N 072601024801 | BULB |
| 378 | A 3089970035 | PLUG |
| 378 | A 0009973535 | PLUG |
| 378 | A 3319977035 | PLUG |
| TELL-TALE LAMP | ||
| 378 | A 3319977035 | PLUG |
| TELL-TALE LAMP | ||
| 378 | A 3319977035 | PLUG |
| TELL-TALE LAMP | ||
| 378 | A 3319977035 | PLUG |
| TELL-TALE LAMP | ||
| 380 | A 3316897208 | COVERING |
| STARTER PILOT | ||
| 382 | A 3316897108 | COVERING |
| AMMETER | ||
| 382 | A 3316897108 | COVERING |
| AMMETER | ||
| A 0455450101 | FUSE BOX | |
| Repalced by: A 3455457201 | ||
| 384 | A 3455457201 | FUSE BOX |
| 12-POLE | ||
| 384 | A 3455457701 | FUSE BOX |
| 12-POLE | ||
| 384 | A 3455457801 | FUSE BOX |
| 12-POLE | ||
| A 0005451203 | CAP | |
| Repalced by: A 3455407182 | ||
| 386 | A 3455407182 | COVER |
| 388 | A 3455457071 | SCREW |
| A 3355450001 | FUSE BOX | |
| 392 | A 3085450134 | FUSE |
| 5 A | ||
| 392 | A 3085450234 | FUSE |
| 8 A | ||
| 394 | N 007981004258 | SHEET METAL SCREW |
| FUSE BOX TO WINDOW SILL | ||
| 396 | N 914028004100 | COMBINATION BOLT |
| ELECTRIC CABLE TO FUSE BOX | ||

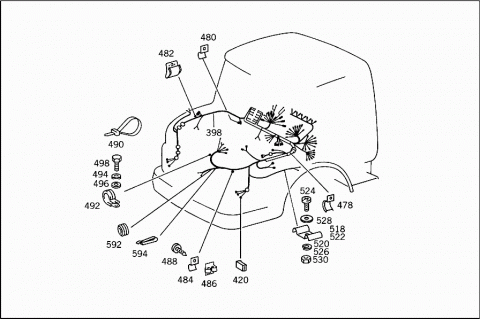

| 398 | A 3505407005 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 398 | A 3505407105 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 398 | A 3505407105 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 400 | A 3505407205 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 400 | A 3505407205 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 402 | A 0005460235 | BOOT |
| ALTERNATOR | ||
| B+ | ||
| 404 | A 0005440156 | CONTACT PIECE |
| 406 | A 1109970481 | GROMMET |
| 408 | A 3459977981 | GROMMET |
| 410 | A 0009970381 | GROMMET |
| 412 | A 0009970581 | GROMMET |
| 414 | A 3229970581 | GROMMET |
| 416 | A 3459977881 | GROMMET |
| 418 | A 3449977181 | GROMMET |
| HORN | ||
| 420 | A 0005451745 | BOOT |
| TO 350 540 71 05 | ||
| 422 | A 3645457145 | BOOT |
| POTENTIOMETER | ||
| 424 | A 3455457028 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| 426 | A 0015456728 | PLUG HOUSING |
| UNIPOLAR | ||
| A 0015457028 | PLUG HOUSING | |
| Repalced by: A 0015457928 | ||
| 428 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 430 | A 0025459228 | PIN BUSHING HOUSING |
| IGNITION/STARTING SWITCH | ||
| 432 | A 0015459528 | PIN BUSHING HOUSING |
| SWITCH BOX LIGHTING | ||
| 432 | A 0015459528 | PIN BUSHING HOUSING |
| IGNITION/STARTING SWITCH | ||
| 432 | A 0015459528 | PIN BUSHING HOUSING |
| SWITCH BOX LIGHTING | ||
| 434 | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 434 | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 434 | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0015451028 | PIN BUSHING HOUSING | |
| Repalced by: A 0015458728 | ||
| 436 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 438 | A 0015457328 | PIN BUSHING HOUSING |
| SPEEDOMETER | ||
| 438 | A 0015457328 | PIN BUSHING HOUSING |
| SPEEDOMETER | ||
| 438 | A 0015457328 | PIN BUSHING HOUSING |
| SPEEDOMETER | ||
| 440 | A 0035459528 | PIN BUSHING HOUSING |
| TACHOGRAPH | ||
| 442 | A 0015455928 | PIN BUSHING HOUSING |
| BLINKER SENDER UNIT | ||
| 444 | A 0015452628 | PIN BUSHING HOUSING |
| BLINKER SENDER UNIT | ||
| 446 | A 0035457628 | PIN BUSHING HOUSING |
| INSTRUMENT CLUSTER | ||
| 446 | A 0035457628 | PIN BUSHING HOUSING |
| INSTRUMENT CLUSTER | ||
| 448 | A 0035451128 | PIN BUSHING HOUSING |
| INTERMITTENT ACTION SWITCH | ||
| 448 | A 0035451128 | PIN BUSHING HOUSING |
| INTERMITTENT ACTION SWITCH | ||
| 450 | A 0025459628 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 452 | A 0045459328 | PIN BUSHING HOUSING |
| STEERING COLUMN MOUNTED | ||
| 454 | A 3505457028 | PLUG |
| REGULATOR AND CUT-OUT | ||
| 456 | A 3445457228 | PLUG HOUSING |
| CONTACTOR | ||
| 456 | A 3445457228 | PLUG HOUSING |
| CONTACTOR | ||
| 456 | A 3445457228 | PLUG HOUSING |
| 4-POLE | ||
| 456 | A 3445457228 | PLUG HOUSING |
| CONTACTOR | ||
| 458 | A 3445457128 | PIN BUSHING HOUSING |
| PANE WIPER | ||
| 460 | A 0015458328 | PIN BUSHING HOUSING |
| FRONT PLUG CONNECTION | ||
| 460 | A 0015458328 | PIN BUSHING HOUSING |
| FRONT PLUG CONNECTION | ||
| 460 | A 0015452928 | PIN BUSHING HOUSING |
| FRONT PLUG CONNECTION | ||
| 460 | A 0015452928 | PIN BUSHING HOUSING |
| FRONT PLUG CONNECTION | ||
| 462 | A 3455457128 | PLUG |
| 10-POLE | ||
| 462 | A 3455457128 | PLUG |
| 10-POLE | ||
| 464 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 464 | A 0385452528 | PLUG |
| ALTERNATOR | ||
| 466 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 468 | A 0005453726 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.50 MM2 | ||
| 470 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 472 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.50 MM2 | ||
| 474 | A 0005453726 | PIN BUSHING |
| CONTACTOR | ||
| 2.50 MM2 | ||
| 476 | A 3845467035 | BOOT |
| ALTERNATOR | ||
| 478 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL | ||
| A 1369950135 | CLAMP | |
| Repalced by: A 3449957120 | ||
| 480 | A 3449957120 | CLAMP |
| 482 | A 3089880078 | CLIP |
| A 1869950037 | CLAMP | |
| Repalced by: A 3449957120 | ||
| 484 | A 3449957120 | CLAMP |
| 486 | A 0009941345 | LOCK |
| 488 | N 007981004275 | SHEET METAL SCREW |
| 490 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 490 | A 3459977390 | LOOM TIE |
| MAIN CABLE HARNESS TO WATER TANK | ||
| 490 | A 3509978490 | LOOM TIE |
| ELECTRIC CABLE TO FIRE WALL | ||
| A 0009954701 | CLAMP | |
| Repalced by: N 916016015202 | ||
| 492 | N 916016018201 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 492 | A 3459958601 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 494 | N 000137005101 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 496 | N 009021005104 | WASHER |
| CABLE TO ALTERNATOR | ||
| 498 | N 000933005034 | SCREW |
| CABLE TO ALTERNATOR | ||
| 500 | A 3505457018 | RESISTOR |
| 502 | N 000933060088 | SCREW |
| RESISTOR | ||
| M6X20 | ||
| 504 | N 912004006100 | LOCK WASHER |
| RESISTOR | ||
| 506 | A 3645457324 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT | ||
| 508 | A 3505407173 | BRACKET |
| WIPER PULSE SENDER UNIT | ||
| 510 | A 3449908197 | RIVET |
| BRACKET TO WINDOW LEVEL GIRDER UPPER PART | ||
| 512 | N 007985004126 | SCREW |
| WIPER PULSE SENDER UNIT | ||
| 514 | N 912004004102 | LOCK WASHER |
| WIPER PULSE SENDER UNIT | ||
| 516 | N 000125004313 | WASHER |
| WIPER PULSE SENDER UNIT | ||
| A 3465405173 | BRACKET | |
| LINE TO CAB | ||
| N 007981004226 | SHEET METAL SCREW | |
| 518 | A 3379950032 | CLAMP |
| N 007985006502 | SCREW | |
| 520 | N 000127006203 | LOCK WASHER |
| 522 | A 3379950032 | CLAMP |
| LINE TO SIDE MEMBER | ||
| 524 | N 007985006515 | SCREW |
| LINE TO SIDE MEMBER | ||
| 526 | N 000127006203 | LOCK WASHER |
| LINE TO SIDE MEMBER | ||
| 528 | N 009021006103 | WASHER |
| LINE TO SIDE MEMBER | ||
| 530 | N 000934006006 | NUT |
| LINE TO SIDE MEMBER | ||
| 532 | A 3505408737 | ELECTRIC CABLE |
| 534 | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 534 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 536 | A 0015456728 | PLUG HOUSING |
| 538 | A 3445457228 | PLUG HOUSING |
| 540 | A 0005453726 | PIN BUSHING |
| 542 | A 0005454026 | PIN BUSHING |
| 544 | A 0005453826 | PIN BUSHING |
| 546 | A 0009970581 | GROMMET |
| 548 | A 0009970381 | GROMMET |
| 550 | A 3505408837 | ELECTRIC CABLE |
| 552 | A 0005400281 | PLUG SOCKET |
| 554 | A 0015458628 | PLUG |
| 556 | A 3505427019 | RELAY |
| CONTACTOR | ||
| 556 | A 3505427119 | RELAY |
| CONTACTOR | ||
| 558 | A 3505407073 | BRACKET |
| RELAY | ||
| 560 | A 3449908197 | RIVET |
| BRACKET MOUNTING | ||
| 562 | N 007985005183 | SCREW |
| RELAY TO BRACKET | ||
| 564 | N 000127005001 | LOCK WASHER |
| RELAY TO BRACKET | ||
| 566 | A 3015400265 | RESISTOR |
| TRANSMISSION GEAR CLUSTER INDICATOR | ||
| 568 | A 3505477002 | REGULATOR AND CUT-OUT |
| 568 | A 3505477102 | REGULATOR AND CUT-OUT |
| 570 | N 000933006223 | SCREW |
| REGULATOR AND CUT-OUT | ||
| 570 | N 007985006137 | SCREW |
| REGULATOR AND CUT-OUT | ||
| 572 | N 000125006420 | WASHER |
| 574 | A 3505407273 | BRACKET |
| REGULATOR AND CUT-OUT | ||
| 576 | N 912004006100 | LOCK WASHER |
| REGULATOR AND CUT-OUT | ||
| 578 | N 000934006006 | NUT |
| REGULATOR AND CUT-OUT | ||
| 580 | N 072586001200 | CABLE CONNECTOR |
| REGULATOR AND CUT-OUT | ||
| 580 | A 3445467141 | CABLE CONNECTOR |
| REGULATOR AND CUT-OUT | ||
| A 3505427020 | HORN | |
| Repalced by: A 3505427120 | ||
| 582 | A 3505427120 | HORN |
| 582 | A 3505427220 | HORN |
| 582 | A 3885427020 | HORN |
| 584 | N 000933010174 | SCREW |
| HORN TO STRUT | ||
| 586 | N 000125010517 | WASHER |
| HORN TO STRUT | ||
| 588 | N 000127010202 | LOCK WASHER |
| HORN TO STRUT | ||
| 590 | N 000934010000 | NUT |
| HORN TO STRUT | ||
| 592 | A 3049970681 | GROMMET |
| ELECTRIC CABLE THRU ENGINE CROSS MEMBER | ||
| 20 MM | ||
| 592 | A 3559970081 | GROMMET |
| ELECTRIC CABLE THRU ENGINE CROSS MEMBER | ||
| 14 MM | ||
| A 3129951040 | CLAMP | |
| Repalced by: A 3449880078 | ||
| 594 | A 3449880078 | CLIP |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 596 | A 3505427119 | RELAY |
| 596 | A 3505427019 | RELAY |
| 596 | A 3505427019 | RELAY |
| 596 | A 3505427019 | RELAY |
| 596 | A 3505427019 | RELAY |
| 596 | A 3505427019 | RELAY |

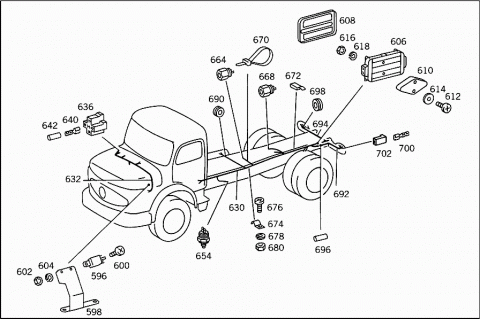

| 598 | A 3455427840 | BRACKET |
| RELAY | ||
| A 3505407373 | BRACKET | |
| RELAY | ||
| 600 | N 007985005183 | SCREW |
| RELAY | ||
| 600 | N 007985005183 | SCREW |
| RELAY | ||
| 602 | N 000934005008 | NUT |
| RELAY | ||
| 604 | N 000127005001 | LOCK WASHER |
| RELAY | ||
| 604 | N 000127005001 | LOCK WASHER |
| RELAY | ||
| 606 | A 0005466141 | CABLE CONNECTOR |
| 6-POLE | ||
| 608 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 610 | A 3275425038 | SHIM |
| CABLE CONNECTOR | ||
| 612 | N 007985004500 | SCREW |
| CABLE CONNECTOR | ||
| M 4X40 | ||
| 614 | N 009021004103 | WASHER |
| CABLE CONNECTOR | ||
| 616 | N 000934004014 | NUT |
| CABLE CONNECTOR | ||
| 618 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR | ||
| 620 | A 3505407427 | ELECTRIC CABLE |
| FROM JUNCTION BOX TO TRAILER PLUG SOCKET | ||
| 620 | A 3505409736 | ELECTRIC CABLE |
| FROM JUNCTION BOX TO TRAILER PLUG SOCKET | ||
| 622 | A 0009970381 | GROMMET |
| 622 | A 0009970381 | GROMMET |
| 624 | A 3505457126 | PLUG |
| 6-POLE | ||
| 626 | A 3505457326 | PLUG |
| 7-POLE | ||
| 628 | A 3445447060 | PLUG SOCKET HOUSING |
| 628 | A 3445447060 | PLUG SOCKET HOUSING |
| 630 | A 3505407337 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 630 | A 3505408437 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 630 | A 3505407632 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 630 | A 3505407632 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 630 | A 3505407437 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 630 | A 3505408337 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 630 | A 3505407732 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 630 | A 3505407732 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 632 | A 3455408234 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 632 | A 3455408234 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 632 | A 3455408234 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 634 | A 3505409137 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 634 | A 3505409037 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||

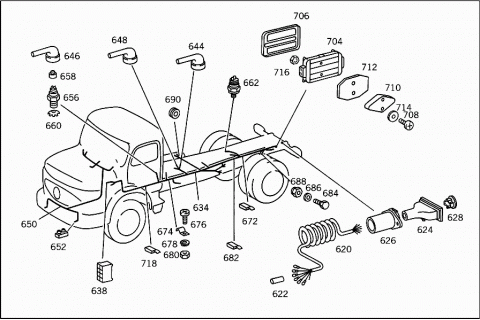

| 634 | A 3505409037 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 636 | A 3445457228 | PLUG HOUSING |
| 636 | A 3445457228 | PLUG HOUSING |
| 638 | A 0035457628 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 638 | A 0015452928 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 640 | A 0005453826 | PIN BUSHING |
| 640 | A 0005453826 | PIN BUSHING |
| 640 | A 0005453826 | PIN BUSHING |
| 640 | A 0005453826 | PIN BUSHING |
| 640 | A 0005454026 | PIN BUSHING |
| 640 | A 0005454026 | PIN BUSHING |
| 642 | A 0009970381 | GROMMET |
| 642 | A 0009970381 | GROMMET |
| 642 | A 0009970381 | GROMMET |
| 642 | A 0009970581 | GROMMET |
| 642 | A 0009970581 | GROMMET |
| 642 | A 0009970581 | GROMMET |
| 644 | A 3645407081 | PLUG SOCKET |
| 646 | A 0005400281 | PLUG SOCKET |
| 648 | A 0005400181 | PLUG SOCKET |
| A 3455409434 | CABLE HARNESS | |
| Repalced by: A 3505409437 | ||
| 650 | A 3505409437 | ELECTRIC CABLE |
| FOGLAMP | ||
| 652 | A 3445467141 | CABLE CONNECTOR |
| 654 | A 0005454909 | SWITCH |
| STOP LIGHT | ||
| 654 | A 0005454909 | SWITCH |
| STOP LIGHT | ||
| 656 | A 0005457009 | SWITCH |
| STOP LIGHT | ||
| 656 | A 3645457109 | SWITCH |
| 658 | A 3465450045 | BOOT |
| STOP LIGHT SWITCH | ||
| TO 000 545 70 09 | ||
| 660 | N 006797016152 | TOOTHED WASHER |
| STOP LIGHT SWITCH | ||
| 662 | A 3445457114 | SWITCH |
| Repalced by: A 0015454114 | ||
| 662 | A 0015454114 | SWITCH |
| OPERATION WITH TRAILER | ||
| 664 | A 0005455414 | SWITCH |
| HAND BRAKE | ||
| 664 | A 3445457214 | SWITCH |
| HAND BRAKE | ||
| 668 | A 0005454314 | SWITCH |
| HAND BRAKE CIRCUIT | ||
| 668 | A 3445457314 | SWITCH |
| HAND BRAKE CIRCUIT | ||
| 670 | A 3459977290 | LOOM TIE |
| ELECTRIC CABLE TO COMPRESSED AIR LINE | ||
| 672 | A 3045461275 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 674 | A 3049950220 | CLAMP |
| ELECTRIC CABLE TO FRAME | ||
| 676 | N 007985006502 | SCREW |
| ELECTRIC CABLE TO FRAME | ||
| 678 | N 000127006203 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME | ||
| 680 | N 000934006006 | NUT |
| ELECTRIC CABLE TO FRAME | ||
| A 3129951040 | CLAMP | |
| Repalced by: A 3449880078 | ||
| 682 | A 3449880078 | CLIP |
| ELECTRIC CABLE TO FRAME | ||
| 684 | N 000933010129 | SCREW |
| GROUND CABLE TO FRAME | ||
| 686 | N 000125010517 | WASHER |
| GROUND CABLE TO FRAME | ||
| 688 | N 913004010004 | NUT |
| GROUND CABLE TO FRAME | ||
| 690 | A 3049970681 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 20 MM | ||
| 690 | A 3559970081 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 14 MM | ||
| 692 | A 3505407127 | ELECTRIC CABLE |
| LEFT TAIL LAMP | ||
| 692 | A 3505407007 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| H 983455400207 | CABLE HARNESS | |
| Repalced by: A 3455400727 | ||
| 694 | A 3455400727 | ELECTRIC CABLE |
| RIGHT TAIL LAMP | ||
| 694 | A 3455400727 | ELECTRIC CABLE |
| RIGHT TAIL LAMP | ||
| 694 | A 3455400727 | ELECTRIC CABLE |
| RIGHT TAIL LAMP | ||
| 694 | A 3455400727 | ELECTRIC CABLE |
| RIGHT TAIL LAMP | ||
| 694 | A 3455400727 | ELECTRIC CABLE |
| RIGHT TAIL LAMP | ||
| 694 | A 3505407507 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 696 | A 0009970381 | GROMMET |
| 696 | A 0009970381 | GROMMET |
| 698 | A 8339970281 | GROMMET |
| 700 | A 0005453726 | PIN BUSHING |
| 702 | A 0005451745 | BOOT |
| 704 | A 0005466141 | CABLE CONNECTOR |
| RIGHT REAR | ||
| 706 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 708 | N 007985004500 | SCREW |
| CABLE CONNECTOR | ||
| M 4X40 | ||
| N 007985004124 | SCREW | |
| CABLE CONNECTOR | ||
| M4X25 | ||
| 710 | A 3275425038 | SHIM |
| CABLE CONNECTOR | ||
| 712 | A 3125461178 | INSULATION |
| CABLE CONNECTOR | ||
| 714 | N 009021004103 | WASHER |
| CABLE CONNECTOR | ||
| 714 | N 009021004103 | WASHER |
| CABLE CONNECTOR | ||
| N 912004004102 | LOCK WASHER | |
| CABLE CONNECTOR | ||
| 716 | N 000934004014 | NUT |
| CABLE CONNECTOR | ||
| 716 | N 000934004014 | NUT |
| CABLE CONNECTOR | ||
| A 3129951040 | CLAMP | |
| Repalced by: A 3449880078 | ||
| 718 | A 3449880078 | CLIP |
| A 0455440003 | TAIL LAMP | |
| Repalced by: A 3455447003 | ||

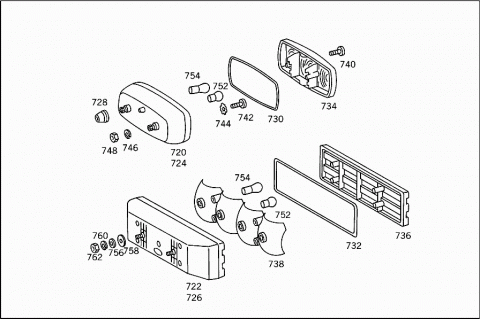

| 720 | A 3455447003 | TAIL LAMP |
| LEFT | ||
| "IAM" | ||
| 720 | A 3455447203 | TAIL LAMP |
| LEFT | ||
| "BIANCO SAVINO" | ||
| 720 | A 3455447503 | TAIL LAMP |
| LEFT | ||
| "POLIMATIC" | ||
| 722 | A 0025442403 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 722 | A 6885447103 | TAIL LAMP |
| LEFT | ||
| "ARTEB" | ||
| A 0455440103 | TAIL LAMP | |
| Repalced by: A 3455447103 | ||
| 724 | A 3455447103 | TAIL LAMP |
| RIGHT | ||
| "IAM" | ||
| 724 | A 3455447303 | TAIL LAMP |
| RIGHT | ||
| "BIANCO SAVINO" | ||
| 724 | A 3455447603 | TAIL LAMP |
| RIGHT | ||
| "POLIMATIC" | ||
| 726 | A 0025440803 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 726 | A 6885447203 | TAIL LAMP |
| RIGHT | ||
| "ARTEB" | ||
| 728 | A 0445440081 | GROMMET |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| A 0085440080 | GASKET | |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 544 70 03,345 544 71 03 | ||
| 730 | A 0005449380 | GASKET |
| TO 345 544 72 03,7303;BIANCO SAVINO | ||
| 730 | A 0005449280 | GASKET |
| TO 345 544 75 03,76 03;POLIMATIC | ||
| 732 | A 0005449480 | GASKET |
| TO 002 544 08 03,24 03"HELLA" | ||
| 732 | A 0005449780 | GASKET |
| TO 688 544 71 03,72 03"ARTEB" | ||
| 734 | A 0085440090 | LENS |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 734 | A 0025440390 | LENS |
| TO 345 544 72 03,73 03;BIANCO SAVINO | ||
| 734 | A 0025440290 | LENS |
| TO 345 544 75 03,76 03;POLIMATIC | ||
| 736 | A 0025440790 | LENS |
| WITH SCREWS | ||
| TO 002 544 08 03,24 03 "HELLA" | ||
| 736 | A 0025441890 | LENS |
| TO 688 544 71 03,72 03"ARTEB" | ||
| A 0085440093 | LAMP SOCKET | |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 738 | A 0005448492 | REFLECTOR |
| LEFT | ||
| TO 688 544 71 03,"ARTEB" | ||
| 738 | A 0005448592 | REFLECTOR |
| RIGHT | ||
| TO 688 544 72 03,"ARTEB" | ||
| 740 | N 007985006240 | SCREW |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 742 | N 007985004181 | SCREW |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 540 70 03,345 540 71 03;IAM | ||
| 744 | N 006797004132 | TOOTHED WASHER |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 540 70 03,345 540 71 03;IAM | ||
| 746 | N 000127008206 | LOCK WASHER |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 540 70 03,345 540 71 03;IAM | ||
| 748 | N 000934008000 | NUT |
| TO 045 544 00 03,045 544 01 03;IAM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 540 70 03,345 540 71 03;IAM | ||
| A 6675460137 | GROMMET | |
| TAIL LAMP | ||
| 752 | N 072601024702 | BULB |
| 10 W | ||
| 752 | N 072601024702 | BULB |
| 10 W | ||
| 754 | N 072601024190 | BULB |
| 21 W | ||
| 754 | N 072601024190 | BULB |
| 21 W | ||
| 756 | A 6885447076 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 758 | N 009021008102 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 760 | N 000127008203 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 762 | N 000934008013 | NUT |
| TAIL LAMP TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
