Transporto priemonė: LS 1924; VIN numerio dalis: 350013

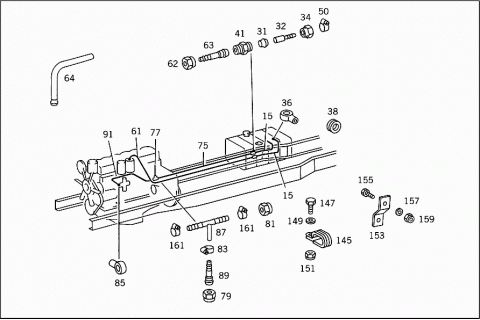

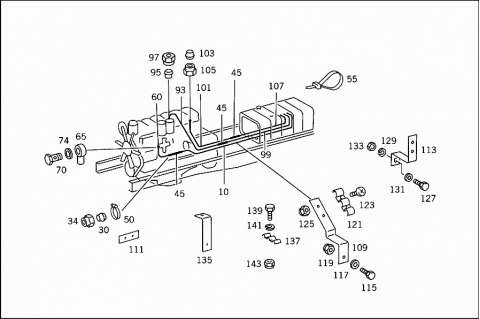

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3504707064 | LINE |
| Repalced by: A 3504707364 | ||
| 010 | A 3504707364 | LINE |
| FROM TANK TO RUBBER HOSE | ||
| 010 | A 3504707864 | LINE |
| FROM TANK TO RUBBER HOSE | ||
| 015 | A 3504707165 | LINE |
| FROM FUEL TANK TO FITTING | ||
| 015 | A 3504707265 | LINE |
| FROM FUEL TANK TO FITTING | ||
| 030 | N 915003008201 | SEAL CONE |
| Repalced by: A 3449907067 | ||
| 030 | A 3449907067 | SEAL CONE |
| FROM TANK TO RUBBER HOSE | ||
| 031 | N 915003008200 | BALL-TYPE NIPPLE |
| 032 | N 915058008000 | FITTING |
| 034 | N 915017010200 | UNION NUT |
| FROM TANK TO RUBBER HOSE | ||
| 034 | N 915017010200 | UNION NUT |
| FROM TANK TO RUBBER HOSE | ||
| 036 | A 0009905088 | BANJO UNION |
| 038 | A 4069975081 | GROMMET |
| 041 | N 915006008002 | DOUBLE FITTING |
| FUEL LINES TO FUEL TANK | ||
| 045 | A 3444760126 | HOSE |
| 050 | A 3509970290 | LOOM TIE |
| AS REQUIRED | ||
| 055 | A 3509970290 | CLAMP |
| AS REQUIRED | ||
| 060 | A 3454701764 | LINE |
| Repalced by: A 3504708164 | ||
| 060 | A 3504708164 | LINE |
| FROM RUBBER HOSE TO FEED PUMP | ||
| 061 | A 0089975482 | HOSE |
| FROM FUEL FILTER TO CONNECTOR | ||
| 062 | N 915017010200 | UNION NUT |
| 063 | A 3504707079 | INTERMEDIATE PIECE |
| 064 | A 3084767124 | CONNECTOR |
| 065 | N 915010008202 | BANJO UNION |
| Repalced by: A 3454767024 | ||
| 065 | A 3454767024 | CONNECTOR |
| FROM RUBBER HOSE TO FEED PUMP | ||
| 070 | N 915036010100 | HOLLOW SCREW |
| LINE TO FEED PUMP | ||
| 074 | N 007603014104 | SEAL RING |
| LINE TO FEED PUMP | ||
| 075 | A 0089975482 | HOSE |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| 077 | A 3454767226 | HOSE |
| Repalced by: A 3769978182 | ||
| 077 | A 3769978182 | HOSE |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| 079 | N 915017006200 | UNION NUT |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| 081 | N 915017010200 | UNION NUT |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| 083 | N 916002010100 | CLAMP |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| 085 | N 915052008006 | BANJO UNION |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| 8/14 MM | ||
| 087 | A 3084767023 | DISTRIBUTOR |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| 089 | A 3504707079 | INTERMEDIATE PIECE |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| 091 | A 3504707665 | LINE |
| FROM DOUBLE FITTING TO FEED PUMP | ||
| A 3454701864 | LINE | |
| Repalced by: A 3504708764 | ||
| 093 | A 3504708764 | LINE |
| FILTER TO RUBBER HOSE | ||
| 093 | A 3504708864 | LINE |
| FILTER TO RUBBER HOSE | ||
| N 915003008201 | SEAL CONE | |
| Repalced by: A 3449907067 | ||
| 095 | A 3449907067 | SEAL CONE |
| 097 | N 915017010200 | UNION NUT |
| A 3504707164 | LINE | |
| Repalced by: A 3504707464 | ||
| 099 | A 3504707464 | LINE |
| FROM RUBBER HOSE TO TANK | ||
| 099 | A 3504707964 | LINE |
| FROM RUBBER HOSE TO TANK | ||
| A 3454707564 | LINE | |
| Repalced by: A 3504707764 | ||
| 101 | A 3504707764 | LINE |
| FROM ENGINE TO RUBBER HOSE | ||
| 103 | N 915003004202 | SEAL CONE |
| 105 | N 915017006200 | UNION NUT |
| A 3504707264 | LINE | |
| Repalced by: A 3504707564 | ||
| 107 | A 3504707564 | LINE |
| LEAK RETURN | ||
| 107 | A 3504708064 | LINE |
| LEAK RETURN | ||
| 109 | A 3614296140 | BRACKET |
| FUEL LINE TO FRAME | ||
| 111 | A 3124761236 | BRACKET |
| 113 | A 3454767036 | BRACKET |
| 115 | N 000933008288 | SCREW |
| BRACKET TO FRAME | ||
| 117 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 119 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 121 | A 3129950232 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 123 | N 007985006515 | SCREW |
| FUEL LINE TO BRACKET | ||
| 125 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| 127 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 129 | N 912004008100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 131 | N 000125008417 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 133 | N 000934008000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 0214760236 | BRACKET | |
| Repalced by: A 3444760336 | ||
| 135 | A 3444760336 | BRACKET |
| 137 | A 3129950232 | CLAMP |
| 139 | N 000933006220 | SCREW |
| 141 | N 000127006203 | LOCK WASHER |
| 143 | N 913004006001 | NUT |
| 145 | A 0009950905 | CLAMP |
| FUEL LINE TO SIDE MEMBER | ||
| 147 | N 000933008288 | SCREW |
| FUEL LINE TO SIDE MEMBER | ||
| 149 | N 009021008102 | WASHER |
| FUEL LINE TO SIDE MEMBER | ||
| 151 | N 913004008001 | NUT |
| FUEL LINE TO SIDE MEMBER | ||
| 153 | A 3094760236 | BRACKET |
| FUEL LINE TO SIDE MEMBER | ||
| 155 | N 000933006221 | SCREW |
| FUEL LINE TO SIDE MEMBER | ||
| 157 | N 000125006420 | WASHER |
| FUEL LINE TO SIDE MEMBER | ||
| 159 | N 913004006001 | NUT |
| FUEL LINE TO SIDE MEMBER | ||
| 161 | N 916016012200 | CLAMP |
| FUEL LINE TO SIDE MEMBER | ||
| 161 | A 3459957901 | CLAMP |
| FUEL LINE TO SIDE MEMBER | ||
| 161 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 161 | A 3459977390 | LOOM TIE |
| FUEL LINE TO SIDE MEMBER | ||
| 195 MM | ||

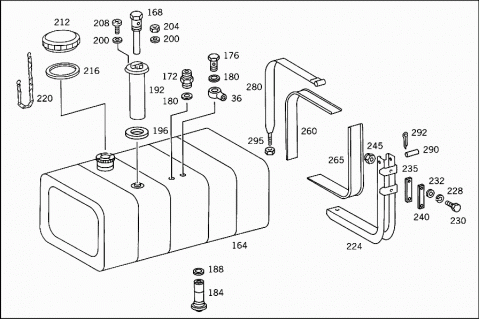

| A 3454707001 | FUEL TANK | |
| Repalced by: A 3454707101 | ||
| 164 | A 3454707101 | FUEL TANK |
| 300 L | ||
| 164 | A 3454707102 | FUEL TANK |
| 300 L | ||
| 168 | A 3444700126 | RISING PIPE |
| FUEL LINE TO FUEL TANK | ||
| 168 | A 3444707226 | RISING PIPE |
| FUEL LINE TO FUEL TANK | ||
| 172 | A 3214710220 | FITTING |
| 176 | N 915036012150 | HOLLOW SCREW |
| 180 | N 007603016301 | SEAL RING |
| 180 | N 007603016301 | SEAL RING |
| 180 | N 007603016301 | SEAL RING |
| 180 | N 007603016105 | SEAL RING |
| A 3604700006 | FUEL STRAINER | |
| Repalced by: A 3504700006 | ||
| 184 | A 3504700006 | FUEL STRAINER |
| 188 | A 0029977245 | SEAL RING |
| A 0015426117 | SENDER UNIT | |
| Repalced by: A 3455427617 | ||
| A 3455427617 | SENDER UNIT | |
| Repalced by: A 3455427817 | ||
| A 3455427817 | SENDER UNIT | |
| Repalced by: A 3505427017 | ||
| 192 | A 3505427017 | SENDER UNIT |
| FUEL TANK | ||
| 196 | A 3524710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 200 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 204 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 208 | N 007985005171 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 212 | A 3444700205 | FILLER CAP |
| 216 | A 3444710679 | SEAL RING |
| 220 | A 3034700031 | CHAIN |
| 224 | A 3454757003 | CONSOLE |
| A 3504750403 | CONSOLE | |
| Repalced by: A 3504707242 | ||
| 224 | A 3504700542 | SUPPORT |
| FUEL TANK | ||
| A 3504707042 | SUPPORT | |
| Repalced by: A 3504707242 | ||
| 224 | A 3504707242 | SUPPORT |
| FUEL TANK | ||
| 224 | A 3504707542 | SUPPORT |
| FUEL TANK | ||
| 228 | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 228 | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 230 | N 000961014116 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 230 | N 000961014116 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| A 0449900040 | WASHER | |
| Repalced by: A 3449900140 | ||
| 232 | A 3449900140 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 235 | A 3454757019 | BASE |
| 240 | A 3354750019 | BASE |
| 245 | N 913004014005 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 245 | N 913004014005 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 260 | A 3634750120 | PAD |
| Repalced by: A 3459837191 | ||
| 260 | A 3459837191 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 265 | A 3459837291 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 280 | A 3454707040 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 290 | N 001443016200 | PIN |
| STRAP TO SUPPORT | ||
| 292 | N 000094004050 | COTTER PIN |
| STRAP TO SUPPORT | ||
| 295 | N 000934012004 | NUT |
| STRAP TO SUPPORT | ||
