Transporto priemonė: LS 1924; VIN numerio dalis: 350013
Grupė: 41 PROPELLER SHAFT

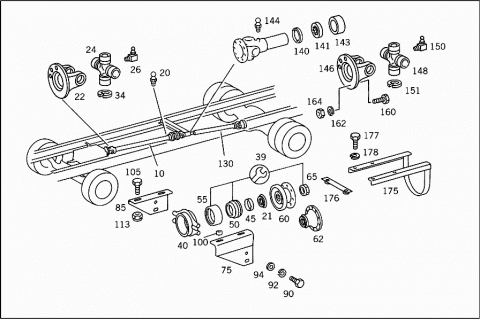

41070
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
FRONT PROPELLER SHAFT
010 A 3364103701 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
L=900 MM
010 A 3504101101 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
L=834 MM
010 A 3464105601 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
L=1361 MM
010 A 3704100301 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
L=1317 MM
010 A 3874104304 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
767 MM
010 A 3504100004 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
L=1357 MM
010 A 3504100204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
L=1185 MM
020 N 071412010100 GREASE NIPPLE
021 A 3354130061 PROTECTIVE CAP
021 A 3874130061 PROTECTIVE CAP
022 A 3354110211 DRIVE FLANGE
A 3634110111 DRIVE FLANGE
Repalced by: A 3954110211
022 A 3954110211 DRIVE FLANGE
024 A 3504107031 UNIVERSAL JOINT CROSS
A 3504107131 UNIVERSAL JOINT CROSS
024 A 3874100031 UNIVERSAL JOINT CROSS
026 N 071412008300 GREASE NIPPLE
026 A 3459977288 GREASE NIPPLE
A 3354100142 BEARING BUSHING
A 3874100142 BEARING BUSHING
A 3634110233 EXPANSION PLUG
A 3634110280 GASKET
034 A 3354112173 LOCK
AS REQUIRED
2.100 MM
034 A 3354112073 LOCK
AS REQUIRED
2.075 MM
034 A 3354111973 LOCK
AS REQUIRED
2.050 MM
034 A 3354111873 LOCK
AS REQUIRED
2.025 MM
034 A 3354111773 LOCK
Repalced by: N 000472052000
034 N 000472052000 LOCK RING
AS REQUIRED
2.000 MM
034 A 3634110773 LOCK
Repalced by: A 3634111173
034 A 3634110873 LOCK
Repalced by: A 3634111173
034 A 3634110973 LOCK
Repalced by: A 3634111173
034 A 3634111073 LOCK
Repalced by: A 3634111173
034 A 3634111173 LOCK
2.20 MM
039 A 3504100010 INTERMEDIATE BEARING
INTERMEDIATE BEARING
A 3764100010 INTERMEDIATE BEARING
INTERMEDIATE BEARING
040 A 3354130001 HOUSING
INTERMEDIATE BEARING
040 A 3634130001 HOUSING
INTERMEDIATE BEARING
045 A 3374130131 BEARING RING
050 A 3544100051 BALL BEARING
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NOS.:
363 410 00 51,2X 363 410 00 34
050 A 3634100151 BALL BEARING
055 A 3384130012 RUBBER MOUNTING
PROPELLER SHAFT BEARING
055 A 3634130012 RUBBER MOUNTING
PROPELLER SHAFT BEARING
060 A 3354100130 CENTERING FLANGE
062 A 3954100030 CENTERING FLANGE
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
TO 389 410 00 30
065 A 3273530172 NUT
Repalced by: A 3853510072
065 A 3853510072 NUT
PROPELLER SHAFT TO COUPLING FLANGE
065 A 3853510172 NUT
PROPELLER SHAFT TO COUPLING FLANGE
065 A 3663530072 NUT
PROPELLER SHAFT TO COUPLING FLANGE
065 A 3853510672 NUT
PROPELLER SHAFT TO COUPLING FLANGE
075 A 3504131242 BRACKET
LEFT
075 A 3504137142 BRACKET
LEFT
085 A 3504131342 BRACKET
RIGHT
075 A 3504132642 BRACKET
LEFT
075 A 6204137142 BRACKET
LEFT
075 A 3874132042 BRACKET
LEFT
085 A 3504137242 BRACKET
RIGHT
085 A 6204137042 BRACKET
RIGHT
085 A 3504132742 BRACKET
RIGHT
085 A 3874131942 BRACKET
RIGHT
090 N 000961012160 SCREW
BRACKET TO PROPELLER SHAFT BEARING HOUSING
M 12X25
090 N 000961012154 SCREW
BRACKET TO PROPELLER SHAFT BEARING HOUSING
M 12X30
090 N 000961012106 SCREW
BRACKET TO PROPELLER SHAFT BEARING HOUSING
M 12X35
092 N 000127012201 LOCK WASHER
BRACKET TO PROPELLER SHAFT BEARING HOUSING
092 N 000127012201 LOCK WASHER
BRACKET TO PROPELLER SHAFT BEARING HOUSING
094 A 3299900040 WASHER
BRACKET TO PROPELLER SHAFT BEARING HOUSING
094 A 3879900040 WASHER
BRACKET TO PROPELLER SHAFT BEARING HOUSING
100 A 3464135011 REINFORCEMENT
PROPELLER SHAFT BEARING TO CROSS MEMBER
100 A 3464135011 REINFORCEMENT
PROPELLER SHAFT BEARING TO CROSS MEMBER
105 N 000961012106 SCREW
PROPELLER SHAFT BEARING TO CROSS MEMBER
M 12X35
105 N 000961012106 SCREW
PROPELLER SHAFT BEARING TO CROSS MEMBER
M 12X35
105 N 000960012041 SCREW
PROPELLER SHAFT BEARING TO CROSS MEMBER
M 12X45
105 N 000961012209 SCREW
PROPELLER SHAFT BEARING TO CROSS MEMBER
M 12X50
105 N 000961012209 SCREW
PROPELLER SHAFT BEARING TO CROSS MEMBER
M 12X50
105 N 000960012383 SCREW
M 12X55
105 N 000960012383 SCREW
M 12X55
N 000127012201 LOCK WASHER
PROPELLER SHAFT BEARING TO CROSS MEMBER
113 N 913004012006 NUT
PROPELLER SHAFT BEARING TO CROSS MEMBER
113 N 913004012006 NUT
PROPELLER SHAFT BEARING TO CROSS MEMBER
A 3874130011 REINFORCEMENT
X XXXXXXXXXXXX PART NAME MISSING
REAR PROPELLER SHAFT
130 A 3364103401 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
L = 1354 MM
130 A 3464105401 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
L = 1247 MM
130 A 3504101401 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
L=2085 MM
130 A 3954102301 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
L=1322 MM
130 A 3954102301 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
L=1322 MM
130 A 3504101501 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
L=2069 MM
140 A 3354110580 GASKET
A 3354101928 UNIVERSAL JOINT
A 3874100328 UNIVERSAL JOINT
141 A 3354110480 GASKET
143 A 3354110158 SEAL HOLDER
144 N 071412008100 GREASE NIPPLE
146 A 3354110211 DRIVE FLANGE
146 A 3634110111 DRIVE FLANGE
Repalced by: A 3954110211
146 A 3954110211 DRIVE FLANGE
148 A 3504107031 UNIVERSAL JOINT CROSS
148 A 3504107131 UNIVERSAL JOINT CROSS
150 N 071412008300 GREASE NIPPLE
150 A 3459977288 GREASE NIPPLE
150 N 071412008100 GREASE NIPPLE
151 A 3354112173 LOCK
AS REQUIRED
2.100 MM
151 A 3354112073 LOCK
AS REQUIRED
2.075 MM
151 A 3354111973 LOCK
AS REQUIRED
2.050 MM
151 A 3354111873 LOCK
AS REQUIRED
2.025 MM
151 A 3354111773 LOCK
Repalced by: N 000472052000
151 N 000472052000 LOCK RING
AS REQUIRED
2.000 MM
151 A 3634110773 LOCK
Repalced by: A 3634111173
151 A 3634110873 LOCK
Repalced by: A 3634111173
151 A 3634110973 LOCK
Repalced by: A 3634111173
151 A 3634111073 LOCK
Repalced by: A 3634111173
151 A 3634111173 LOCK
2.20 MM
A 3354110211 DRIVE FLANGE
A 3634110111 DRIVE FLANGE
Repalced by: A 3954110211
A 3954110211 DRIVE FLANGE
A 3504107031 UNIVERSAL JOINT CROSS
A 3504107131 UNIVERSAL JOINT CROSS
N 071412008300 GREASE NIPPLE
A 3459977288 GREASE NIPPLE
A 3354112173 LOCK
AS REQUIRED
2.100 MM
A 3354112073 LOCK
AS REQUIRED
2.075 MM
A 3354111973 LOCK
AS REQUIRED
2.050 MM
A 3354111873 LOCK
AS REQUIRED
2.025 MM
A 3354111773 LOCK
Repalced by: N 000472052000
N 000472052000 LOCK RING
AS REQUIRED
2.000 MM
A 3634110773 LOCK
Repalced by: A 3634111173
A 3634110873 LOCK
Repalced by: A 3634111173
A 3634110973 LOCK
Repalced by: A 3634111173
A 3634111073 LOCK
Repalced by: A 3634111173
A 3634111173 LOCK
2.20 MM
160 A 0029908401 SCREW
PROPELLER SHAFT TO COUPLING FLANGE
160 A 0029908401 SCREW
PROPELLER SHAFT TO COUPLING FLANGE
160 A 0029909901 SCREW
PROPELLER SHAFT TO COUPLING FLANGE
162 N 000127014201 LOCK WASHER
PROPELLER SHAFT TO COUPLING FLANGE
162 N 000127014201 LOCK WASHER
PROPELLER SHAFT TO COUPLING FLANGE
162 N 000127016201 LOCK WASHER
PROPELLER SHAFT TO COUPLING FLANGE
164 N 000934014008 NUT
PROPELLER SHAFT TO COUPLING FLANGE
164 N 000934014008 NUT
PROPELLER SHAFT TO COUPLING FLANGE
164 N 000934016003 NUT
PROPELLER SHAFT TO COUPLING FLANGE
175 A 3504107038 REBOUND STRAP
Repalced by: A 3504100040
175 A 3504100040 BRACKET
PROPELLER SHAFT RETAINING STRAP
175 A 3504100040 BRACKET
PROPELLER SHAFT RETAINING STRAP
176 A 3504107093 MOUNTING PLATE
BRACKET
176 A 3504107093 MOUNTING PLATE
BRACKET
177 N 000933010270 SCREW
MOUNTING PLATE TO BRACKET
177 N 000933010270 SCREW
MOUNTING PLATE TO BRACKET
178 N 000127010202 LOCK WASHER
MOUNTING PLATE TO BRACKET
178 N 000127010202 LOCK WASHER
MOUNTING PLATE TO BRACKET
