Transporto priemonė: LS 1934; VIN numerio dalis: 350048
Grupė: 42 BRAKES
42055
42056
42057
42058
42059
42060
42061
42062
42063
# Kodas Pavadinimas

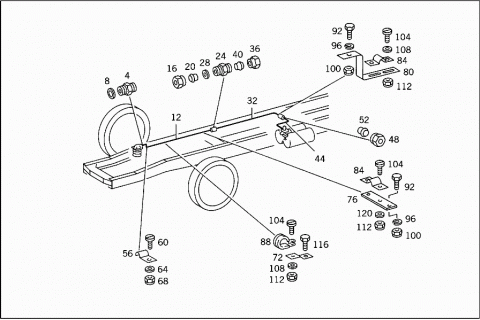

004 A 3454298436 CONNECTOR
LINE CONNECTION TO AIR COMPRESSOR
008 N 007603026104 SEAL RING
LINE CONNECTION TO AIR COMPRESSOR
012 A 3504204426 LINE
FROM AIR COMPRESSOR TO FITTING
012 A 3504208128 LINE
Repalced by: A 3504209728
012 A 3504209728 LINE
FROM AIR COMPRESSOR TO FITTING
016 N 915018015000 UNION NUT
016 N 915017015100 UNION NUT
020 N 003861015004 GLAND
024 N 003902015001 CONNECTION FITTING
LINE CONNECTION TO AIR COMPRESSOR
028 N 915045012100 SEAL RING
LINE CONNECTION TO AIR COMPRESSOR
032 A 3504209035 LINE
FROM FITTING TO FITTING
032 A 3504208228 LINE
FROM FITTING TO FITTING
036 N 915018015000 UNION NUT
036 N 915017015100 UNION NUT
040 N 003861015004 GLAND
044 A 3504207135 LINE
FROM FITTING TO PRESSURE REGULATOR
044 A 3504208328 LINE
FROM FITTING TO PRESSURE REGULATOR
048 N 915018015000 UNION NUT
048 N 915017015100 UNION NUT
052 N 003861015004 GLAND
056 N 001593015500 CLAMP
COMPRESSED AIR LINE TO AIR COMPRESSOR BRACKET
060 N 007985006502 SCREW
COMPRESSED AIR LINE TO AIR COMPRESSOR BRACKET
064 N 000125006420 WASHER
COMPRESSED AIR LINE TO AIR COMPRESSOR BRACKET
068 N 913004006001 NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR BRACKET
072 A 3094760236 BRACKET
COMPRESSED AIR LINE TO TRANSMISSION CASE
076 A 3354293440 BRACKET
COMPRESSED AIR LINE TO TRANSMISSION CASE
080 A 3454667240 BRACKET
COMPRESSED AIR LINE TO FRONT AXLE CROSS MEMBER
084 A 3049950220 CLAMP
COMPRESSED AIR LINE MOUNTING
088 N 916016012200 CLAMP
COMPRESSED AIR LINE TO TRANSMISSION CASE
088 A 3459957901 CLAMP
COMPRESSED AIR LINE TO TRANSMISSION CASE
092 N 000933012123 SCREW
COMPRESSED AIR LINE MOUNTING
096 N 912004012100 LOCK WASHER
COMPRESSED AIR LINE TO TRANSMISSION CASE
100 N 913004012012 NUT
COMPRESSED AIR LINE MOUNTING
104 N 007985006515 SCREW
COMPRESSED AIR LINE TO TRANSMISSION CASE
108 N 000125006420 WASHER
COMPRESSED AIR LINE MOUNTING
112 N 913004006001 NUT
COMPRESSED AIR LINE TO TRANSMISSION CASE
116 N 000933010294 SCREW
COMPRESSED AIR LINE TO TRANSMISSION CASE
120 N 000125006420 WASHER
COMPRESSED AIR LINE TO TRANSMISSION CASE

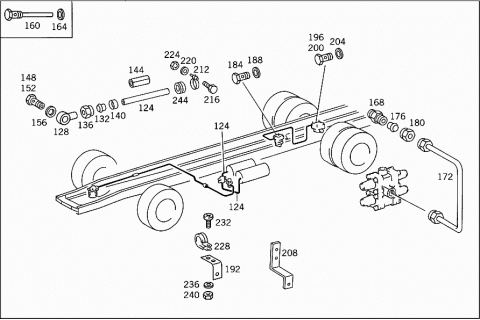

124 A 0109975982 HOSE
Repalced by: A 0009872827
124 A 0009872827 PLASTIC PIPE
Repalced by: A 0009875027
124 A 0009875027 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
12 X 1.5 MM
124 A 0009875027 PLASTIC PIPE
BRAKE VALVE
12 X 1.5 MM
124 A 0009875027 PLASTIC PIPE
FROM TRAILER CONTROL VALVE TO RELAY VALVE
12 X 1.5 MM
124 A 0009875027 PLASTIC PIPE
SHUT-OFF VALVE,RELAY VALVE,TEST CONNECTION
12 X 1.5 MM
124 A 0009875027 PLASTIC PIPE
TRISTOP CYLINDER
12 X 1.5 MM
124 A 0009875027 PLASTIC PIPE
TRAILER BRAKE
12 X 1.5 MM
128 N 915052009009 BANJO UNION
132 N 003861012007 GLAND
136 N 915017012100 UNION NUT
140 N 915062009000 SLEEVE
144 N 040621012209 INSULATING HOSE
148 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE MOUNTING
152 N 915047012200 HOLLOW SCREW
COMPRESSED AIR LINE MOUNTING
156 N 007603016103 SEAL RING
COMPRESSED AIR LINE MOUNTING
160 A 3504307079 CONNECTOR
COMPRESSED AIR LINE MOUNTING
164 N 007603016103 SEAL RING
COMPRESSED AIR LINE MOUNTING
168 N 003902012001 CONNECTION FITTING
172 A 3454608124 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
176 N 003861012007 GLAND
180 N 915017012100 UNION NUT
184 N 915036012203 HOLLOW SCREW
TRAILER CONTROL VALVE
188 N 007603016103 SEAL RING
TRAILER CONTROL VALVE
192 A 3504297540 BRACKET
HOSE TO SIDE MEMBER
196 N 915047012200 HOLLOW SCREW
FROM CONTROL VALVE TO RELAY VALVE
200 N 915036012203 HOLLOW SCREW
FROM CONTROL VALVE TO RELAY VALVE
204 N 007603016103 SEAL RING
FROM CONTROL VALVE TO RELAY VALVE
208 A 3454767036 BRACKET
HOSE TO SIDE MEMBER
212 A 3459977690 LOOM TIE
COMPRESSED AIR LINE MOUNTING
212 A 3459977290 LOOM TIE
COMPRESSED AIR LINE MOUNTING
216 N 000933008273 SCREW
HOSE TO SIDE MEMBER
220 N 009021008102 WASHER
HOSE TO SIDE MEMBER
224 N 913004008001 NUT
HOSE TO SIDE MEMBER
228 N 916016025201 CLAMP
HOSE TO SIDE MEMBER
232 N 007985006502 SCREW
HOSE TO SIDE MEMBER
236 N 000125006420 WASHER
HOSE TO SIDE MEMBER
240 N 913004006001 NUT
HOSE TO SIDE MEMBER
244 A 3509977181 GROMMET
COMPRESSED AIR LINE THRU FRAME
248 A 0089979082 HOSE
Repalced by: A 0009874927
248 A 0009874927 PLASTIC PIPE
CHECK VALVE
8X6 MM
248 A 0009874927 PLASTIC PIPE
RELAY VALVE
8X6 MM
248 A 0009874927 PLASTIC PIPE
HAND BRAKE VALVE
8X6 MM
248 A 0009874927 PLASTIC PIPE
TRAILER BRAKE
8X6 MM
248 A 0009874927 PLASTIC PIPE
SHUT-OFF VALVE
8X6 MM
252 N 003861008005 GLAND
256 A 0019976672 FITTING
Repalced by: N 915062006000
256 N 915062006000 SLEEVE
260 N 915017008100 UNION NUT
264 N 915052006014 BANJO UNION
264 N 915052006005 BANJO UNION
268 N 003902008004 CONNECTION FITTING
268 A 0019972672 FITTING
270 A 3454202926 LINE
FROM HAND BRAKE VALVE,CONNECTION "2", TO BRAKE HOSE
271 A 3504203337 LINE
FROM HOSE TO FITTING
272 A 3504309164 LINE
FROM BULKHEAD FITTING TO CONNECTION FITTING
276 A 3504208928 LINE
280 N 003861008005 GLAND
FROM BULKHEAD FITTING TO CONNECTION FITTING
284 N 915017008100 UNION NUT
FROM BULKHEAD FITTING TO CONNECTION FITTING
286 A 0019903171 ELBOW FITTING
FROM HOSE TO CONTROL LINE FITTING
288 A 3509977672 FITTING
LINE CONNECTION TO FIRE WALL
290 N 003910008001 FITTING
290 N 003902006001 CONNECTION FITTING
292 N 000125015012 WASHER
LINE CONNECTION TO FIRE WALL
296 N 006797014150 TOOTHED WASHER
LINE CONNECTION TO FIRE WALL
300 N 080705014001 NUT
LINE CONNECTION TO FIRE WALL

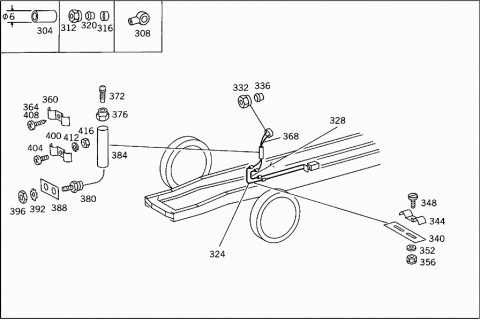

304 A 0089976082 HOSE
SERVICE BRAKE VALVE
6X1 MM
308 N 915052004019 BANJO UNION
312 N 915017006100 UNION NUT
316 N 915062004000 SLEEVE
316 A 0009920105 BUSHING
320 N 003861006007 GLAND
324 A 3504208526 LINE
PRESSURE GAUGE LINES
324 A 3504208828 LINE
FROM FIRE WALL TO FITTING
328 A 3504207826 LINE
PRESSURE GAUGE LINES
328 A 3504208728 LINE
FROM FIRE WALL TO FITTING
332 N 915017006100 UNION NUT
PRESSURE GAUGE LINES
336 N 003861006007 GLAND
PRESSURE GAUGE LINES
340 A 3454288040 BRACKET
FROM FITTING TO FIRE WALL
344 A 3449950132 CLAMP
FROM FITTING TO FIRE WALL
344 A 3129950332 CLAMP
FROM FITTING TO FIRE WALL
348 N 007985005171 SCREW
FROM FITTING TO FIRE WALL
352 N 000125005315 WASHER
FROM FITTING TO FIRE WALL
356 N 913004005001 NUT
FROM FITTING TO FIRE WALL
360 A 3449950132 CLAMP
PRESSURE GAUGE LINE TO FIRE WALL
364 N 007981004226 SHEET METAL SCREW
PRESSURE GAUGE LINE TO FIRE WALL
368 A 3525407461 ELECTRIC CABLE
Repalced by: A 3445408161
368 A 3445408161 ELECTRIC CABLE
TO PRESSURE GAUGE
368 A 0089976082 HOSE
TO PRESSURE GAUGE
372 A 0019975072 FITTING
TO PRESSURE GAUGE
376 N 915017006200 UNION NUT
TO PRESSURE GAUGE
380 A 0019973772 FITTING
Repalced by: A 3454297139
380 A 3454297139 CONNECTOR
TO PRESSURE GAUGE
384 N 040621012200 INSULATING HOSE
FROM TANK FILTER TO ELBOW FITTING
388 A 3454297046 PAD
FITTING TO FIRE WALL
392 N 006797012251 TOOTHED WASHER
FITTING TO FIRE WALL
396 N 080705012000 NUT
FITTING TO FIRE WALL
400 A 3609950101 CLAMP
PRESSURE GAUGE LINE TO FIRE WALL
400 A 3129950332 CLAMP
PRESSURE GAUGE LINE TO FIRE WALL
404 N 007985006502 SCREW
PRESSURE GAUGE LINE TO FIRE WALL
408 N 007981004226 SHEET METAL SCREW
PRESSURE GAUGE LINE TO FIRE WALL
B 4.8X13
412 N 000127006203 LOCK WASHER
PRESSURE GAUGE LINE TO FIRE WALL
416 N 000934006006 NUT
PRESSURE GAUGE LINE TO FIRE WALL

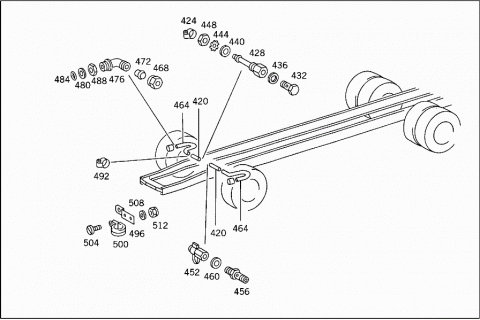

420 N 916027011014 HOSE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS
424 A 3459978890 CLAMP
BRAKE HOSE TO COMPRESSED AIR LINE
428 A 3504207066 CONNECTOR
AT SIDE MEMBER
432 N 915036012203 HOLLOW SCREW
LINE MOUNTING
436 N 007603016103 SEAL RING
LINE MOUNTING
440 N 000125017010 WASHER
CONNECTOR TO FRAME
444 N 006797016152 TOOTHED WASHER
CONNECTOR TO FRAME
448 N 000936016003 NUT
CONNECTOR TO FRAME
452 A 0004314831 TEST CONNECTION
AT LEFT SIDE MEMBER
456 N 915039012205 HOLLOW SCREW FITTING
AT LEFT SIDE MEMBER
460 N 007603016103 SEAL RING
AT LEFT SIDE MEMBER
464 A 3504207828 LINE
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
464 A 3504207928 LINE
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
468 N 915017012100 UNION NUT
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
472 N 003861012007 GLAND
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
476 A 3089907171 ELBOW FITTING
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
"1","2"
480 A 0004290927 THRUST RING
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
"1","2"
484 A 0009971548 SEAL RING
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
"1","2"
488 N 000936016003 NUT
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
"1","2"
492 A 3459978890 CLAMP
BRAKE HOSE TO COMPRESSED AIR LINE
496 A 3454299840 BRACKET
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
500 N 916016012200 CLAMP
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
500 A 3459957901 CLAMP
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
504 N 007985006515 SCREW
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
508 N 000125006420 WASHER
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER
512 N 913004006001 NUT
COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER

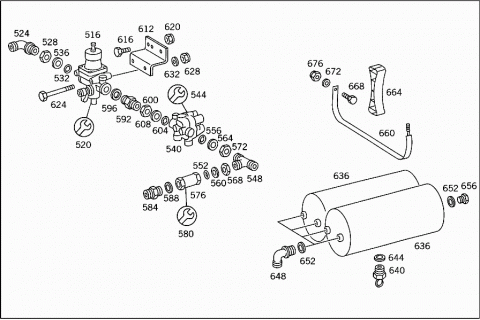

516 A 0014319806 PRESSURE REGULATOR
KNORR
516 A 0014310006 PRESSURE REGULATOR
WABCO
520 A 0015864343 REPAIR KIT
TO 001 431 00 06
520 A 0025864743 REPAIR KIT
TO 001 431 98 06
A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06
A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06
524 N 074315015000 FITTING
Repalced by: A 3504297138
524 A 3504297138 ELBOW FITTING
LINE CONNECTION TO PRESSURE REGULATOR
528 N 074305022202 NUT
LINE CONNECTION TO PRESSURE REGULATOR
532 A 0009870446 O-RING
LINE CONNECTION TO PRESSURE REGULATOR
536 A 0004290227 THRUST RING
Repalced by: A 0009940203
536 A 0009940203 THRUST RING
LINE CONNECTION TO PRESSURE REGULATOR
540 A 0014318906 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
540 A 0014318706 VALVE
Repalced by: A 0024310106
540 A 0024310106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
544 A 0035860943 REPAIR KIT
(FOUR-CIRCUIT PROTECTIVE VALVE)
TO 001 431 89 06
544 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
544 A 0004201571 REPAIR KIT
(FOUR-CIRCUIT PROTECTIVE VALVE)
TO 002 431 01 06
548 A 3454297532 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
552 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
556 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
560 A 0004290227 THRUST RING
Repalced by: A 0009940203
560 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
564 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
568 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
572 N 000936016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
576 A 0004290444 VALVE
(CHECK VALVE)
WABCO
576 A 0034292844 VALVE
(CHECK VALVE)
580 A 0005865942 REPAIR KIT
(CHECK VALVE)
TO 000 429 04 44
584 A 0009905168 FITTING
LINE CONNECTION TO CHECK VALVE, CONNECTION:
2
588 N 007603022102 SEAL RING
LINE CONNECTION TO CHECK VALVE, CONNECTION:
2
592 N 074313016401 FITTING
592 A 0019972372 FITTING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
596 N 007603022102 SEAL RING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
600 N 074305022202 NUT
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
604 A 0009870446 O-RING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
608 A 0004290227 THRUST RING
Repalced by: A 0009940203
608 A 0009940203 THRUST RING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "1",TO PRESSURE REGULATOR,CONNECT. "2"
612 A 3504317340 BRACKET
616 N 000933008282 SCREW
BRACKET TO BATTERY CASE
620 N 913004008001 NUT
BRACKET TO BATTERY CASE
624 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
628 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
632 N 000125008417 WASHER
PRESSURE REGULATOR TO BRACKET
636 A 0004321001 RESERVOIR
Repalced by: A 3504327001
636 A 3504327001 RESERVOIR
640 A 0004320807 VALVE
DRAIN
640 A 3644327107 VALVE
DRAIN
644 N 007603022102 SEAL RING
DRAIN VALVE TO AIR RESERVOIR
648 A 0009905168 FITTING
FRONT AIR RESERVOIR,CONNECTION:
11,12,21,22
652 N 007603022102 SEAL RING
FRONT AIR RESERVOIR,CONNECTION:
11,12,21,22
652 N 007603022102 SEAL RING
FRONT AIR RESERVOIR,CONNECTION:
31,32
656 N 007604022101 SCREW PLUG
FRONT AIR RESERVOIR,CONNECTION:
31,22
660 A 3504300740 STRAP
AIR RESERVOIR
664 A 3354320218 BASE
AIR RESERVOIR
668 N 000933010174 SCREW
STRAP TO BATTERY CASE
672 N 000125010517 WASHER
STRAP TO BATTERY CASE
676 N 913004010004 NUT
STRAP TO BATTERY CASE

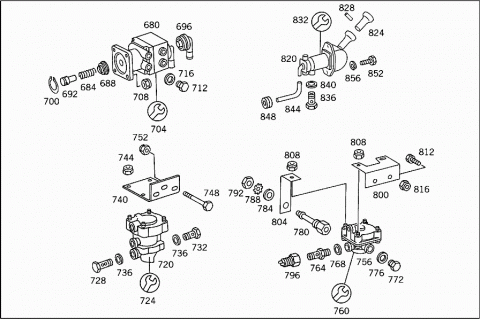

680 A 0014318305 BRAKE VALVE
Repalced by: A 3454317105
680 A 3454317105 BRAKE VALVE
SERVICE BRAKE
WABCO
A 0014317393 SPRING
684 A 0014317493 SPRING
688 A 0004312185 FILLER RING
TO 001 431 83 05
692 A 0004318683 PISTON
692 A 0004318383 PISTON
TO 001 431 83 05
696 A 0004310273 BREATHER PIPE
TO 001 431 83 05
700 N 000984038000 LOCK RING
TO 001 431 83 05,345 431 71 05
700 N 000472045000 LOCK RING
TO 001 431 83 05,345 431 71 05
700 N 000472047001 LOCK RING
TO 001 431 83 05,345 431 71 05
700 N 000472060000 LOCK RING
TO 001 431 83 05,345 431 71 05
704 A 0004306260 REPAIR KIT
LARGE SCOPE
704 A 0014301160 REPAIR KIT
SMALL SCOPE
708 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
712 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
712 A 3469970230 SCREW PLUG
TO PLUG THE FREE CONNECTIONS
716 N 007603022102 SEAL RING
TO PLUG THE FREE CONNECTIONS
720 A 0014313705 BRAKE VALVE
TRAILER CONTROL VALVE
"WESTINGHOUSE"
724 A 0024304781 REPAIR KIT
VALVE KIT
TO 001 431 37 05
724 A 0024306581 REPAIR KIT
TO 001 431 37 05
A 0004302960 REPAIR KIT
TO 002 43116 05
728 N 915047012200 HOLLOW SCREW
COMPRESSED AIR LINE TO VALVE
728 N 915047012200 HOLLOW SCREW
BRAKE LINE COUPLING
732 N 915036012203 HOLLOW SCREW
CONTROL VALVE
736 N 007603016103 SEAL RING
740 A 3454318440 BRACKET
TRAILER CONTROL VALVE TO SIDE MEMBER
740 A 3504317240 BRACKET
TRAILER CONTROL VALVE TO SIDE MEMBER
744 N 913004008001 NUT
TRAILER CONTROL VALVE TO BRACKET
748 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
M 10X30
748 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
M 10X30
748 N 000961014106 SCREW
BRACKET TO SIDE MEMBER
M 14X35
752 N 913004010004 NUT
BRACKET TO SIDE MEMBER
752 N 913004010004 NUT
BRACKET TO SIDE MEMBER
752 N 913004014005 NUT
BRACKET TO SIDE MEMBER
756 A 0014296844 VALVE
RELAY VALVE
"WABCO"
756 A 0034293044 VALVE
RELAY VALVE
"KNORR"
760 H 983455860842 REPAIR KIT
Repalced by: A 0004205555
760 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44
760 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44
760 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
760 A 0004201471 REPAIR KIT
TO 003 429 30 44
764 A 0009905168 FITTING
AT RELAY VALVE
768 N 007603022102 SEAL RING
AT RELAY VALVE
772 N 007604016102 SCREW PLUG
AT RELAY VALVE
776 N 007603016103 SEAL RING
AT RELAY VALVE
780 A 3504207066 CONNECTOR
AT RELAY VALVE
784 N 000125017010 WASHER
AT RELAY VALVE
788 N 006797016152 TOOTHED WASHER
AT RELAY VALVE
792 N 000936016003 NUT
AT RELAY VALVE
796 A 0005454314 SWITCH
AT RELAY VALVE
"1"
796 A 3445457314 SWITCH
AT RELAY VALVE
"1"
800 A 3634311740 BRACKET
804 A 3504237023 BRACKET
808 N 913004008001 NUT
BRACKET TO RELAY VALVE
812 N 000933010242 SCREW
BRACKET TO SIDE MEMBER
816 N 913004010011 NUT
BRACKET TO SIDE MEMBER
820 A 3504307009 VALVE
HAND BRAKE VALVE
824 A 0009974977 HANDLE
TO 350 430 70 09
828 A 0009911055 PIN
TO 350 430 70 09
832 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
832 A 0034303181 REPAIR KIT
TO 350 430 70 09
A 0024302360 REPAIR KIT
Repalced by: A 0004304006
A 0004304006 REPAIR KIT
TO 345 430 73 09
836 N 915036010203 HOLLOW SCREW
HOSE TO PARKING BRAKE VALVE
840 N 007603014102 SEAL RING
HOSE TO PARKING BRAKE VALVE
844 A 3509978482 HOSE
PARKING BRAKE VALVE
848 A 0009972181 GROMMET
Repalced by: A 0009972281
848 A 0009972281 GROMMET
852 N 007985008169 SCREW
HAND BRAKE VALVE TO CAB
856 N 912004008100 LOCK WASHER
HAND BRAKE VALVE TO CAB

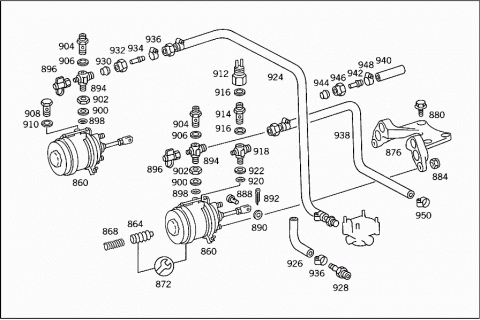

860 A 0074203718 WHEEL BRAKE CYLINDER
"WABCO"
A 0004312728 DIAPHRAGM
TO 006 420 37 18
864 A 0004212286 CUP
Repalced by: A 0004215286
864 A 0004215286 CUP
Repalced by: A 0004212286
864 A 0004212286 CUP
TO 007 420 37 18
A 0004233886 CUP
TO 006 420 37 18
A 0004211263 GUIDE
TO 006 420 37 18
868 A 0004235293 SPRING
TRISTOP CYLINDER
TO 007 420 37 18
868 A 0004235493 SPRING
SPRING LOAD ACCUMULATOR
TO 007 420 37 18
A 0004303860 REPAIR KIT
TO 006 420 37 18
872 A 0025865142 REPAIR KIT
Repalced by: A 0044208524
872 A 0044208524 REPAIR KIT
TRISTOP CYLINDER
TO 007 420 37 18
872 A 0025862642 REPAIR KIT
Repalced by: A 0054205424
872 A 0054205424 REPAIR KIT
SPRING LOAD ACCUMULATOR
TO 007 420 37 18
876 A 3894230133 BEARING BRACKET
TRISTOP CYLINDER
880 N 914125016409 SCREW
BEARING BRACKET TO REAR AXLE
M 16X40
884 N 913004016004 NUT
WHEEL CYLINDER TO BEARING BRACKET
888 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
890 N 000433015000 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
892 N 000094004050 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
894 A 3504297336 CONNECTOR
AT TRISTOP CYLINDER
896 A 0004314831 TEST CONNECTION
AT TRISTOP CYLINDER
898 A 0009971548 SEAL RING
AT TRISTOP CYLINDER
900 A 0004290927 THRUST RING
AT TRISTOP CYLINDER
902 N 000936016003 NUT
AT TRISTOP CYLINDER
904 N 915039012205 HOLLOW SCREW FITTING
AT TRISTOP CYLINDER
906 N 007603016103 SEAL RING
AT TRISTOP CYLINDER
908 N 915036012203 HOLLOW SCREW
AT TRISTOP CYLINDER
910 N 007603016103 SEAL RING
AT TRISTOP CYLINDER
912 A 0005455414 SWITCH
912 A 3445457214 SWITCH
914 N 915039012205 HOLLOW SCREW FITTING
916 N 007603016103 SEAL RING
918 A 3504297436 CONNECTOR
920 A 0009971548 SEAL RING
922 A 0004290927 THRUST RING
924 A 3504200148 BRAKE HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
675 MM
924 A 3504208348 BRAKE HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
575 MM
926 N 916027011008 HOSE
630 MM
926 N 916027011005 HOSE
530 MM
928 A 0004290541 FITTING
Repalced by: A 3454297041
928 A 3454297041 FITTING
930 N 003861012007 GLAND
932 N 915017012100 UNION NUT
934 N 074304016200 FITTING
936 A 3459978890 CLAMP
938 A 3504200048 BRAKE HOSE
TOWARDS SPRING LOAD ACCUMULATOR CYLINDER
650 MM
938 A 3504207648 BRAKE HOSE
TOWARDS SPRING LOAD ACCUMULATOR CYLINDER
550 MM
940 N 916027011008 HOSE
630 MM
940 N 916027011005 HOSE
530 MM
942 A 0004290541 FITTING
Repalced by: A 3454297041
942 A 3454297041 FITTING
944 N 003861012007 GLAND
946 N 915017012100 UNION NUT
948 A 3459978890 CLAMP
950 A 3459978890 CLAMP
BRAKE HOSE TO COMPRESSED AIR LINE

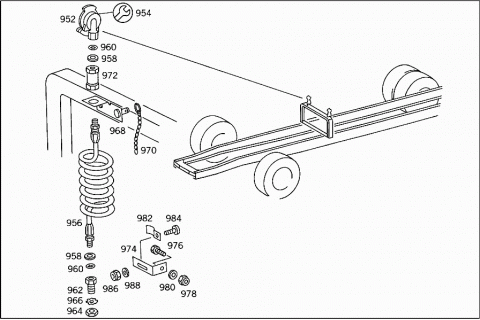

952 A 0004298730 BRAKE LINE COUPLING
LEFT BRAKE LINE COUPLING
KNORR
952 A 0004298630 BRAKE LINE COUPLING
RIGHT BRAKE LINE COUPLING
KNORR
A 0004291290 COVER
TO 000 429 80 30
A 0004291690 COVER
TO 000 429 81 30
A 0025863842 REPAIR KIT
TO 000 429 80 30,000 429 81 30
954 A 0004309660 REPAIR KIT
TO 000 429 86 30,000 429 87 30
956 A 3504207757 HOSE
LEFT BRAKE LINE COUPLING
956 A 3504307378 HOSE
LEFT BRAKE LINE COUPLING
956 A 3504207657 HOSE
RIGHT BRAKE LINE COUPLING
956 A 3504307278 HOSE
RIGHT BRAKE LINE COUPLING
958 A 3084297027 THRUST RING
LEFT BRAKE LINE COUPLING
958 A 0004290727 THRUST RING
958 A 0004290727 THRUST RING
LEFT BRAKE LINE COUPLING
958 A 0004290727 THRUST RING
RIGHT BRAKE LINE COUPLING
958 A 0004290927 THRUST RING
LEFT BRAKE LINE COUPLING
958 A 0004290927 THRUST RING
RIGHT BRAKE LINE COUPLING
960 A 0009971548 SEAL RING
LEFT BRAKE LINE COUPLING
960 A 0009971548 SEAL RING
RIGHT BRAKE LINE COUPLING
962 A 0004296034 ADAPTER FITTING
CONTROL VALVE,CONNECTION:
"2"
964 N 080705018002 NUT
FITTING TO BRACKET
966 N 006797019101 TOOTHED WASHER
FITTING TO BRACKET
968 A 3504207186 BRACKET
970 A 3509887095 SAFETY CHAIN
972 A 3504767325 INTERMEDIATE PIECE
TRAILER BRAKE
974 A 3464295840 BRACKET
CONNECTOR TO FRAME
976 N 000933008288 SCREW
CONNECTOR TO FRAME
976 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
978 N 913004008001 NUT
CONNECTOR TO FRAME
978 N 913004010011 NUT
BRACKET TO SIDE MEMBER
980 N 000125008417 WASHER
CONNECTOR TO FRAME
980 N 000125010517 WASHER
BRACKET TO SIDE MEMBER
982 A 3504297840 CLAMP
CONNECTOR TO FRAME
984 N 007985006515 SCREW
CONNECTOR TO FRAME
986 N 913004006001 NUT
CONNECTOR TO FRAME
988 N 000125006420 WASHER
CONNECTOR TO FRAME
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
