Transporto priemonė: LS 1934; VIN numerio dalis: 350048
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3500947102 | AIR CLEANER |
| "MANN DO BRASIL" | ||

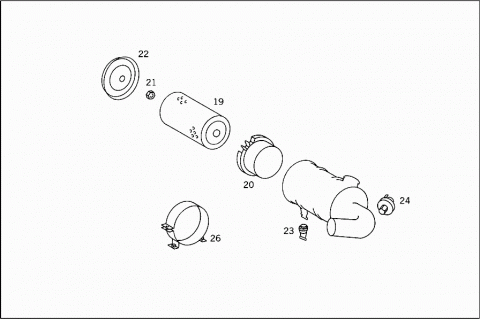

| 019 | A 3500947004 | FILTER ELEMENT |
| 020 | A 3500947103 | FILTER BOWL |
| CYCLONE | ||
| 021 | A 3500947072 | NUT |
| 022 | A 3500947003 | FILTER BOWL |
| 023 | A 3760947165 | VALVE |
| 024 | A 0000940368 | VACUUM BOX |
| 026 | A 0000940727 | BRACKET |

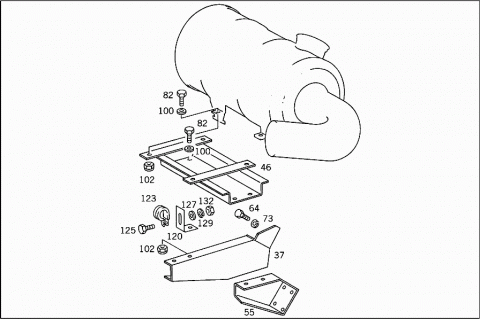

| 037 | A 3505207741 | BRACKET |
| AIR CLEANER | ||
| 046 | A 3505207841 | BRACKET |
| 055 | A 3505287439 | SUPPORT |
| 064 | N 000933010294 | SCREW |
| BRACKET TO CAB | ||
| M 10X20 MM | ||
| 064 | N 000933010294 | SCREW |
| BRACKET TO SUPPORT | ||
| M 10X20 MM | ||
| 073 | N 000127010202 | LOCK WASHER |
| BRACKET TO CAB | ||
| 073 | N 000127010202 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 073 | N 000127010202 | LOCK WASHER |
| BRACKET TO BRACKET | ||
| 073 | N 000127010202 | LOCK WASHER |
| AIR CLEANER TO BRACKET | ||
| 082 | N 000933010174 | SCREW |
| AIR CLEANER TO BRACKET | ||
| M 10X22 MM | ||
| 082 | N 000933010174 | SCREW |
| BRACKET TO SUPPORT | ||
| M 10X22 MM | ||
| 082 | N 000933010174 | SCREW |
| BRACKET TO BRACKET | ||
| M 10X22 MM | ||
| 100 | N 000125010517 | WASHER |
| BRACKET TO WHEELHOUSE | ||
| 100 | N 000125010517 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 100 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 100 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 102 | N 913004010004 | NUT |
| BRACKET TO BRACKET | ||

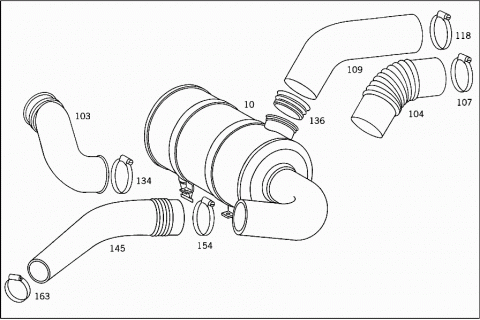

| 103 | A 0000941809 | INTAKE PIPE |
| FROM AIR INTAKE PIPE TO AIR CLEANER | ||
| 104 | A 3505287182 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 104 | A 3505288182 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 107 | A 3509971690 | LOOM TIE |
| 107 | A 3449979990 | CLAMP |
| 107 | A 3459979990 | CLAMP |
| 109 | A 4429970282 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 118 | A 3509970490 | LOOM TIE |
| AS REQUIRED | ||
| 118 | A 3509970390 | LOOM TIE |
| AS REQUIRED | ||
| 120 | A 3464295840 | BRACKET |
| HOSE TO AIR CLEANER AND TO AIR COMPRESSOR | ||
| 123 | N 916016028202 | CLAMP |
| HOSE TO BRACKET | ||
| 125 | N 000933006220 | SCREW |
| CLAMP TO BRACKET | ||
| 127 | N 000125006420 | WASHER |
| CLAMP TO BRACKET | ||
| 129 | N 000127006203 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 132 | N 000934006006 | NUT |
| CLAMP TO BRACKET | ||
| 134 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 134 | A 3459977390 | LOOM TIE |
| 134 | A 3449979390 | CLAMP |
| 134 | A 3459979590 | LOOM TIE |
| 136 | A 3505287091 | BOOT |
| AIR CLEANER | ||
| 145 | A 3505288082 | HOSE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 145 | A 3505288082 | HOSE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 145 | A 3509978682 | HOSE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 145 | A 3509978682 | HOSE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 154 | A 3509971490 | LOOM TIE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 154 | A 3509971490 | LOOM TIE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 163 | A 3509971890 | LOOM TIE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 163 | A 3509971890 | LOOM TIE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 163 | A 3509971890 | LOOM TIE |
| FROM AIR CLEANER TO TURBOCHARGER | ||

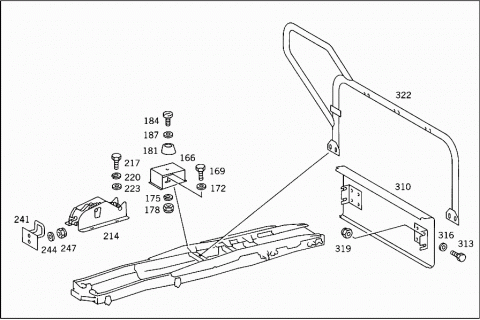

| 166 | A 3508907031 | CONSOLE |
| 169 | N 000933008288 | SCREW |
| CONSOLE TO FRAME | ||
| 172 | N 009021008102 | WASHER |
| CONSOLE TO FRAME | ||
| 175 | N 912004008100 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 178 | N 000934008010 | NUT |
| CONSOLE TO FRAME | ||
| 181 | A 3348910072 | MOUNTING |
| 184 | N 000085008130 | SCREW |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 187 | A 3469905040 | WASHER |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 190 | A 3505208041 | BRACKET |
| LEFT | ||
| 193 | A 3505208141 | BRACKET |
| RIGHT | ||
| 196 | N 000933012122 | SCREW |
| BRACKET TO FRAME | ||
| 199 | N 000125013012 | WASHER |
| BRACKET TO FRAME | ||
| 202 | A 3449900140 | WASHER |
| BRACKET TO FRAME | ||
| 205 | N 000127012201 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 208 | N 913004012012 | NUT |
| BRACKET TO FRAME | ||
| 214 | A 3647580050 | LOCK |
| 214 | A 3027580050 | LOCK |
| BRACKET TO FRAME | ||
| 217 | N 000933006220 | SCREW |
| LOCK TO BRACKET | ||
| 220 | N 000127006203 | LOCK WASHER |
| LOCK TO BRACKET | ||
| 223 | N 000125006420 | WASHER |
| LOCK TO BRACKET | ||

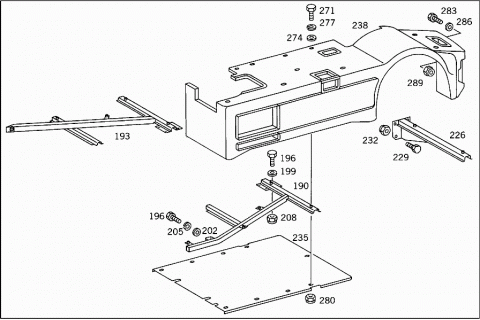

| 226 | A 3505207327 | RAIL |
| 229 | N 000933012131 | SCREW |
| RAIL TO SIDE MEMBER | ||
| 229 | N 000933012125 | SCREW |
| RAIL TO SIDE MEMBER | ||
| 232 | N 913004012012 | NUT |
| RAIL TO SIDE MEMBER | ||
| 235 | A 3505247533 | COVERING |
| 238 | A 3505207013 | PANELLING |
| LEFT | ||
| 238 | A 3505207014 | PANELLING |
| RIGHT | ||
| 241 | A 3505207034 | REINFORCEMENT |
| 244 | N 000125006420 | WASHER |
| PLATE TO SUPPORT | ||
| 247 | N 913004006001 | NUT |
| PLATE TO SUPPORT | ||

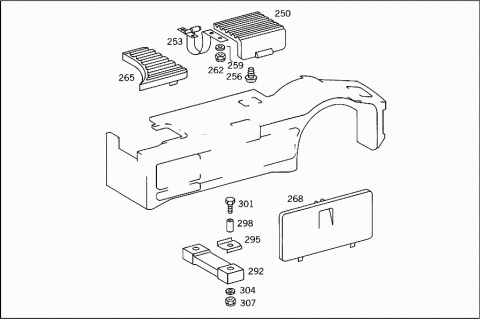

| 250 | A 3505247031 | COVER PLATE |
| Repalced by: A 3505207264 | ||
| 250 | A 3505207264 | COVER |
| 253 | A 3505207029 | HINGE |
| 256 | A 3449877039 | RUBBER BUFFER |
| 259 | N 000125006420 | WASHER |
| BRACKET TO COVERING | ||
| 262 | N 913004006001 | NUT |
| BRACKET TO COVERING | ||
| 265 | A 3505207164 | COVER |
| BATTERY COVER | ||
| 268 | A 3505207064 | COVER |
| BATTERY COVER | ||
| 271 | N 000933008282 | SCREW |
| COVER PLATE TO CROSS MEMBER | ||
| 271 | N 000933008288 | SCREW |
| PANELLING TO SIDE MEMBER | ||
| 274 | N 000125008417 | WASHER |
| COVER PLATE TO CROSS MEMBER | ||
| N 009021008102 | WASHER | |
| COVER PLATE TO CROSS MEMBER | ||
| N 009021008102 | WASHER | |
| COVER PLATE TO BRACKET | ||
| N 009021008102 | WASHER | |
| COVER PLATE TO FRAME | ||
| N 009021008102 | WASHER | |
| PANELLING TO SIDE MEMBER | ||
| N 009021008102 | WASHER | |
| PANELLING TO BRACKET | ||
| N 009021008102 | WASHER | |
| PANELLING TO MOUNTING RAIL | ||
| 277 | N 912004008100 | LOCK WASHER |
| COVER PLATE TO CROSS MEMBER | ||
| 280 | N 913004008001 | NUT |
| COVER PLATE TO BRACKET | ||
| 280 | N 913004008001 | NUT |
| COVER PLATE TO FRAME | ||
| 280 | N 913004008001 | NUT |
| PANELLING TO SIDE MEMBER | ||
| 280 | N 913004008001 | NUT |
| PANELLING TO BRACKET | ||
| 280 | N 913004008001 | NUT |
| PANELLING TO MOUNTING RAIL | ||
| 283 | N 000933010129 | SCREW |
| PANELLING TO SIDE MEMBER | ||
| 286 | N 009021010102 | WASHER |
| PANELLING TO SIDE MEMBER | ||
| 289 | N 913004010004 | NUT |
| PANELLING TO SIDE MEMBER | ||
| 292 | A 3084927082 | DAMPING PAD |
| PANELLING TO CONSOLE | ||
| 295 | A 1204920118 | BASE PLATE |
| PANELLING TO CONSOLE | ||
| 298 | A 1209911140 | SPACER TUBE |
| PANELLING TO CONSOLE | ||
| 301 | N 000933008358 | SCREW |
| PANELLING TO CONSOLE | ||
| 304 | N 000125008417 | WASHER |
| PANELLING TO CONSOLE | ||
| 307 | N 913004008001 | NUT |
| PANELLING TO CONSOLE | ||
| 310 | A 3505207824 | ANTINOISE CAPSULE |
| 313 | N 000933012056 | SCREW |
| COVER PLATE TO FRAME | ||
| 316 | N 000125013012 | WASHER |
| COVER PLATE TO FRAME | ||
| 319 | N 913004012012 | NUT |
| COVER PLATE TO FRAME | ||
| 322 | A 3505207251 | CLAMP |
