Transporto priemonė: LS 1934; VIN numerio dalis: 350048
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

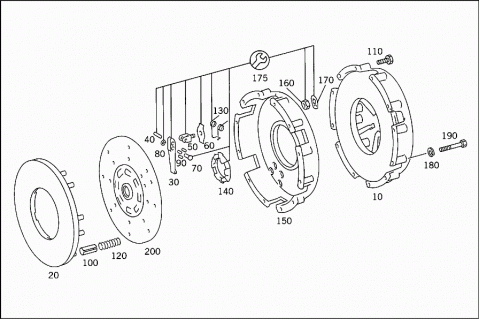

| 010 | A 0032509004 | CLUTCH PRESSURE PLATE |
| 020 | A 0002525612 | PRESSURE PLATE |
| 030 | A 0002526013 | RELEASE LEVER |
| 040 | A 0002523216 | SPINDLE |
| 050 | A 0002522814 | BRACKET |
| 060 | A 0002523219 | LEAF SPRING |
| 070 | A 0002523316 | SPINDLE |
| 080 | N 006799009002 | LOCK PLATE |
| 090 | A 0002520418 | ROLLER |
| 100 | A 0002520535 | SLEEVE |
| 110 | A 0002522971 | SCREW |
| 120 | A 0002528620 | PRESSURE SPRING |
| 120 | A 0002528720 | PRESSURE SPRING |
| 130 | A 0002522927 | SPRING |
| 140 | A 0002522345 | FLANGE |
| 150 | A 0002524832 | HOUSING |
| 160 | A 0002523572 | NUT |
| 170 | A 0002521273 | LOCK |
| 175 | A 3642500104 | REPAIR KIT |
| 180 | N 000127010202 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 190 | N 000931010409 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 200 | A 0052500003 | CLUTCH DISC |
| Repalced by: A 0182503203 | ||
| 200 | A 0062509803 | CLUTCH DISC |
| Repalced by: A 0182503203 | ||
| 200 | A 0062509903 | CLUTCH DISC |
| Repalced by: A 0182503203 | ||
| 200 | A 0072500003 | CLUTCH DISC |
| Repalced by: A 0032507903 | ||
| 200 | A 0032507903 | CLUTCH DISC |
| Repalced by: A 0182503203 | ||
| 200 | A 0112509103 | CLUTCH DISC |
| Repalced by: A 0182503203 | ||
| 200 | A 0112509203 | CLUTCH DISC |
| Repalced by: A 0182503203 | ||
| 200 | A 0182503203 | CLUTCH DISC |
| A 0012522010 | CLUTCH LINING | |
| TO 005 250 00 03 | ||
| A 0002522075 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| A 0002523375 | RIVET | |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| A 0002523319 | LEAF SPRING | |

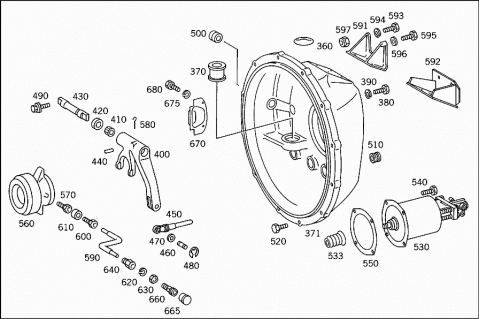

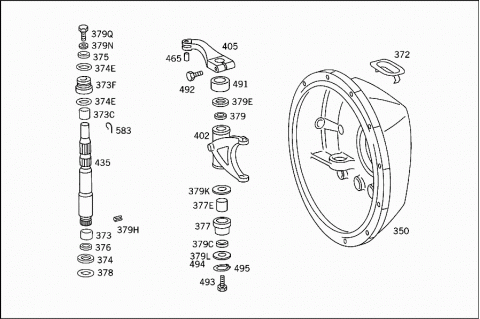

| 350 | A 3502500505 | HOUSING |
| 360 | N 000470056000 | EXPANSION PLUG |
| 370 | A 3502510083 | PLUG |
| 371 | A 3502510101 | BELL HOUSING |
| 371 | A 3502510601 | BELL HOUSING |
| 372 | A 3852510405 | COVER |
| 373 | A 3852510450 | BUSHING |
| 373 | A 3389920103 | BUSHING |
| 373C | A 3439920103 | BUSHING |
| 373F | A 3502510050 | BUSHING |
| 374 | A 3859970040 | SEAL RING |
| 374E | A 3379975040 | SEAL RING |
| 375 | A 3852930027 | COVER PLATE |
| 375 | A 3502930027 | COVER PLATE |
| 376 | A 0119978846 | SEAL RING |
| 377 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 377E | A 3439920103 | BUSHING |
| 378 | A 3852930027 | COVER PLATE |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 379 | A 3509977746 | SEAL RING |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 379 | A 0119978846 | SEAL RING |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 379C | A 3379975040 | SEAL RING |
| 379E | A 3859970040 | SEAL RING |
| 379H | N 001481005027 | CLAMPING SLEEVE |
| 379K | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 379K | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 379K | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 379K | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 379K | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 379K | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 379L | A 3172930311 | GUARD PLATE |
| 379N | N 006902011201 | WASHER |
| 379Q | N 914112010000 | SCREW |
| M 10X18 | ||
| 380 | N 000960018143 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 390 | N 000127018203 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 400 | A 3502540008 | RELEASE LEVER |
| A 3452937011 | RELEASE YOKE | |
| Repalced by: A 3452930111 | ||
| 402 | A 3452930111 | RELEASE YOKE |
| 405 | A 3502957028 | LEVER |
| 405 | A 3502950128 | LEVER |
| 410 | A 0099810410 | NEEDLE BEARING |
| 420 | A 0079978847 | SEAL RING |
| 430 | A 3502540007 | SHAFT |
| (CLUTCH RELEASE SHAFT) | ||
| 435 | A 3502547007 | SHAFT |
| (CLUTCH RELEASE SHAFT) | ||
| 435 | A 3502540107 | SHAFT |
| (CLUTCH RELEASE SHAFT) | ||
| 440 | N 001481005043 | CLAMPING SLEEVE |
| 5X40 MM | ||
| 450 | A 0009969040 | ROD END |
| 450 | A 3509967040 | ROD END |
| 460 | A 6202560074 | PIN |
| 465 | A 3072560074 | PIN |
| 470 | A 0019970041 | SEAL RING |
| 470 | A 0019972141 | SEAL RING |
| 480 | N 000471012000 | LOCK RING |
| 490 | N 914114010010 | SCREW |
| RELEASE YOKE TO BELL HOUSING | ||
| M 10X45 | ||
| 491 | A 3502500055 | COVER |
| 492 | N 000931010395 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 492 | N 000931010402 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 493 | N 000931012283 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 494 | A 3432930052 | SPACER WASHER |
| RELEASE YOKE TO SHAFT | ||
| 495 | N 000471024000 | LOCK RING |
| RELEASE YOKE TO SHAFT | ||
| 500 | A 3852510083 | PLUG |
| BELL HOUSING | ||
| 500 | A 6202510383 | PLUG |
| BELL HOUSING | ||
| 510 | A 0002510283 | PLUG |
| BELL HOUSING | ||
| 510 | A 0002510083 | PLUG |
| BELL HOUSING | ||
| 520 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 530 | A 0012955607 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| A 0002951530 | PISTON | |
| A 0002951233 | ROD | |
| 533 | A 0002955683 | BOOT |
| 536 | A 0002950660 | REPAIR KIT |
| MAJOR | ||
| A 0002900147 | REPAIR KIT | |
| MINOR | ||
| 540 | N 000933008268 | SCREW |
| SLAVE CYLINDER TO BELL HOUSING | ||
| M 8X16 | ||
| 550 | A 3502510080 | GASKET |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 560 | A 0002507615 | RELEASE BEARING |
| 570 | N 071428004102 | SCREW-IN FITTING |
| 580 | A 3509930025 | SPRING |
| RELEASE BEARING TO RELEASE LEVER | ||
| 583 | A 3179930225 | SPRING |
| RELEASE YOKE | ||
| 590 | A 3079970082 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 590 | A 3859970582 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 590 | A 3509977182 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 591 | A 3502507043 | BRACKET |
| 592 | A 3502950040 | BRACKET |
| 593 | N 000933010129 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 594 | N 000127010202 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 595 | N 000933008288 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 596 | N 000125008417 | WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 597 | N 913004008011 | NUT |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 600 | N 003871004100 | UNION SCREW |
| RELEASE COLLAR LUBRICATION | ||
| 610 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE COLLAR LUBRICATION | ||
| 620 | N 912004014100 | LOCK WASHER |
| RELEASE COLLAR LUBRICATION | ||
| 630 | N 000934014020 | NUT |
| RELEASE COLLAR LUBRICATION | ||
| 640 | N 071428004102 | SCREW-IN FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 660 | A 3872510108 | INTERMEDIATE PIECE |
| Repalced by: A 6209970088 | ||
| 660 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209970088 | ||
| 660 | A 6209970088 | GREASE NIPPLE |
| RELEASE COLLAR LUBRICATION | ||
| 665 | A 6209880135 | CAP |
| RELEASE COLLAR LUBRICATION | ||
| 670 | A 3502517010 | COVER PLATE |
| 675 | N 000127008104 | LOCK WASHER |
| 680 | N 000933008050 | SCREW |
