Transporto priemonė: LS 1934; VIN numerio dalis: 350048

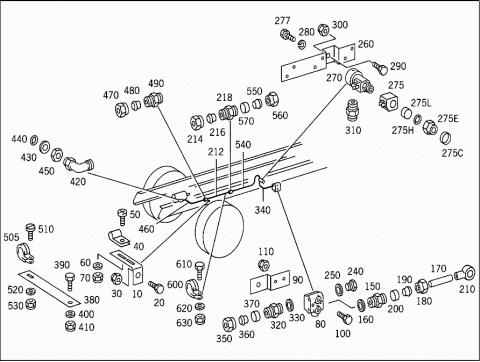

Grupė: 43 COMPRESSION RETARDER - 001 EXHAUST BRAKE

#	Kodas	Pavadinimas
010	A 3464295940	BRACKET
		COMPRESSED AIR LINE MOUNTING
020	N 000933008273	SCREW
		BRACKET TO SIDE MEMBER
		M 8X30
030	N 913004008001	NUT
		BRACKET TO SIDE MEMBER
040	A 3609950201	CLAMP
	Repalced by: A 3604300143
040	A 3604300143	CLAMP
	Repalced by: N 916016008200
040	N 916016008200	CLAMP
		COMPRESSED AIR LINE TO BRACKET
050	N 007985006502	SCREW
		COMPRESSED AIR LINE TO BRACKET
		M 6X20
060	N 000125006420	WASHER
		COMPRESSED AIR LINE TO BRACKET
070	N 913004006001	NUT
		COMPRESSED AIR LINE TO BRACKET
080	A 0004294037	DISTRIBUTOR
080	A 3454297237	DISTRIBUTOR
090	A 3504777341	BRACKET
100	N 000933006238	SCREW
		DISTRIBUTOR TO BRACKET
		M 6X40
110	N 913004006001	NUT
		DISTRIBUTOR TO BRACKET
150	N 003901008001	SCREW-IN FITTING
		DISTRIBUTOR,CONNECTION:
		3
	T YYYYYYYYYYYY	PART NAME MISSING
		SEE MICROFICHE NO.0812,GROUP 91, FIG.NO.:
160	N 007603012106	SEAL RING
		DISTRIBUTOR,CONNECTION:
		3
170	A 0089979082	HOSE
	Repalced by: A 0009874927
170	A 0009874927	PLASTIC PIPE
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
		3 - 8X6 MM
180	N 915017008100	UNION NUT
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
190	N 003861008005	GLAND
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
200	A 0019976672	FITTING
	Repalced by: N 915062006000
200	N 915062006000	SLEEVE
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
210	N 915052006014	BANJO UNION
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
212	A 3504208028	LINE
		FROM COMPRESSED AIR HOSE TO FITTING
214	N 915017006100	UNION NUT
216	N 003861006007	GLAND
218	N 003902006001	CONNECTION FITTING
240	N 007604012102	SCREW PLUG
		TO PLUG DISTRIBUTOR
250	N 007603012106	SEAL RING
		TO PLUG DISTRIBUTOR
260	A 3504777141	BRACKET
		THREE-WAY VALVE
270	A 3649977236	VALVE
		(THREE-WAY SOLENOID VALVE)
275	A 0007630956	MAGNET
275C	A 0014311687	PROTECTIVE CAP
275E	A 0004310472	NUT
275H	A 0139971648	SEAL RING
275L	A 0004311868	VALVE PART
277	N 000933005097	SCREW
		SOLENOID VALVE TO BRACKET
280	N 000127005001	LOCK WASHER
		SOLENOID VALVE TO BRACKET
290	N 000933012122	SCREW
		BRACKET TO SIDE MEMBER
		M 12X30
300	N 913004012003	NUT
		BRACKET TO SIDE MEMBER
310	A 3454297736	CONNECTOR
		SOLENOID VALVE
320	A 3454298136	CONNECTOR
		DISTRIBUTOR,CONNECTION "4"
330	N 007603012106	SEAL RING
		DISTRIBUTOR,CONNECTION "4"
340	A 0089976082	HOSE
		FROM DISTRIBUTOR TO VALVE
350	N 915017006100	UNION NUT
360	N 003861006007	GLAND
370	N 915062004000	SLEEVE
370	A 0009920105	BUSHING
380	A 3444297040	BRACKET
390	N 000933010174	SCREW
		BRACKET TO SIDE MEMBER
		M 10X25
400	N 000125010517	WASHER
		BRACKET TO SIDE MEMBER
410	N 913004010004	NUT
		BRACKET TO SIDE MEMBER
420	A 3454297438	ELBOW FITTING
		PNEUMATIC VALVE
430	A 0004290827	THRUST RING
	Repalced by: A 0009940103
430	A 0009940103	THRUST RING
		PNEUMATIC VALVE
440	A 0019875046	SEALING CORD
		PNEUMATIC VALVE
450	N 080705012003	NUT
		PNEUMATIC VALVE
460	A 3634203148	BRAKE HOSE
		PNEUMATIC VALVE
470	N 915017006100	UNION NUT
480	N 003861006007	GLAND
490	N 003902006001	CONNECTION FITTING
505	N 916016006201	CLAMP
505	A 3459957801	CLAMP
510	N 007985006515	SCREW
		HOSE TO BRACKET
		M 5X12
520	N 000125006420	WASHER
		HOSE TO BRACKET
530	N 913004006001	NUT
		HOSE TO BRACKET
540	A 0089976082	HOSE
		FROM SOLENOID VALVE TO FITTING
550	N 003861006007	GLAND
560	N 915017006100	UNION NUT
570	N 915062004000	SLEEVE
570	A 0009920105	BUSHING
600	N 916016006201	CLAMP
		COMPRESSED AIR LINE TO FRAME
600	A 3459957801	CLAMP
		COMPRESSED AIR LINE TO FRAME
610	N 000933006230	SCREW
		COMPRESSED AIR LINE TO FRAME
620	N 000125006420	WASHER
		COMPRESSED AIR LINE TO FRAME
630	N 913004006001	NUT
		COMPRESSED AIR LINE TO FRAME
