Transporto priemonė: LS 1934; VIN numerio dalis: 350048
Grupė: 54 ELEKTR. EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

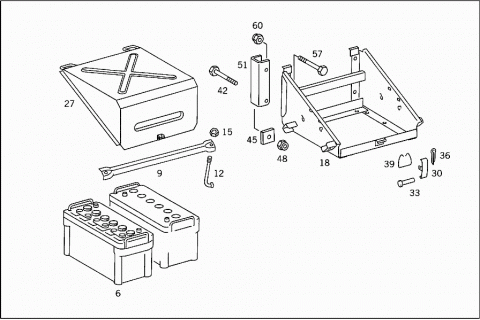

| 006 | A 3455410001 | BATTERY |
| 12V-88AH | ||
| 009 | A 3455417113 | MOUNTING RAIL |
| BATTERY MOUNTING | ||
| A 3455417122 | HOOK | |
| Repalced by: A 3455417222 | ||
| 012 | A 3455417222 | HOOK |
| BATTERY MOUNTING | ||
| 015 | N 000934008000 | NUT |
| BATTERY MOUNTING | ||
| A 3455400314 | BATTERY CASE | |
| Repalced by: A 3455407214 | ||
| 018 | A 3455407214 | BATTERY CASE |
| A 3505417060 | SEAL RING | |
| BATTERY CASE | ||
| 027 | A 3455407082 | COVER |
| BATTERY CASE | ||
| 027 | A 3455407282 | COVER |
| BATTERY CASE | ||
| 030 | A 3445400019 | MOUNTING BOW |
| BATTERY CASE | ||
| 030 | A 3445400019 | MOUNTING BOW |
| BATTERY CASE | ||
| 033 | N 001434005029 | PIN |
| BRACKET TO BOX COVER | ||
| 033 | N 001434005029 | PIN |
| BRACKET TO BOX COVER | ||
| 036 | N 000094001609 | COTTER PIN |
| BRACKET TO BOX COVER | ||
| 036 | N 000094001609 | COTTER PIN |
| BRACKET TO BOX COVER | ||
| 039 | A 3445410026 | BRACKET |
| BRACKET TO BOX COVER | ||
| 039 | A 3445410026 | BRACKET |
| BRACKET TO BOX COVER | ||
| 042 | N 000961014106 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X35 MM | ||
| 045 | A 3044750019 | BASE |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 048 | N 913004014005 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 051 | A 3505417010 | SUPPORT |
| REAR | ||
| 051 | A 3505417110 | SUPPORT |
| FRONT | ||
| 057 | N 000961014106 | SCREW |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 060 | N 913004014005 | NUT |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||

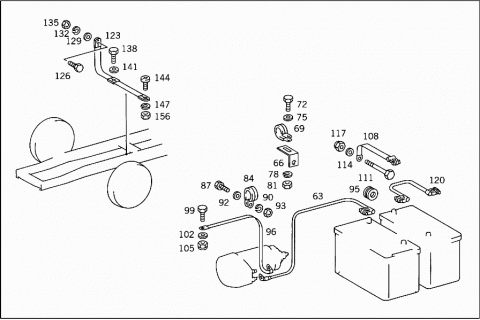

| 063 | A 3505407130 | POSITIVE CABLE |
| FROM STARTING MOTOR TO BATTERY POS. POLE | ||
| 063 | A 3505407330 | POSITIVE CABLE |
| FROM STARTING MOTOR TO BATTERY POS. POLE | ||
| 066 | A 3464295640 | BRACKET |
| BATTERY CABLE | ||
| 069 | N 916016015200 | CLAMP |
| BATTERY CABLE TO BRACKET | ||
| 069 | A 3459958101 | CLAMP |
| BATTERY CABLE TO BRACKET | ||
| 072 | N 000933006220 | SCREW |
| BATTERY CABLE TO BRACKET | ||
| 075 | N 000125006420 | WASHER |
| BATTERY CABLE TO BRACKET | ||
| 078 | N 000127006203 | LOCK WASHER |
| BATTERY CABLE TO BRACKET | ||
| 081 | N 000934006006 | NUT |
| BATTERY CABLE TO BRACKET | ||
| 084 | N 916016015200 | CLAMP |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 084 | A 3459958101 | CLAMP |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 084 | N 916016018202 | CLAMP |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| 087 | N 000933008288 | SCREW |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| M 8X25 | ||
| 087 | N 000933008288 | SCREW |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| M 8X25 | ||
| 087 | N 000933008294 | SCREW |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| M 8X32 | ||
| 090 | N 912004008100 | LOCK WASHER |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 090 | N 912004008100 | LOCK WASHER |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| 092 | N 000125008417 | WASHER |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| 093 | N 000934008000 | NUT |
| ELECTRIC CABLE TO CONTROL VALVE BRACKET AND TO SIDE MEMBER | ||
| 093 | N 000934008000 | NUT |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| 095 | A 3209970682 | HOSE |
| BATTERY CABLE PASSAGE | ||
| 095 | A 3609970181 | GROMMET |
| BATTERY CABLE PASSAGE | ||
| 096 | A 3505400141 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 099 | N 000933010129 | SCREW |
| GROUND STRAP TO SIDE MEMBER | ||
| 102 | N 000125010517 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 105 | N 913004010004 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||
| 108 | A 3455407441 | GROUND STRAP |
| FROM BATTERY NEG. POLE TO GROUND | ||
| 111 | N 000961014106 | SCREW |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 114 | N 000125015012 | WASHER |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 117 | N 913004014004 | NUT |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 120 | A 3505407030 | POSITIVE CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 123 | A 3375400341 | GROUND STRAP |
| Repalced by: A 3505407041 | ||
| 123 | A 3505407041 | GROUND STRAP |
| GROUND STRAP TO ENGINE | ||
| 126 | N 000933010294 | SCREW |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 129 | N 000125010517 | WASHER |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 132 | N 000127010202 | LOCK WASHER |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 135 | N 000934010000 | NUT |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 138 | N 000933008005 | SCREW |
| GROUND CABLE TO ENGINE | ||
| 141 | N 000125008417 | WASHER |
| GROUND CABLE TO ENGINE | ||
| 144 | N 007985006515 | SCREW |
| GROUND CABLE TO FENDER | ||
| 144 | N 007985006515 | SCREW |
| GROUND CABLE TO WINDOW SILL | ||
| 147 | N 000127006203 | LOCK WASHER |
| GROUND CABLE TO FENDER | ||
| 147 | N 000127006203 | LOCK WASHER |
| GROUND CABLE TO WINDOW SILL | ||
| 156 | N 000934006006 | NUT |
| GROUND CABLE TO WINDOW SILL | ||

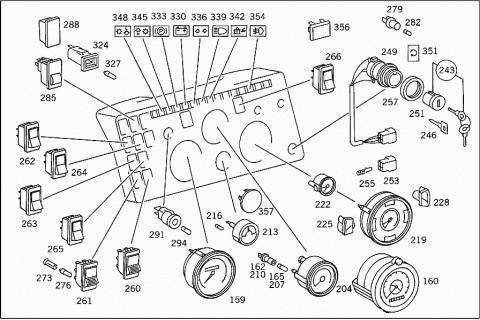

| 159 | A 3505427206 | SPEEDOMETER |
| VDO | ||
| 160 | A 3505427210 | TACHOGRAPH |
| VDO | ||
| 162 | A 3455440093 | LAMP SOCKET |
| 165 | N 072601024801 | BULB |
| 24V-2W | ||
| A 3445427194 | DIAGRAM PAPER | |
| SET = 10 PACKS OF 7 PIECES | ||

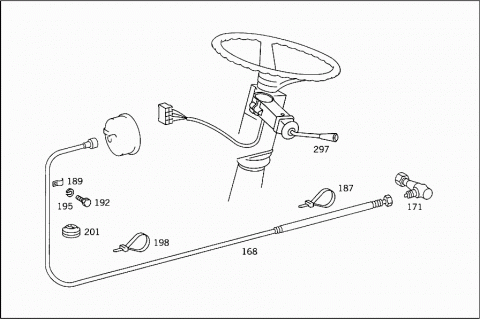

| 168 | A 3455427307 | FLEXIBLE SHAFT |
| 168 | A 3845427907 | FLEXIBLE SHAFT |
| A 3455428030 | ANGLE DRIVE | |
| Repalced by: A 3445428030 | ||
| 171 | A 3445428030 | ANGLE DRIVE |
| 187 | A 3459977290 | LOOM TIE |
| FLEXIBLE SHAFT TO COMPRESSED AIR LINE | ||
| 189 | A 3049951520 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| Repalced by: A 1009950420 | ||
| 189 | A 1009950420 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| 192 | N 000933006220 | SCREW |
| FLEXIBLE SHAFT TO CAB | ||
| 195 | N 000127006203 | LOCK WASHER |
| FLEXIBLE SHAFT TO CAB | ||
| 198 | A 3459977290 | LOOM TIE |
| FLEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| 201 | A 3459977481 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 204 | A 3505427416 | TACHOMETER |
| HORASA | ||
| 204 | A 3505427516 | TACHOMETER |
| VDO | ||
| 207 | N 072601024801 | BULB |
| 24V-2W | ||
| 210 | A 3455440093 | LAMP SOCKET |
| 213 | A 3455427224 | AMMETER |
| 216 | N 072601024801 | BULB |
| AMMETER | ||
| 24V-2W | ||
| 219 | A 3505407647 | INSTRUMENT CLUSTER |
| VDO | ||
| 219 | A 3505407847 | INSTRUMENT CLUSTER |
| HORASA | ||
| 222 | A 0015422908 | AIR PRESSURE GAUGE |
| TO 350 540 76 47 | ||
| 225 | A 0025428803 | FUEL GAUGE DASH UNIT |
| TO 350 540 76 47 | ||
| 228 | A 0035428305 | TEMPERATURE GAUGE |
| TO 350 540 76 47 | ||

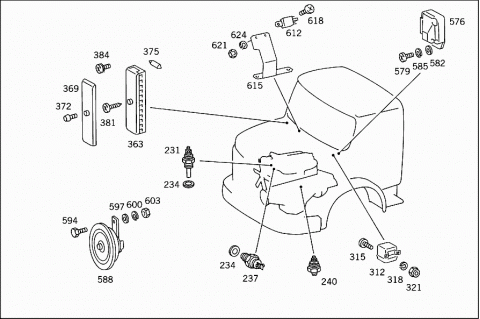

| 231 | A 3455427717 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 231 | A 0025425917 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 231 | A 3455427417 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 231 | A 3455427517 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 234 | N 007603014402 | SEAL RING |
| TO COOLING WATER TEMPERATURE SWITCH AND TO TEMPERATURE GAUGE SENDER UNIT | ||
| 237 | A 3455458224 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE | ||
| 237 | A 3455457824 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE | ||
| A 0015426917 | SENDER UNIT | |
| Repalced by: A 0015427017 | ||
| 240 | A 0015427017 | SENDER UNIT |
| OIL PRESSURE | ||
| 240 | A 3455427117 | SENDER UNIT |
| OIL PRESSURE | ||
| 243 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "HAGA" | ||
| 243 | A 3458937103 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "UNIVEL" | ||
| 246 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 246 | A 0007668506 | KEY |
| BLANK | ||
| "UNIVEL" | ||
| 249 | A 3455457213 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| 251 | A 0005450042 | FOLLOWER |
| IGNITION/STARTING SWITCH | ||
| 253 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 255 | A 0025451428 | PLUG |
| 257 | A 0005422172 | NUT |
| IGNITION/STARTING SWITCH | ||
| TO 345 545 72 13 | ||
| 260 | A 3505457214 | SWITCH |
| PANE WIPER | ||
| 261 | A 3505458414 | SWITCH |
| PANE WASHER | ||
| 262 | A 3505458014 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| 263 | A 3505458214 | SWITCH |
| (LIGHT SWITCH) | ||
| 264 | A 3505458114 | SWITCH |
| EXHAUST BRAKE DIRECT CONTROL | ||
| 265 | A 3505458614 | SWITCH |
| (INTERMITTENT ACTION SWITCH) | ||
| 266 | A 3505457314 | SWITCH |
| FOGLAMP | ||
| 273 | A 0005446293 | LAMP SOCKET |
| PUSH BUTTON SWITCH | ||
| KOSTAL | ||
| 276 | A 3505447094 | BULB |
| Repalced by: A 3885447293 | ||
| 276 | A 3885447293 | LAMP SOCKET |
| PUSH BUTTON SWITCH | ||
| 279 | A 3455447093 | LAMP SOCKET |
| HEATING | ||
| 279 | A 3455440193 | LAMP SOCKET |
| HEATING | ||
| 282 | N 072601024801 | BULB |
| HEATING | ||
| 24V-2W | ||
| 285 | A 3645427425 | POTENTIOMETER |
| Repalced by: A 3645427625 | ||
| 285 | A 3645427625 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 288 | A 3645457083 | CAP |
| INSTRUMENT PANEL | ||
| 291 | A 3645457524 | SWITCH,AUTOMATIC |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 294 | A 3505447094 | BULB |
| Repalced by: A 3885447293 | ||
| 294 | A 3885447293 | LAMP SOCKET |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 297 | A 3455457524 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 312 | A 3505447132 | SENDER UNIT |
| BLINKER | ||
| 312 | A 3505447632 | SENDER UNIT |
| BLINKER | ||
| 312 | A 3505447732 | SENDER UNIT |
| BLINKER | ||
| 315 | N 007985006127 | SCREW |
| BLINKER SENDER UNIT TO BODY | ||
| 318 | N 000127006203 | LOCK WASHER |
| BLINKER SENDER UNIT TO BODY | ||
| 321 | N 913004006001 | NUT |
| BLINKER SENDER UNIT TO BODY | ||
| 324 | A 3455457115 | TELL-TALE LAMP |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 327 | N 072601024801 | BULB |
| TELL-TALE LAMP | ||
| 24V-2W | ||
| 330 | A 3445458290 | LENS |
| CHARGE CONTROL | ||
| 333 | A 3445458390 | LENS |
| PARKING BRAKE | ||
| 336 | A 3445457990 | LENS |
| BLINKER | ||
| 339 | A 3445458890 | LENS |
| HIGH BEAM INDICATION | ||
| 342 | A 3445459190 | LENS |
| AIR CLEANER | ||
| 345 | A 3445458190 | LENS |
| TRANSMISSION | ||
| 348 | A 3445458590 | LENS |
| TRANSMISSION | ||
| 351 | A 3455457790 | LENS |
| IGNITION/STARTING SWITCH | ||
| 354 | A 3455459390 | LENS |
| FOGLAMP | ||
| 356 | A 3319977035 | PLUG |
| TELL-TALE LAMP | ||
| 357 | A 3316897208 | COVERING |
| STARTER PILOT | ||
| 363 | A 3455457701 | FUSE BOX |
| 12-POLE | ||
| 363 | A 3455457801 | FUSE BOX |
| 12-POLE | ||
| 369 | A 3455407182 | COVER |
| 372 | A 3455457071 | SCREW |
| 375 | A 3085450134 | FUSE |
| 5 A | ||
| 375 | A 3085450234 | FUSE |
| 8 A | ||
| 381 | N 007981004258 | SHEET METAL SCREW |
| FUSE BOX TO WINDOW SILL | ||
| 384 | N 914028004100 | COMBINATION BOLT |
| ELECTRIC CABLE TO FUSE BOX | ||

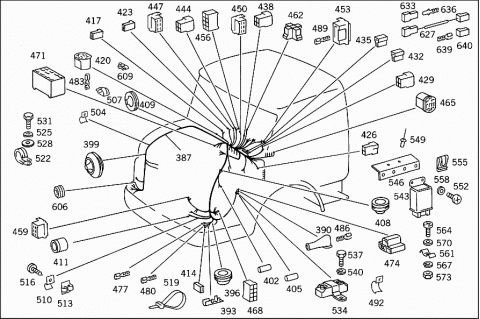

| 387 | A 3505407205 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 390 | A 0005460235 | BOOT |
| ALTERNATOR | ||
| B+ | ||
| 393 | A 0005440156 | CONTACT PIECE |
| 396 | A 1109970481 | GROMMET |
| 399 | A 3459977981 | GROMMET |
| 402 | A 0009970381 | GROMMET |
| 405 | A 0009970581 | GROMMET |
| 408 | A 3229970581 | GROMMET |
| 409 | A 3459977881 | GROMMET |
| 411 | A 3449977181 | GROMMET |
| HORN | ||
| 414 | A 0005451745 | BOOT |
| TO 350 540 71 05 | ||
| 417 | A 3645457145 | PIN BUSHING HOUSING |
| POTENTIOMETER | ||
| TO 350 540 72 05 | ||
| 420 | A 3455457028 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| 423 | A 0015456728 | PLUG HOUSING |
| UNIPOLAR | ||
| A 0015457028 | PLUG HOUSING | |
| Repalced by: A 0015457928 | ||
| 426 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 429 | A 0025459228 | PIN BUSHING HOUSING |
| IGNITION/STARTING SWITCH | ||
| 432 | A 0015459528 | PIN BUSHING HOUSING |
| IGNITION/STARTING SWITCH | ||
| 435 | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 438 | A 0015457328 | PIN BUSHING HOUSING |
| SPEEDOMETER | ||
| 438 | A 0035459528 | PIN BUSHING HOUSING |
| TACHOGRAPH | ||
| 444 | A 0015455928 | PIN BUSHING HOUSING |
| BLINKER SENDER UNIT | ||
| 447 | A 0015452628 | PIN BUSHING HOUSING |
| BLINKER SENDER UNIT | ||
| 450 | A 0035451128 | PIN BUSHING HOUSING |
| INTERMITTENT ACTION SWITCH | ||
| 453 | A 0025459628 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 456 | A 0045459328 | PIN BUSHING HOUSING |
| STEERING COLUMN MOUNTED | ||
| 459 | A 3505457028 | PLUG |
| REGULATOR AND CUT-OUT | ||
| 462 | A 3445457228 | PLUG HOUSING |
| 4-POLE | ||
| 465 | A 3445457128 | PIN BUSHING HOUSING |
| PANE WIPER | ||
| 468 | A 0015452928 | PIN BUSHING HOUSING |
| FRONT PLUG CONNECTION | ||
| 471 | A 3455457128 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 474 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 474 | A 0385452528 | PLUG |
| ALTERNATOR | ||
| 477 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 480 | A 0005453726 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.50 MM2 | ||
| 483 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 486 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.50 MM2 | ||
| 489 | A 0005453726 | PIN BUSHING |
| CONTACTOR | ||
| 2.50 MM2 | ||
| A 3845467035 | BOOT | |
| ALTERNATOR | ||
| 492 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL | ||
| 504 | A 3449957120 | CLAMP |
| 507 | A 3089880078 | CLIP |
| 510 | A 1869950037 | CLAMP |
| Repalced by: A 3449957120 | ||
| 510 | A 3449957120 | CLAMP |
| 513 | A 0009941345 | LOCK |
| 516 | N 007981004275 | SHEET METAL SCREW |
| 519 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 519 | A 3459977390 | LOOM TIE |
| MAIN CABLE HARNESS TO WATER TANK | ||
| 519 | A 3509978490 | LOOM TIE |
| ELECTRIC CABLE TO FIRE WALL | ||
| 522 | N 916016018201 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 522 | A 3459958601 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 525 | N 000137005101 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 528 | N 009021005104 | WASHER |
| CABLE TO ALTERNATOR | ||
| 531 | N 000933005034 | SCREW |
| CABLE TO ALTERNATOR | ||
| 534 | A 3505457018 | RESISTOR |
| 537 | N 000933060016 | SCREW |
| RESISTOR | ||
| 540 | N 000127006203 | LOCK WASHER |
| RESISTOR | ||
| 543 | A 3645457324 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT | ||
| 546 | A 3505407173 | BRACKET |
| WIPER PULSE SENDER UNIT | ||
| 549 | A 3449908197 | RIVET |
| BRACKET TO WINDOW LEVEL GIRDER UPPER PART | ||
| 552 | N 007985004126 | SCREW |
| WIPER PULSE SENDER UNIT | ||
| 555 | N 912007004103 | CLIP |
| WIPER PULSE SENDER UNIT | ||
| 558 | N 000125004313 | WASHER |
| WIPER PULSE SENDER UNIT | ||
| 561 | A 3379950032 | CLAMP |
| LINE TO SIDE MEMBER | ||
| 564 | N 007985006515 | SCREW |
| LINE TO SIDE MEMBER | ||
| 567 | N 000127006203 | LOCK WASHER |
| LINE TO SIDE MEMBER | ||
| 570 | N 009021006103 | WASHER |
| LINE TO SIDE MEMBER | ||
| 573 | N 000934006006 | NUT |
| LINE TO SIDE MEMBER | ||
| 576 | A 3505477102 | REGULATOR AND CUT-OUT |
| 579 | N 007985006137 | SCREW |
| REGULATOR AND CUT-OUT | ||
| 582 | N 000125006420 | WASHER |
| 585 | N 912004006100 | LOCK WASHER |
| REGULATOR AND CUT-OUT | ||
| 588 | A 3505427120 | HORN |
| 588 | A 3505427220 | HORN |
| 588 | A 3885427020 | HORN |
| 594 | N 000933010174 | SCREW |
| HORN TO STRUT | ||
| 597 | N 000125010517 | WASHER |
| HORN TO STRUT | ||
| 600 | N 000127010202 | LOCK WASHER |
| HORN TO STRUT | ||
| 603 | N 000934010000 | NUT |
| HORN TO STRUT | ||
| 606 | A 3049970681 | GROMMET |
| ELECTRIC CABLE THRU ENGINE CROSS MEMBER | ||
| 20 MM | ||
| 606 | A 3559970081 | GROMMET |
| ELECTRIC CABLE THRU ENGINE CROSS MEMBER | ||
| 14 MM | ||
| 609 | A 3449880078 | CLIP |
| ELECTRIC CABLE TO ENGINE SUPPORT | ||
| 612 | A 3505427019 | RELAY |
| 612 | A 3505427019 | RELAY |
| 612 | A 3505427119 | RELAY |
| 612 | A 3505427119 | RELAY |
| 615 | A 3455427840 | BRACKET |
| RELAY | ||
| A 3505407373 | BRACKET | |
| RELAY | ||
| 618 | N 007985005183 | SCREW |
| RELAY | ||
| 618 | N 007985005183 | SCREW |
| RELAY | ||
| 621 | N 000934005008 | NUT |
| RELAY | ||
| 624 | N 000127005001 | LOCK WASHER |
| RELAY | ||
| 624 | N 000127005001 | LOCK WASHER |
| RELAY | ||
| 627 | A 3505407165 | RESISTOR |
| 627 | A 3015400265 | RESISTOR |
| 633 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| TO 301 504 02 65 | ||
| 636 | A 0005456728 | PLUG |
| TO 350 540 71 65 | ||
| 639 | A 0005453726 | PIN BUSHING |
| 640 | A 0005451745 | BOOT |
| 642 | A 0005466141 | CABLE CONNECTOR |
| 6-POLE | ||
| 645 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 648 | A 3275425038 | SHIM |
| CABLE CONNECTOR | ||
| 651 | N 007985004500 | SCREW |
| CABLE CONNECTOR | ||
| M 4X40 | ||
| 654 | N 009021004103 | WASHER |
| CABLE CONNECTOR | ||
| 657 | N 000934004014 | NUT |
| CABLE CONNECTOR | ||
| 660 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR | ||

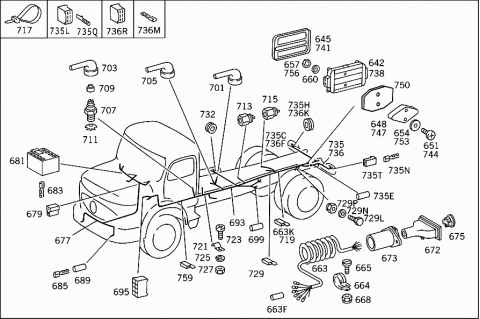

| 663 | A 3505407427 | ELECTRIC CABLE |
| FROM JUNCTION BOX TO TRAILER PLUG SOCKET | ||
| 663 | A 3505409736 | ELECTRIC CABLE |
| FROM JUNCTION BOX TO TRAILER PLUG SOCKET | ||
| 663F | A 0009970381 | GROMMET |
| 663F | A 0009970381 | GROMMET |
| 663K | A 3045461275 | CLAMP |
| 664 | N 916016015202 | CLAMP |
| 664 | A 3459957701 | CLAMP |
| 665 | N 007985006502 | SCREW |
| 668 | N 913004006001 | NUT |
| 672 | A 3505457126 | PLUG |
| 6-POLE | ||
| 673 | A 3505457326 | PLUG |
| 7-POLE | ||
| 675 | A 3445447060 | PLUG SOCKET HOUSING |
| A 3445467141 | CABLE CONNECTOR | |
| 677 | A 3455409434 | CABLE HARNESS |
| Repalced by: A 3505409437 | ||
| 677 | A 3505409437 | ELECTRIC CABLE |
| FOGLAMP | ||
| A 0015451028 | PIN BUSHING HOUSING | |
| Repalced by: A 0015458728 | ||
| 679 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 681 | A 3455457128 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 683 | A 0005453826 | PIN BUSHING |
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 685 | A 0005453726 | PIN BUSHING |
| 685 | A 0005454626 | PIN BUSHING |
| 689 | A 0009970381 | GROMMET |
| 689 | A 0009970581 | GROMMET |
| 693 | A 3505409137 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 695 | A 0015453128 | PLUG HOUSING |
| 8-POLE | ||
| 695 | A 0025459328 | PLUG HOUSING |
| 8-POLE | ||
| 699 | A 0009970381 | GROMMET |
| 699 | A 0009970581 | GROMMET |
| 701 | A 3645407081 | PLUG SOCKET |
| 703 | A 0005400281 | PLUG SOCKET |
| 705 | A 0005400181 | PLUG SOCKET |
| 707 | A 0005457009 | SWITCH |
| STOP LIGHT | ||
| 707 | A 3645457109 | SWITCH |
| STOP LIGHT | ||
| 709 | A 3465450045 | BOOT |
| STOP LIGHT SWITCH | ||
| TO OOO 545 70 09 | ||
| 711 | N 006797016152 | TOOTHED WASHER |
| STOP LIGHT SWITCH | ||
| 713 | A 0005455414 | SWITCH |
| HAND BRAKE | ||
| 713 | A 3445457214 | SWITCH |
| HAND BRAKE | ||
| 715 | A 0005454314 | SWITCH |
| HAND BRAKE CIRCUIT | ||
| 715 | A 3445457314 | SWITCH |
| HAND BRAKE CIRCUIT | ||
| 717 | A 3459977290 | LOOM TIE |
| ELECTRIC CABLE TO COMPRESSED AIR LINE | ||
| 719 | A 3045461275 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 721 | A 3049950220 | CLAMP |
| ELECTRIC CABLE TO FRAME | ||
| 723 | N 007985006502 | SCREW |
| ELECTRIC CABLE TO FRAME | ||
| 725 | N 000127006203 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME | ||
| 727 | N 000934006006 | NUT |
| ELECTRIC CABLE TO FRAME | ||
| 729 | A 3449880078 | CLIP |
| ELECTRIC CABLE TO FRAME | ||
| 729L | N 000933010129 | SCREW |
| GROUND CABLE TO FRAME | ||
| 729N | N 000125010517 | WASHER |
| GROUND CABLE TO FRAME | ||
| 729P | N 913004010004 | NUT |
| GROUND CABLE TO FRAME | ||
| 732 | A 3049970681 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 20 MM | ||
| 732 | A 3559970081 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 14 MM | ||
| 735 | A 3505407127 | ELECTRIC CABLE |
| LEFT TAIL LAMP | ||
| 735 | A 3505407007 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 735 | A 3505407107 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 735C | A 3455400727 | ELECTRIC CABLE |
| RIGHT TAIL LAMP | ||
| 735C | A 3505407507 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 735C | A 3505407407 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 735E | A 0009970381 | GROMMET |
| 735E | A 0009970381 | GROMMET |
| 735H | A 8339970281 | GROMMET |
| 735H | A 8339970281 | GROMMET |
| 735L | A 0015456028 | PLUG HOUSING |
| 735N | A 0005453726 | PIN BUSHING |
| 735Q | A 0015458628 | PLUG |
| 735T | A 0005451745 | BOOT |
| 736 | A 3505407207 | CABLE HARNESS |
| CABLE JUNCTION POINT | ||
| 736F | A 3505407307 | CABLE HARNESS |
| 736K | A 0009970381 | GROMMET |
| 736M | A 0005453826 | PIN BUSHING |
| 736R | A 0075450528 | PIN BUSHING HOUSING |
| 738 | A 0005466141 | CABLE CONNECTOR |
| 6-POLE | ||
| 741 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 744 | N 007985004500 | SCREW |
| CABLE CONNECTOR | ||
| 744 | N 007985004500 | SCREW |
| CABLE CONNECTOR | ||
| N 007985004124 | SCREW | |
| CABLE CONNECTOR | ||
| 747 | A 3275425038 | SHIM |
| CABLE CONNECTOR | ||
| 750 | A 3125461178 | INSULATION |
| CABLE CONNECTOR | ||
| 753 | N 009021004103 | WASHER |
| CABLE CONNECTOR | ||
| 756 | N 000934004014 | NUT |
| CABLE CONNECTOR | ||
| 759 | A 3449880078 | CLIP |

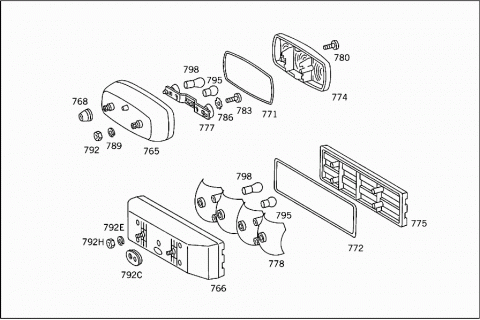

| 765 | A 3455447003 | TAIL LAMP |
| LEFT | ||
| "IAM" | ||
| 765 | A 3455447203 | TAIL LAMP |
| LEFT | ||
| "BIANCO SAVINO" | ||
| 765 | A 3455447503 | TAIL LAMP |
| LEFT | ||
| "POLIMATIC" | ||
| 765 | A 3455447103 | TAIL LAMP |
| RIGHT | ||
| "IAM" | ||
| 765 | A 3455447303 | TAIL LAMP |
| RIGHT | ||
| "BIANCO SAVINO" | ||
| 765 | A 3455447603 | TAIL LAMP |
| RIGHT | ||
| "POLIMATIC" | ||
| 766 | A 0025440803 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 766 | A 6885447203 | TAIL LAMP |
| RIGHT | ||
| "ARTEB" | ||
| 766 | A 0025442403 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 766 | A 6885447103 | TAIL LAMP |
| LEFT | ||
| "ARTEB" | ||
| 768 | A 0445440081 | GROMMET |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 771 | A 0085440080 | GASKET |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 771 | A 0005449380 | GASKET |
| TO 345 540 72 03,73 03;BIANCO SAVINO | ||
| 771 | A 0005449280 | GASKET |
| TO 345 540 75 03,76 03;POLIMATIC | ||
| 772 | A 0005449480 | GASKET |
| TO 002 544 08 03,24 03 "HELLA" | ||
| 772 | A 0005449780 | GASKET |
| TO 688 544 71 03,72 03 "ARTEB" | ||
| 774 | A 0085440090 | LENS |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 774 | A 0025440390 | LENS |
| TO 345 540 72 03,73 03;BIANCO SAVINO | ||
| 774 | A 0025440290 | LENS |
| TO 345 540 75 03,76 03;POLIMATIC | ||
| 775 | A 0025440790 | LENS |
| WITH SCREWS | ||
| TO 002 544 08 30,24 03 "HELLA" | ||
| 775 | A 0025441890 | LENS |
| TO 688 544 71 03,72 03 "ARTEB" | ||
| 777 | A 0085440093 | LAMP SOCKET |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 778 | A 0005448492 | REFLECTOR |
| LEFT | ||
| TO 688 544 71 03,"ARTEB" | ||
| 778 | A 0005448592 | REFLECTOR |
| RIGHT | ||
| TO 688 544 72 03,"ARTEB" | ||
| 780 | N 007985006240 | SCREW |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 783 | N 007985004181 | SCREW |
| TO 345 540 70 03,345 540 71 03;IAM | ||
| 786 | N 006797004132 | TOOTHED WASHER |
| TO 345 540 70 03,345 540 71 03;IAM | ||
| 789 | N 000127008206 | LOCK WASHER |
| TO 345 540 70 03,345 540 71 03;IAM | ||
| 792 | N 000934008000 | NUT |
| TO 345 540 70 03,345 540 71 03;IAM | ||
| 792C | A 6675460137 | GROMMET |
| A 6885447076 | WASHER | |
| TAIL LAMP TO BRACKET | ||
| N 009021008102 | WASHER | |
| TAIL LAMP TO BRACKET | ||
| 792E | N 000127008203 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 792H | N 000934008013 | NUT |
| TAIL LAMP TO BRACKET | ||
| 795 | N 072601024702 | BULB |
| 10 W | ||
| 795 | N 072601024702 | BULB |
| 10 W | ||
| 798 | N 072601024190 | BULB |
| 21 W | ||
| 798 | N 072601024190 | BULB |
| 21 W | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
